SATO RACING | Rear Sets - Kawasaki Ninja300 (250) / Z300 (Z250) ('13-'17)

KAWASAKI NINJA 300 (NINJA 250) '13-'17 /
Z300 (ER300/ Z250) '14-'17
REAR SETS

SATO RACING Rear Sets for 2013-17 Kawasaki Ninja 300, along with (non-US models) Ninja 250* and Z300/ Z250, features components precision machined out of light-weight, high strength anodized billet aluminum, with stainless steel fasteners. Adjustable peg mount lets you select from 4 unique foot peg positions that bring your feet higher up and further back compared to the stock peg position, for a sportier, more aggressive riding position well-suited to spirited riding. Choice of Black, Silver or Gold anodized finish.

An optional Reverse Shift Kit lets you set up the Rear Sets for reverse (GP style) shift pattern.

* Not compatible with Ninja 250 SL ('15)

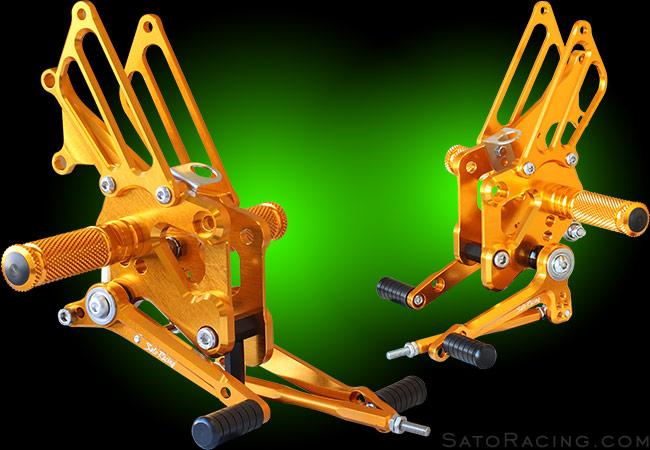

SATO RACING Ninja 300 / 250 / Z250 ('13-'16) Rear Sets

POSITIONS

1	27.5mm Back	25mm Up
2	40mm Back	25mm Up
3	40mm Back	37.5mm Up
4	52.5mm Back	37.5mm Up

note: all measurements are in relation to stock position (0 mm).

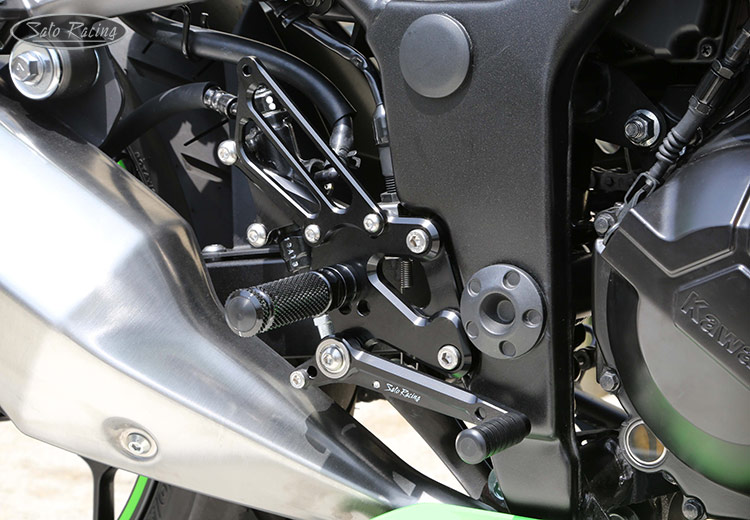

SATO RACING Ninja 300 / 250 / Z250 ('13-'17) Rear Sets [R]-side
The position of the Foot Peg is adjustable 4 ways. The Pedal Tip position is also adjustable.

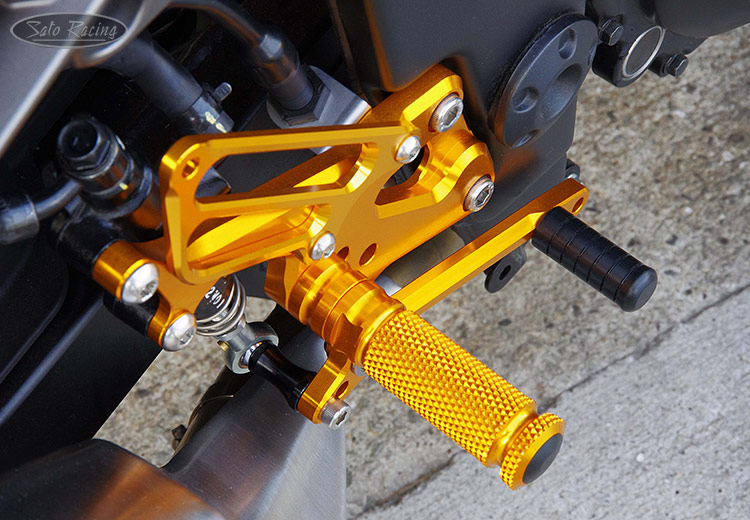

SATO RACING Ninja 300 / 250 / Z250 ('13-'17) Rear Sets [R]-side
These Rear Sets work with the stock rear brake light pull switch,
and are compatible with both non-ABS and ABS equipped models.

SATO RACING Ninja 300 / 250 / Z250 ('13-'17) Rear Sets [R]-side
The shifter and brake pedal utilize double miniature stainless
bearings for smooth, precise lever actuation with a solid feel.

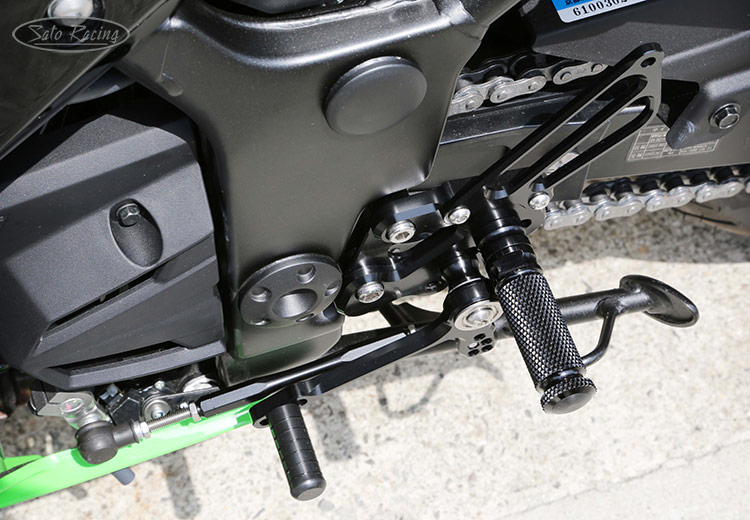

SATO RACING Ninja 300 / 250 / Z250 ('13-'17) Rear Sets [L]-side
The shift stroke can be fine-tuned by changing the mount position of the shift rod on the shift pedal.

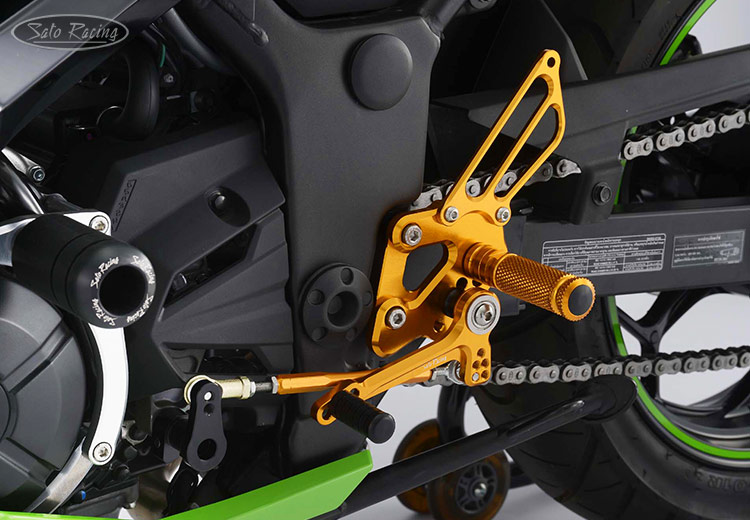

SATO RACING Ninja 300 / 250 / Z250 ('13-'17) Rear Sets [L]-side
Finely knurled Foot Pegs provide the ideal blend of great grip and a comfortable, intuitive feel. The
standard Pedal Tips are made of tough Delrin. Additional styles of Pedal Tips are also available.

SATO RACING Ninja 300 / 250 / Z250 ('13-'17) Rear Sets [L]-side

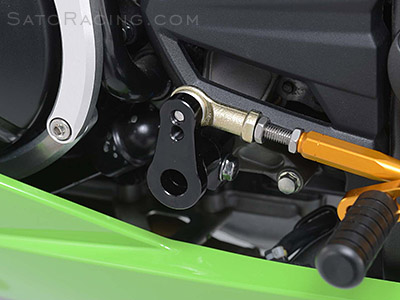

Shown installed with optional Reverse Shift Kit

BLACK	K-25013RS-BK $455
SILVER	K-25013RS-SV $455
GOLD	K-25013RS-GD $455

Click Here for important info about Sato color-anodized parts.

OPTIONS

REVERSE SHIFT KIT

Reverse Shift Kit for Sato Ninja 250R / 300 Rear Sets

This shift arm kit provides a reverse shift pattern for SATO RACING Rear Sets. Fits Rear Sets models #K-250RS- (Ninja 250/R '08-'12) and #K-25013RS- (Ninja300/ 250 / Z250 '13- ). Black anodized billet aluminum with stainless steel hardware.

Reverse Shift Kit for SATO RACING Ninja 300 / 250 ('13-'17) Rear Sets

REVERSE SHIFT KIT

K-250RS-CHAM-L
$75

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list included
with your Sato Racing Rear Sets, or view the PDF file: Parts List

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	PEG COLLAR 15 (BK/ SV/ GD) (#16)	PEGCLR-15 $15
	HEX HEAD M8-40mm (#29, Foot Peg bolt)	HBT-M840 $2.00
	SPLIT WASHER M8 (#32)	SWS-8 $1.20
	PEDAL TIP (DELRIN)	ST-001D18 $15
	BUTTON HEAD M6-20mm (for Pedal Tip)	BBT-M620 $1.50
	[L] HEEL GUARD (BK/ SV/ GD) (L-side #1)	HG-2L $50
	SHIFT PEDAL (BK/ SV/ GD) (L-side #5)	SPD-0912 $62.50
	SHIFT ROD 110 (BK/ SV/ GD) (L-side #6)	SRD-110 $39
	ROD END COLLAR 3 (L-side #12)	RDED-CLR3 $6.00
	BASE PLATE COLLAR 10 (L-side #15)	BPCLR-10 $8.00
	SOCKET HEAD M6-20mm (L-side #18)	SBT-M620 $1.50
	SOCKET HEAD M8-25mm (L-side #21)	SBT-M825 $1.50
	[R] HEEL GUARD (BK/ SV/ GD) (R-side #2)	HG-2R $50
	BASE PLATE COLLAR 5 (R-side #14)	BPCLR-5 $8.00
	SOCKET HEAD M8-20mm (R-side #20)	SBT-M820 $1.50
	BUTTON HEAD M8-20mm (R-side #25)	BBT-M820 $1.50
	HEX HEAD M5-8mm (R-side #28)	HBT-M58 $2.00
	PULL SWITCH STAY 16 (R-side #40)	PSTAY-16 $9.50
	RETURN SPRING 40	RS-RSP $8.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
