YAMAHA MT-09/ SP '21-'25 / XSR900 '22-
REAR SETS
| SATO RACING Rear Sets for 2021-25 Yamaha MT-09/ SP and 2022+ XSR900 features a track-engineered, competition-ready design, with components precision machined out of light-weight, high strength anodized billet aluminum. You can select from 5 adjustable foot peg positions that bring your feet higher up and further back compared to stock, for enhanced control and improved handling at the limit. Shift linkage can be set up for stock shift pattern or reverse shift pattern, and can be used both with the standard shift linkage and quickshifter-equipped models. Fully compatible with the stock brake light switch and ABS. Choice of Black or Gold anodized finish. |
POSITIONS
| 1 | 20mm Back | 20mm Up |
| 2 | 20mm Back | 32.5mm Up |
| 3 | 32.5mm Back | 20mm Up |
| 4 | 32.5mm Back | 32.5mm Up |
| 5 | 32.5mm Back | 45mm Up |
note: all measurements are in relation to stock position (0 mm).
| For an even more rearward range of peg positions than this model, check out our new Type 2 Rear Sets for MT-09/SP / XSR900/GP. Designed for the 2024 XSR900GP, it will also fit the standard MT09 and XSR900. |
![SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22- Rear Sets [R]-side in Gold](pics/Y-MT0921RS-GD_fitR1.jpg "SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22- Rear Sets [R]-side")

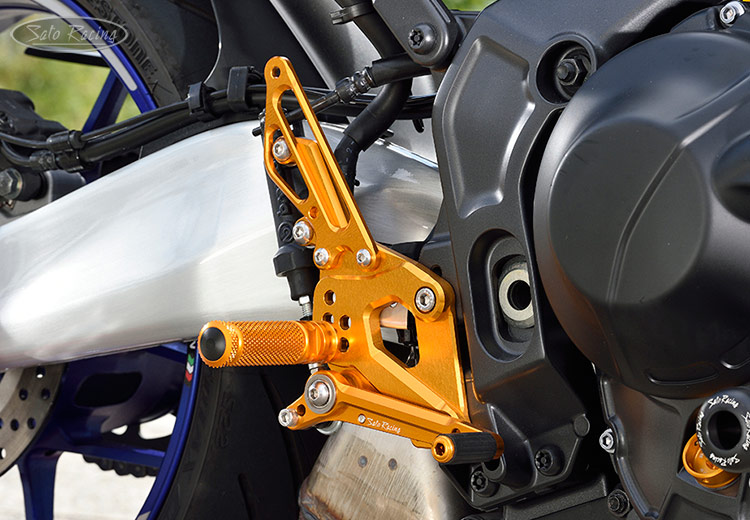

The brake and shift pedal use double miniature stainless bearings for smooth, precise
lever actuation. Brake is compatible with the stock brake light pull switch and ABS.
![SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22- Rear Sets [R]-side in Gold](pics/Y-MT0921RS-GD_fitR2.jpg "SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22- Rear Sets [R]-side")

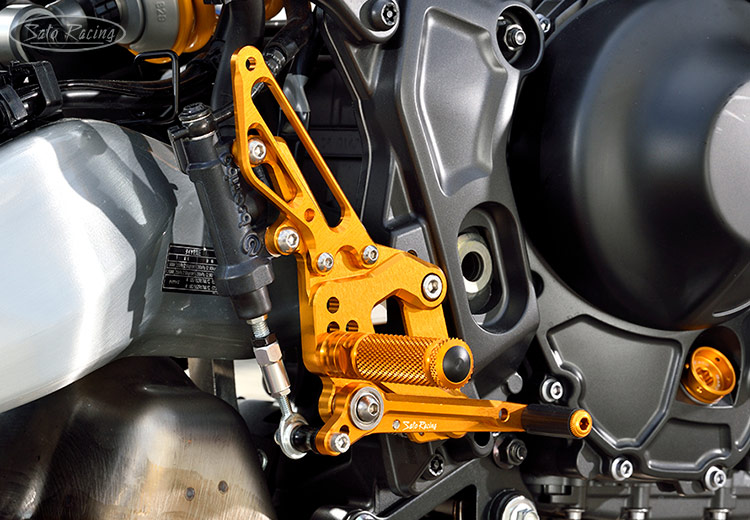

Knurled foot pegs provide great grip, along with a comfortable, intuitive feel.
Brake pedal shown with optional aluminum Pedal Tip with fluted rubber grip.
(Pedal Tips made of high density black Delrin come standard with the kit.)
![SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22-'25 Rear Sets [R]-side in Black](pics/Y-MT0921RS-BK_XSR900fitR1_750x520.jpg "SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22- Rear Sets [R]-side in Black")

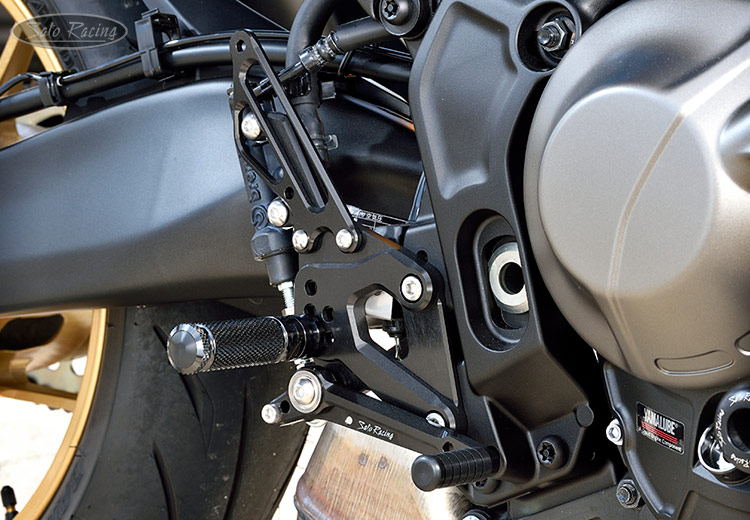

Choice of Black or Gold anodized finish. (Shown installed on an XSR900)
![SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22-'25 Rear Sets [L]-side in Gold](pics/Y-MT0921RS-GD_fitL1.jpg "SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22-'25 Rear Sets [L]-side")

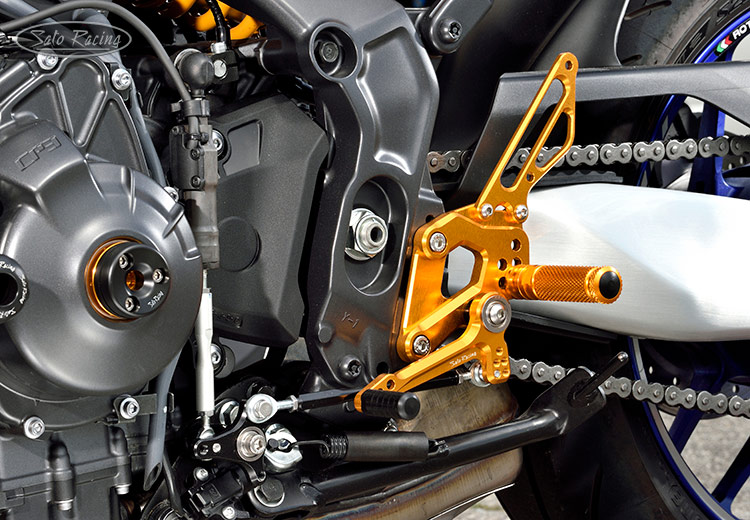

Shift linkage is compatible with both standard and quickshifter-equipped models.
For reverse/GP shift pattern, relocate Sato shift rod to the opposite end of the shift link.
![SATO RACING Yamaha MT-09 '21-'23/ XSR900 '22-'23 Rear Sets [L]-side in Gold](pics/Y-MT0921RS-GD_fitL2.jpg "SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22-'25 Rear Sets [L]-side")

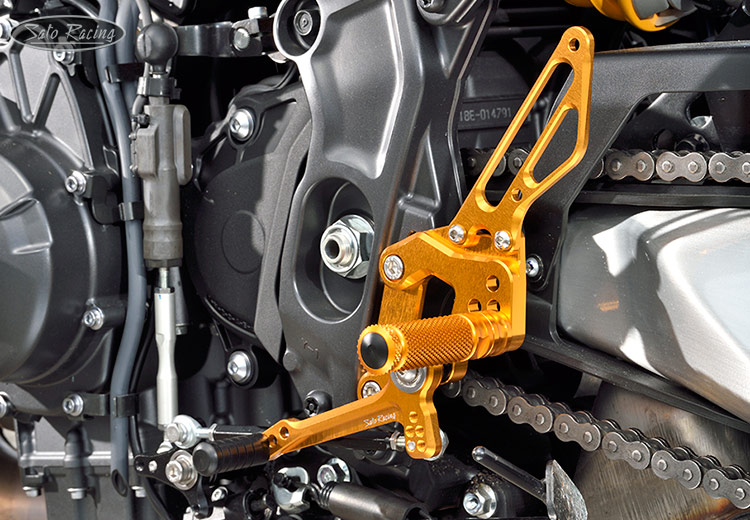

The Step Plate has 5 attachment points for the Foot Peg. The Pedal Tip position is also adjustable.
![SATO RACING Yamaha MT-09 '21-'23/ XSR900 '22- Rear Sets [L]-side in Black](pics/Y-MT0921RS-BK_XSR900fitL1_750x520.jpg "SATO RACING Yamaha MT-09 '21-'25/ XSR900 '22- Rear Sets in Black [L]-side")
| BLACK | Y-MT0921RS-BK $575 |
 |
| GOLD | Y-MT0921RS-GD $575 |
|
Click Here for important info about Sato color-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Most replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#17) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (#31, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) (#12) |
ST-001D18 $16.50 |
|
 |
LOW SOCKET HEAD M6-20mm (#23, for Pedal Tip) |
LSBT-M620 $4.00 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #1) |
HG-8L $55 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (R-side #2) |
HG-8R $55 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #5) |
SPD-0912 $80 |
|
 |
SHIFT ROD 140 [BLACK] (L-side #7) |
SRD-140B $39 |
|
 |
ROD ADAPTER M6-8 (R-side, #9) |
RDED-ADPTRM6-8 $8.00 |
|
 |
ROD END COLLAR 3 (GD) (L-side #13) |
RDED-CLR3 $6.00 |
|
 |
ROD END COLLAR 19 (R-side #14) |
RDED-CLR19 $8.00 |
|
 |
BEARING COLLAR 10s (L-side #15) |
PEGBGCLR-10SB $10.00 |
|
 |
SOCKET HEAD M5-12mm (R-side #18) |
SBT-M512 $2.00 |
|
 |
SOCKET HEAD M5-45mm (R-side #19) |
SBT-M540 $2.00 |
|
 |
SOCKET HEAD M6-45mm (R-side #20) |
SBT-M645 $2.00 |
|
 |
SOCKET HEAD M8-20mm (#21) |
SBT-M820 $1.50 |
|
 |
SOCKET HEAD M8-60mm (L-side #22) |
SBT-M860 $3.50 |
|
 |
BUTTON HEAD M6-10mm (#24) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-20mm (R-side #25) |
BBT-M820 $1.50 |
|
 |
BUTTON HEAD M8-25mm R-side #26) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-35mm (L-side #27) |
BBT-M835 $2.00 |
|
 |
HEX HEAD M5-6mm (R-side #28) |
HBT-M56 $2.00 |
|
 |
HEX HEAD M6-18mm (L-side #29) |
HBT-M618 $2.00 |
|
|
HEX HEAD M6-20mm (L-side #30) |
HBT-M620 $2.00 |
|
 |
SPLIT WASHER M8 (#32) |
SWS-8 $1.20 |
|
 |
NUT M5 (R-side #33) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#34) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (L-side #35) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (R-side #36) |
LNT-6 $1.50 |
|
 |
MALE ROD END M6 (#37) |
RDED-M6 $12.50 |
|
 |
M6 MALE REVERSE ROD END (L-side #38) |
RDED-M6L $12.50 |
|
 |
PULL SWITCH STAY 16 (R-side #39) |
PSTAY-16 $9.50 |
|
 |
RETURN SPRING 8-25 (R-side #40) |
RS-RSP8-25 $8.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
