SATO RACING | Rear Sets (Type 2 / Race Position) - Yamaha MT-09/ SP '21-'24 / XSR900 / XSR900GP '22-'24

YAMAHA MT-09/ SP '21-'24 / XSR900 / XSR900GP '22-'24
TYPE 2 REAR SETS

2024 Yamaha XSR900GP loaded with SATO RACING parts

SATO RACING Type 2 Rear Sets for MT-09 and XSR900/GP were designed specifically for 2024 Yamaha XSR900GP to provide a range of foot peg positions ideally suited for that bike. This Rear Sets model will also fit 2021-24 Yamaha MT-09/ SP and 2022-24 XSR900, provided a more Up and Back range of positions compared to our original (Type 1) MT-09 / XSR900 Rear Sets and it is noticeably more aggressive than the stock peg position.

This premium quality foot controls kit features components precision machined out of light-weight, high strength anodized billet aluminum. You can select from 6 adjustable foot peg positions that bring your feet higher up and further back compared to stock, for enhanced control and improved handling at the limit. Shift linkage can be set up for stock shift pattern or reverse shift pattern, and is optimized for use with the OEM quickshifter found on the XSR00GP. (It will also fit models with the standard shift linkage). Fully compatible with the stock brake light switch and ABS. Choice of Black, Silver or Gold anodized finish.

POSITIONS

1	20mm Back	30mm Up
2	20mm Back	42.5mm Up
3	20mm Back	55mm Up
4	32.5mm Back	30mm Up
5	32.5mm Back	42.5mm Up
6	32.5mm Back	55mm Up

Note: all measurements are in relation to stock position on a 2024 XSR900GP (0 mm).

SATO RACING Yamaha MT-09 '21-'24/ XSR900 / XSR00GP '22-'24 Type2 Rear Sets [R]-side in Silver
Knurled foot pegs provide great grip, along with a comfortable, intuitive feel.
Pedal Tips (toe pegs) are made of high density black Delrin.
(Shown installed on an XSR900GP)

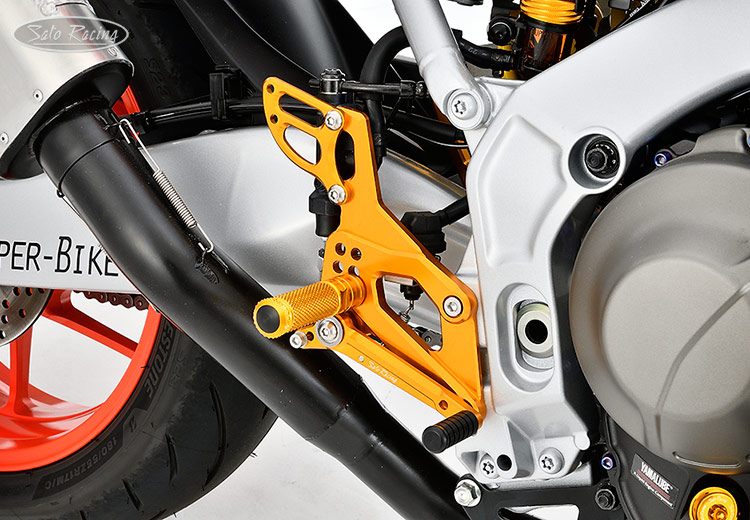

SATO RACING Yamaha MT-09 '21-'24/ XSR900 / XSR900GP '22-'24 Type 2 Rear Sets [R]-side in Gold
The brake and shift pedal use dual miniature stainless bearings for smooth, precise
lever actuation. Brake is compatible with the stock brake light pull switch and ABS.

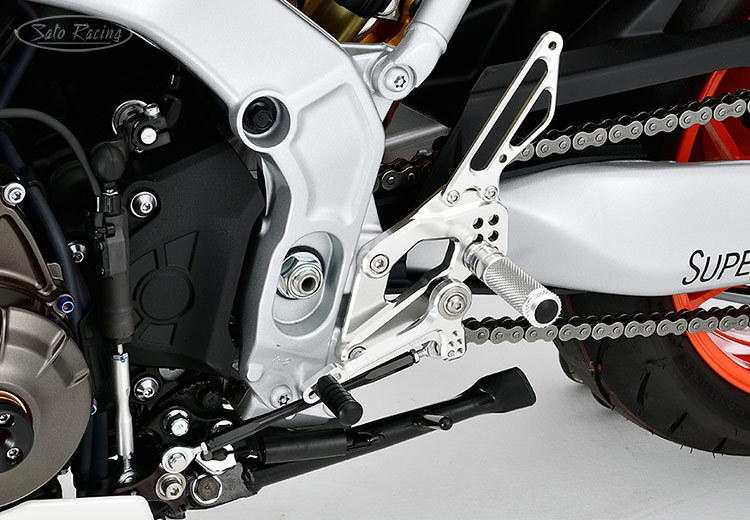

SATO RACING Yamaha MT-09 '21-'24/ XSR900 / XSR900GP '22-'24 Type 2 Rear Sets [L]-side in Silver
Shift linkage is compatible with both standard and quickshifter-equipped models.
For reverse/ race shift pattern, relocate Sato shift rod to the opposite end of the shift link.

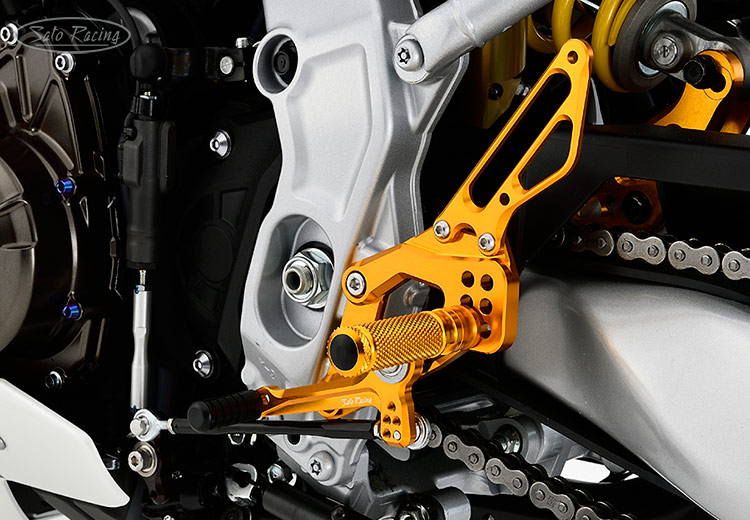

SATO RACING Yamaha MT-09 '21-'24/ XSR900 / XSR900GP '22-'24 Type 2 Rear Sets [L]-side in Gold
The Step Plate has 6 attachment points for the Foot Peg. The Pedal Tip position is also adjustable.

SATO RACING Yamaha MT-09 '21-'24/ XSR900 / XSR900GP '22-'24 Type 2 Rear Sets [L]-side in Gold

BLACK	Y-XSR9GPRS-BK $595
SILVER	Y-XSR9GPRS-SV $595
GOLD	Y-XSR9GPRS-GD $595

ARRIVING SOON

Click Here for important info about Sato color-anodized parts.

Have questions or prefer to order by phone? You can call us to place an order -

2024 Yamaha XSR900GP loaded with SATO RACING parts

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

More Sato Racing items for 2021-23 MT-09 / XSR900
