MOTO GUZZI V7 ('08-'14)*
REAR SETS
| SATO RACING

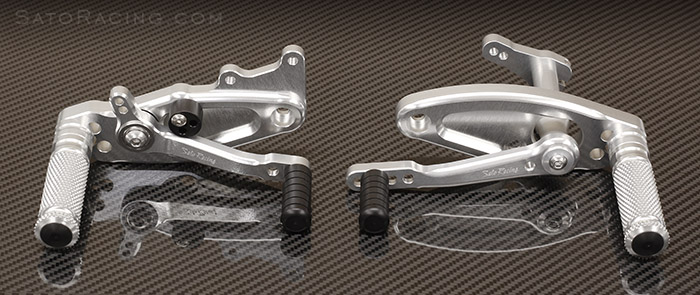

Moto Guzzi V7 Rear Sets are carved from billet aluminum in
a unique cafe racer-inspired design that fits well with the retro style of the bike,
and anodized in a Black or Silver finish. The shift and brake pedals feature double
stainless bearings for a solid feel and smooth pedal movement. Deeply knurled
footpegs provide great grip even in wet conditions. Choose from a range of positions
that plant your feet higher and much further back compared to the stock foot rests. ( * These Rear Sets fit first generation V7 models. For V7 II Rear Sets, Click Here ) |
| 1 | 85mm Back | 5mm Up |
| 2 | 85mm Back | 15mm Up |
| 3 | 92mm Back | 10mm Up |
| 4 | 98mm Back | 15mm Up |
note: all measurements are in relation to stock position (0 mm).
![Sato Racing Moto Guzzi V7 Rear Sets [R]-side](pics/MOTOGUZZIV7_RS_RFit1.jpg "Sato Racing Moto Guzzi V7 Rear Sets [R]-side")

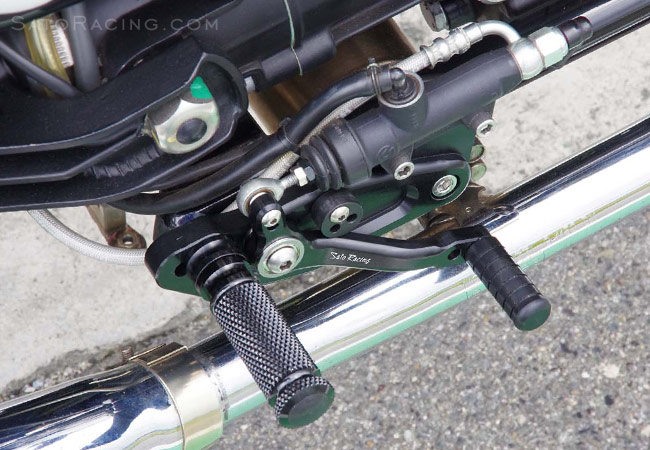

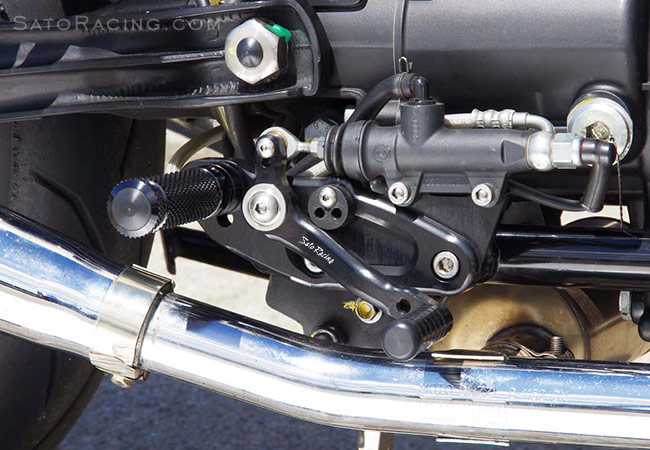

The rest height of the brake pedal can be adjusted by rotating the pedal stopper.
![Sato Racing Moto Guzzi V7 Rear Sets [R]-side](pics/MOTOGUZZIV7_RS_RFit2.jpg "Sato Racing Moto Guzzi V7 Rear Sets [R]-side")
The foot pegs have a deep knurled pattern for excellent grip characteristics, along with a
comfortable, intuitive feel. There are 4 possible mounting positions for the foot peg.
![Sato Racing Moto Guzzi V7 Rear Sets [L]-side](pics/MOTOGUZZIV7_RS_LFit1.jpg "Sato Racing Moto Guzzi V7 Rear Sets [L]-side")

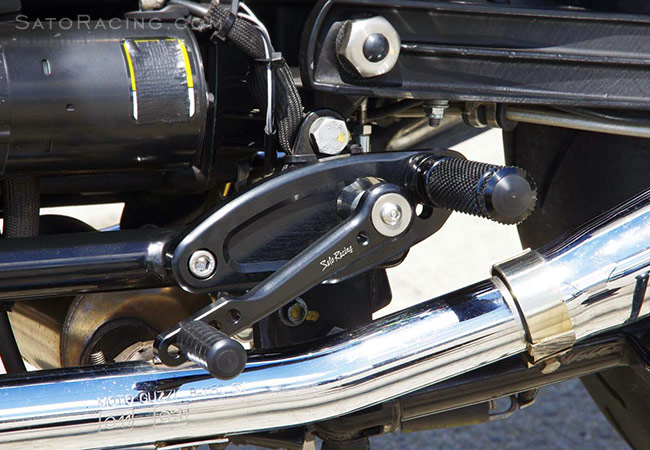

Shift Pedal position can be adjusted on the link rod.
![Sato Racing Moto Guzzi V7 Rear Sets [L]-side](pics/MOTOGUZZIV7_RS_LFit2.jpg "Sato Racing Moto Guzzi V7 Rear Sets [L]-side")

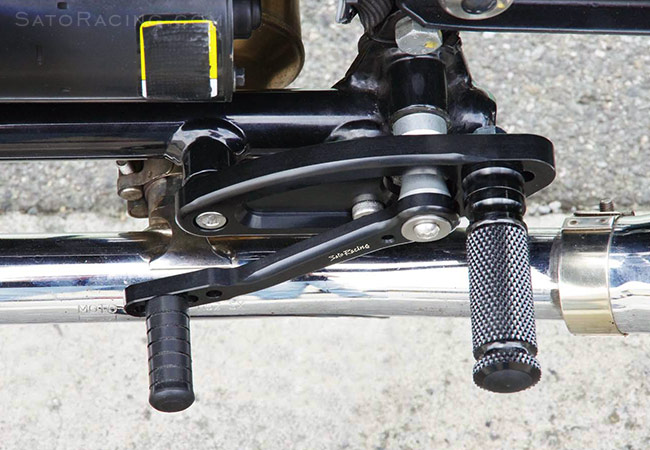

Pedal Tip position is adjustable. The standard Pedal Tips are made of tough black Delrin. Additional
Pedal Tip styles, such as aluminum Pedal Tips with rubber sleeves, are also available: More Details
| BLACK | MG-V7RS-BK $595 |
 |
| SILVER | MG-V7RS-SV $595 |
|
'Refurbished' model
Demo or Returned item - Like new, but some parts may show
minor nicks or scuffs from handling or an attempted install.
It has been repackaged and verified to be complete.
| SILVER (REFURBISHED) |
MG-V7RS-SV-RFB $545 |
|
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
HEX HEAD M8-40mm (Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) (#9) |
ST-001D18 $15 |
|
 |
PEDAL STOPPER (DELRIN) (R-side #11) |
BPD-STOPPER $15.00 |
|
 |
COLLAR 5-8 (#13) |
BPCLR-5 $8.00 |
|
 |
PEG COLLAR 15 (BK/ SV) (#14) |
PEGCLR-15 $15 |
|
 |
SOCKET HEAD M6-16mm (R-side #15) |
SBT-M616 $2.00 |
|
 |
SOCKET HEAD M6-25mm (L-side #16) |
SBT-M625 $1.50 |
|
 |
SOCKET HEAD M8-20mm (#17) |
SBT-M820 $1.50 |
|
 |
BUTTON HEAD M5-20mm (R-side #18) |
BBT-M520 $2.00 |
|
 |
BUTTON HEAD M6-20mm (#19) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M8-25mm (R-side #20) |
BBT-M825 $1.50 |
|
 |
PEG WASHER M8 (R-side #23) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (#24) |
SWS-8 $1.20 |
|
 |
NUT M5 (R-side #25) | NUT-5 $1.50 |
|
 |
MALE ROD END M5 (R-side #26) |
RDED-M5 $15.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
