KTM 790 / 890 Duke  ('18-'23)
REAR SETS

SATO RACING Rear Sets for 2018 and up KTM 790 Duke / 890 Duke R features components precision CNC-machined from lightweight and high strength billet aluminum. Modular design lets you select from 10 foot peg positions in a wide adjustment range, placing your feet higher up and further back compared to stock, to help get your legs and body angle in a better position for performance riding. Choice of all-Black anodized finish, or a vivid Gold anodized finish with contrasting Black base plates.

POSITIONS

1 10mm Back 50mm Up
2 10mm Back 62.5mm Up
3 20mm Back 50mm Up
4 20mm Back 62.5mm Up
5 30mm Back 62.5mm Up
6 22.5mm Back 50mm Up
7 22.5mm Back 62.5mm Up
8 32.5mm Back 50mm Up
9 32.5mm Back 62.5mm Up
10 42.5mm Back 62.5mm Up

note: all measurements are in relation to stock position (0 mm).

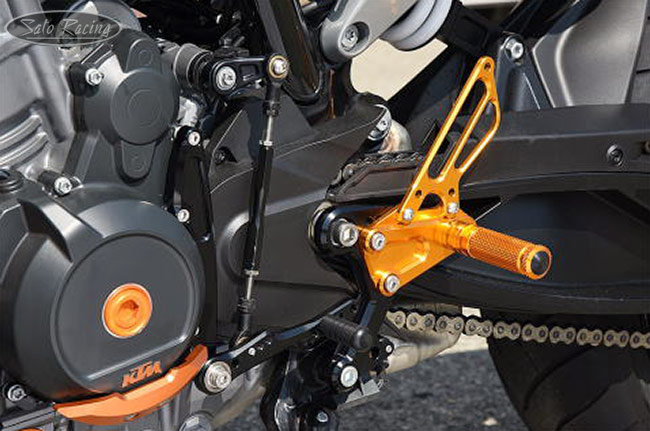

SATO RACING Rear Sets for KTM 790 / 890 Duke [L]-side
The shift and brake pedals utilize miniature double stainless
bearings for smooth, precise lever actuation with a solid feel.

The positions of the Step Plate and Foot Peg can be independently
adjusted, so you find the ideal foot position to suit your riding style.

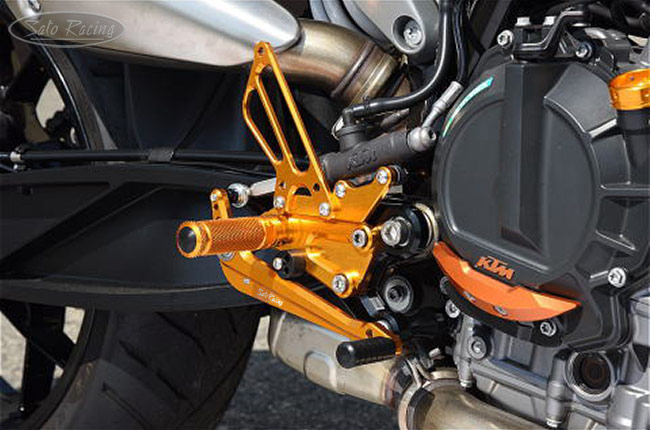

SATO RACING Rear Sets for KTM 790 / 890 Duke [R]-side
The foot pegs have a knurled pattern for optimal grip characteristics.

The Pedal Tips (toe pegs) are made of tough Delrin. Other styles of Pedal Tips,
including aluminum Pedal Tips with fluted rubber grips, are an available option.

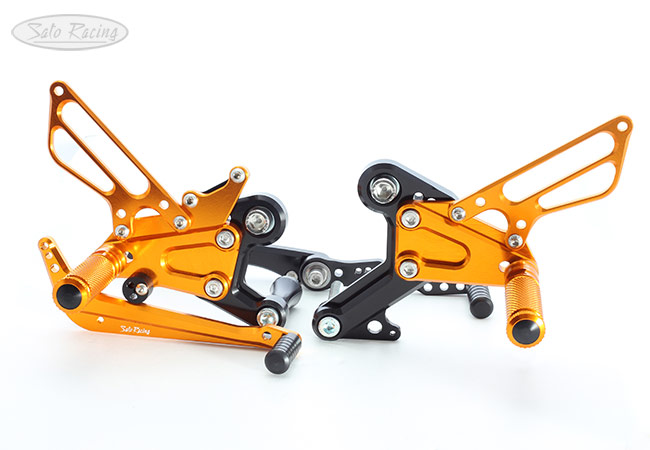

SATO RACING Rear Sets for KTM 790 / 890 Duke

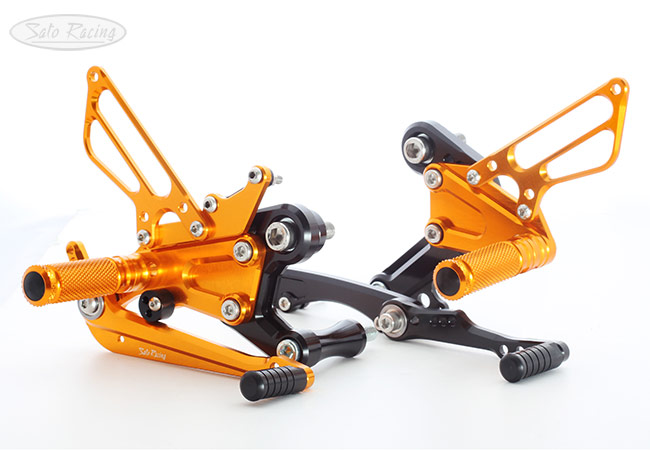

SATO RACING Rear Sets for KTM 790 / 890 Duke

NOTE: Although these Rear Sets may appear orange in some
of the above photos, the actual color is Gold, not orange.




BLACK KTM-790RS-BK
$635
GOLD
w/ BLACK base plates
KTM-790RS-GD
$635


Click Here for important info about Sato color-anodized parts.




_______________________________________________________

OPTIONAL PARTS

________________________________________________________




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.







PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)
