KAWASAKI Z-H2 ('20-'24)
REAR SETS
| SATO RACING
Rear Sets for 2020 and up Kawasaki Z-H2 features an extensively track-tested design, with components precision machined out of light-weight, high strength anodized billet aluminum, with stainless steel hardware. Modular adjustable design provides 4 foot peg positions in a useful range for performance riding. Choice of all-Black anodized finish, or Gold finish with Black anodized frame cover plates. Available options include a matching Shift Spindle Holder. |
| 1 | 30mm Back | 25mm Up |
| 2 | 30mm Back | 40mm Up |
| 3 | 45mm Back | 25mm Up |
| 4 | 45mm Back | 40mm Up |
note: all measurements are in relation to stock position (0 mm).
Compatible the stock brake light switch and ABS.
4 adjustable peg positions help you find the most ideal foot position
for your riding style. The Pedal Tip position can also be adjusted.

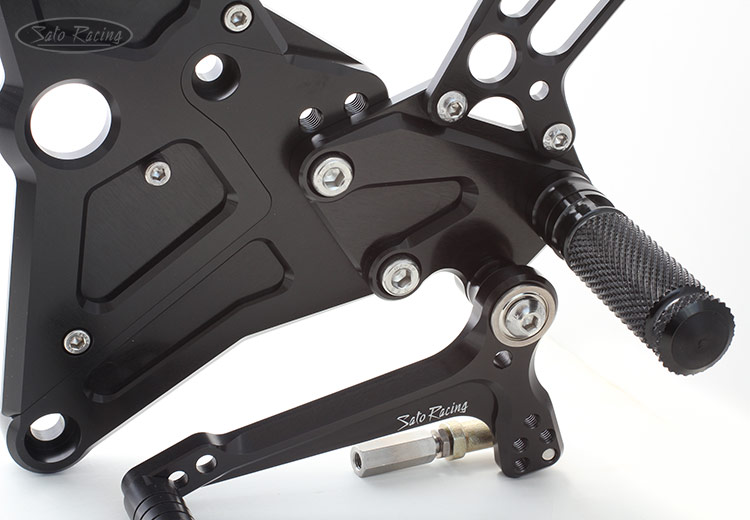

Foot pegs have a finely knurled pattern for superior grip and feel. The standard Pedal Tips are made of
tough, abrasion-resistant Delrin. Other styles of Pedal Tips are also available. Click Here for details.

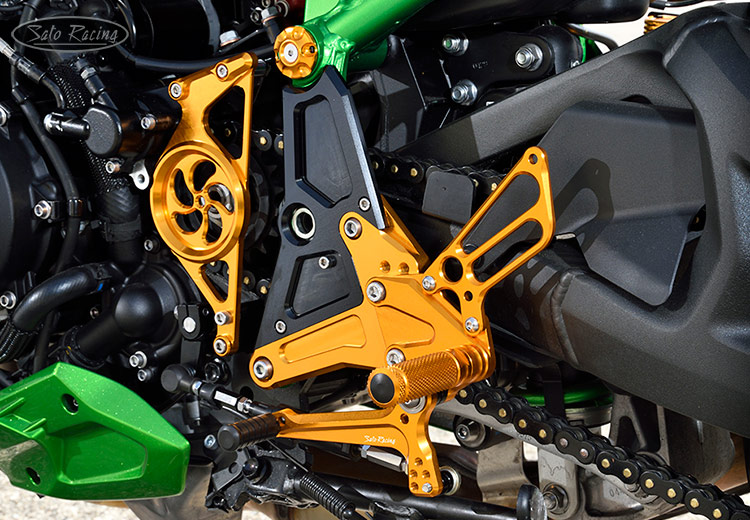

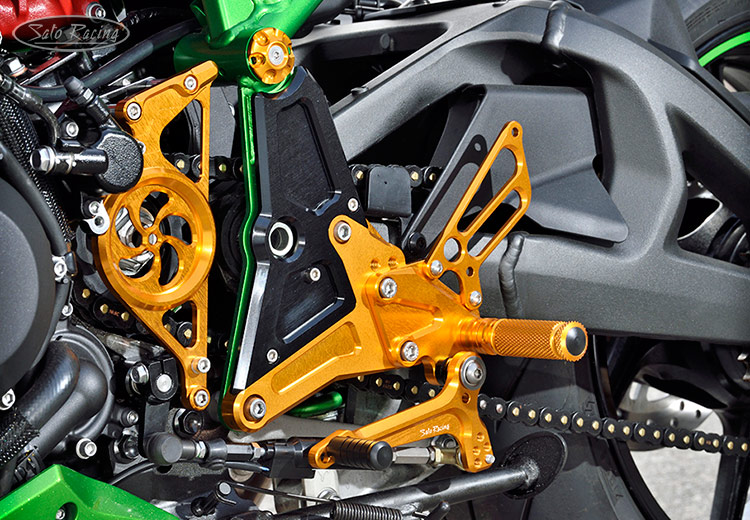

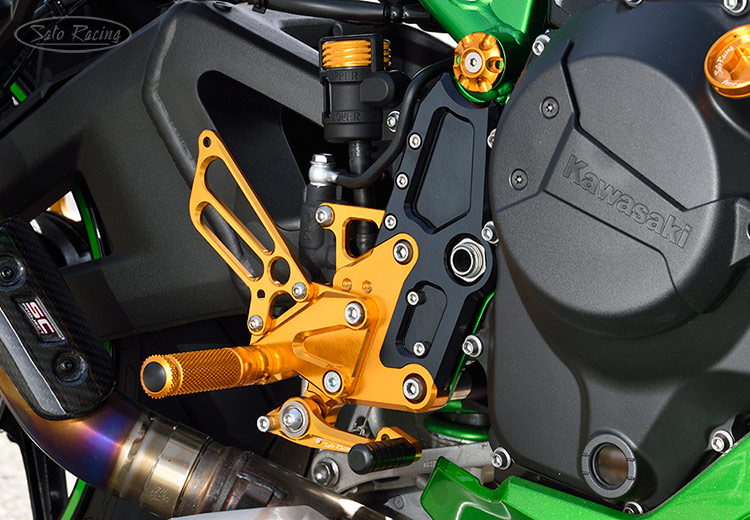

(Rear Sets shown installed together with our optional Shift Spindle Holder, sold separately)

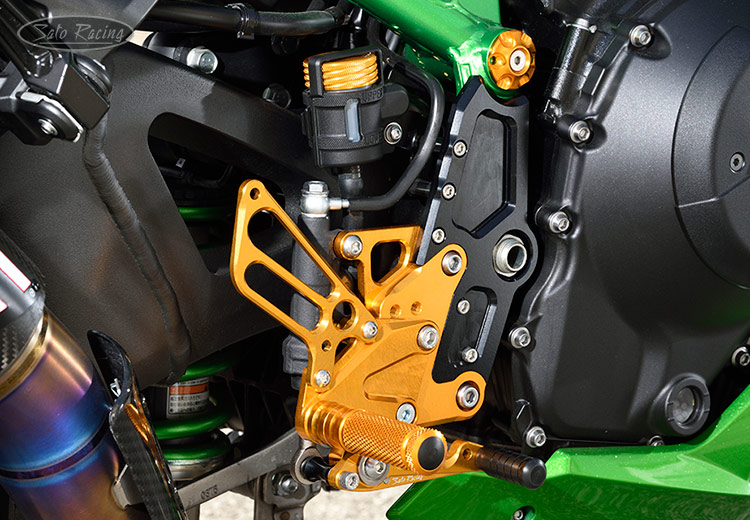

The shift linkage integrates with the OEM quick shifter, providing a stock shift pattern.

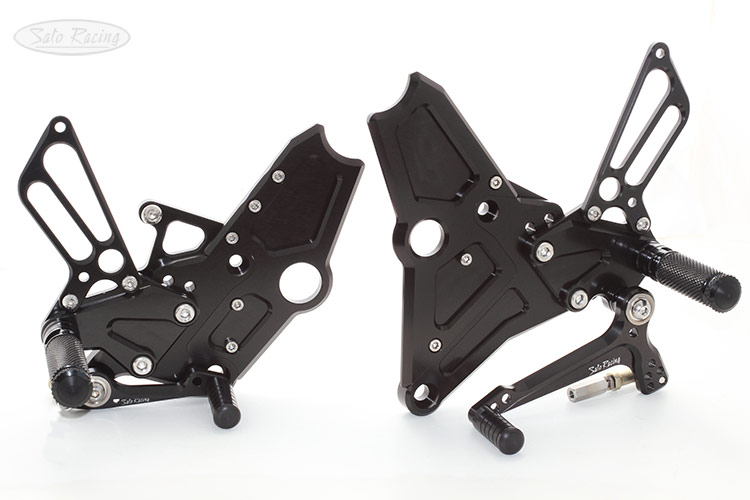

Choice of all-Black anodized finish, or Gold with Black anodized side covers.

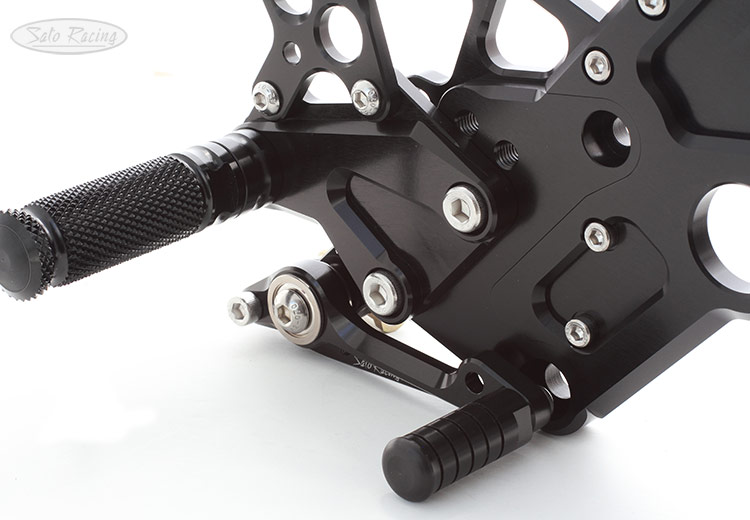

The Shift and brake pedals are on a separate axis from the foot pegs for optimal leverage, and
feature miniature double stainless bearings for smooth, precise lever actuation with a solid feel.
REAR SETS
| BLACK | K-ZH2RS-BK $735 |
 |
| GOLD | K-ZH2RS-GD $735 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONAL PARTS
KAWASAKI Z-H2 ('20- )
SHIFT SPINDLE HOLDER

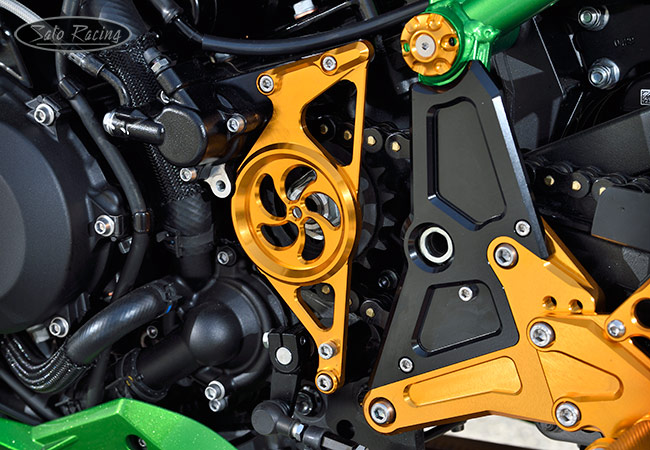

| SATO RACING Shift Spindle Holder for Kawasaki Z-H2 is a stylish combo of shift spindle support and chain cover. This specialized racing part is designed to reinforce the spindle shaft to reduce lateral movement or excessive play during shifts, for more precise and consistent shifting in heavy-duty use. CNC-machined out of high strength billet aluminum, with a Teflon-coated inner bushing. Choice of all-Black anodized finish, or Gold anodized chain cover with Black spindle support. includes stainless steel bolts. (Also fits Ninja H2 SX) |
SHIFT SPINDLE HOLDER
| BLACK | K-H2SXRS-SHDR-BK $245 |
|
| GOLD | K-H2SXRS-SHDR-GD $245 |
|
Click Here for important info about Sato color-anodized parts.
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of replacement parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated
parts list diagram included with your SATO RACING Rear Sets.
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ GD) (#18) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (#32, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
LOW SOCKET HEAD M6-20mm (#29, for Pedal Tip) |
LSBT-M620 $4.00 |
|
 |
ROD END COLLAR 8 (GD) (L-side #16) |
RDED-CLR8 $7.00 |
|
 |
SOCKET HEAD M5-10mm (#20) |
SBT-M510 $2.00 |
|
 |
SOCKET HEAD M5-35mm (R-side #21) |
SBT-M535 $2.00 |
|
 |
BUTTON HEAD M6-10mm (L-side #25) |
BBT-M610 $1.50 |
|
 |
HEX HEAD M6-25mm (L-side #31) |
HBT-M625 $2.00 |
|
 |
NUT M5 (R-side #33) | NUT-5 $1.50 |
|
 |
REVERSE JAM NUT M6 (L-side #34) |
JNT-6L $2.50 |
|
 |
SPLIT WASHER M8 (#36) |
SWS-8 $1.20 |
|
 |
REVERSE FEMALE ROD END M6 (L-side #37) |
RDED-F6L $15.00 |
|
 |
FEMALE ROD END 6-M8 (R-side #38) |
RDED-F6-8 $25 |
|
 |
RETURN SPRING 40 (R-side #40) |
RS-RSP $8.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
