KAWASAKI H2 SX/ SE ('18- )
REAR SETS
| SATO RACING

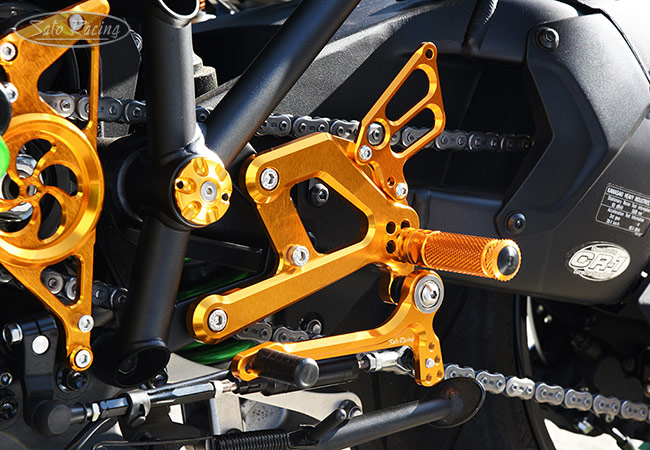

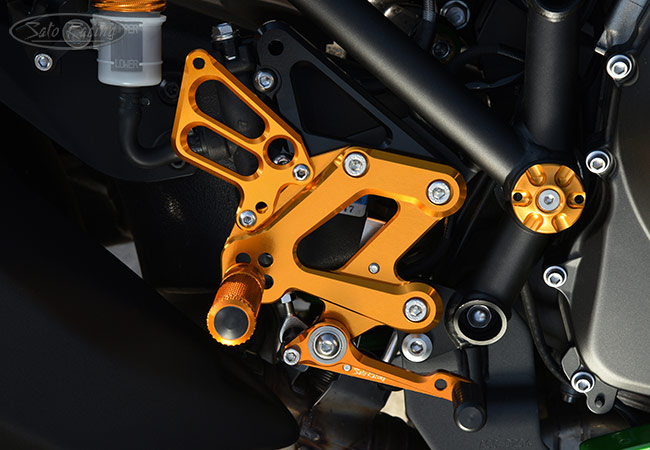

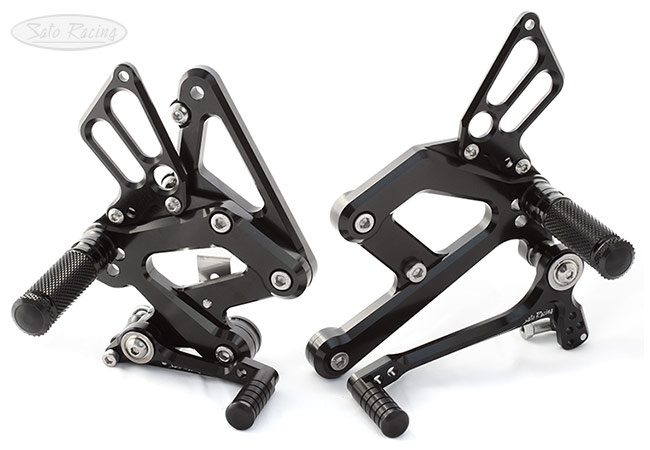

Rear Sets for 2018+ Kawasaki Ninja H2 SX/ SE features a rigid, single-plate design precision machined out of high strength anodized billet aluminum. These premium Rear Sets provide a stock shifting pattern, and have 4 adjustable foot peg positions in a useful range for the street or track. Choice of deep Black or vivid Gold anodized finish. We now have 3 versions of this kit: Part# K-H2SXRS fits 2018-22* H2 SX/ SE equipped with the OEM quick-shifter. NEW part# K-H2SXRS2 fits 2018-22* H2 SX with the standard-style shift linkage (No quick-shifter). Part# K-H2SX22RS fits the gen2 (2023* and up) H2 SX SE with the quick-shifter. (*NOTE: The updated H2 SX was sold as a 2022 model in some countries). Available options include a matching Shift Spindle Holder and Frame Plugs. |
| 1 | 15mm Back | 15mm Up |
| 2 | 15mm Back | 27.5mm Up |
| 3 | 27.5mm Back | 15mm Up |
| 4 | 27.5mm Back | 27.5mm Up |
note: all measurements are in relation to stock position (0 mm).
The fixed one-pice step plate design allows it to be compatible the stock rear
brake light switch and ABS. It is even compatible with cruise control.
4 adjustable peg positions help you find the most ideal foot position
for your riding style. The Pedal Tip position can also be adjusted.

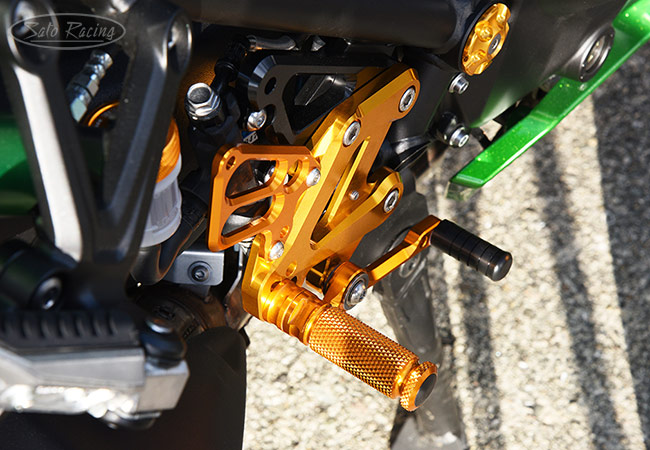

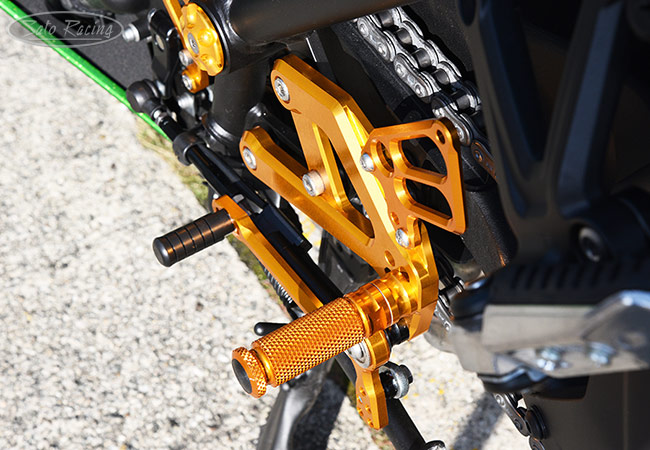

Foot pegs have a finely knurled pattern for nice grip and a comfortable, intuitive feel.
The standard Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin.
Other styles of Pedal Tips are also available. Click Here for details.
|

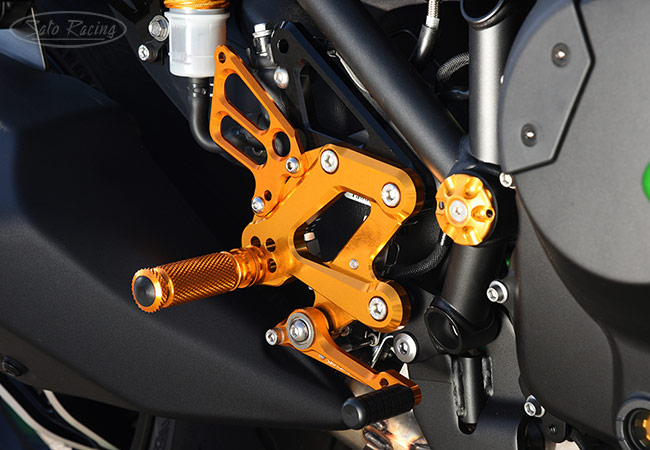

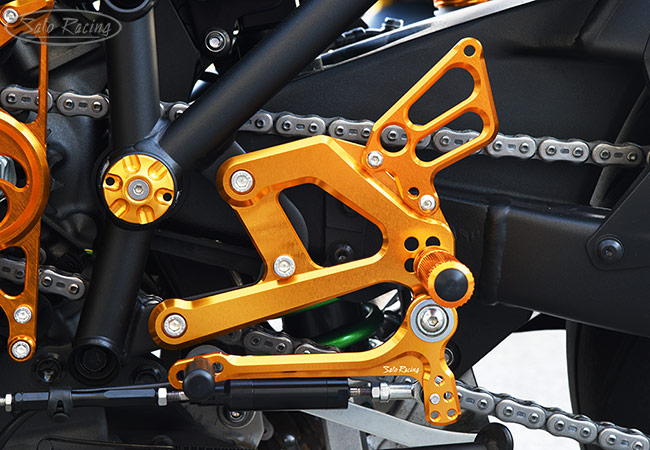

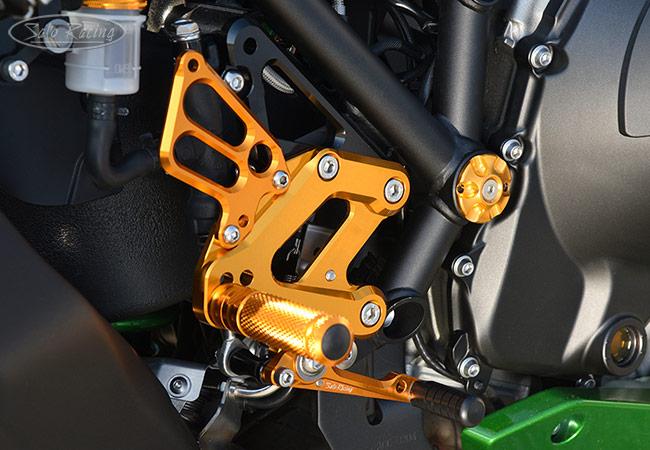

The Shift and brake pedals are on a separate axis from the foot pegs for optimal
leverage, and feature double miniature stainless bearings for smooth, precise actuation. (Rear Sets shown installed together with our optional Shift Spindle Holder, sold separately) |
| Our Rear Sets are designed to work seamlessly with the OEM quick-shifter. If you don't have the quick-shifter or want to delete it, we also now offer a variation of this model with a standard shift rod linkage. |
REAR SETS - 2018-22 H2SX/ SE
(For stock quick-shifter)
| BLACK | K-H2SXRS-BK $615 |
 |
| GOLD | K-H2SXRS-GD $615 |
|
REAR SETS - 2018-22 H2SX/ SE
(For STD shift linkage - No quick-shifter)
| BLACK | K-H2SXRS2-BK $615 |
|
| GOLD | K-H2SXRS2-GD $615 |
|
REAR SETS - 2023+ H2SX SE
(For stock quick-shifter)
(Sold as 2022 model in some countries)
| BLACK | K-H2SX22RS-BK $615 |
|
| GOLD | K-H2SX22RS-GD $615 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
KAWASAKI H2 SX / Z-H2
SHIFT SPINDLE HOLDER

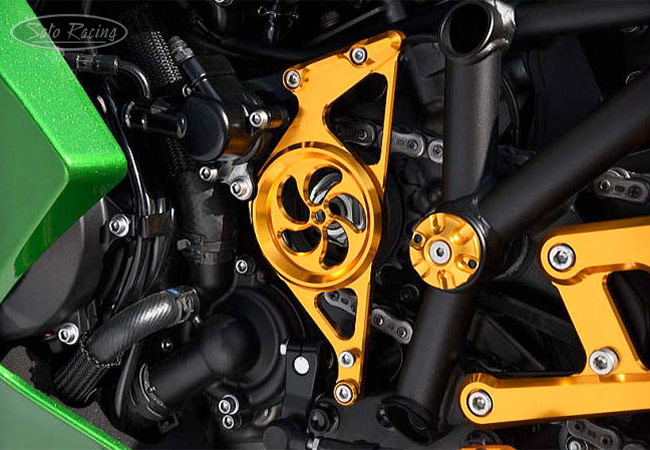

| SATO RACING Shift Spindle Holder for 2018+ Kawasaki Ninja H2 SX/ SE, 2015+ Ninja H2 and 2020+ Z-H2 is a stylish combo of shift spindle support and chain cover. This specialized racing part is designed to reinforce the spindle shaft to reduce lateral movement or excessive play during shifts, for more precise and consistent shifting in heavy-duty use. CNC-machined out of high strength billet aluminum, with a Teflon-coated inner bushing. Choice of all-Black anodized finish, or Gold anodized chain cover with Black spindle support. includes stainless steel bolts. |
SHIFT SPINDLE HOLDER
| BLACK | K-H2SXRS-SHDR-BK $260 |
|
| GOLD | K-H2SXRS-SHDR-GD $260 |
|
Click Here for important info about Sato color-anodized parts.
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated parts list included
with your Sato Racing Rear Sets, or view the PDF parts list: L-side | R-side
