DUCATI Monster 696/ ABS ('08-'14)
REAR SETS
| SATO RACING Rear Sets for Ducati Monster 696 (all years)
feature components precision CNC machined out of lightweight, high strength billet aluminum and anodized in your choice of Black, Silver, or Gold finish. Adjustable design gives you 11 unique peg positions that bring your feet higher up compared to stock, for a sportier riding position well-suited for performance riding. Can be set up for either stock shift pattern or a reverse shift pattern. Options include a Tandem Brackets set that goes well with the Rear Sets, and a matching adjustable Shift Arm that increases the range of adjustability of the shifter linkage compared to the stock shift arm. |
| 1 | 10mm Forward | 5mm Up |
| 2 | 10mm Forward | 15mm Up |
| 3 | 10mm Forward | 25mm Up |
| 4 | 10mm Forward | 34mm Up |
| 5 | 0 mm | 15mm Up |
| 6 | 0 mm | 20mm Up |
| 7 | 0 mm | 25mm Up |
| 8 | 0 mm | 30mm Up |
| 9 | 0 mm | 40mm Up |
| 10 | 10mm Back | 30mm Up |
| 11 | 10mm Back | 40mm Up |
note: all measurements are in relation to stock position (0 mm).
| (Note: The following pics show the original version of these Rear Sets designed for the '08-'09 model (part# D-M696RS). An updated version (part# D-M69610RS) has some minor design changes, such as different base plates that provide better compatibility with 2010 and later model years, and a slightly different shift pedal with additional adjustment holes.) |

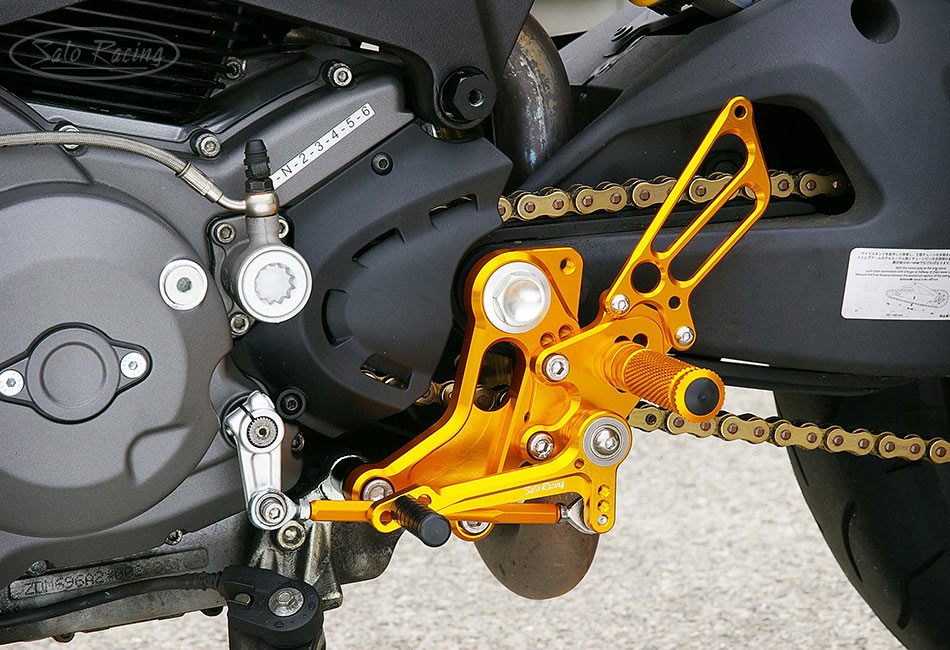

![SATO RACING Ducati Monster 696 Rear Sets [L]-side](pics/MONSTER_696_RearSets_Gold_L_950x650.jpg "SATO RACING Ducati Monster 696 Rear Sets [L]-side")

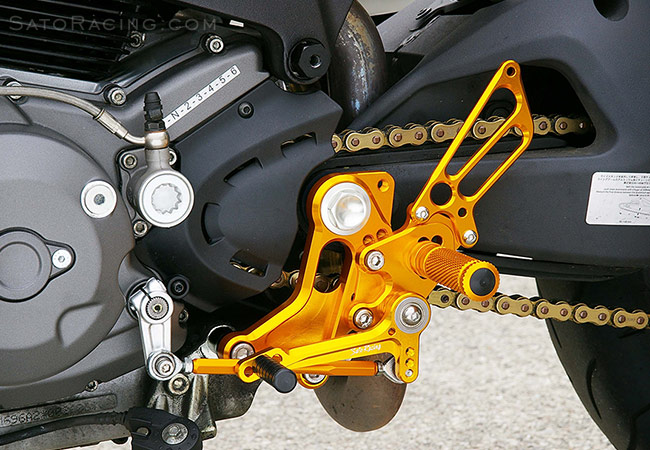

You can switch from stock to reverse (GP style) shift pattern by flipping the stock shift arm upward.
We also offer a matching adjustable billet aluminum Shift Arm that fits well with these Rear Sets.
![SATO RACING Ducati Monster 696 Rear Sets [L]-side](pics/MONSTER_696_RearSets_Silver_L_950x650.jpg "SATO RACING Ducati Monster 696 Rear Sets [L]-side")

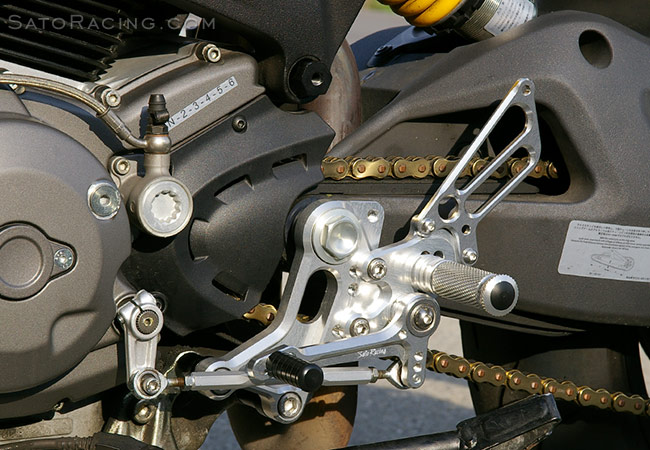

Modular step plate design provides multiple mounting positions. The positions of the Foot Peg and
the Pedal Tip are also adjustable, so you can easily find the ideal position to suit your riding style.

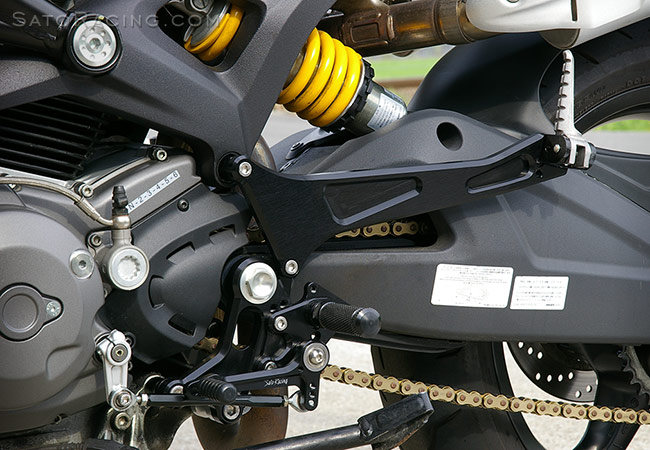

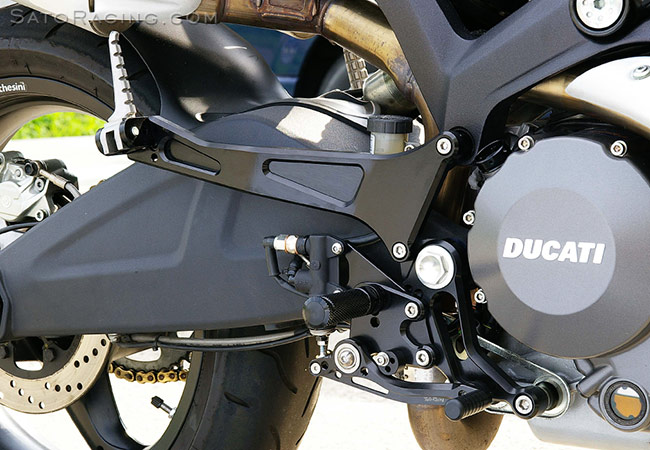

BLACK Rear Sets with optional Tandem Brackets.

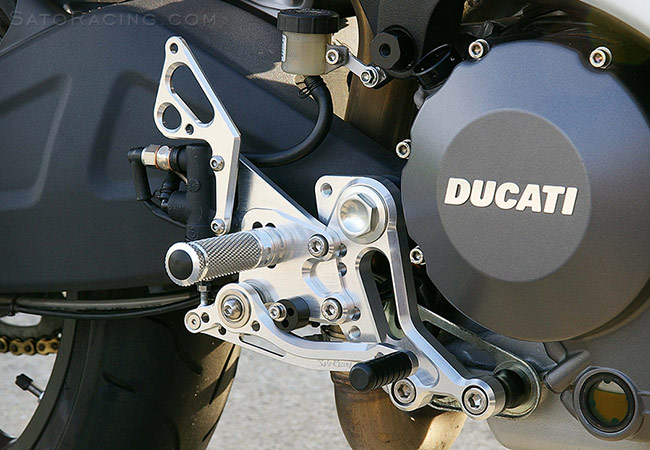

![SATO RACING Ducati Monster 696 Rear Sets [R]-side](pics/MONSTER_696_RearSets_Silver_R_950x650.jpg "SATO RACING Ducati Monster 696 Rear Sets [R]-side")

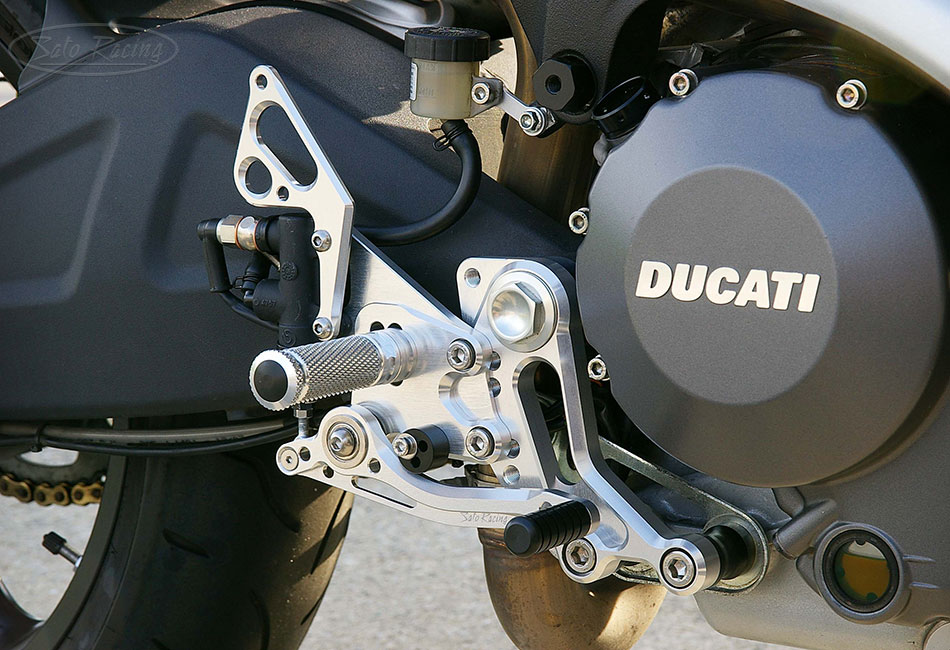

Rear Sets kit includes a brake light switch (shown attached to the master cylinder).

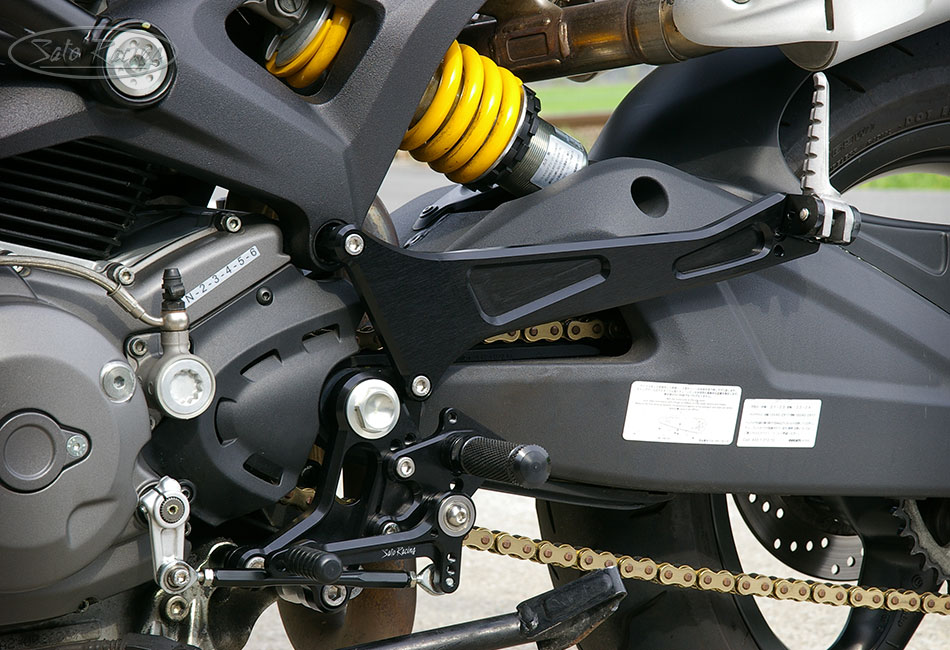

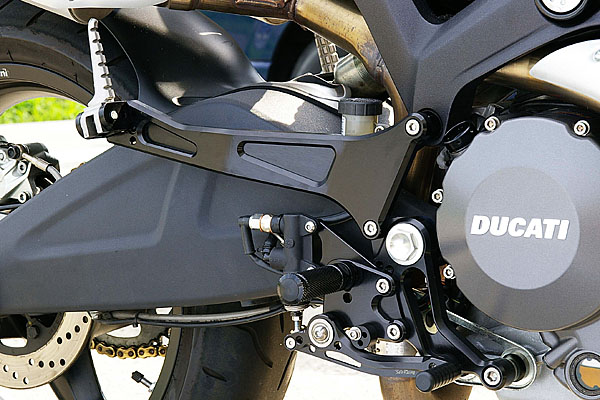

BLACK Rear Sets with optional Tandem Brackets. These Tandem Brackets are available in
either BLACK or SILVER, and are designed for use with the stock Ducati passenger peg hardware.

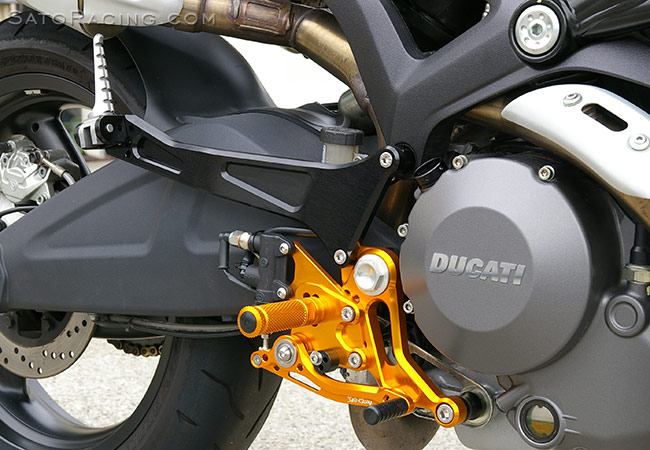

GOLD Rear Sets look sharp with contrasting BLACK Tandem Brackets
REAR SETS (Design version 2 - Fits all model years)
| BLACK | D-M69610RS-BK $715 |
 |
| SILVER | D-M69610RS-SV $715 |
|
| GOLD | D-M69610RS-GD $715 |
|
REAR SETS (Original version - fits 2008-09 model)
| GOLD | D-M696RS-GD $575 |
|
Click Here for important info about Sato color-anodized parts.

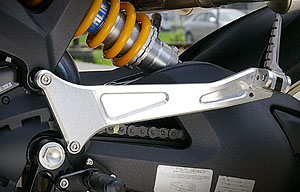

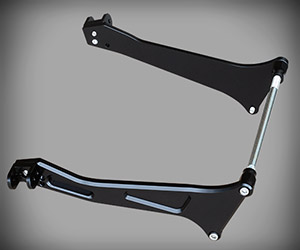

TANDEM BRACKETS
| Designed for use with SATO RACING Rear Sets, this handy Tandem Bracket set is perfect for those times when you have a passenger. Choice of Black or Silver anodized billet aluminum brackets, with chrome molybdenum bolts. Use with the stock passenger foot pegs. |
| BLACK | D-MTB-BK $395 |
|
| SILVER | D-MTB-SV $395 |
|
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-40mm (Peg bolt) |
HBT-M840 $2.00 |
|
 |
SPLIT WASHER M8 (for peg bolt) |
SWS-8 $1.20 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #3) |
HG-6L $60 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #6) |
SPD-0912 $62.50 |
|
 |
SHIFT ROD 130 (BK/ SV/ GD) (L-side #8) |
SRD-130 $39 |
|
 |
BEARING COLLAR 10 (BK/ SV/ GD) (L-side #9) |
PEGBGCLR-10 $15.00 |
|
 |
ROD END COLLAR 3 (L-side #12) |
RDED-CLR3 $6.00 |
|
 |
SOCKET HEAD M6-20mm (L-side #17) |
SBT-M620 $1.50 |
|
|
SOCKET HEAD M6-25mm (L-side #18) |
SBT-M625 $1.50 |
|
 |
SOCKET HEAD M8-15mm (L-side #19 / R-side #17) |
SBT-M815 $2.00 |
|
 |
SOCKET HEAD M10-65mm (P-1.5) (L-side #20 / R-side #31) |
SBT-M1065-15 6.00 |
|
 |
BUTTON HEAD M6-10mm (L-side #21) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-35mm (L-side #23) |
BBT-M835 $2.00 |
|
 |
PEDAL STOPPER (DELRIN) (R-side #8) |
BPD-STOPPER $15.00 |
|
 |
SOCKET HEAD M5-20mm (R-side #12) |
SBT-M520 $2.00 |
|
 |
SOCKET HEAD M6-15mm (R-side #13) |
SBT-M615 $1.50 |
|
 |
MALE ROD END M5 (R-side #14) |
RDED-M5 $15.00 |
|
 |
SOCKET HEAD M5-25mm (R-side #16) |
SBT-M525 $2.00 |
|
 |
SOCKET HEAD M10-55mm (P-1.5) (R-side #18) |
SBT-M1055-15 6.00 |
|
 |
BUTTON HEAD M8-25mm (R-side #20) |
BBT-M825 $1.50 |
|
 |
FLAT HEAD M5-20mm (R-side #21) |
FBT-M520 $2.00 |
|
 |
WASHER M5 (R-side #22) |
WS-5 $1.00 |
|
 |
PEG WASHER M8 (R-side #23) |
PWS-8 $1.00 |
|
 |
NUT M5 (R-side #25) | NUT-5 $1.50 |
|
 |
RETURN SPRING COLLAR (R-side #26) |
RS-RSCLR $12.00 |
|
 |
RETURN SPRING 20 (R-side #27) |
RS-RSP2 $8.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.0) (R-side #28) |
BSW-1 $25 |
|
 |
SOCKET HEAD M6-10mm (R-side #29) |
SBT-M610 $1.50 |
|
 |
BRACKET M6 x 25mm [BLACK] (R-side #30) |
UB-M625-B $8.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
