BIMOTA DB6 ('08-'10)
REAR SETS

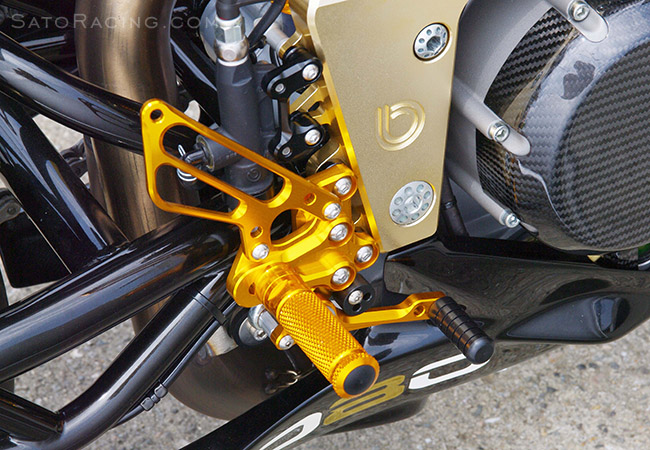

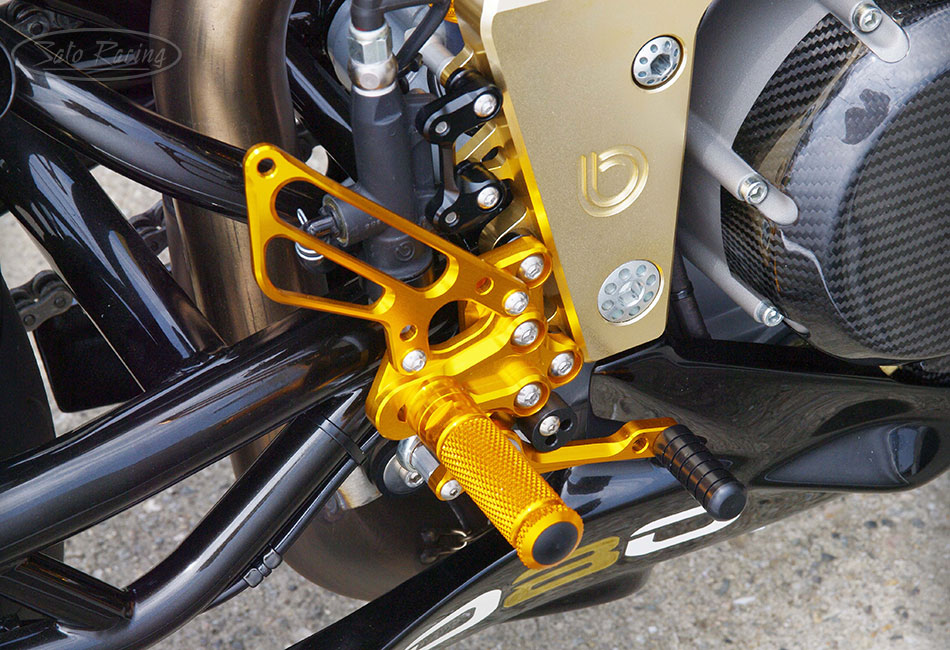

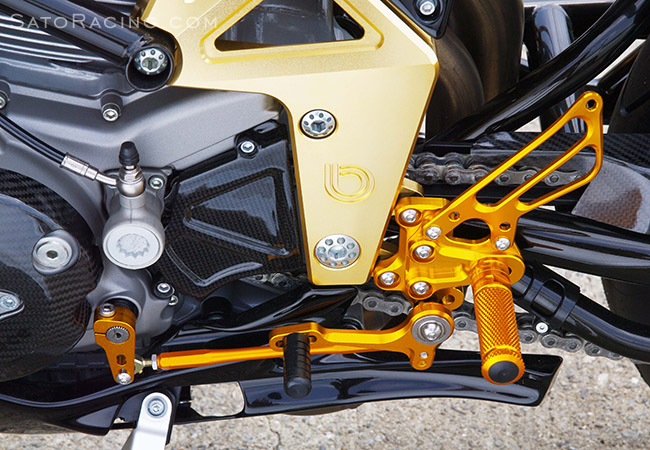

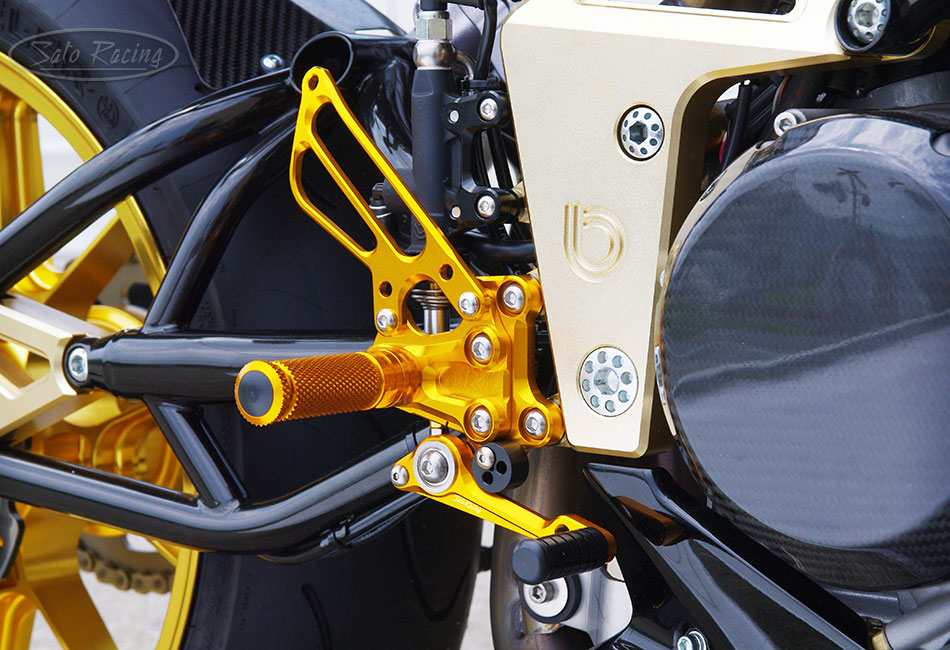

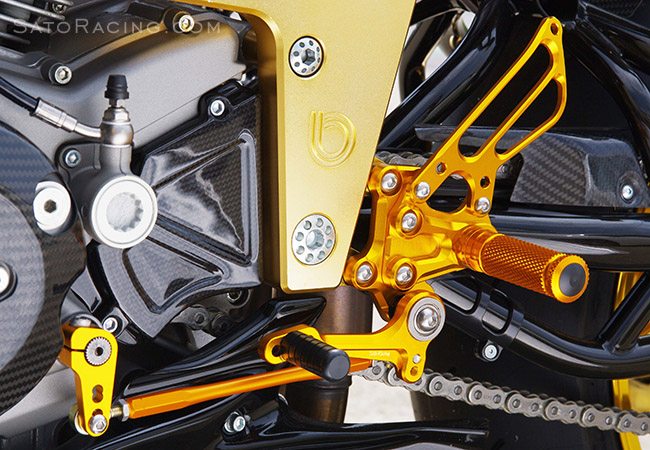

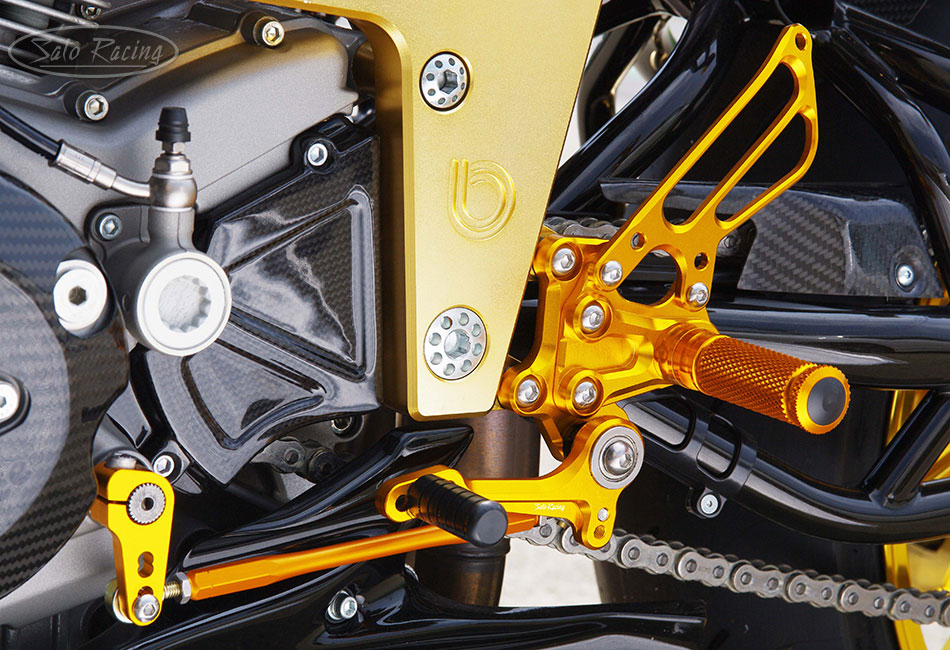

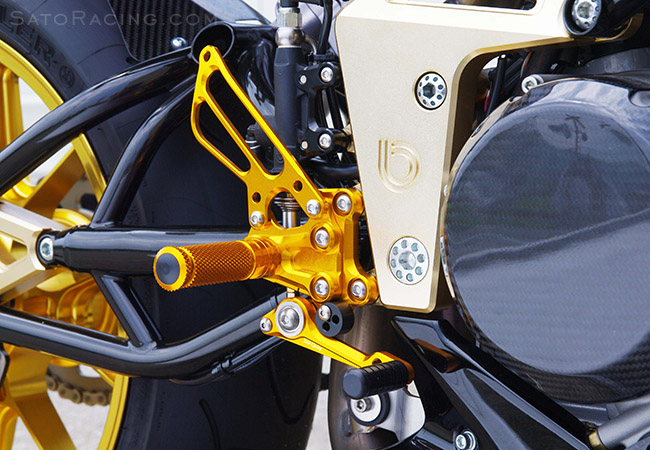

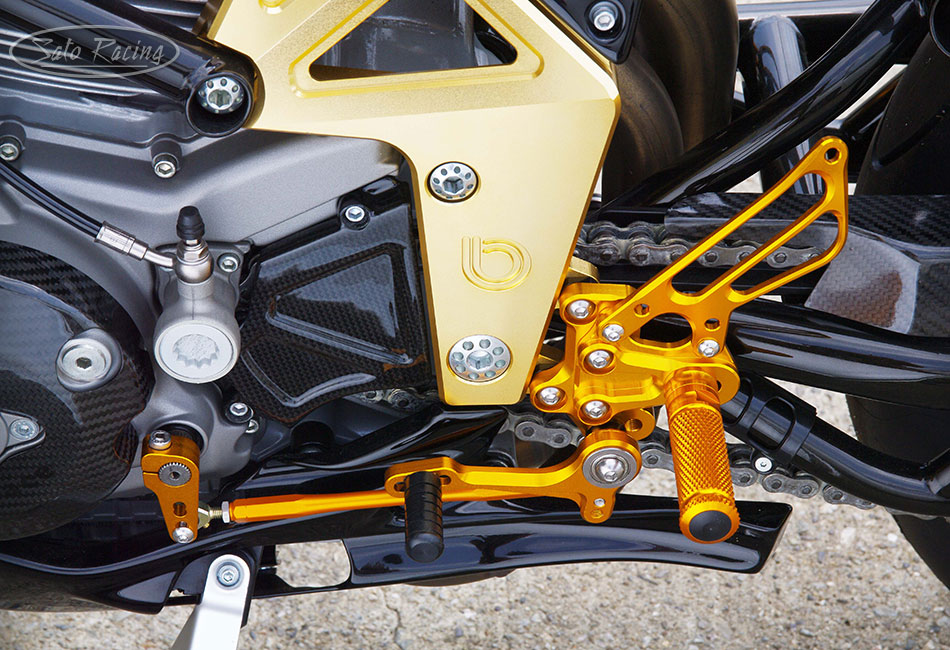

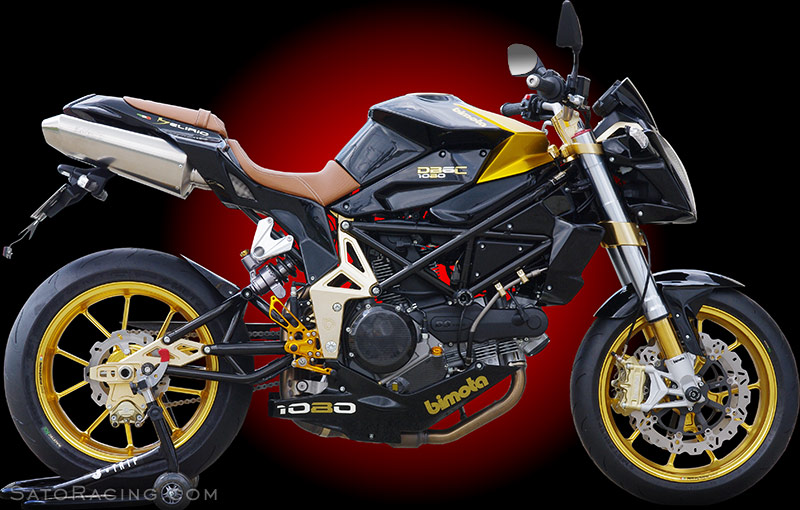

Bimota DB6 Delirio with SATO RACING Rear Sets, Frame Sliders and other parts

SATO RACING Rear Sets for Bimota DB6 series feature parts precision CNC-machined out of high strength billet aluminum, with your choice of Black or vivid Gold anodized finish. Modular design provides 6 adjustable positions in a useful range that can bring your feet up to 30mm higher compared to the stock pegs, so you can find the ideal position for your riding style. These Rear Sets can be used in stock shift pattern, or flip the included shift arm the opposite direction for GP-style reverse shifting pattern.

POSITIONS

1	10mm Forward	10mm Up
2	0mm	10mm Up
3	5mm Forward	20mm Up
4	5mm Back	20mm Up
5	0mm	30mm Up
6	10mm Back	30mm Up

note: all measurements are in relation to stock position (0 mm).

The shift and brake pedals utilizes double stainless bearings for smooth, precise movement and
a solid feel. You can adjust the rest height of the brake pedal by rotating the round pedal stopper.

The positions of the Step Plate, Foot Peg and Pedal Tip are adjustable.
The Foot Pegs feature a deeply knurled pattern for excellent grip.

The shift stroke can be adjusted by changing the position of the Shift Rod on the Shift Arm.

You can switch from stock shift to reverse shift pattern by changing the angle of the Shift Arm.

Online Special -
Producction has ended on these Rear Sets, and we have lowered the prices on remaining inventory to help clear them out! So if you have always wanted to try out these excellent Rear Sets on your Bimota, now is a great time! *

BLACK	BIM-DB6RS-BK ~~$680~~ $545
GOLD	BIM-DB6RS-GD ~~$680~~ $545

* (Clearance item pricing - no exchanges / returns)

Have questions or prefer to order by phone? You can call us to place an order -

ADDITIONAL OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD *	RCPEG-GD $48

* Click Here for important info about Sato GOLD-anodized parts.

SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
