aprilia RSV4 / Tuono V4 1100  ('17- )
REAR SETS

SATO RACING Rear Sets for 2017-22 aprilia RSV4 and Tuono V4 1100 feature components precision machined from light-weight, high strength anodized billet aluminum. This track-tested and competition-proven design provides 5 adjustable foot peg positions in a range that brings your feet progressively higher up and further back compared to stock, for a more aggressive riding position well-suited to the fast straights and steep lean angles encountered on the track. Choice of Black, Silver (natural metal) or vivid Gold anodized finish.

2 designs of these Rear Sets are available: The standard Rear Sets have a stock shifting pattern, while the Reverse Shift Rear Sets provide a dedicated reverse (GP-style) shift pattern.

You can now get a set with or without an exhaust hanger:
Part# A-RSV417RS/ RSR includes an exhaust hanger compatible with the 2017-18 RSV4 and 2017-20 Tuono V4 1100 (as seen in the photos of the Gold set below).
part# A-RSV419RS/ RSR omits the exhaust hanger hardware from the Rear Sets kit, so if you have a 2019-22 RSV4, 2021-22 Tuono V4, or a 2017-22 RSV4 or Tuono with an Akra or other aftermarket high-mounted exhaust that does not require the hanger, you can save a few dollars by getting this version instead.

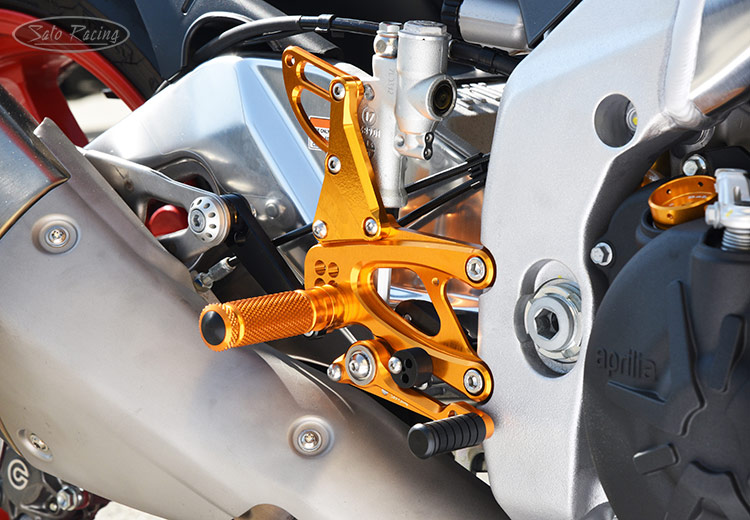

SATO RACING Aprilia RSV4/ TuonoV4 ('17- ) Rear Sets [R]-side
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever action.
The black cylindrical part above the brake pedal can be rotated to adjust the rest height of the pedal.

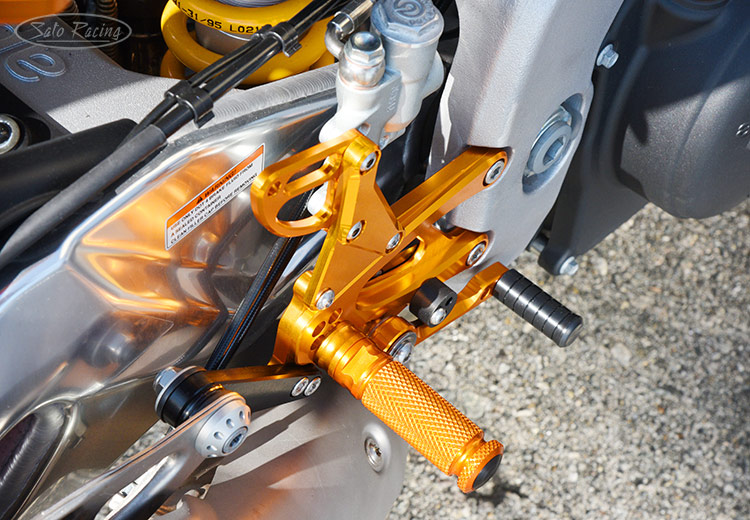

SATO RACING Aprilia RSV4/ TuonoV4 ('17- ) Rear Sets [R]-side
You can adjust the positions of the Foot Peg and the Pedal Tip. The Foot Pegs
have a knurled pattern for great grip, along with a comfortable, intuitive feel.

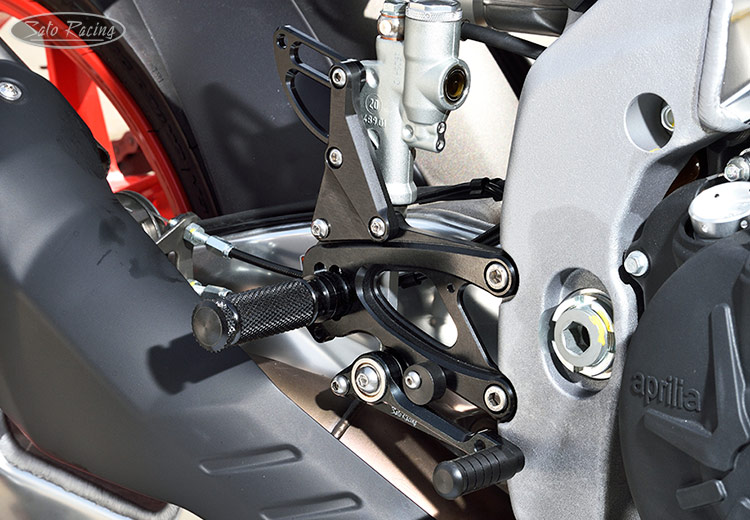

SATO RACING Aprilia RSV4/ TuonoV4 ('17- ) Rear Sets [R]-side
Rear Sets in Black on a 2021 Tuono V4 Factory. Later model years of RSV4 and
Tuono V4 with high-hung exhausts do not require the optional exhaust hanger.


POSITIONS

1 20mm Back 15mm Up
2 20mm Back 25mm Up
3 20mm Back 35mm Up
4 30mm Back 25mm Up
5 30mm Back 35mm Up

note: all measurements are in relation to stock position (0 mm).

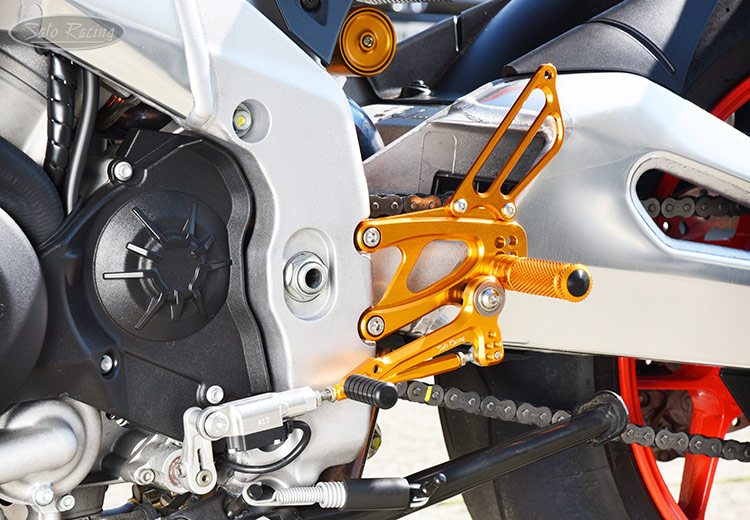

SATO RACING Aprilia RSV4/ TuonoV4 ('17- ) Rear Sets [L]-side
Stock Shift Rear Sets shown above. The shift link is optimized for use with the OEM quickshifter.

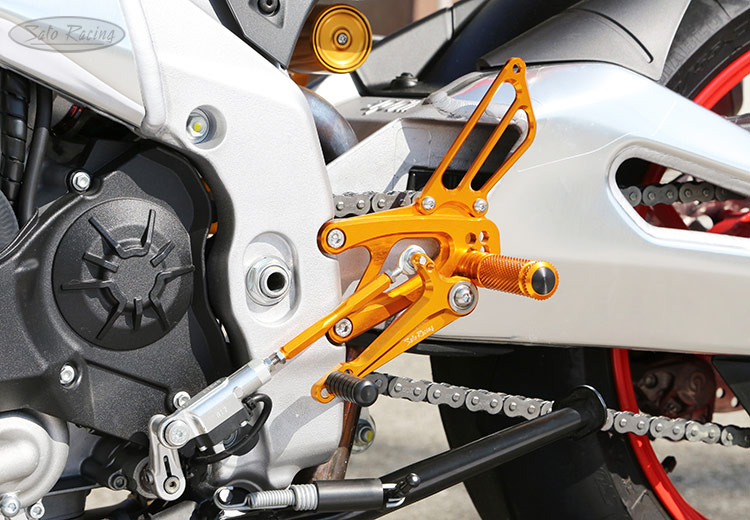

SATO RACING Aprilia RSV4/ TuonoV4 ('17- ) Reverse Shift Rear Sets [L]-side
Reverse Shift Rear Sets - provide a dedicated reverse (GP-style) shifting pattern.

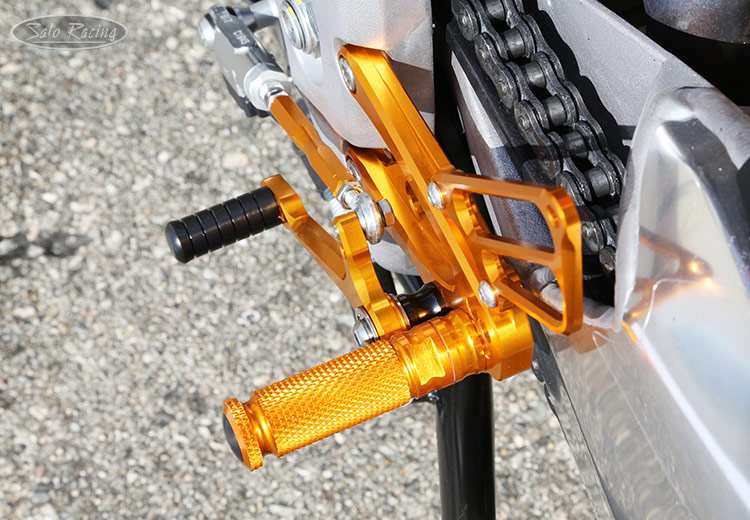

SATO RACING Aprilia RSV4/ TuonoV4 ('17- ) Reverse Shift Rear Sets [L]-side
The standard Pedal Tips are made of tough black Delrin plastic. Additional Pedal Tip styles,
such as aluminum Pedal Tips with fluted rubber sleeves, are an available option:  Details
(Reverse Shift Rear Sets shown above)



REAR SETS - Stock Shift Pattern
(includes Exhaust Hanger)

BLACK A-RSV417RS-BK
$580
SILVER A-RSV417RS-SV
$580
GOLD * A-RSV417RS-GD
$580


REVERSE SHIFT REAR SETS
(includes Exhaust Hanger)

BLACK A-RSV417RSR-BK
$580
SILVER A-RSV417RSR-SV
$580
GOLD A-RSV417RSR-GD
$580



REAR SETS - Stock Shift Pattern
(No Exhaust Hanger)

BLACK A-RSV419RS-BK
$575
SILVER A-RSV419RS-SV
$575
GOLD A-RSV419RS-GD
$575


REVERSE SHIFT REAR SETS
(No Exhaust Hanger)

BLACK A-RSV419RSR-BK
$575
SILVER A-RSV419RSR-SV
$575
GOLD A-RSV419RSR-GD
$575


Click Here for important info about Sato color-anodized parts.

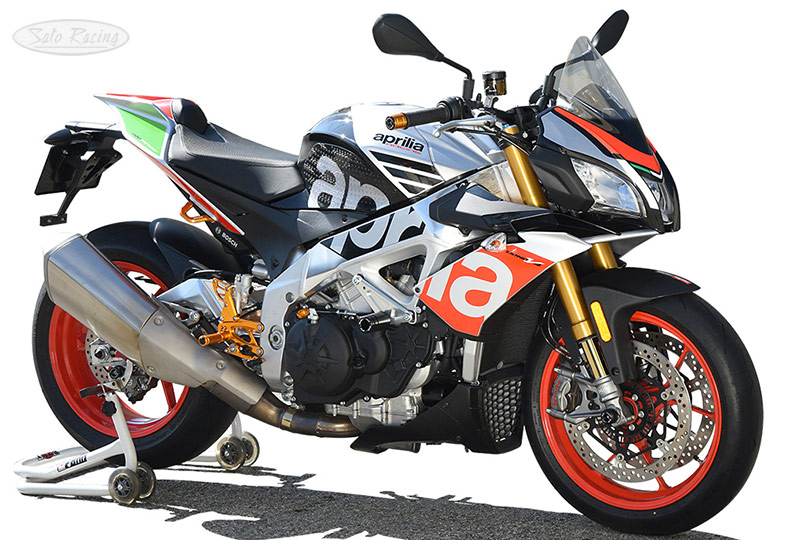

'17 Aprilia Tuono V4 with SATO RACING Rear Sets, Sliders, Racing Hooks and other parts.





OPTIONS



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]		 TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



________________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF parts list:
Rear Sets (standard shift)  |  Reverse Shift Rear Sets


Most replacement parts for these Rear Sets
can be purchased in our Online Store:

(Part numbers correspond to the STD shift version unless otherwise noted.)

Foot Peg FOOT PEG
(BK/ SV/ GD)		 PEG
$42
PEGCLR-12 PEG COLLAR 12
(BK/ SV/ GD) (#20)		 PEGCLR-12
$15
HBT-M840 HEX HEAD M8-40mm
(#33, Foot Peg bolt)		 HBT-M840
$2.00
ST-001D18 PEDAL TIP (DELRIN) ST-001D18
$15
BBT-M620 BUTTON HEAD M6-20mm
(for Pedal Tip)		 BBT-M620
$1.50
HG-2L [L] HEEL GUARD
(BK/ SV/ GD) (#1)		 HG-2L
$50
SPD-0912 SHIFT PEDAL
(BK/ SV/ GD) (STD shift, #5)		 SPD-0912
$62.50
SRD-100 SHIFT ROD 100
(BK/ SV/ GD) (#6)		 SRD-100
$39
BPD-15 BRAKE PEDAL
(BK/ SV/ GD) (#7)		 BPD-15
$66.50
BPD-STOPPER PEDAL STOPPER 12.5
(DELRIN) (#11)		 BPD-STOPPER
$15.00
PEGBGCLR-10SB BEARING COLLAR 10s
[BLACK]    (#16)		 PEGBGCLR-10SB
$10.00
RDED-CLR3 ROD END COLLAR 3
(#17)		 RDED-CLR3
$6.00
RDED-CLR19 ROD END COLLAR 19
(#18)		 RDED-CLR19
$8.00
SBT-M530 SOCKET HEAD M5-30mm
(#22)		 SBT-M530
$2.00
SBT-M610 SOCKET HEAD M6-10mm
(#23)		 SBT-M610
$1.50
HBT-M620 HEX HEAD M6-20mm
(#24)		 HBT-M620
$2.00
BUTTON HEAD M6-45mm
(#25)		 BBT-M645
$1.75
SBT-M820 SOCKET HEAD M8-20mm
(#26)		 SBT-M820
$1.50
BBT-M520 BUTTON HEAD M5-20mm
(#27)		 BBT-M520
$2.00
BBT-M610 BUTTON HEAD M6-10mm
(#28)		 BBT-M610
$1.50
BBT-M830 BUTTON HEAD M8-30mm
(#31)		 BBT-M830
$2.00
STUD-M6 STUD M6-45mm
(#34)		 STUD-M6
$2.50
NUT-M5 NUT M5   (#35) NUT-5
$1.50
JNT-6 JAM NUT M6
(#36)		 JNT-6
$1.75
JNT-6L REVERSE JAM NUT M6
(#37)		 JNT-6L
$2.50
LOCK NUT M6
(#38)		 LNT-6
$1.50
SWS-8 SPLIT WASHER M8
(#39)		 SWS-8
$1.20
RDED-M6 MALE ROD END M6
(#40)		 RDED-M6
$12.50
RDED-M6L REVERSE
MALE ROD END M6
(#41)		 RDED-M6L
$12.50
FBT-M610 FLAT HEAD M6-10mm
(#42)		 FBT-M610
$1.50
SRD-100 SHIFT ROD 90 (BK)
(REV Shift, #6)		 SRD-90
$39
PEGBGCLR-15SB BEARING COLLAR 15
[BLACK]    (REV Shift, #16)		 PEGBGCLR-15SB
$10.00
HBT-M618 HEX HEAD M6-18mm
(REV Shift, #20)		 HBT-M618
$2.00
BBT-M840 BUTTON HEAD M8-40mm
(REV Shift, #32)		 BBT-M840
$2.00

For replacement parts not listed on our website, contact Sato Racing for an estimate.)


More Sato Racing items for 2017+ RSV4 / Tuono V4 1100

Oil Filler Cap Racing Hooks Frame Sliders
