aprilia RSV4 (R/ Factory) ('09-'11)
REAR SETS

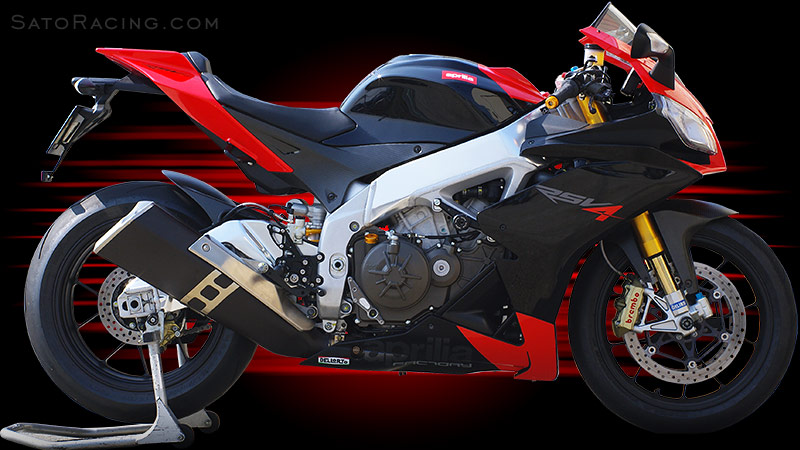

Aprilia RSV4 with SATO RACING Rear Sets, Frame Sliders and other parts

SATO RACING Rear Sets for 2009-11* Aprilia RSV4 models with the standard shift linkage (non-quickshifter) features a track-engineered design, with parts precision CNC-machined out of high strength billet aluminum, with stainless steel bolts. Modular design features a wide selection of adjustable mounting positions for the step plate and foot peg, ranging from stock-equivalent position to more aggressive positions that bring your feet higher up and further back compared to stock. These Rear Sets let you easily switch from stock shift to reverse shift pattern by flipping the change arm. Choice of Black, Silver, or vivid Gold anodized finish.

* Not compatible with 2011+ RSV4 APRC.

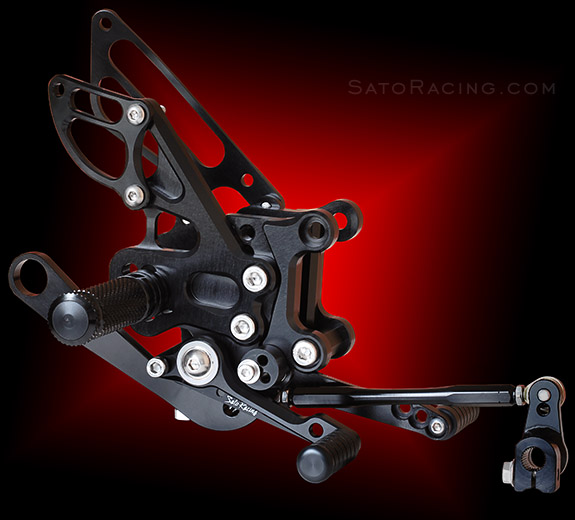

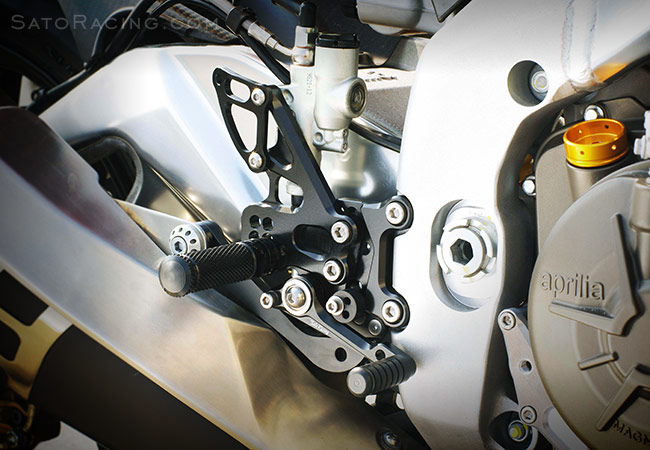

SATO RACING Aprilia RSV4 ('09-'11) Rear Sets [R]-side

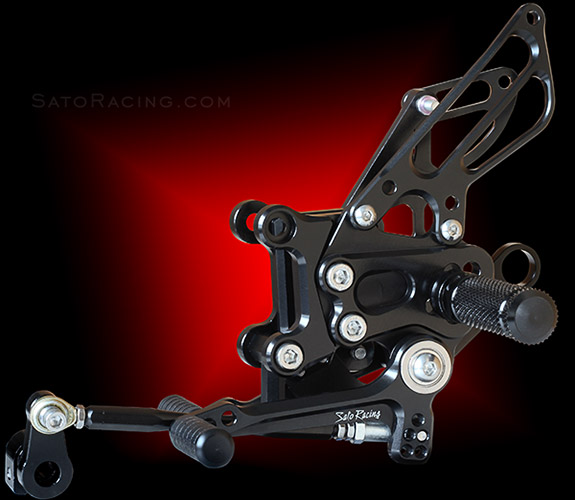

SATO RACING Aprilia RSV4 ('09-'11) Rear Sets [L]-side

POSITIONS

1	0mm	0mm
2	0mm	10mm Up
3	0mm	20mm Up
4	10mm Back	10mm Up
5	10mm Back	20mm Up
6	10mm Back	30mm Up
7	10mm Back	40mm Up
8	20mm Back	20mm Up
9	20mm Back	30mm Up
10	20mm Back	40mm Up
11	30mm Back	30mm Up
12	30mm Back	40mm Up

note: all measurements are in relation to stock position (0 mm).

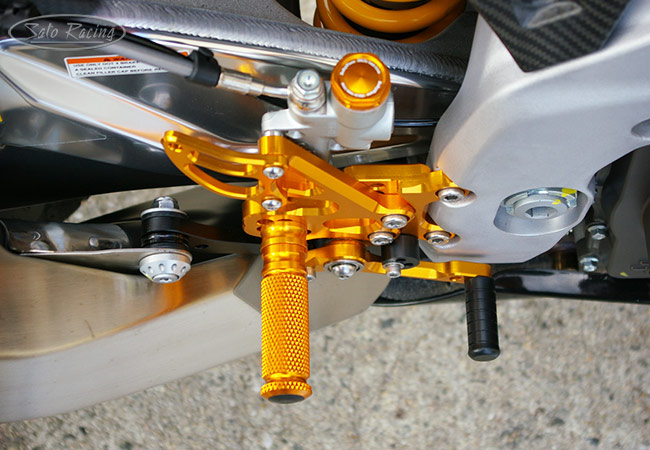

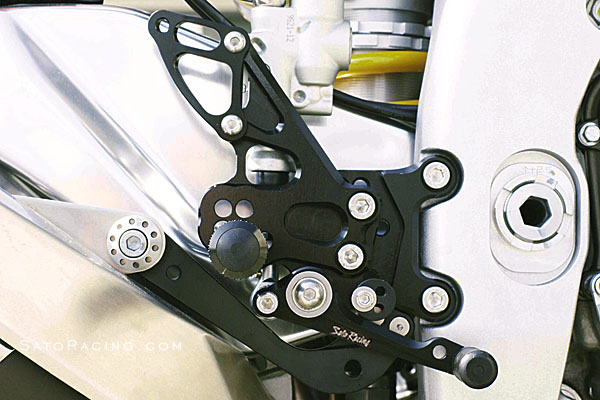

SATO RACING Aprilia RSV4 ('09-'11) Rear Sets [R]-side
The Step Plate, Foot Peg, and Pedal Tip can be independently adjusted
in several ways to help you find the best possible riding position.

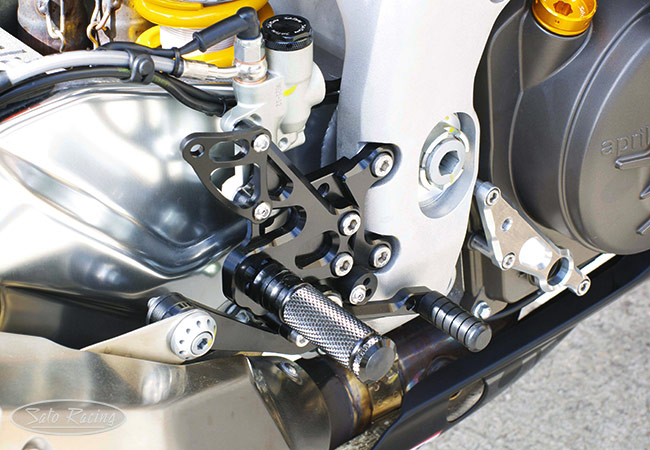

SATO RACING Aprilia RSV4 ('09-'11) Rear Sets [R]-side
The foot pegs havee a finely knurled grip pattern with excellent non-slip characteristics. The
standard Pedal Tips are made of tough Delrin. Other styles of Pedal Tips are also available.

SATO RACING Aprilia RSV4 ('09-'11) Rear Sets [R]-side
Rear Sets kit includes a black anodized exhaust hanger bracket for the stock exhaust. To adjust
the rest height of the brake pedal, rotate the black cylindrical stopper located above the pedal.

SATO RACING Aprilia RSV4 ('09-'11) Rear Sets [R]-side

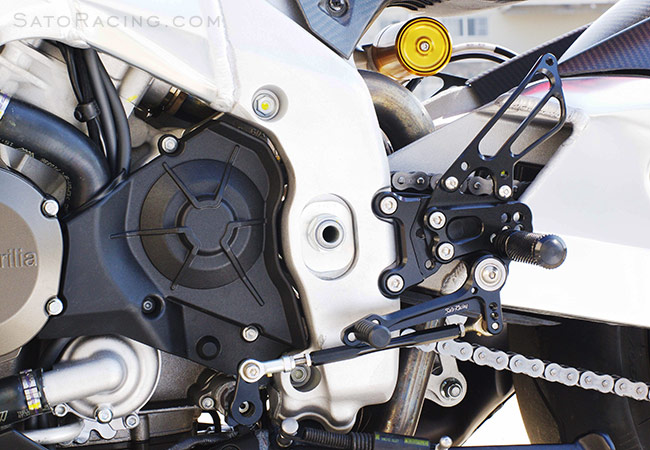

SATO RACING Aprilia RSV4 ('09-'11) Rear Sets [L]-side
The shift and brake pedals employ double stainless bearings for smooth, precise pedal movement.
You can switch from stock shift to reverse shift pattern by flipping the shift arm the opposite direction.

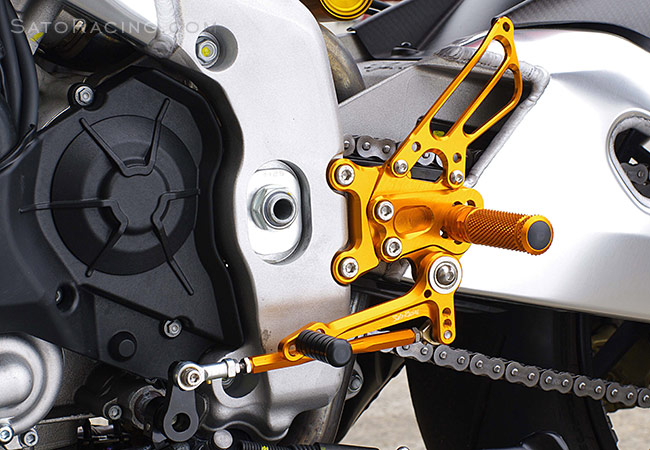

SATO RACING Aprilia RSV4 ('09-'11) Rear Sets [L]-side
The shift stroke can be adjusted by changing the mounting position of the shift rod on the pedal.

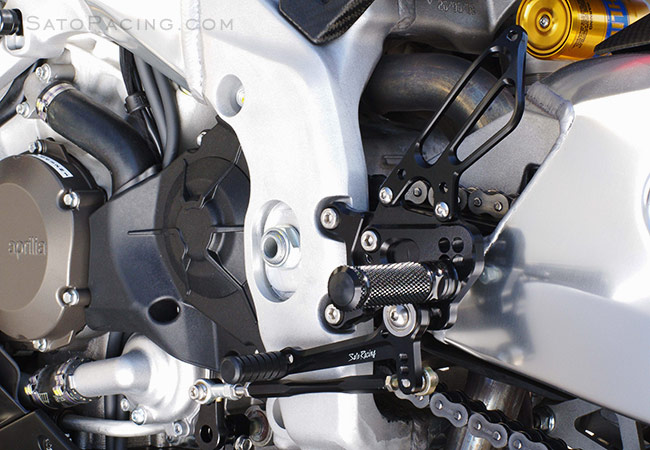

SATO RACING Aprilia RSV4 ('09-'11) Rear Sets [L]-side
These Rear Sets are designed for the earlier non-quickshifter version of RSV4.
For RSV4 APRC, see the quickshifter-compatible version of these Rear Sets: Details.

Online Special -
Originally $630, price has been reduced to $505 on all remaining stock! (Clearance pricing - All sales are final) *

BLACK	A-RSV4RS-BK $630	SOLD OUT
SILVER	A-RSV4RS-SV ~~$630~~ $505
GOLD	A-RSV4RS-GD ~~$630~~ $505

(Brake light switch included in kit)

* (Clearance item pricing - no exchanges / returns)

Click Here for important info about Sato GOLD-anodized parts.

OPTIONS

REAR BRAKE RESERVOIR CAP

This high-quality Brake Cap for the rear brake fluid reservoir is precision CNC-machined out of solid billet aluminum and features a finely knurled grip pattern around the rim, with white laser etched Sato Racing logo script on top. The holes around the rim can be used to attach a safety wire. Goes great with our Rear Sets!

SATO RACING Rear Brake Fluid Cap FC-B3-B on an Aprilia Tuono V4R
NOTE: This model is currently available in Black or Silver anodized finish.

Rear Brake Cap FC-B3

BLACK	FC-B3-B $47
SILVER	FC-B3-S $47

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $52
	SILVER	RCPEG-SV $52
	GOLD	RCPEG-GD $52

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List

Some replacement parts for these Rear Sets
can be purchased in our Online Store:

	FOOT PEG (BK/ SV/ GD)	PEG $48
	STUD BOLT M8-45mm (aka STUD BOLT SS)	STBT-45 $4.50
	FLANGE NUT M8	FNT-8 $1.50
	PEG WASHER - M8 (R-side #10)	PWS-8 $1.00
	PEDAL TIP (DELRIN) (#7)	ST-001D18 $16.50
	BUTTON HEAD M6-20mm (for Pedal Tip)	BBT-M620 $1.50
	SOCKET HEAD M6-20mm (L-side #13)	SBT-M620 $1.50
	ROD END COLLAR 3 (L-side #12)	RDED-CLR3 $6.00
	BRAKE LIGHT SWITCH (P-1.0)	BSW-1 $25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
