YAMAHA FZ-10 / MT-10/ SP '17-'25
REAR SETS

SATO RACING Rear Sets for 2017-25 Yamaha FZ-10 / MT-10/ SP features an extensively track-tested and competition-proven design, with components precision machined out of light-weight, high strength anodized billet aluminum. Adjustable design lets you select from 5 unique foot peg positions that place your feet higher up and further back compared to stock, for enhanced control and improved handling at the limit. Shift linkage is optimized for use with the OEM quickshifter and can be set up for stock shift pattern or GP-style reverse shift pattern. Fully compatible with the stock brake light switch and ABS. Choice of all-Black anodized finish, or vivid Gold anodized finish with Black anodized shifter assembly.

POSITIONS

1	17.5mm Back	25mm Up
2	17.5mm Back	37.5mm Up
3	17.5mm Back	50mm Up
4	30mm Back	37.5mm Up
5	30mm Back	50mm Up

note: all measurements are in relation to stock position (0 mm).

The following photos show these Rear Sets installed on a 2017 Japan-spec MT-10.

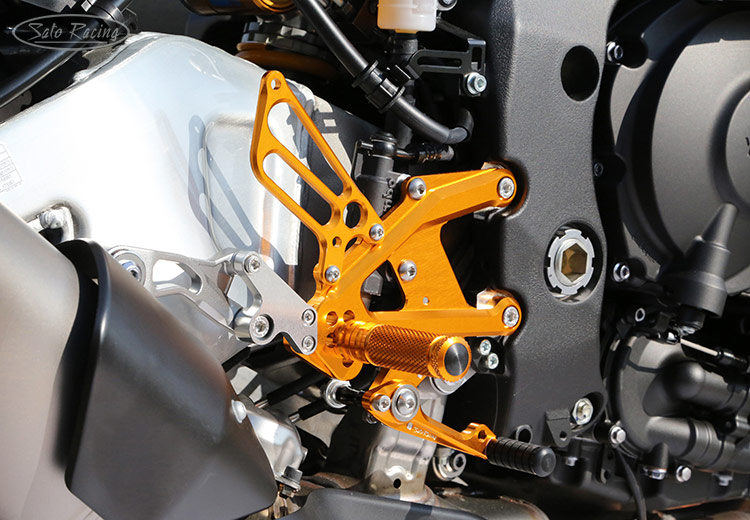

SATO RACING Yamaha FZ-10 / MT-10 '17- Rear Sets [R]-side in Gold
The shift and brake pedals utilize double miniature stainless bearings for smooth, precise lever actuation.

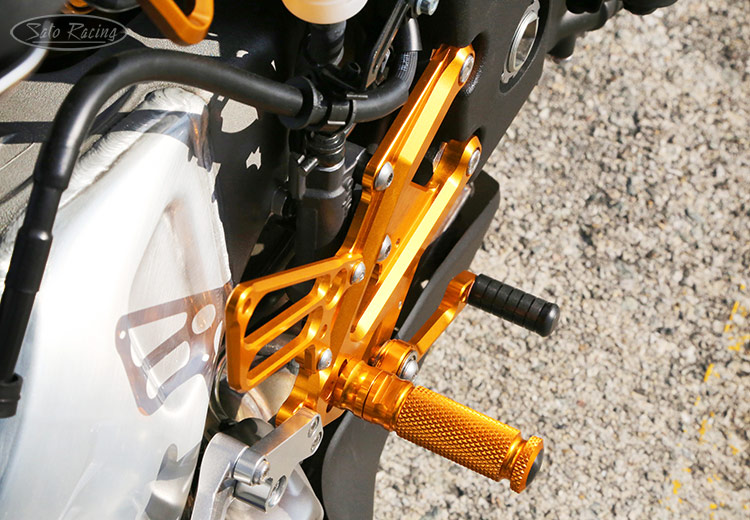

SATO RACING Yamaha FZ-10 / MT-10 '17- Rear Sets [R]-side in Gold
Knurled footpegs provide great grip, along with a comfortable, intuitive feel.

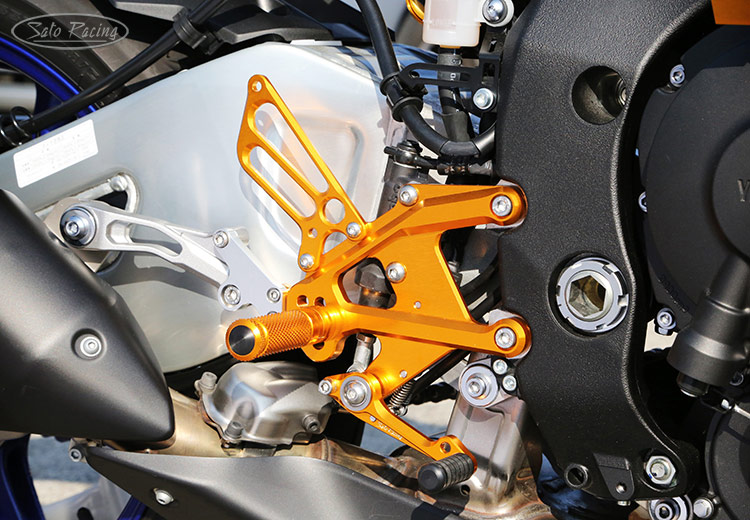

SATO RACING Yamaha FZ-10 / MT-10 '17- Rear Sets [R]-side in Gold
These Rear Sets include hardware to attach the stock brake light switch.
Kit also includes a hanger bracket for the stock exhaust canister.

NOTE: In the latest version of this kit, the exhaust hanger now has a Black-anodized finish.

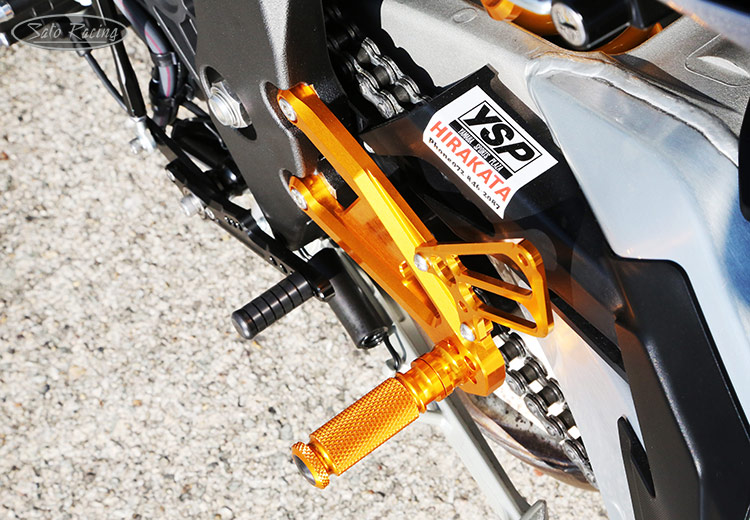

SATO RACING Yamaha FZ-10 / MT-10 '17- Rear Sets [L]-side in Gold
The shift pedal has multiple adjustment holes for fine-tuning the shift stroke to your preference.
Set it up for reverse shift pattern by relocating the shift rod to the opposite end of the shift pedal.

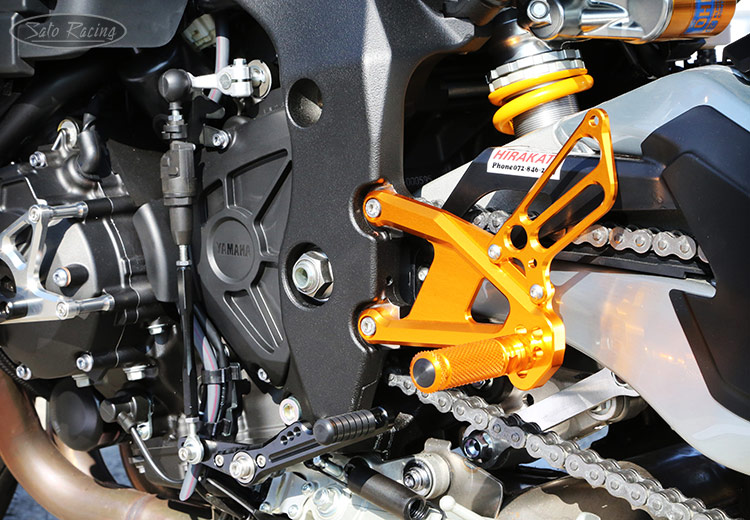

SATO RACING Yamaha FZ-10 / MT-10 '17- Rear Sets [L]-side
The Step Plate has 5 attachment points for the Foot Peg. The Pedal Tip position is also adjustable.

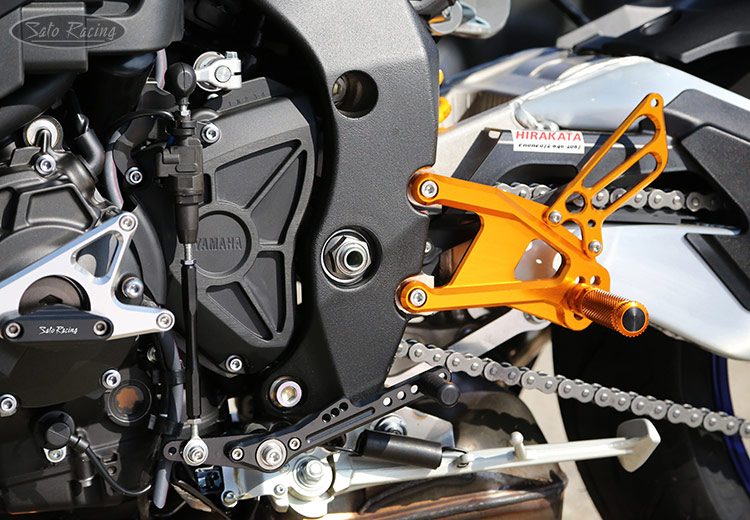

SATO RACING Yamaha FZ-10 / MT-10 '17- Rear Sets [L]-side

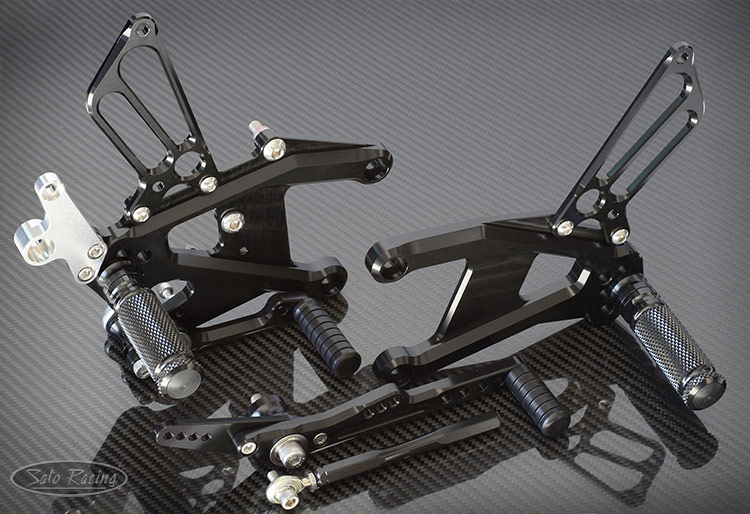

SATO RACING Yamaha FZ-10 / MT-10 '17- Rear Sets in BLACK

BLACK	Y-MT10RS-BK $565
GOLD w/ Black Shift Pedal	Y-MT10RS-GD $565

Click Here for important info about Sato color-anodized parts.

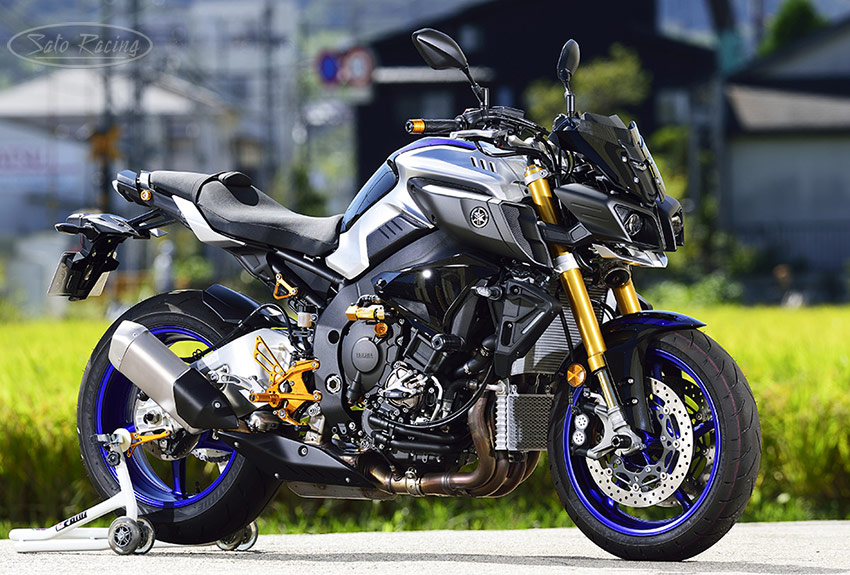

2017 Yamaha MT-10

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.

To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List

Some replacement parts for these Rear Sets
can be purchased in our Online Store:

	FOOT PEG (BK / GD)	PEG $42
	PEG COLLAR 15 (BK / GD) (#31)	PEGCLR-15 $15
	STUD BOLT M8-50mm (#14, Foot Peg bolt)	STBT-50 $4.50
	PEDAL TIP (DELRIN) (L-side #12)	ST-001D18 $16.50
	PEDAL TIP LONG (DELRIN) (R-side #13)	ST-001D18L $18
	[L] HEEL GUARD (BK / GD) (L-side #1)	HG-6L $60
	[R] HEEL GUARD (BK / GD) (R-side #2)	HG-6R $60
	SHIFT ROD 110 [BLACK] (L-side #6)	SRD-110-B $39
	HEX HEAD M5-6mm (R-side #15)	HBT-M56 $2.00
	SOCKET HEAD M5-10mm (R-side #16)	SBT-M510 $2.00
	SOCKET HEAD M5-15mm (R-side #17)	SBT-M515 $2.00
	SOCKET HEAD M5-35mm (R-side #18)	SBT-M535 $2.00
	SOCKET HEAD M6-15mm (R-side #19)	SBT-M615 $1.50
	SOCKET HEAD M6-18mm (L-side #20)	SBT-M618 $1.50
	SOCKET HEAD M6-50mm (R-side #21)	SBT-M650 $2.00
	SOCKET HEAD M8-15mm (R-side #22)	SBT-M815 $1.50
	SOCKET HEAD M8-20mm (#23)	SBT-M820 $1.50
	SOCKET HEAD M8-45mm (L-side #24)	SBT-M845 $2.00
	BUTTON HEAD M6-10mm (#25)	BBT-M610 $1.50
	BUTTON HEAD M6-20mm (L-side #26)	BBT-M620 $1.50
	BUTTON HEAD M6-30mm (R-side #27)	BBT-M630 $1.50
	BUTTON HEAD M8-25mm (R-side #28)	BBT-M825 $1.50
	ROD END COLLAR 23 (R-side #29)	RDED-CLR23 $8.00
	NUT M5 (R-side #32)	NUT-5 $1.50
	REVERSE JAM NUT M6 (L-side #33)	JNT-6L $2.50
	LOCK NUT M6 (R-side #34)	LNT-6 $1.50
	FLANGE NUT M8 (#35)	FNT-8 $1.50
	M6 MALE REVERSE ROD END (L-side #36)	RDED-M6L $12.50
	FEMALE ROD END 6-M8 (R-side #37)	RDED-F6-8 $25
	PULL SWITCH STAY 16 (R-side #38)	PSTAY-16 $9.50
	RETURN SPRING 8-25 (R-side #39)	RS-RSP8-25 $8.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
