YAMAHA YZF-R1 ('15- )
REAR SETS

SATO RACING Rear Sets (standard version) for 2015 and up YZF-R1* features a track-proven design, with parts precision CNC-machined out of high strength billet aluminum. Adjustable design lets you select from 5 foot peg positions that bring your feet higher up and further back compared to stock, for enhanced control and improved handling at the limit. Rear Sets can be set up for stock shift pattern, or reverse (GP-style) shift pattern. 'Street'-friendly design - Fully compatible with the stock brake light switch and ABS. Choice of deep Black or vivid Gold anodized finish.

2 versons of our 2015+ R1 Rear Sets are now available:
Part#
Y-R115RS is designed for the 2015-17 R1/ R1M with the stock quickshifter.
Part#
Y-R118RS is intended for the 2018-22 R1/ M, and is basically the same as part# Y-R115RS but includes a shorter shift rod designed for use with the updated quickshifter found on the 2018+ R1.

* NOTE: For the R1S with the conventional shift linkage (no quick-shifter), you will need a longer Shift Rod than what is in the kit, and we can swap in the correct length Shift Rod for that model at no additional charge. Please mention you have an R1S when placing the order.


POSITIONS

1 15mm Back
(0.6" Back)
22.5mm Up
(0.9" Up)
2 15mm Back
(0.6" Back)
35mm Up
(1.4" Up)
3 15mm Back
(0.6" Back)
47.5mm Up
(1.9" Up)
4 27.5mm Back
(1.1" Back)
35mm Up
(1.4" Up)
5 27.5mm Back
(1.1" Back)
47.5mm Up
(1.9" Up)

note: all measurements are in relation to stock position (0 mm).

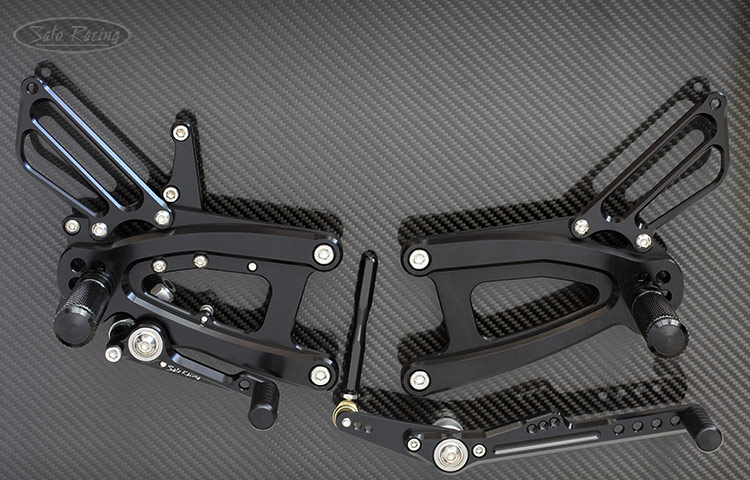

SATO RACING Yamaha YZF-R1 '15- Rear Sets in Black


The shift and brake pedals use miniature double stainless bearings for smooth, precise lever action.

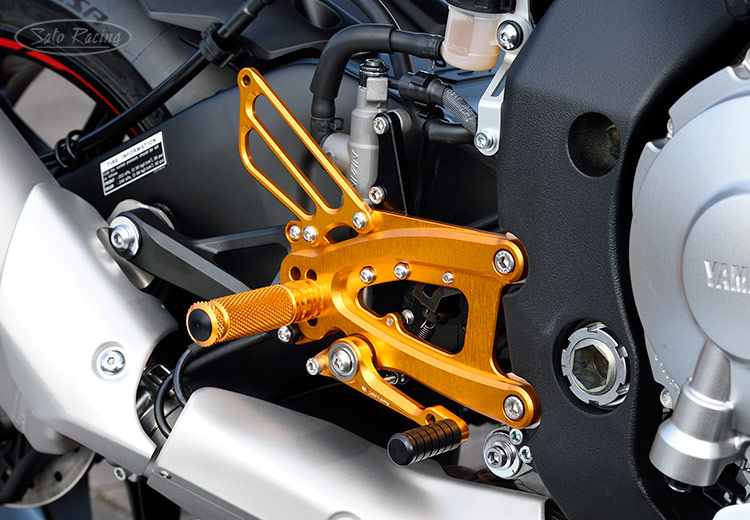

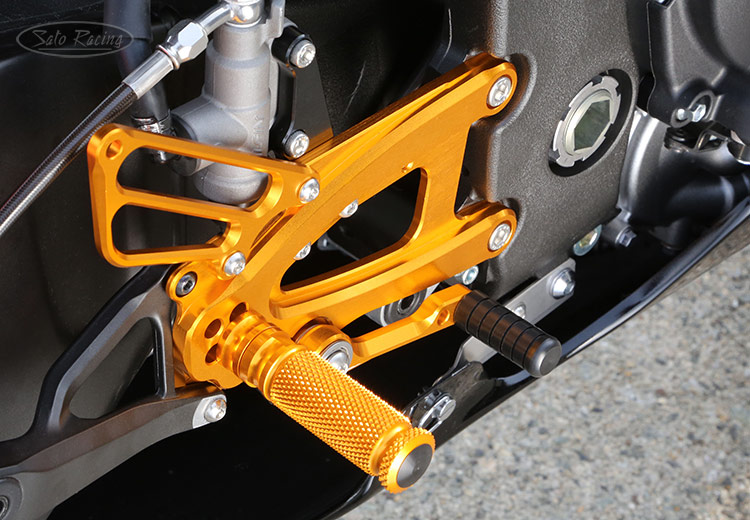

SATO RACING Yamaha YZF-R1 '15- Rear Sets [R]-side
Knurled footpegs provide excellent grip even in wet conditions.
These Rear Sets are compatible with the stock brake light switch.

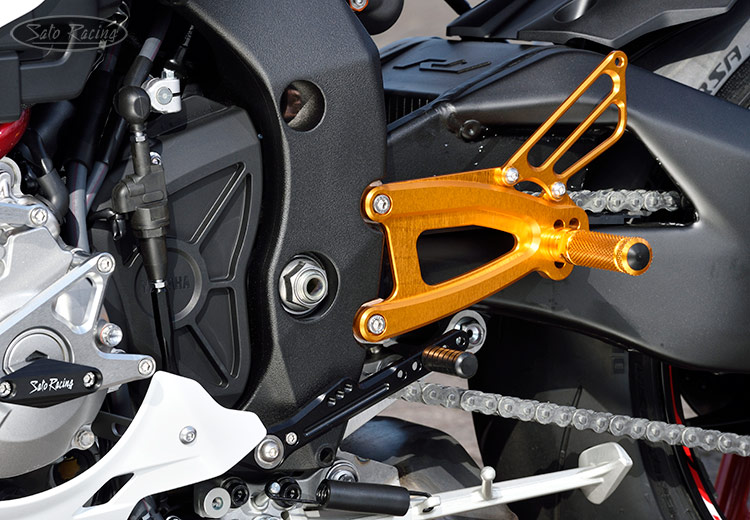

SATO RACING Yamaha YZF-R1 '15- Rear Sets [L]-side
The shift pedal has multiple adjustment points for fine-tuning the shifter feel.
To change to reverse (GP) shift pattern, relocate the shift rod to the opposite end of the pedal.

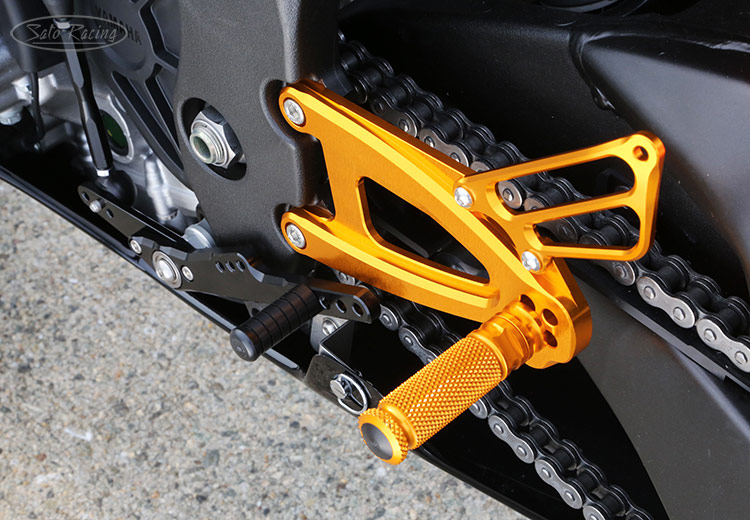

SATO RACING Yamaha YZF-R1 '15- Rear Sets [L]-side
The Foot Peg has 5 adjustable positions. Pedal Tip position is also adjustable.



2015-17 R1

BLACK Y-R115RS-BK
$600
GOLD Y-R115RS-GD
$600


2018-22 R1

BLACK Y-R118RS-BK
$600
GOLD Y-R118RS-GD
$600


Click Here for important info about Sato color-anodized parts.




OPTIONS




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK BLACK RCPEG-BK
$48
GOLD GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



------------------------------------------------------------------------------------------

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list included
with your SATO RACING Rear Sets, or view the PDF file:

Parts List - Y-R115RS   |   Parts List - Y-R118RS

Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG
(BK / GD)
PEG
$42
PEG COLLAR 12
(BK / GD) (#15)
PEGCLR-12
$15
PEDAL TIP (DELRIN) ST-001D18
$15
HG-2L [L] HEEL GUARD
(BK/ SV/ GD) (#1)
HG-2L
$50
HG-2R [R] HEEL GUARD
(BK/ SV/ GD) (#2)
HG-2R
$50
SHIFT ROD 90 [BLACK]
(#6, for 2015-17 R1)
SRD-90-B
$39
SHIFT ROD 70 [BLACK]
(#6, for 2018-22 R1)
SRD-70-B
$39
SHIFT ROD 190 [BLACK]
(#6 for R1S)
SRD-190-B
$39
RDED-ADPTRM6-8 ROD ADAPTER M6-8
(#10)
RDED-ADPTRM6-8
$8.00
ROD END COLLAR 23
(#14)
RDED-CLR23
$8.00
SOCKET HEAD M5-30mm
(#16)
SBT-M530
$1.50
SOCKET HEAD M6-15mm
(#17)
SBT-M615
$1.50
SOCKET HEAD M6-18mm
(#18)
SBT-M618
$1.50
SOCKET HEAD M6-50mm
(#19)
SBT-M650
$2.00
SOCKET HEAD M8-20mm
(#20)
SBT-M820
$1.50
BUTTON HEAD M5-15mm
#21)
BBT-M515
$2.00
BUTTON HEAD M6-10mm
(#22)
BBT-M610
$1.50
BBT-M612 BUTTON HEAD M6-12mm
(#23)
BBT-M612
$1.50
BUTTON HEAD M6-15mm
(#24)
BBT-M615
$1.50
BUTTON HEAD M6-20mm
(#25)
BBT-M620
$1.50
BUTTON HEAD M8-25mm
#26
BBT-M825
$1.50
STUD BOLT M8-50mm
(#27, Foot Peg bolt)
STBT-50
$4.50
NUT M5   (#28) NUT-5
$1.50
JAM NUT M6
(#29)
JNT-6
$1.75
REVERSE JAM NUT M6
(#30)
JNT-6L
$2.50
LOCK NUT M6
(#31)
LNT-6
$1.50
FLANGE NUT M8
(#32)
FNT-8
$1.50
M6 MALE
REVERSE ROD END

(#33)
RDED-M6L
$12.50
M6 MALE ROD END
(#34)
RDED-M6
$12.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)


------------------------------------------------------------------------------------------
