SATO RACING | Rear Sets - Suzuki SV650 ABS ('16-'23)

SUZUKI SV650 ABS ('16- )
REAR SETS

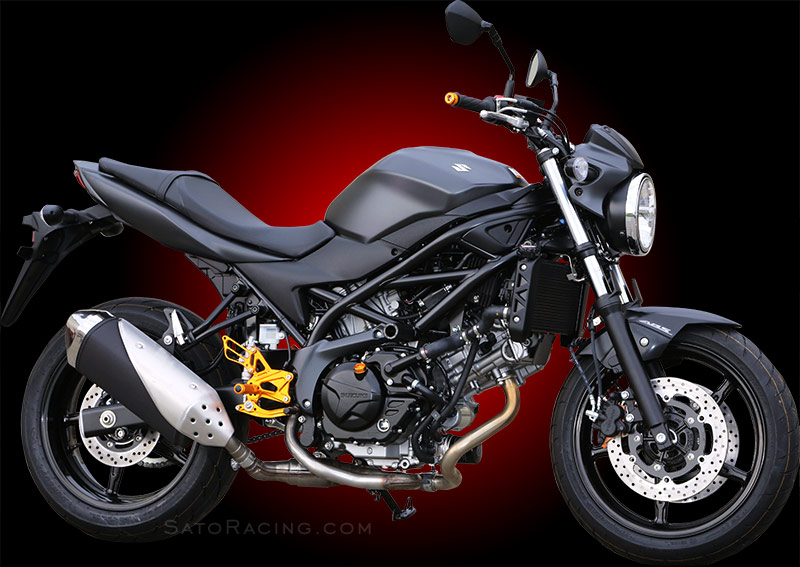

Suzuki SV650 ABS with SATO RACING Rear Sets, Frame Sliders, Spools and other parts

SATO RACING Rear Sets for 2016 and up Suzuki SV650 ABS features a track-engineered design, with components precision CNC-machined out of light-weight, high strength anodized billet aluminum, with stainless steel fasteners. Adjustable peg mount design lets you choose from 5 foot positions that bring your feet higher up and further back compared to stock, for a more aggressive riding position well-suited for the fast straights and steep lean angles encountered on the track. These premium quality Rear Sets can be set up for either stock shift or reverse shift pattern. Choice of Black, Silver or Gold anodized finish.

POSITIONS

1	42.5mm Back	40mm Up
2	42.5mm Back	52mm Up
3	54.5mm Back	40mm Up
4	54.5mm Back	52mm Up
5	54.5mm Back	64mm Up

note: all measurements are in relation to stock position (0 mm).

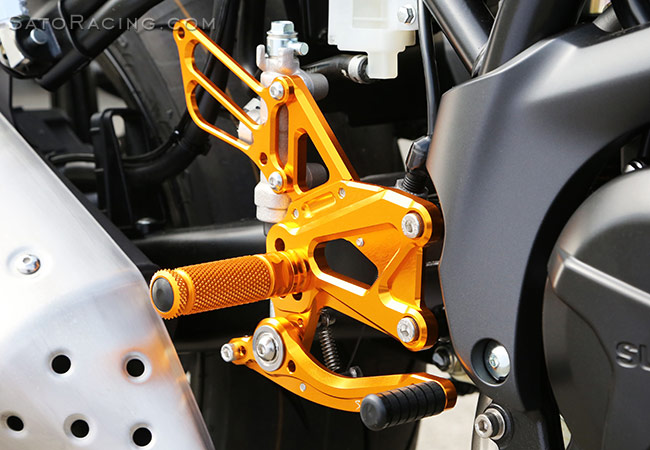

SATO RACING Suzuki SV650 ABS Rear Sets [R]-side
The shift and brake pedals utilize double stainless bearings for smooth, precise lever actuation.

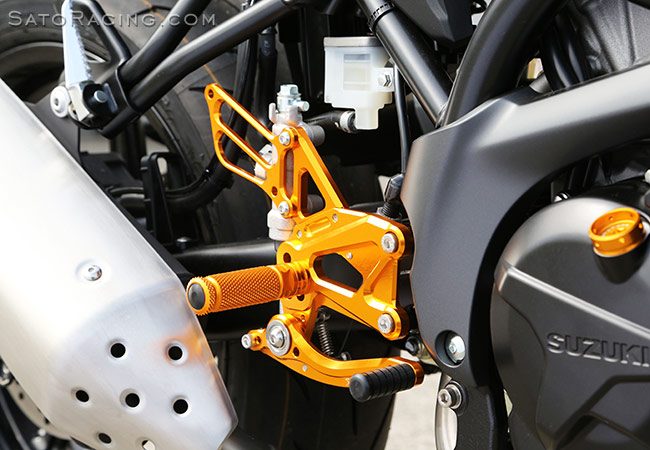

SATO RACING Suzuki SV650 ABS Rear Sets [R]-side
The Foot Peg position is adjustable 5 ways. The Pedal Tip position can also be adjusted.
These Rear Sets are fully compatible with the stock brake light pull switch and ABS.

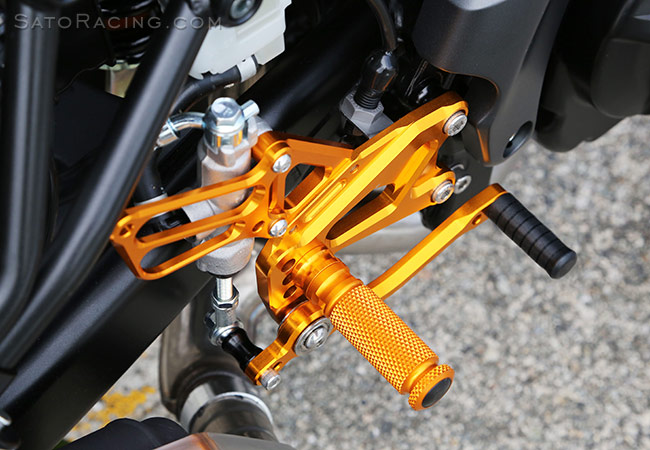

SATO RACING Suzuki SV650 ABS Rear Sets [R]-side
The Foot Pegs have a finely knurled pattern for non-slip grip and a comfortable, intuitive feel.

The standard Pedal Tips are made of tough black Delrin. Additional Pedal Tip styles, such as
aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details

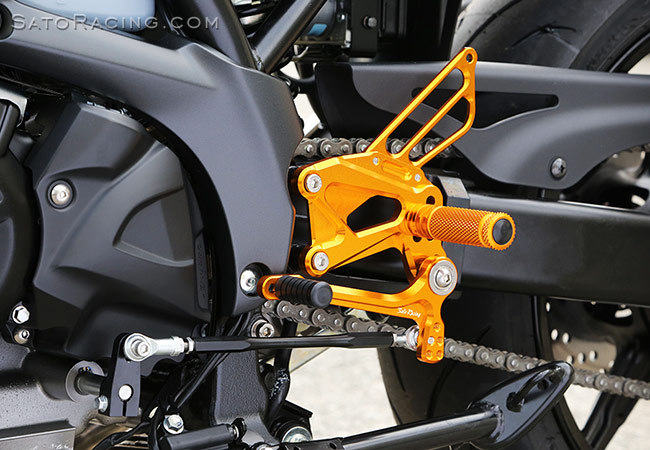

SATO RACING Suzuki SV650 ABS Rear Sets [L]-side

These Rear Sets are designed for use with the stock Suzuki shift arm and rod end. We also make an adjustable billet aluminum Shift Arm kit (part# S-CA2, shown in these photos) that works well with these Rear Sets, providing additional adjustment options for the shift linkage.

SATO RACING Suzuki SV650 ABS Rear Sets [L]-side

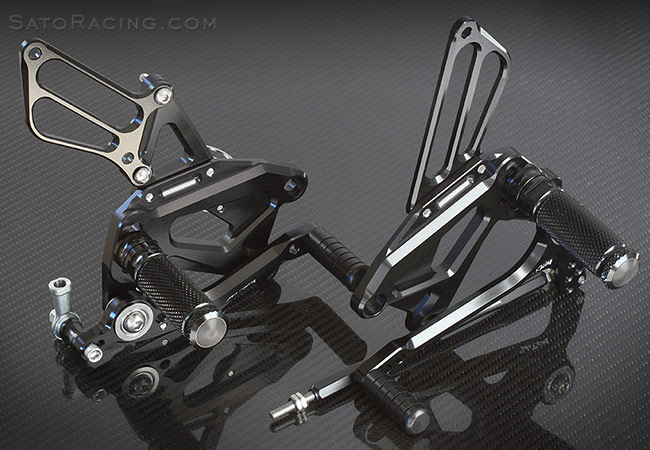

SATO RACING Suzuki SV650 ABS Rear Sets in BLACK

BLACK	S-SV65016RS-BK $535
SILVER	S-SV65016RS-SV $535
GOLD	S-SV65016RS-GD $535

Click Here for important info about Sato color-anodized parts.

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List

Some replacement parts for these Rear Sets
can be purchased in our online store.:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	PEG COLLAR 12 (BK/ SV/ GD) (#17)	PEGCLR-12 $15
	STUD BOLT M8-45mm (Peg Bolt, #33)	STBT-45 $4.50
	PEDAL TIP (DELRIN) (L-side #11)	ST-001D18 $15
	PEDAL TIP LONG (DELRIN) (R-side #12)	ST-001DL $15
	BUTTON HEAD M6-20mm (for L-side Pedal Tip)	BBT-M620 $1.50
	BUTTON HEAD M6-25mm (for R-side Pedal Tip)	BBT-M625 $1.50
	[L] HEEL GUARD (BK/ SV/ GD) (#1)	HG-2L $50
	[R] HEEL GUARD (BK/ SV/ GD) (#2)	HG-1R $50
	SHIFT ROD 170 [BLACK] (L-side #8)	SRD-170-B $39
	ROD END COLLAR 3 (#13)	RDED-CLR3 $6.00
	HEX HEAD M6-20mm (#31)	HBT-M620 $2.00
	SOCKET HEAD M8-30mm (#22)	SBT-M830 $2.00
	BUTTON HEAD M6-10mm (#29)	BBT-M610 $1.50
	STUD M6 (#32)	STUD-M6 $2.50
	JAM NUT M6 (L-side #35)	JNT-6 $1.75
	REVERSE JAM NUT M6 (L-side #36)	JNT-6L $2.50
	M6 MALE REVERSE ROD END (#40)	RDED-M6L $12.50
	ROD END COLLAR 19 (#14)	RDED-CLR19 $8.00
	SOCKET HEAD M5-40mm (#20)	SBT-M540 $2.00
	SOCKET HEAD M6-45mm (#21)	SBT-M645 $2.00
	BUTTON HEAD M8-25mm (#27)	BBT-M825 $1.50
	HEX HEAD M5-6mm (#30)	HBT-M56 $2.00
	NUT M5 (#34)	NUT-5 $1.50
	FLANGE NUT M8 (#38)	FNT-8 $1.50
	FEMALE ROD END 6-M8 (#41)	RDED-F6-8 $25
	PULL SWITCH STAY 16 (#42)	PSTAY-16 $9.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)

More Sato Racing items for '16- Suzuki SV650
