KTM  RC125 / RC390 ('15-'19)
REAR SETS

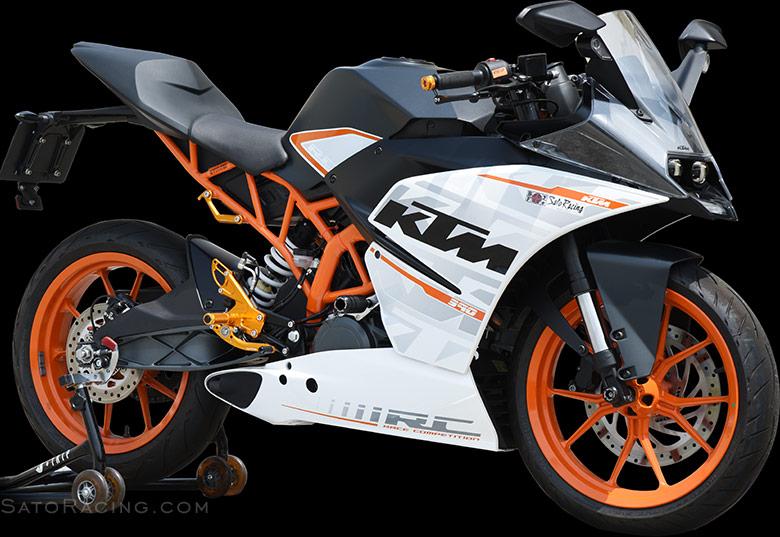

KTM RC390 loaded with SATO RACING parts

SATO RACING Rear Sets for 2015-19 KTM RC390, along with the similar (non-US) RC125, features a track-engineered and competition-proven design, with parts precision machined out of lightweight, high strength billet aluminum, with stainless steel hardware. Modular adjustable design lets you select from 8 unique foot peg positions in a wide adjustment range bringing your feet higher up compared to stock, for a more aggressive riding position well-suited to the fast straights and steep lean angles encountered on the track. Our standard Rear Sets provide a stock shift pattern. Reverse Shift Rear Sets are also available, providing a dedicated reverse (GP-style) shift pattern. Choice of all-Black anodized finish, or Silver or Gold finish over Black anodized Base Plates.

Also available for these Rear Sets is an optional
Short Shift Kit, which gives these Rear Sets a shorter shift stroke.

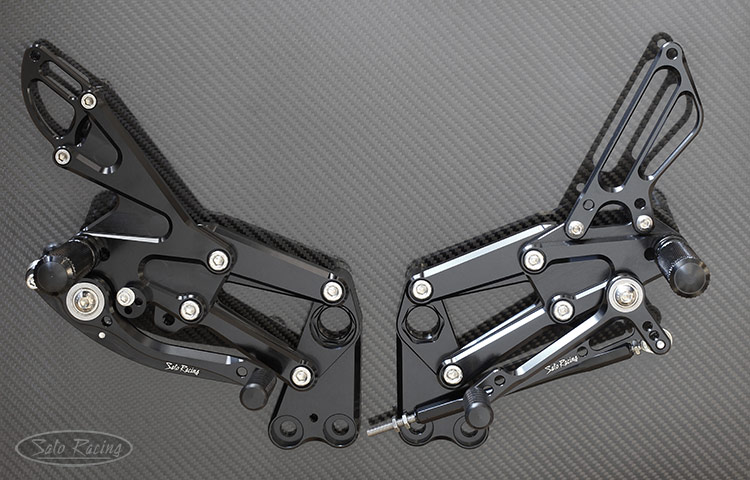

SATO RACING KTM RC125 / RC390 Rear Sets [R]-side
RC390/ RC125 Rear Sets (standard version)


POSITIONS

1 20mm Forword 50mm Up
2 7.5mm Forword 50mm Up
3 5mm Forword 40mm Up
4 5mm Forword 50mm Up
5 5mm Forword 60mm Up
6 7.5mm Back 40mm Up
7 7.5mm Back 50mm Up
8 7.5mm Back 60mm Up

note: all measurements are in relation to stock position (0 mm).

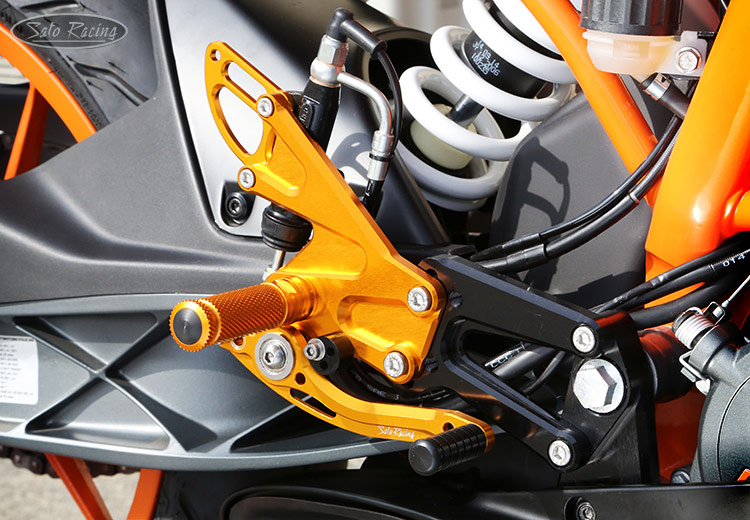

SATO RACING KTM RC125 / RC390 Rear Sets [R]-side
The shift and brake pedals use double miniature stainless bearings
for smooth, precise lever actuation with a solid feel.

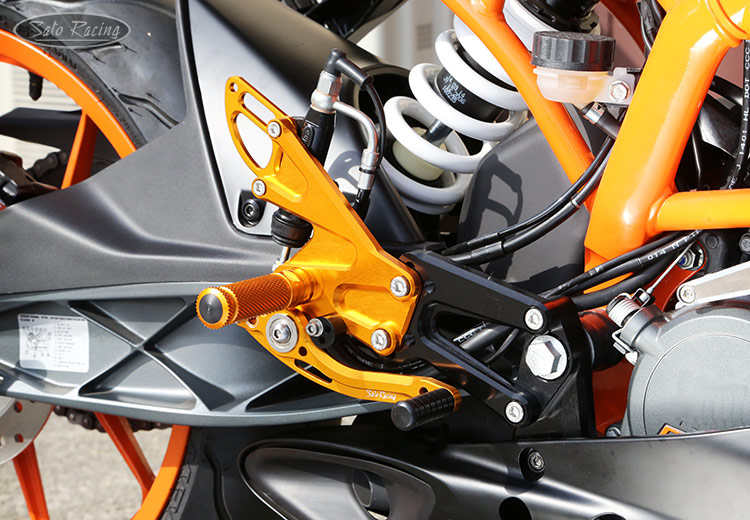

SATO RACING RC125 / RC390 Rear Sets [R]-side
The positions of the Step Plate, Foot Peg and Pedal Tip can be
adjusted, so you find the perfect position for your riding style.

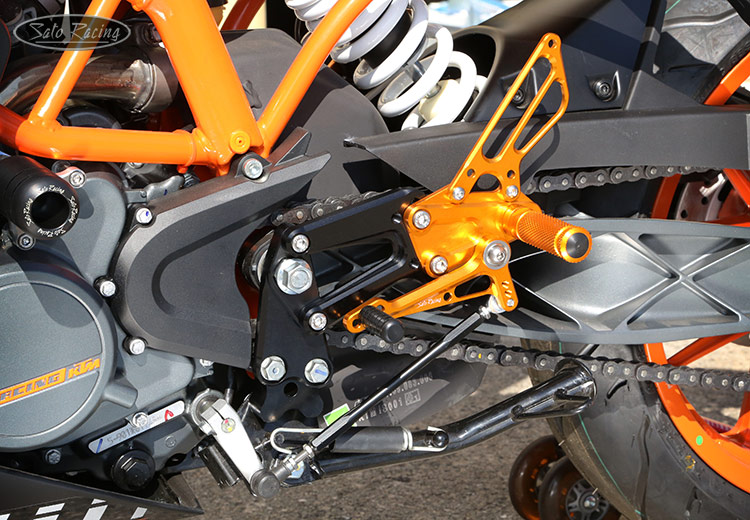

SATO RACING RC125 / RC390 Rear Sets [L]-side
Standard Rear Sets (stock shift pattern)

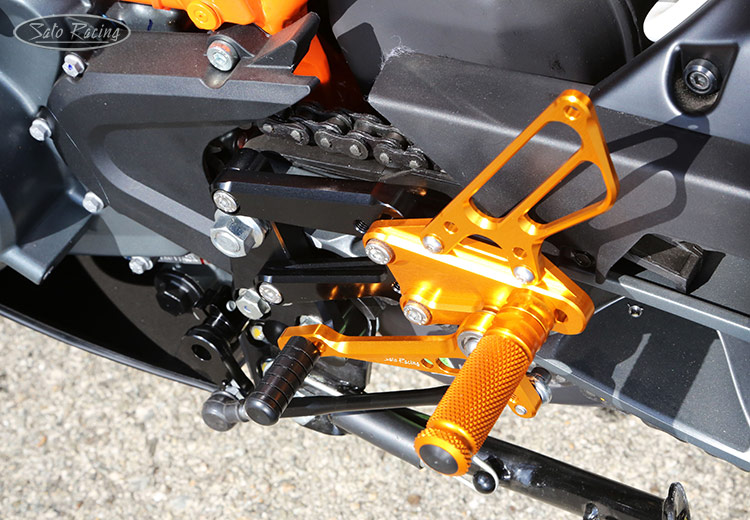

SATO RACING RC125 / RC390 Rear Sets [L]-side

The standard Foot Pegs are fixed type (non-folding) and have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel.  New Cutout-style Racing Foot Pegs are an available option for this model (See below for more info).

Rear Sets shown with optional
SHORT SHIFT KIT.

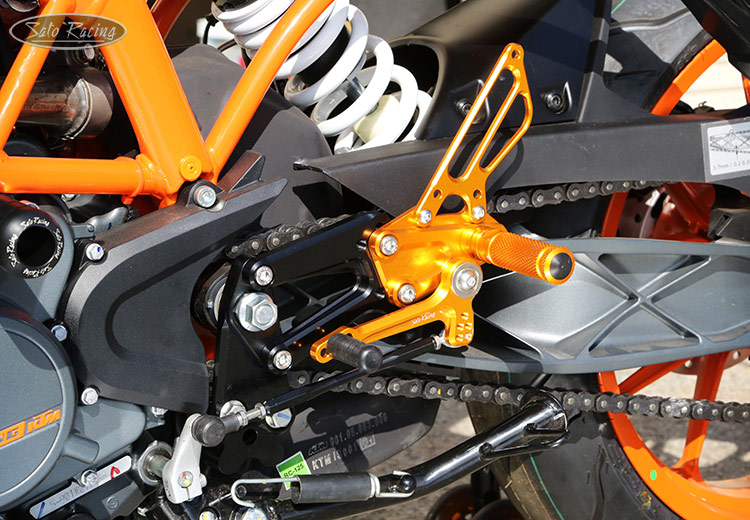

SATO RACING RC125 / RC390 Reverse Shift Rear Sets
REVERSE SHIFT REAR SETS uses a different shift pedal
linkage design, providing a reverse (GP-style) shift pattern.

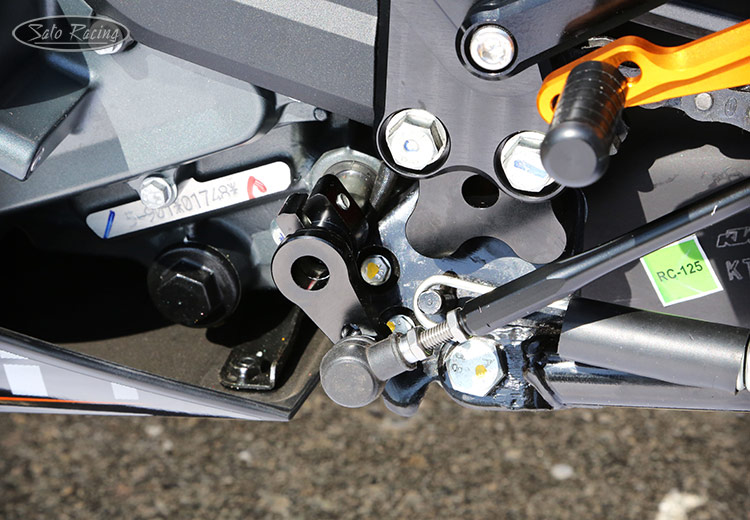

Short Shift kit for SATO RACING RC390 Rear Sets
Optional SHORT SHIFT KIT - This black anodized billet aluminum change arm gives
SATO RACING RC125 / RC390 Rear Sets a shorter shift stroke / throw compared to stock.


REAR SETS (Standard version)

BLACK KTM-RC390RS-BK
$715
GOLD
w/ BLACK base plates
KTM-RC390RS-GD
$715


REVERSE SHIFT REAR SETS

BLACK KTM-RC390RSR-BK
$715
GOLD
w/ BLACK base plates
KTM-RC390RSR-GD
$715

Click Here for important info about Sato color-anodized parts.


(OPTIONAL PART)
SHORT SHIFT KIT

This change arm gives SATO RACING RC125 / RC390 Rear Sets a shorter shift stroke. Works with both the Standard and Reverse Shift Rear Sets. Black-anodized billet aluminum.

SHORT SHIFT KIT
[BLACK]
KTM-RC390RS-SSK
$50

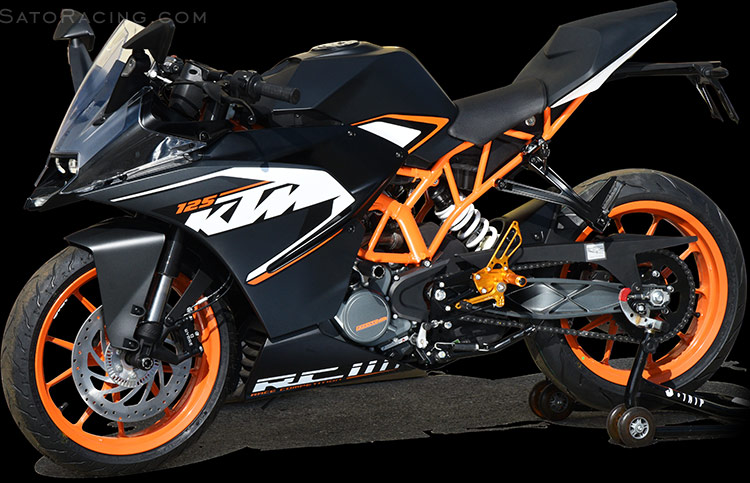

( KTM RC125 )


ADDITIONAL OPTIONS




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.





Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)





REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF Parts List:

RC390 Rear Sets (Std shift)   |   RC390 Reverse Shift Rear Sets


Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to STD shift Rear Sets unless otherwise noted.)

FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEG COLLAR 12
(BK/ SV/ GD) (#17)
PEGCLR-12
$15
HEX HEAD M8-40mm
(#29, Peg bolt)
HBT-M840
$2.00
PEDAL TIP (DELRIN) ST-001D18
$15
[L] HEEL GUARD
(BK/ SV/ GD) (L-side #1)
HG-3L
$50
SRD-150 SHIFT ROD 150 (BK)
(L-side #11)
SRD-150B
$39
SRD-130 SHIFT ROD 130 (BK)
(REV Shift - L-side #11)
SRD-130B
$39
COLLAR 19-6 (BK)
(R-side #16)
RDEDCLR-19
$8.00
SBT-M510 SOCKET HEAD M5-10mm
(R-side #19)
SBT-M510
$2.00
SBT-M520 SOCKET HEAD M5-20mm
(R-side #20)
SBT-M520
$2.00
SBT-M525 SOCKET HEAD M5-25mm
(R-side #21)
SBT-M525
$2.00
SOCKET HEAD M6-18mm
(L-side #22)
SBT-M618
$2.00
SOCKET HEAD M6-25mm
(R-side #23)
SBT-M625
$1.50
SOCKET HEAD M6-45mm
(R-side #24)
SBT-M645
$2.00
SBT-M815 SOCKET HEAD M8-15mm
(#25)
SBT-M815
$1.50
BBT-M610 BUTTON HEAD M6-10mm
(L-side #26)
BBT-M610
$1.50
BBT-M620 BUTTON HEAD M6-20mm
(#27)
BBT-M620
$1.50
BBT-M825 BUTTON HEAD M8-25mm
(#28)
BBT-M825
$1.50
STUD-M6L REVERSE STUD M6
(L-side #30)
STUD-M6L
$4.50
JAM NUT M6
(L-side #33)
JNT-6
$1.75
REVERSE JAM NUT M6
(L-side #34)
JNT-6L
$2.50
LNT-6 LOCK NUT M6
(R-side #35)
LNT-6
$1.50
PWS-8 SMALL WASHER - M8
(#37)
PWS-8
$1.00
SWS-8 SPLIT WASHER M8
(#38)
SWS-8
$1.20
RDED-M6 M6 MALE ROD END
(L-side #39)
RDED-M6
$12.50
RDED-F6 FEMALE ROD END M6
(R-side #40)
RDED-F6
$15
BPD-STOPPER PEDAL STOPPER (DELRIN)
(R-side #41)
BPD-STOPPER
$15.00
ROD END COLLAR 3
(REV Shift Rear Sets - R-side #42)
RDED-CLR3
$6.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
