YAMAHA FZ-09 / MT-09 / XSR900 '14-'20
REAR SETS (for standard shifter*)
| SATO RACING Rear Sets for 2014-20 Yamaha FZ-09 / MT-09 and 2016-20 XSR900 features components precision CNC-machined from high strength anodized billet aluminum. Modular adjustable design lets you select from a wide range of positions that place your feet higher up and further back compared to stock, for enhanced control and improved handling at the limit. You can set up these Rear Sets for stock shift pattern or reverse (GP-style) shift pattern. Choice of an all-Black anodized finish, or Gold anodized finish with contrasting Black base plates and shift pedal assembly. * NOTE: For 2017-20 MT-09/ FZ-09 models equipped with the optional OEM quickshifter (such as found on the non-US 2017-20 'SP model), we recommend getting Rear Sets part# Y-MT0917RS / RSR instead. More Info |
| 1 | 2.5mm Back | 37.5mm Up |
| 2 | 10mm Back | 47.5mm Up |
| 3 | 10mm Back | 57.5mm Up |
| 4 | 20mm Back | 57.5mm Up |
| 5 | 15mm Back | 37.5mm Up |
| 6 | 22.5mm Back | 47.5mm Up |
| 7 | 22.5mm Back | 57.5mm Up |
| 8 | 32.5mm Back | 57.5mm Up |
note: all measurements are in relation to stock position (0 mm).

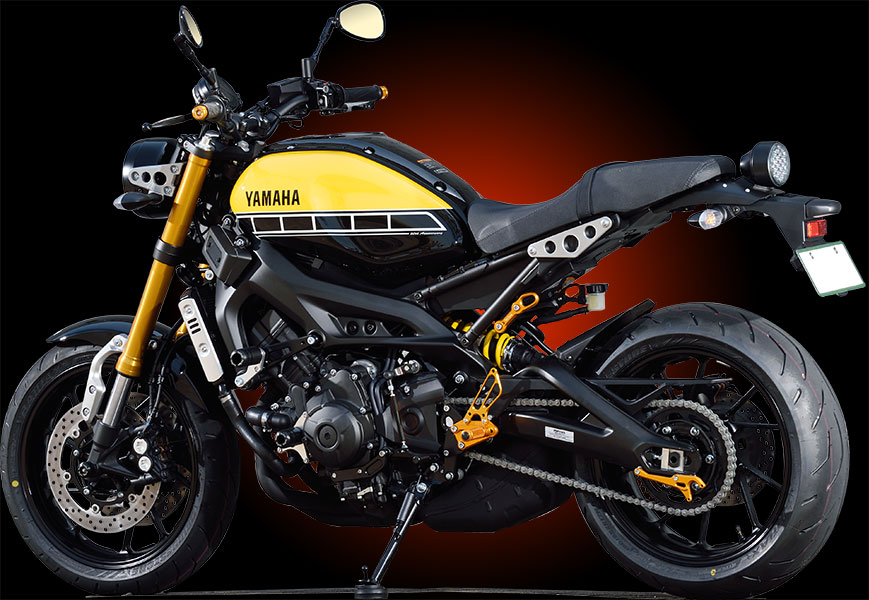

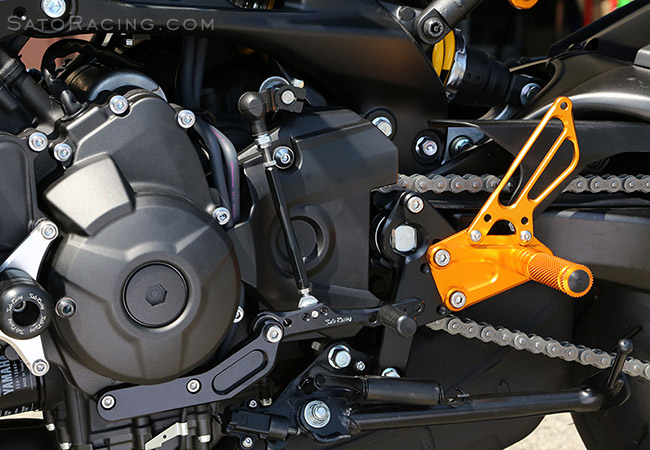

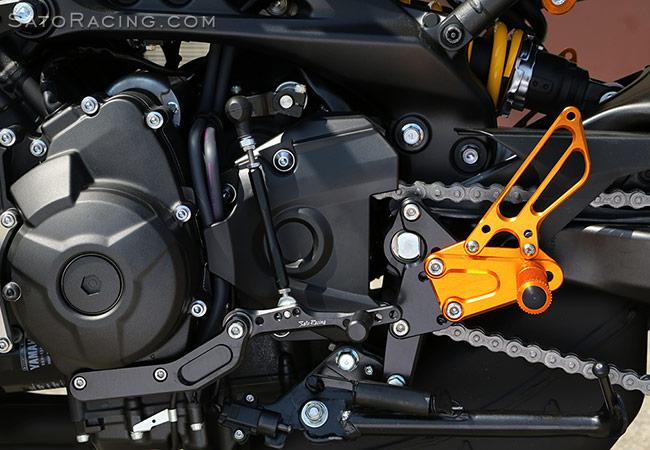

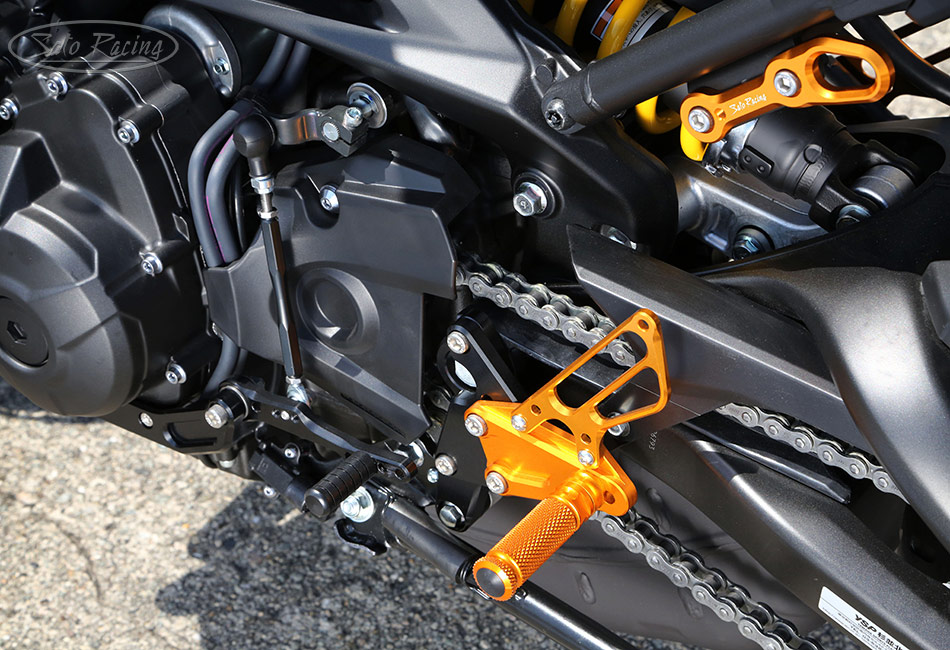

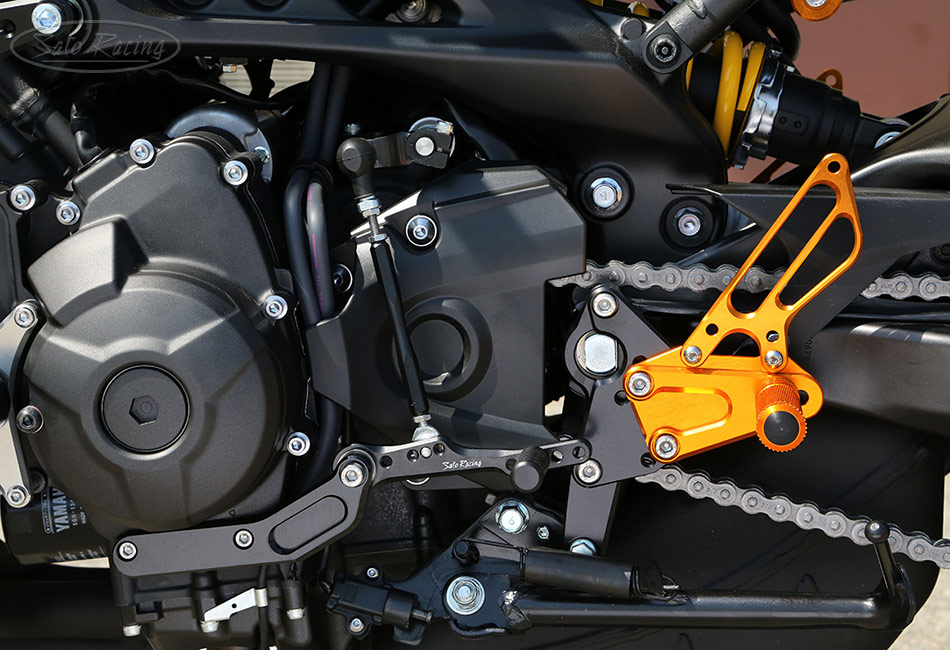

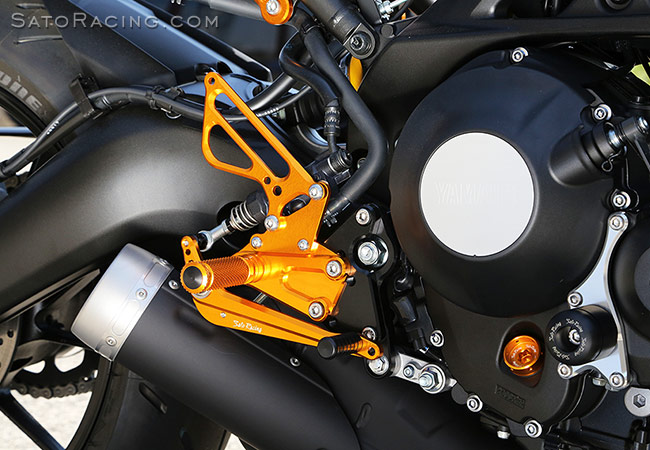

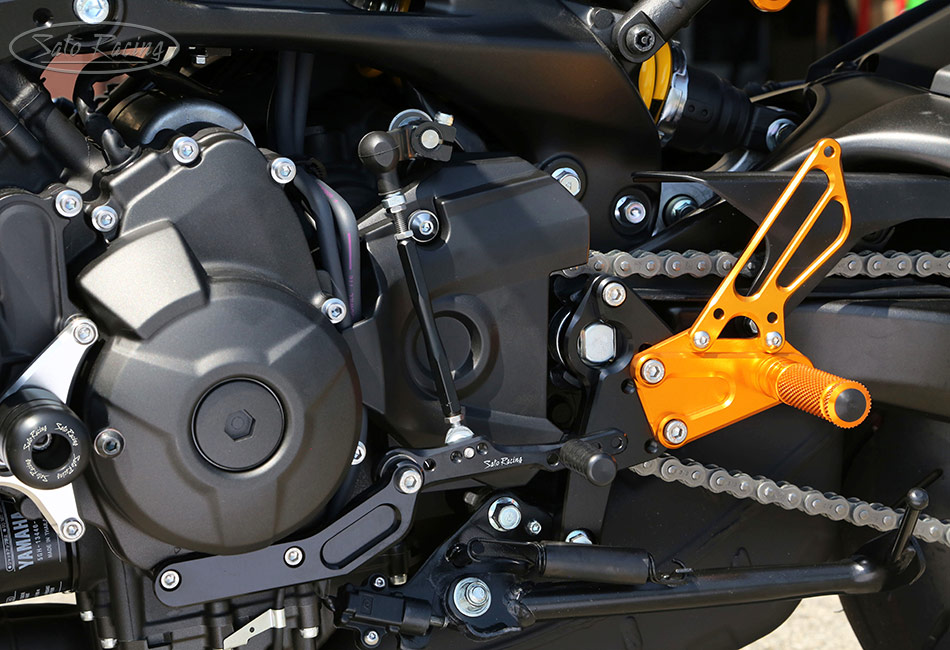

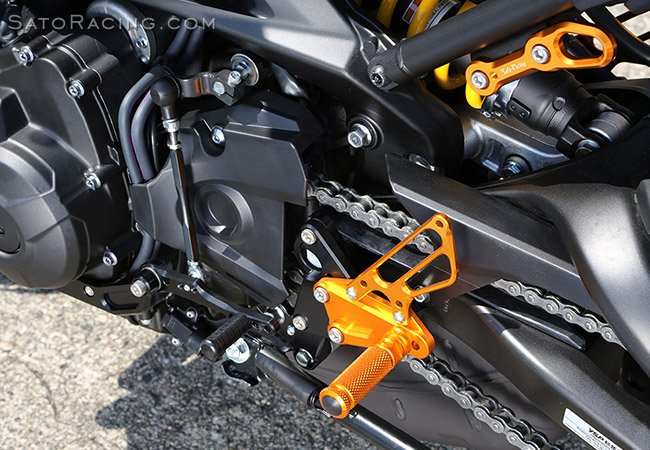

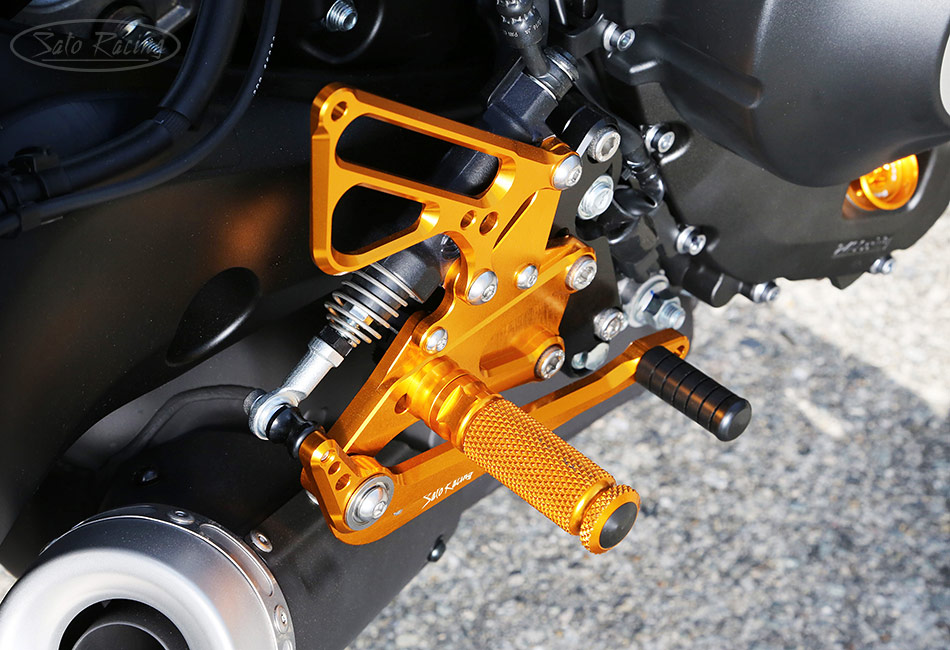

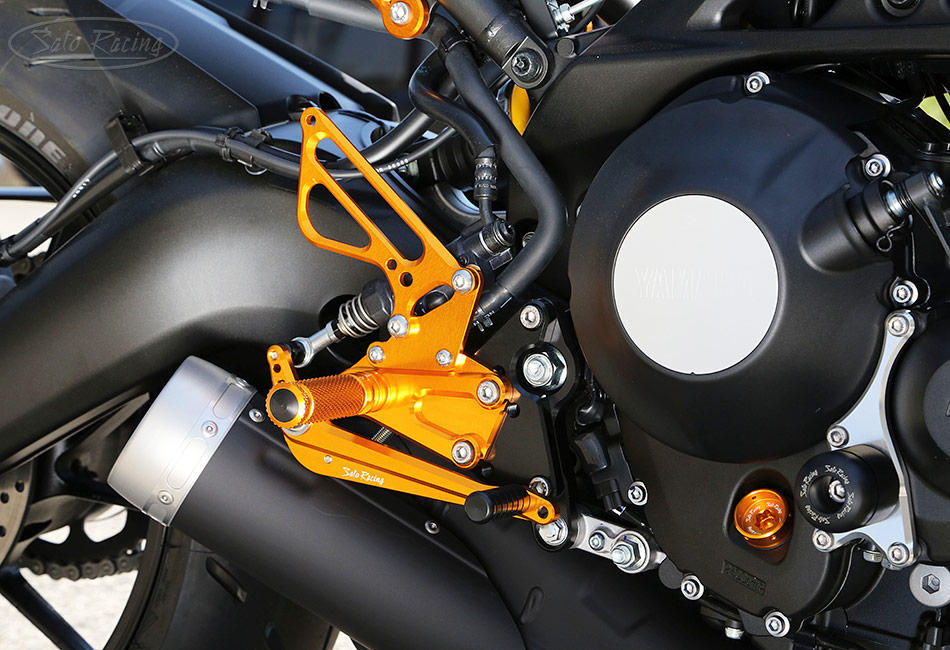

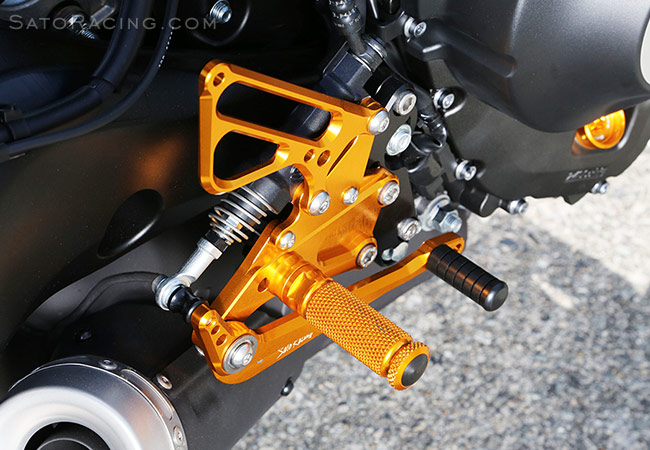

The following photos show these Rear Sets installed on a 2016 XSR900 :
The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.
Knurled footpegs provide excellent grip even in wet conditions.
Modular design lets you adjust the position of the Step Plate 4 ways. Foot Peg and Pedal Tip
positions are also adjustable. (The base plates and shift pedal assembly come in Black only.)
The shift pedal has multiple adjustment points for fine-tuning the shift stroke and shift pedal feel.
To change from stock shift to reverse shift pattern, flip the stock change arm 180 degrees.

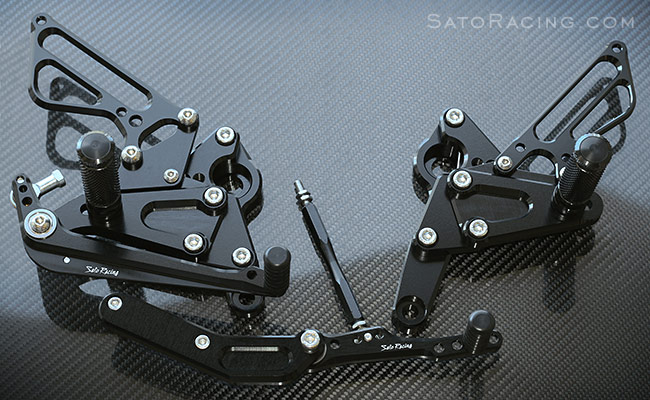

Rear Sets [BLACK]. A Brake Return Spring is also included in kit.
| BLACK | Y-MT09RS-BK $680 |
 |
| GOLD w/ Black Base Plates / Shift Pedal |
Y-MT09RS-GD $680 |
|
* Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [GOLD] | PEG-GD $42 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
SHIFT ROD 100 [BLACK] (#11) |
SRD-100-B $39 |
|
 |
BRAKE ROD COLLAR 15 (#17) |
RDED-CLR15 $8.00 |
|
 |
PEG COLLAR 12 [BLACK] (#18) |
PEGCLR-12B $15 |
|
 |
PEG COLLAR 12 [GOLD] (#18) |
PEGCLR-12G $15 |
|
 |
SOCKET HEAD M5-35mm (#19) |
SBT-M535 $1.50 |
|
 |
SOCKET HEAD M6-18mm (#20) |
SBT-M618 $1.50 |
|
 |
SOCKET HEAD M6-35mm (#21) |
SBT-M635 $1.50 |
|
 |
SOCKET HEAD M6-30mm (#22) |
SBT-M630 $1.50 |
|
 |
SOCKET HEAD M8 x 15mm (#23) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M8-35mm (#24) |
SBT-M835 $2.00 |
|
 |
BUTTON HEAD M6-10mm (#25) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-20mm (#26, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M8-25mm #27 |
BBT-M825 $1.50 |
|
 |
HEX BOLT M8-40mm (#29, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
STUD M6 (#30) |
STUD-M6 $2.50 |
|
 |
PEG WASHER - M8 (#31) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (#32) |
SWS-8 $1.20 |
|
 |
NUT M5 (#33) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#34) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#35) |
JNT-6L $2.50 |
|
 |
M6 MALE REVERSE ROD END (#37) |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END 6-M8 (#38) |
RDED-F6-8 $25 |
|
 |
RETURN SPRING 40 (#40) |
RS-RSP $8.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
