HONDA CBR600RR 2007-08, 2013-24
REAR SETS (for non-ABS model)
| SATO RACING
Rear Sets for 2007-08 and 2013-24* CBR600RR (non-ABS) features a track-rengineered and competition-proven design, with components precision CNC-machined from light-weight, high strength anodized billet aluminum, with stainless steel fasteners. Modular Step Plate design let you to choose from
12 foot peg positions, ranging from stock-equivalent position to more aggressive positions that bring your feet higher up and further back compared to stock.
Can be set up for stock shift pattern or reverse shift pattern. Options include a [R]-side Heel Guard, and a Shift Spindle Holder that adds extra strength and rigidity to the shift linkage for heavy duty shift action. *Years listed are for US-spec CBR600RR. Not compatible with 2021-24 Japan-spec CBR600RR or the similar 2024 EU-spec model. |
![SATO RACING Honda CBR600RR Rear Sets [R]-side](pics/13CBR600RR_RS_R1.jpg "SATO RACING Honda CBR600RR Rear Sets [R]-side")

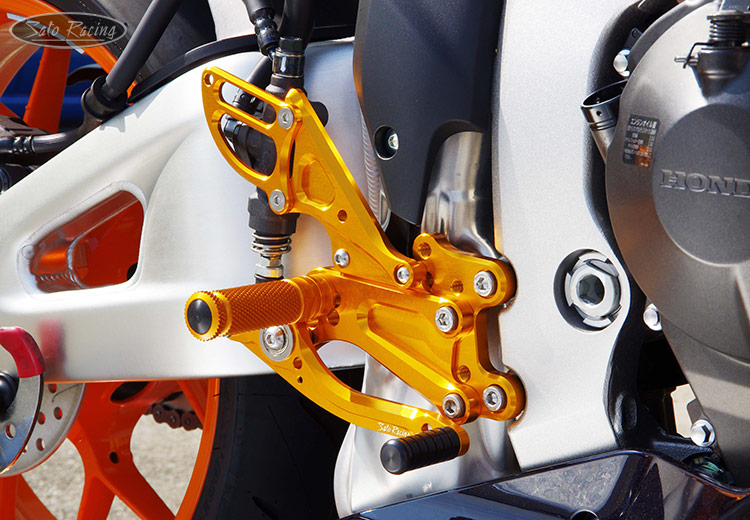

The positions of the step plates, foot pegs and pedal tips are all adjustable.
Rear Sets shown with [R] Heel Guard (optional part)
![SATO RACING Honda CBR600RR Rear Sets [R]-side](pics/13CBR600RR_RS_R2.jpg "SATO RACING Honda CBR600RR Rear Sets [R]-side")
Footpegs have a finely knurled pattern for optimal grip along with a comfortable, intuitive feel.
Rear Sets kit includes a pressure-type brake light switch (not shown installed in these photos).

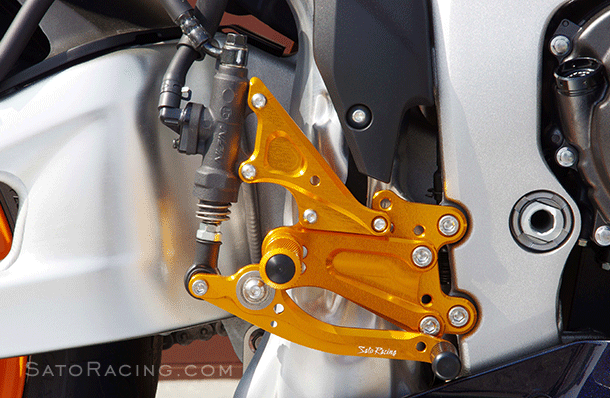

| A right heel guard isn't required on this model due to the rearward location of the Master Stay bracket in relation to the Foot Peg, but we do offer a matching [R]-side Heel Guard as an option. The stock Honda heel guard also fits nicely. |
| 1 | 0mm | 0mm |
| 2 | 0mm | 10mm Up |
| 3 | 10mm Back | 10mm Up |
| 4 | 3mm Back | 15mm Up |
| 5 | 3mm Back | 25mm Up |
| 6 | 13mm Back | 25mm Up |
| 7 | 23mm Back | 15mm Up |
| 8 | 23mm Back | 25mm Up |
| 9 | 33mm Back | 25mm Up |
| 10 | 26mm Back | 30mm Up |
| 11 | 26mm Back | 40mm Up |
| 12 | 36mm Back | 40mm Up |
note: all measurements are in relation to stock position (0 mm).
![SATO RACING Honda CBR600RR Rear Sets [L]-side with Shift Spindle Holder](pics/13CBR600RR_RS_L2.jpg "SATO RACING Honda CBR600RR Rear Sets [L]-side with Shift Spindle Holder")
![SATO RACING Honda CBR600RR Rear Sets [L]-side with Shift Spindle Holder](pics/13CBR600RR_RS_L1.jpg "SATO RACING Honda CBR600RR Rear Sets [L]-side with Shift Spindle Holder")

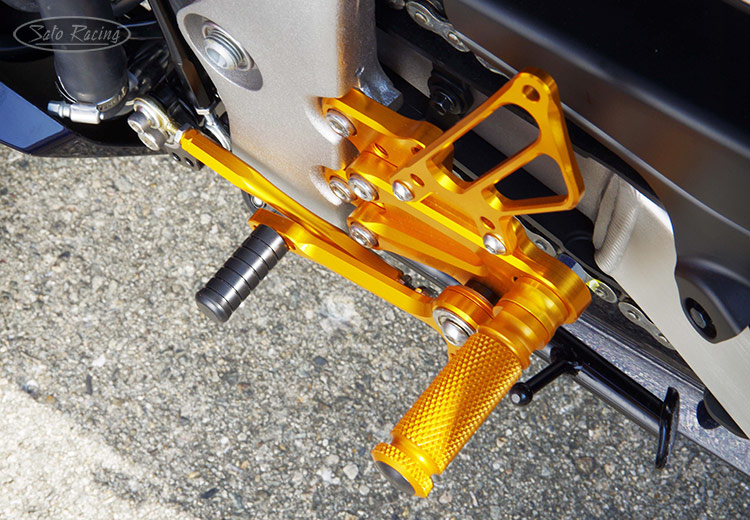

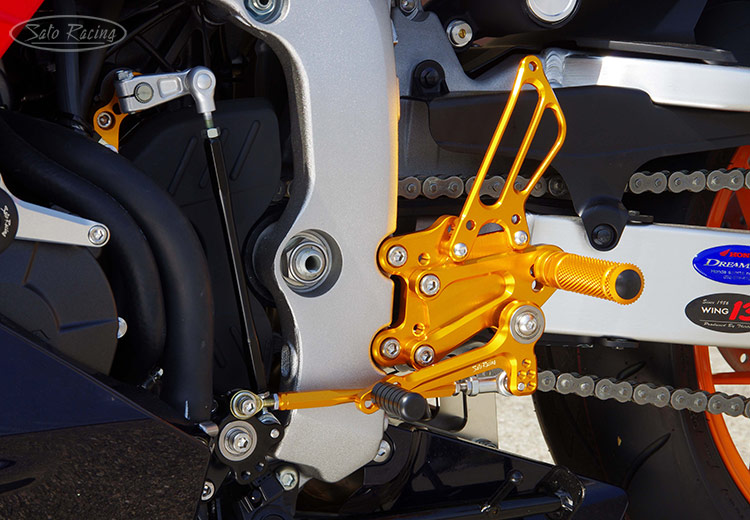

You can set it up for stock shift pattern or GP-style reverse
shift pattern by relocating the shift rods on the shift link.
Rear Sets shown installed with Shift Spindle Holder (optional part - See below).
REAR SETS
| BLACK | H-CBR613RS-BK $595 |
 |
[R]-Side Heel Guard (Option)
 |
BLACK | HG-CBR6-BK $38 |
|
| NOTE: This Rear Sets model is now sold in Black only. The Gold version shown in the sample photos above is not currently avasilble. If you prefer Silver or Gold anodized finish, our ABS-compatible CBR600RR Rear Sets part# H-CBR609RSA fits all 2013-24 CBR600RR (US spec, ABS or non-ABS), and is available in Black, Silver or Gold. |
Click Here for important info about Sato color-anodized parts.
ADDITIONAL OPTIONS
Honda CBR600RR ('07-'24*)
SHIFT SPINDLE HOLDER
|
SATO RACING Shift Spindle Holder [GOLD] for 2007-24* CBR600RR is a support bracket for the shift spindle, reinforcing it to reduce lateral play in the spindle shaft for more consistent and precise shifting and extra durability in heavy-duty use. This specialized part was originally developed for endurance racing, where racing rear sets and non-standard shifter setups can put extra stress on the spindle. Precision CNC-machined from high strength billet aluminum with a Gold anodized finish and a Teflon inner bushing. *US model. Not compatible with 2020-24 Japan-spec CBR600RR. |
| SHIFT SPINDLE HOLDER | H-CBR613RS-SHDR $90 |
|
Click Here for important info about Sato color-anodized parts.
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
NOTE: This rear sets model has been updated multiple times, so the linked parts list
might be different than the model you have, depending on when it was manufactured.
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (#24) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-40mm (#27, Foot peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) |
ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #7) |
SPD-0912 $62.50 |
|
 |
SHIFT LINK (L-side #8) |
SK-2 $58 |
|
 |
SHIFT ROD 120 (BK/ SV/ GD) (L-side #10) |
SRD-120 $39 |
|
|
SHIFT ROD 160 (BLACK) (L-side #11) |
SRD-160-B $39 |
|
 |
BRAKE PEDAL (R-side #12) |
BPD-3 $58 |
|
 |
BEARING COLLAR SUS (R-side #18) |
BGCLR-SUS $6.50 |
|
 |
SOCKET HEAD M6-18mm (L-side #29) |
SBT-M618 $1.50 |
|
 |
SOCKET HEAD M6-20mm (L-side #28) |
SBT-M620 $1.50 |
|
 |
ROD END COLLAR 3 (L-side #20) |
RDED-CLR3 $6.00 |
|
 |
SPLIT WASHER M8 (#45) |
SWS-8 $1.20 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
