HONDA CBR600RR ABS ('09-'24)
REAR SETS

Honda CBR600RR ABS with SATO RACING Rear Sets and other parts

SATO RACING Rear Sets for 2009-24* Honda CBR600RR ABS features a track-engineered and competition-proven design, with components precision CNC-machined out of light-weight, high strength anodized billet aluminum, with stainless steel bolts and hardware. You can select from a range of adjustable foot peg positions that bring your feet higher up and further back compared to stock. These Rear Sets can be set up for stock shift pattern or reverse (GP) shift pattern. Choice of Black, Silver, or Gold anodized finish.

Options include a Shift Spindle Holder that reinforces the shift spindle shaft for heavy duty shift action.

* NOTE: Not compatible with Japan-spec 2021-24 CBR600RR or EU-spec 2024 CBR600RR.

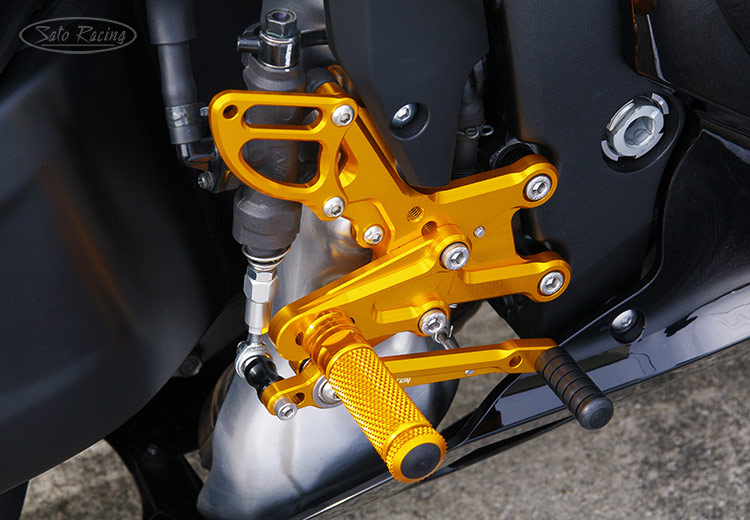

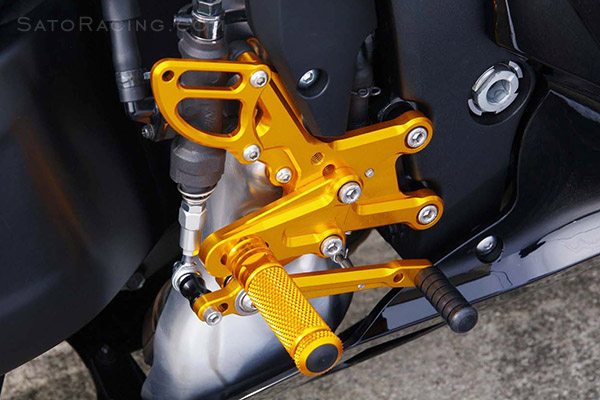

SATO RACING Rear Sets for 2009-24 Honda CBR600RR ABS [R]-side

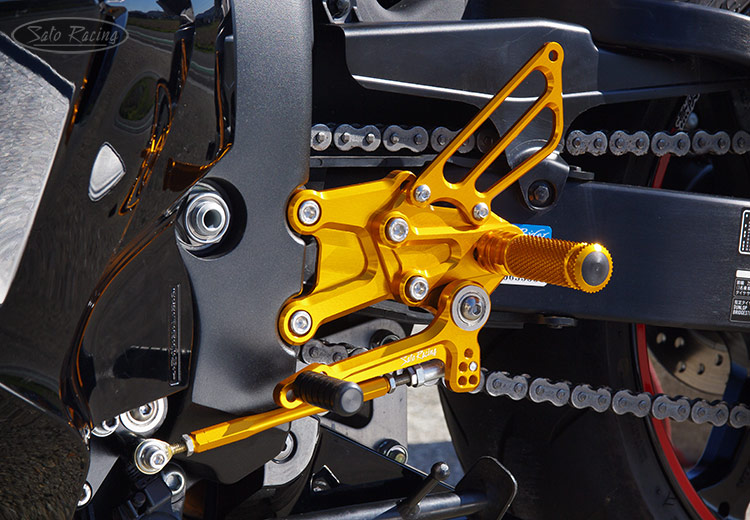

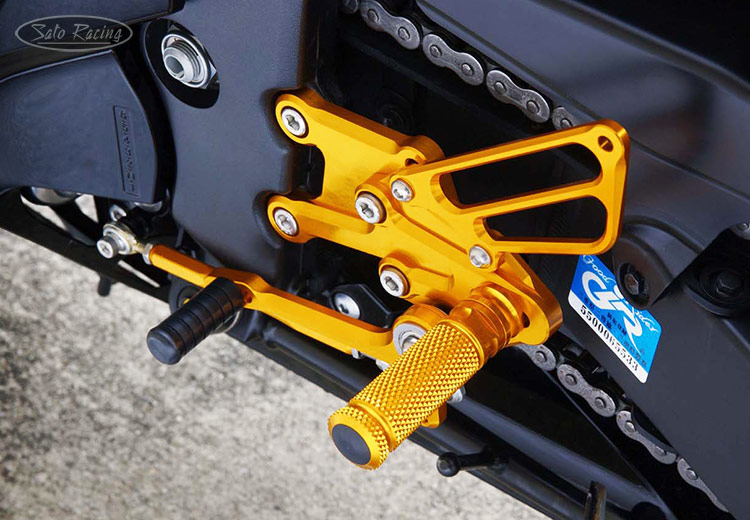

SATO RACING Honda CBR600RR ABS '09-'24 Rear Sets [L]-side
Shift Rod and Shift link hardware (not pictured) are also included with these Rear Sets.

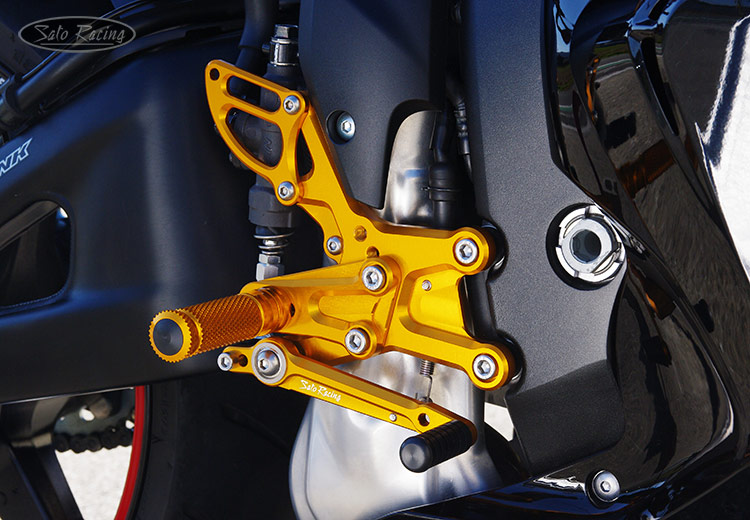

SATO RACING Rear Sets for 2009-24 Honda CBR600RR ABS [R]-side

The shift and brake pedals uee miniature double stainless bearings for smooth, precise lever action. The footpegs are finely knurled, providing ideal grip, along with a comfortable, intuitive feel.

The standard Pedal Tips are made of abrasion-resistant black Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with fluted rubber grips, are also available.

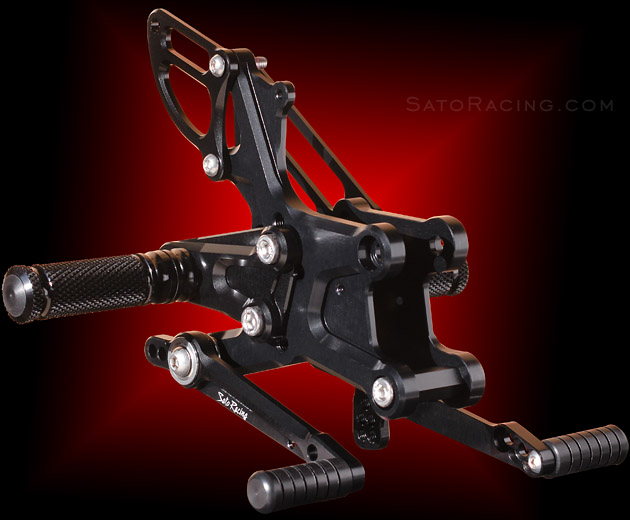

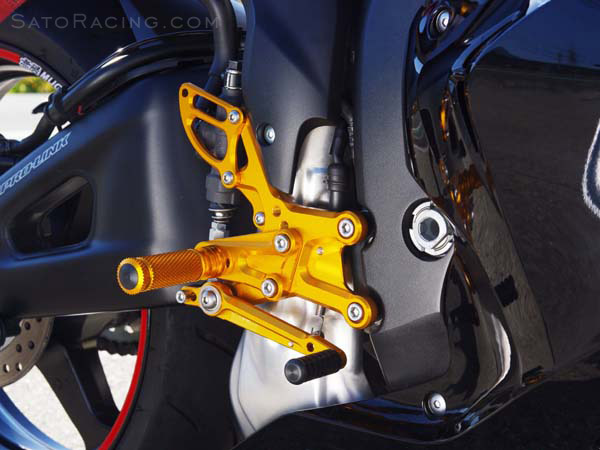

Sato Racing Rear Sets for 2009-24 Honda CBR600RR ABS [R]-side

These Rear Sets are ABS-compatible and are designed for use with the stock pull switch for the brake light.

The modular design of these Rear Sets provides a wide range of adjustable positions so you can find the ideal position that best suits your riding style.

POSITIONS

1	10mm Back	10mm Up
2	20mm Back	10mm Up
3	30mm Back	10mm Up
4	17.5mm Back	20mm Up
5	27.5mm Back	20mm Up
6	37.5mm Back	20mm Up
7	25mm Back	30mm Up
8	35mm Back	30mm Up
9	45mm Back	30mm Up

note: all measurements are in relation to stock position (0 mm).

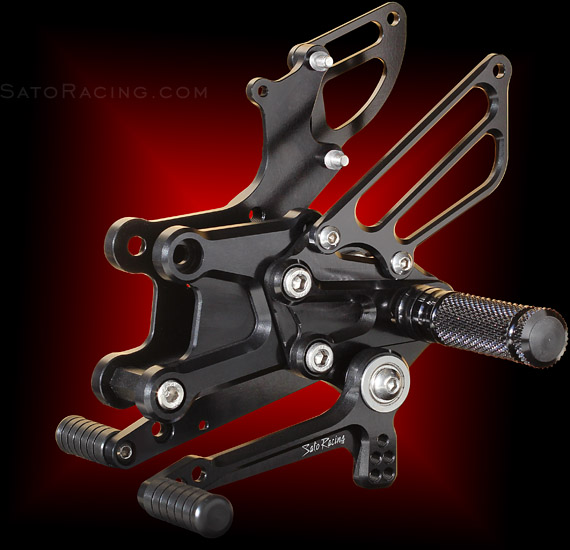

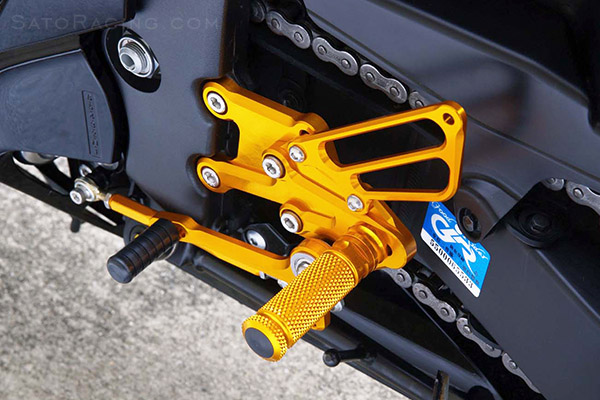

Sato Racing Rear Sets for 2009-24 Honda CBR600RR ABS [L]-side

Multiple adjustment holes on the shift pedal let you fine tune the shift stroke. Easily switch from stock shift pattern to 'GP-style' reverse shift pattern by changing the mounting points of the shift rods on the shift link. (See animated GIF below)

An optional Shift Spindle Holder works well with these Rear Sets, reinforcing the stock shift spindle to help to reduce excessive play or binding in the shift linkage.

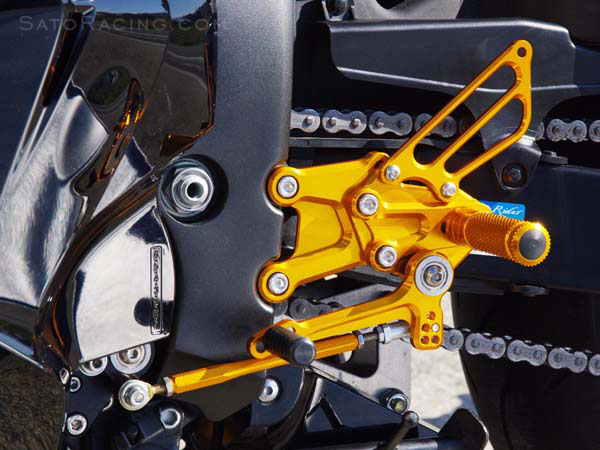

Sato Racing Rear Sets for 2009-24 Honda CBR600RR ABS [L]-side

The Step Plate can be adjusted diagonally 3 ways, and it has 3 mounting positions for the Foot Peg. Additionally there are 2 possible attachment points for the Shift Pedal. The Pedal Tip position can also adjusted.

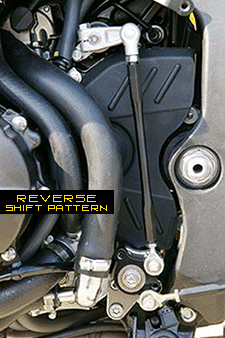

stock shift and reverse shift
The shift linkage can be set up for
either stock or reverse shift pattern.

BLACK	H-CBR609RSA-BK $615
SILVER	H-CBR609RSA-SV $615
GOLD	H-CBR609RSA-GD $615

Click Here for important info about Sato color-anodized parts.

OPTIONS

Honda CBR600RR ('07-'24)

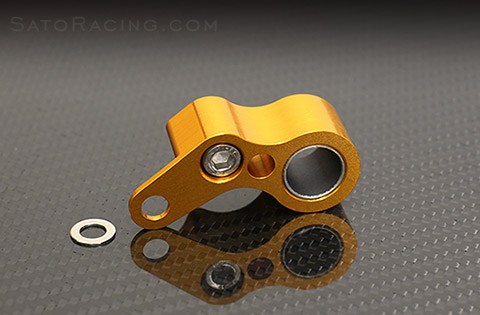

SHIFT SPINDLE HOLDER

Gold anodized billet aluminum with a Teflon-coated bushing. Adds extra reinforcement to the shift spindle shaft, reducing excessive lateral play in the spindle for more precise shift action in heavy duty use. Works great with SATO CBR600RR Rear Sets.

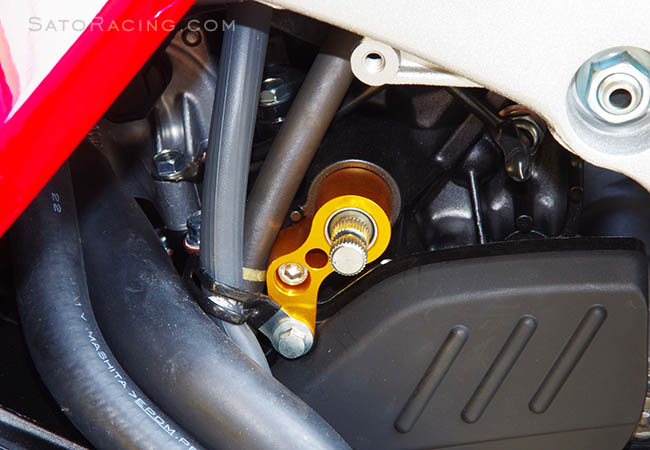

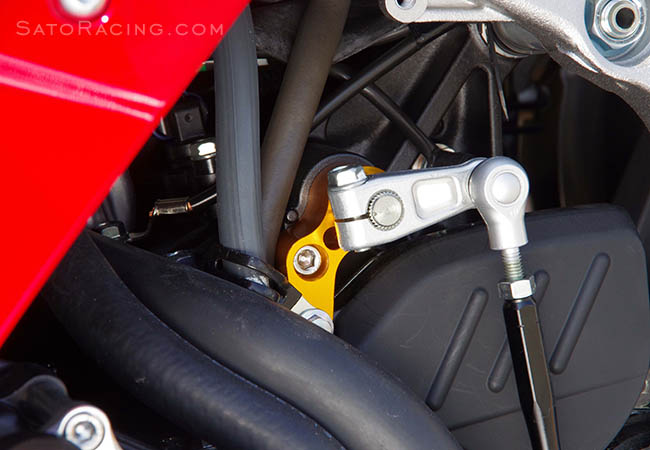

Sato Racing CBR600RR Shift Spindle Holder

GOLD

H-CBR613RS-SHDR
$90

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	PEG COLLAR 12 (BK/ SV/ GD) (#25)	PEGCLR-12 $15
	HEX HEAD M8-40mm (Foot Peg bolt)	HBT-M840 $2.00
	PEDAL TIP (DELRIN)	ST-001D18 $15
	BUTTON HEAD M6-20mm (For Pedal Tip, #39)	BBT-M620 $1.50
	[L] HEEL GUARD (BK/ SV/ GD) (L-side #1)	HG-2L $50
	SHIFT LINK (L-side #8)	SK-2 $58
	SHIFT ROD 120 (BK/ SV/ GD) (L-side #10)	SRD-120 $39
	SHIFT ROD 160 (BLACK) (L-side #11)	SRD-160-B $39
	BEARING COLLAR 5s [BLACK] (#17)	PEGBGCLR-5SB $10.00
	ROD END COLLAR 3 (L-side #19)	RDED-CLR3 $6.00
	ROD END COLLAR 10 (L-side #22)	RDED-CLR10 $8.00
	ROD END COLLAR 19 (R-side #23)	RDED-CLR19 $8.00
	BASE PLATE COLLAR 10 (R-side #24)	BPCLR-10 $8.00
	SOCKET HEAD M5-25mm (R-side #28)	SBT-M525 $2.00
	SOCKET HEAD M6-20mm (L-side #29)	SBT-M620 $1.50
	SOCKET HEAD M6-30mm (L-side #30)	SBT-M630 $1.50
	SOCKET HEAD M6-40mm (L-side #31)	SBT-M640 $2.00
	SOCKET HEAD M6-45mm (R-side #32)	SBT-M645 $2.00
	SOCKET HEAD M6-80mm (L-side #33)	SBT-M680 $3.50
	SOCKET HEAD M8-15mm (#34)	SBT-M815 $1.50
	SOCKET HEAD M8-20mm (L-side #35)	SBT-M820 $1.50
	SOCKET HEAD M8-25mm (R-side #36)	SBT-M825 $1.50
	BUTTON HEAD M6-10mm (L-side #37)	BBT-M610 $1.50
	BUTTON HEAD M6-25mm (R-side #40)	BBT-M625 $1.50
	BUTTON HEAD M8-25mm (#41)	BBT-M825 $1.50
	BUTTON HEAD M8-30mm (#42)	BBT-M830 $2.00
	STUD M6 (L-side #43)	STUD-M6 $2.50
	NUT M5 (R-side #44)	NUT-5 $1.50
	JAM NUT M6 (L-side #45)	JNT-6 $1.75
	REVERSE JAM NUT M6 (L-side #46)	JNT-6L $2.50
	LOCK NUT M6 (R-side #47)	LNT-6 $1.50
	PEG WASHER M8 (L-side #49)	PWS-8 $1.20
	SPLIT WASHER M8 (#50)	SWS-8 $1.20
	MALE ROD END M6 (L-side #51)	RDED-M6 $12.50
	M6 MALE REVERSE ROD END (#52)	RDED-M6L $12.50
	FEMALE ROD END M6 (L-side #53)	RDED-F6 $15

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
