BMW S1000RR ('17-'18)
REAR SETS
| SATO RACING Rear Sets for 2017-18 BMW S1000RR features an extensively track-tested design, with components precision machined out of light-weight, high strength anodized billet aluminum alloy, with stainless steel fasteners. Adjustable base plates and foot pegs give you 15 unique positions, ranging from near-stock position to more aggressive positions that bring your feet higher up and further back, so you can find the ideal position for your riding style. Shift linkage can be set up for stock shift pattern or reverse (GP-style) shift pattern. Choice of and anodized in your choice of all-Black anodized finish, or Silver or Gold with contrasting black base plates and shift lever. |

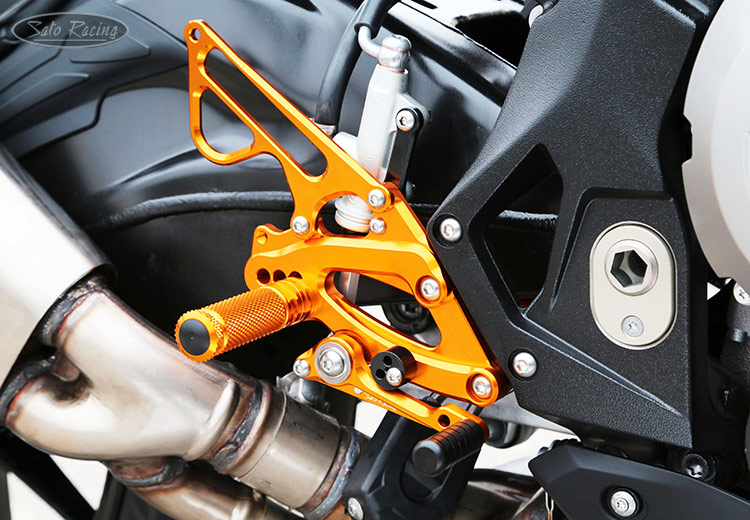

![2017 BMW S1000RR with SATO RACING Rear Sets - [R]-side](pics/BMW-S117RS-GD_fitR1_750x520.jpg "'17 BMW S1000RR with SATO RACING Rear Sets - [R]-side")
The shifter and brake pedal use miniature double stainless bearings for smooth, precise lever actuation
with a solid, high quality feel. The mount position of the pedal tip (toe peg) can also be adjusted.

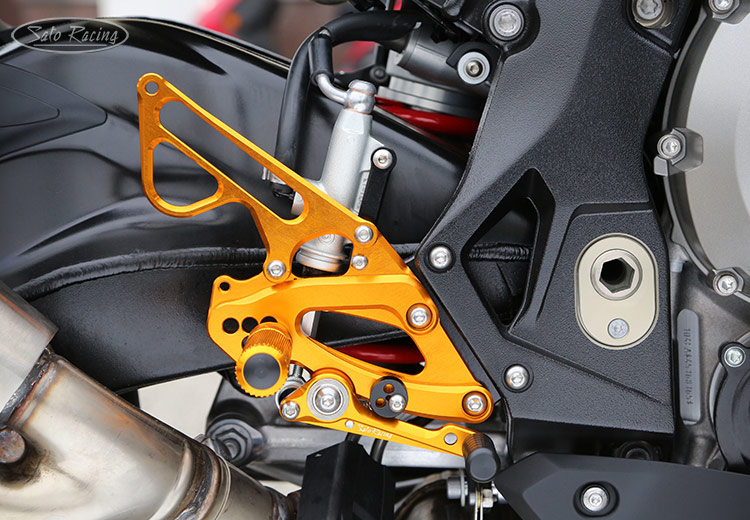

![2017 BMW S1000RR with SATO RACING Rear Sets - [R]-side](pics/BMW-S117RS-GD_fitR2_750x520.jpg "2017 BMW S1000RR with SATO RACING Rear Sets - [R]-side")
The Foot Peg position is adjustable 5 ways, and the Step Plate has 3 possible mounting positions.
(Rear Sets are shown installed in Position 1, which is the position closest to stock.)
| 1 | 0mm | 10mm Up |
| 2 | 0mm | 20mm Up |
| 3 | 10mm Back | 10mm Up |
| 4 | 10mm Back | 20mm Up |
| 5 | 20mm Back | 20mm Up |
| 6 | 5mm Back | 18.5mm Up |
| 7 | 5mm Back | 28.5mm Up |
| 8 | 15mm Back | 18.5mm Up |
| 9 | 15mm Back | 28.5mm Up |
| 10 | 25mm Back | 28.5mm Up |
| 11 | 10mm Back | 27mm Up |
| 12 | 10mm Back | 37mm Up |
| 13 | 20mm Back | 27mm Up |
| 14 | 20mm Back | 38mm Up |
| 15 | 30mm Back | 37mm Up |
note: all measurements are in relation to stock position (0 mm).

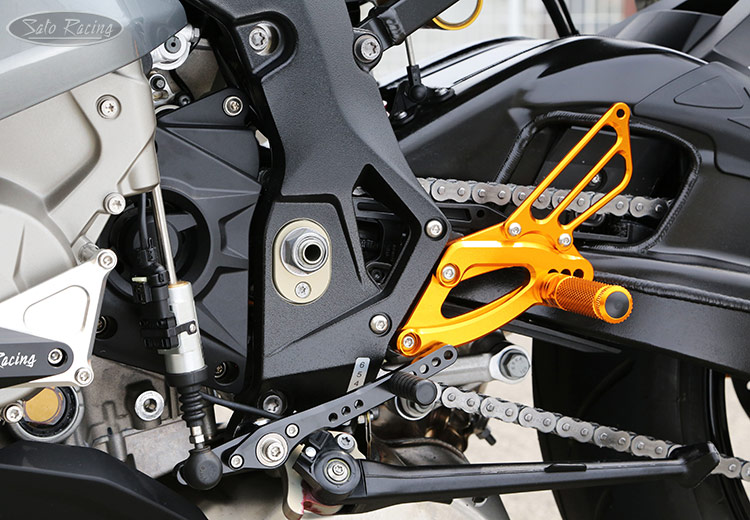

!['17 BMW S1000RR with SATO RACING Rear Sets - [L]-side](pics/BMW-S117RS-GD_fitL1_750x520.jpg "'17 BMW S1000RR with SATO RACING Rear Sets - [L]-side")
Our Rear Sets provide a much wider range of adjustment compared to stock.

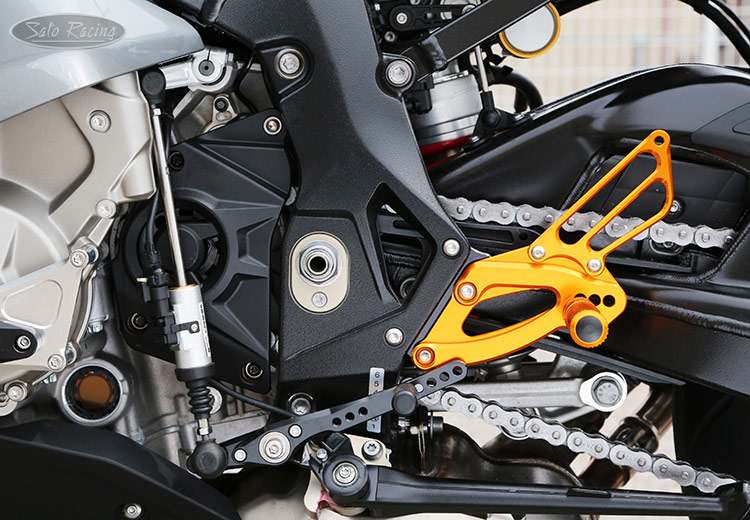

!['17 BMW S1000RR with SATO RACING Rear Sets - [L]-side](pics/BMW-S117RS-GD_fitL2_750x520.jpg "'17 BMW S1000RR with SATO RACING Rear Sets - [L]-side")
Stock shift pattern shown. You can switch to reverse pattern by relocating the shift rod to the opposite
end of the shifter. Multiple adjustment holes allow you to fine-tune the shift stroke to your preference.

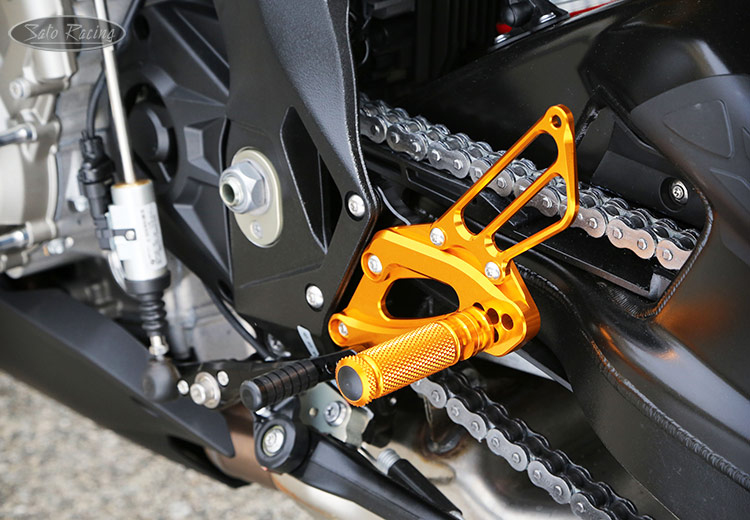

![2017 BMW S1000RR with SATO RACING Rear Sets - [L]-side](pics/BMW-S117RS-GD_fitL3_750x520.jpg "2017 BMW S1000RR with SATO RACING Rear Sets - [L]-side")
The Foot Pegs have a finely knurled pattern for nice grip, along with a comfortable, intuitive feel.
| BLACK | BMW-S117RS-BK $600 |
 |
| SILVER | BMW-S117RS-SV $600 |
|
| GOLD * | BMW-S117RS-GD $600 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF file: Parts List
Some common replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (#32) |
PEGCLR-12 $15 |
|
 |
PEDAL TIP (DELRIN) (#13) |
ST-001D18 $15 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #1) |
HG-2L $50 |
|
 |
SOCKET HEAD M8-65mm (L-side #18) |
SBT-M865 $3.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #21) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-20mm (#23, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M6-35mm (L-side #24) |
BBT-M635 $1.75 |
|
 |
BUTTON HEAD M6-50mm (R-side #25) |
BBT-M650 $2.50 |
|
 |
BUTTON HEAD M8-15mm (#26) |
BBT-M815 $1.50 |
|
 |
BUTTON HEAD M8-20mm (#27) |
BBT-M820 $1.50 |
|
 |
BUTTON HEAD M8-25mm (R-side #28) |
BBT-M825 $1.50 |
|
 |
HEX BOLT M8-40mm (#29, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
ROD END COLLAR 23 (BK) (#30) |
RDED-CLR23 $15.00 |
|
 |
PEG WASHER - M8 (R-side #34) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 #35 |
SWS-8 $1.20 |
|
 |
PLAIN NUT M6 (R-side #37) |
NUT-6 $1.00 |
|
 |
JAM NUT M6 (R-side #38) |
JNT-6 $1.75 |
|
 |
LOCK NUT M6 (R-side #39) |
LNT-6 $1.50 |
|
 |
M6 MALE ROD END (R-side #40) |
RDED-M6 $12.50 |
|
For replacement parts not listed on our website, contact Sato Racing for an estimate.
