BMW S1000RR ('15-'16)
REAR SETS
(Standard version)

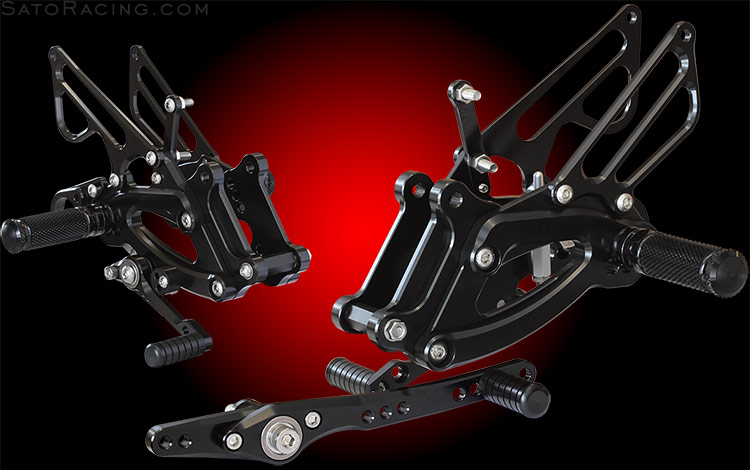

| SATO RACING Rear Sets for 2015-16 BMW S1000RR features a track-engineered design, with parts CNC-machined from high strength billet aluminum with your choice of all-Black anodized finish, or Silver or Gold anodized finish with contrasting Black base plates and shifter. Adjustable base plates and foot pegs give you a choice of 15 unique positions, ranging from near-stock position to more aggressive positions that bring your feet higher up and further back compared to stock. Can be set up for stock shift pattern or reverse (GP-style) shift pattern. Also available for 2015-16 S1000RR - 'Race Concept' Racing Rear Sets |
| 1 | 0mm | 10mm Up |
| 2 | 0mm | 20mm Up |
| 3 | 10mm Back | 10mm Up |
| 4 | 10mm Back | 20mm Up |
| 5 | 20mm Back | 20mm Up |
| 6 | 5mm Back | 18.5mm Up |
| 7 | 5mm Back | 28.5mm Up |
| 8 | 15mm Back | 18.5mm Up |
| 9 | 15mm Back | 28.5mm Up |
| 10 | 25mm Back | 28.5mm Up |
| 11 | 10mm Back | 27mm Up |
| 12 | 10mm Back | 37mm Up |
| 13 | 20mm Back | 27mm Up |
| 14 | 20mm Back | 38mm Up |
| 15 | 30mm Back | 37mm Up |
note: all measurements are in relation to stock position (0 mm).
![2015 BMW S1000RR with SATO RACING Rear Sets - [R]-side](pics/BMW_S1000RR15_RearSets_R1_950x650.jpg "'15 BMW S1000RR with SATO RACING Rear Sets - [R]-side")

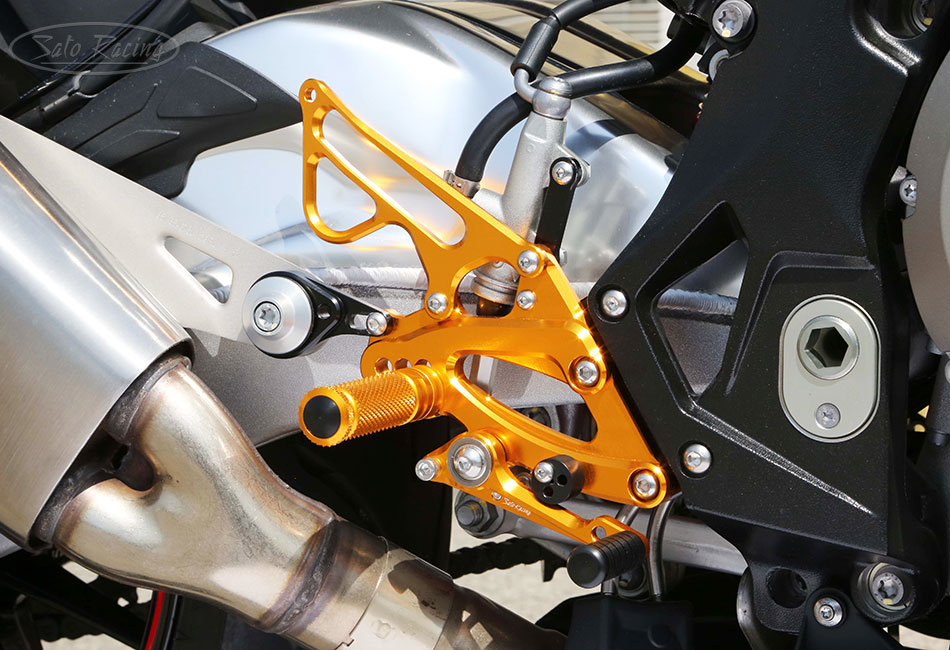

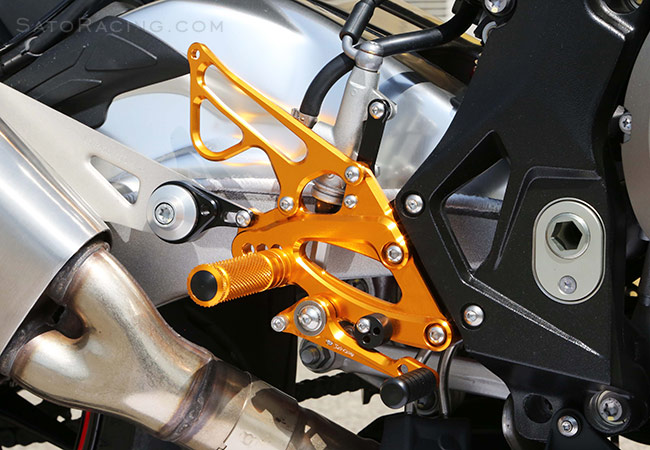

The shift and brake pedals utilize miniature double stainless bearings for smooth, precise actuation.
(Rear Sets shown with optional Exhaust Hanger Bracket )

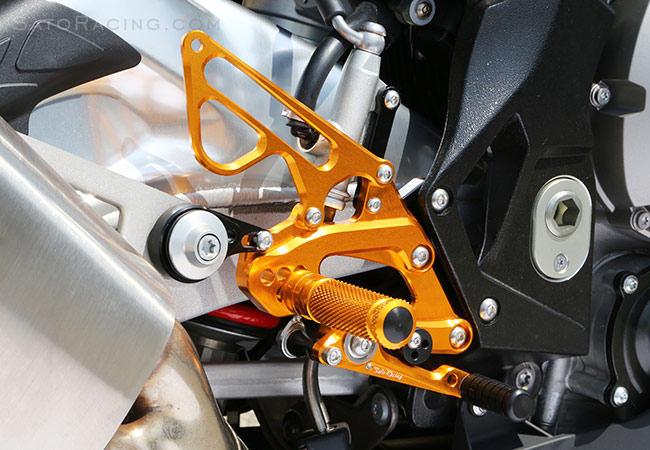

!['15 BMW S1000RR with SATO RACING Rear Sets - [R]-side](pics/BMW_S1000RR15_RearSets_R2_950x650.jpg "'15 BMW S1000RR with SATO RACING Rear Sets - [R]-side")

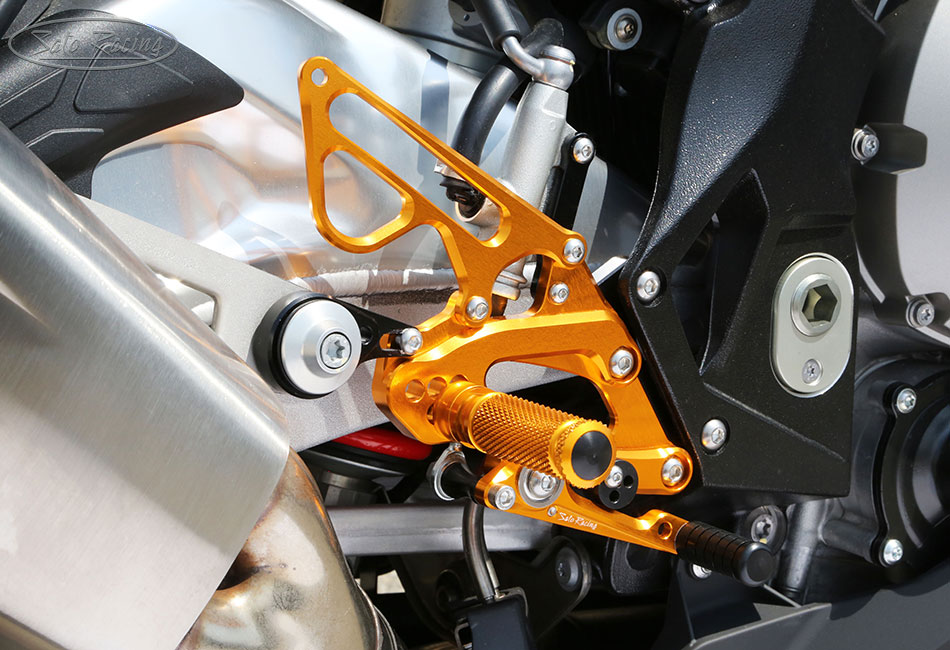

These Rear Sets provide a wide range of adjustable positions so you
can find the ideal position for your riding style.

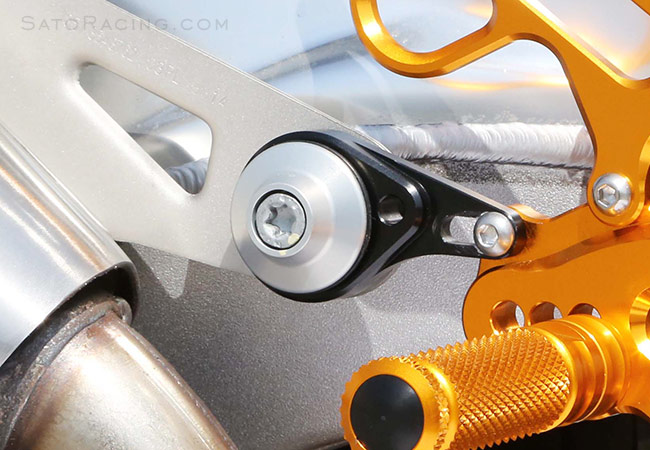

If you have the stock BMW exhaust or stock-style aftermarket exhaust canister
that hangs from the tail end of the rear sets, this black-anodized billet aluminum
Exhaust Hanger Bracket (sold separately) works well with our S1000RR Rear Sets.
!['15 BMW S1000RR with SATO RACING Rear Sets - [L]-side](pics/BMW_S1000RR15_RearSets_L1_950x650.jpg "'15 BMW S1000RR with SATO RACING Rear Sets - [L]-side")

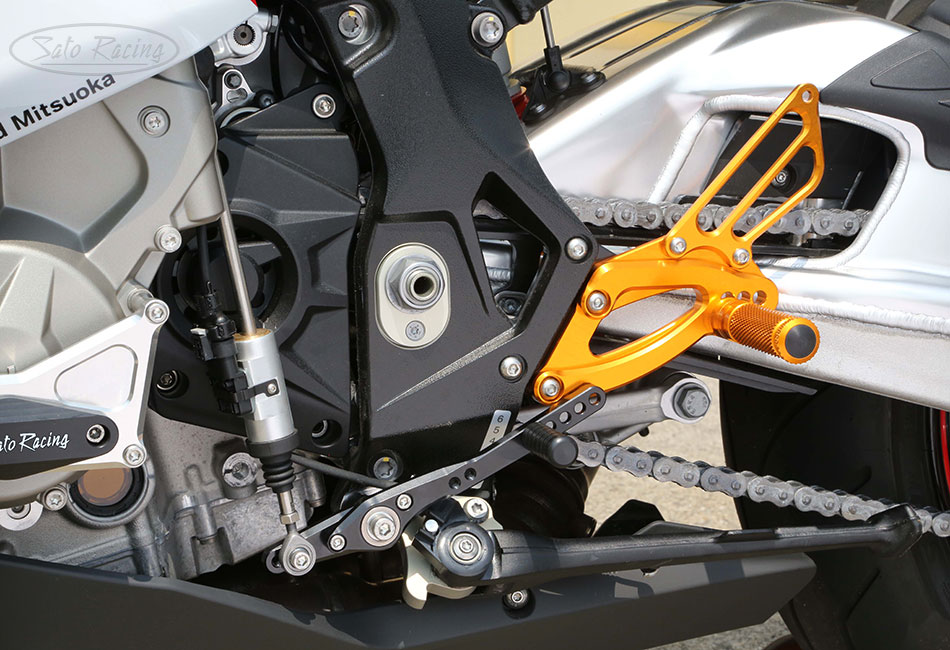

You can switch from stock shift pattern to reverse (GP) shift pattern
by relocating the shift rod to the opposite end of the pedal.
!['15 BMW S1000RR with SATO RACING Rear Sets - [L]-side](pics/BMW_S1000RR15_RearSets_L2_950x650.jpg "'15 BMW S1000RR with SATO RACING Rear Sets - [L]-side")

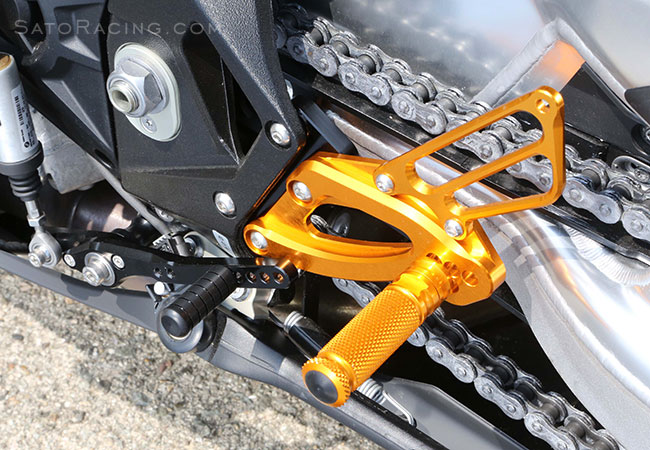

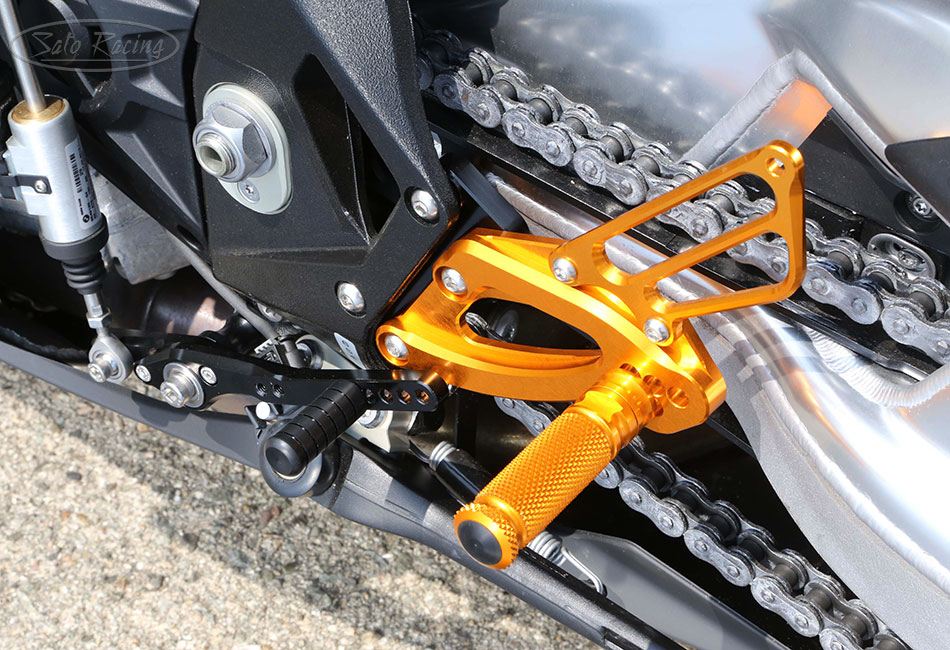

The Foot Pegs feature a finely knurled pattern for excellent grip and feel.
The Pedal Tip can be attached at any of 5 different positions on the shift pedal.
| BLACK | BMW-S115RS-BK $600 |
 |
| SILVER | BMW-S115RS-SV $600 |
|
| GOLD | BMW-S115RS-GD $600 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONAL PART
| HANGER BRACKET for stock exhaust canister |
CANBT-BMW1 $60 |
|
ADDITIONAL OPTIONS
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF file: Parts List
Some common replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (#32) |
PEGCLR-12 $15 |
|
 |
PEDAL TIP (DELRIN) (#13) |
ST-001D18 $16.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #1) |
HG-2L $60 |
|
 |
SOCKET HEAD M8-65mm (L-side #18) |
SBT-M865 $3.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #21) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-20mm (#23, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M6-35mm (R-side #24) |
BBT-M635 $1.75 |
|
 |
BUTTON HEAD M6-50mm (R-side #25) |
BBT-M650 $2.50 |
|
 |
BUTTON HEAD M8-15mm (#26) |
BBT-M815 $1.50 |
|
 |
BUTTON HEAD M8-20mm (#27) |
BBT-M820 $1.50 |
|
 |
BUTTON HEAD M8-25mm (R-side #28) |
BBT-M825 $1.50 |
|
 |
HEX BOLT M8-40mm (#29, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
ROD END COLLAR 23 (R-side #30) |
RDED-CLR23 $15.00 |
|
 |
PEG WASHER - M8 (R-side #34) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 #35 |
SWS-8 $1.20 |
|
 |
PLAIN NUT M6 #37 |
NUT-6 $1.00 |
|
 |
JAM NUT M6 #38 |
JNT-6 $1.75 |
|
 |
LOCK NUT M6 #39 |
LNT-6 $1.50 |
|
 |
M6 MALE ROD END #40 |
RDED-M6 $12.50 |
|
For replacement parts not listed on our website, contact Sato Racing for an estimate.
