BMW S1000RR ('15-'16)

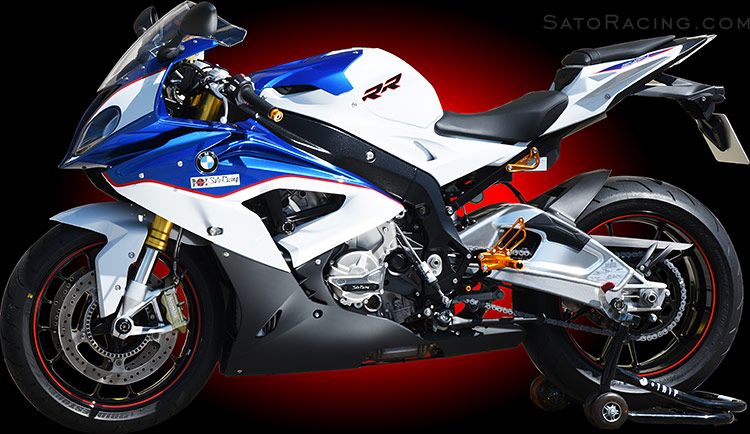

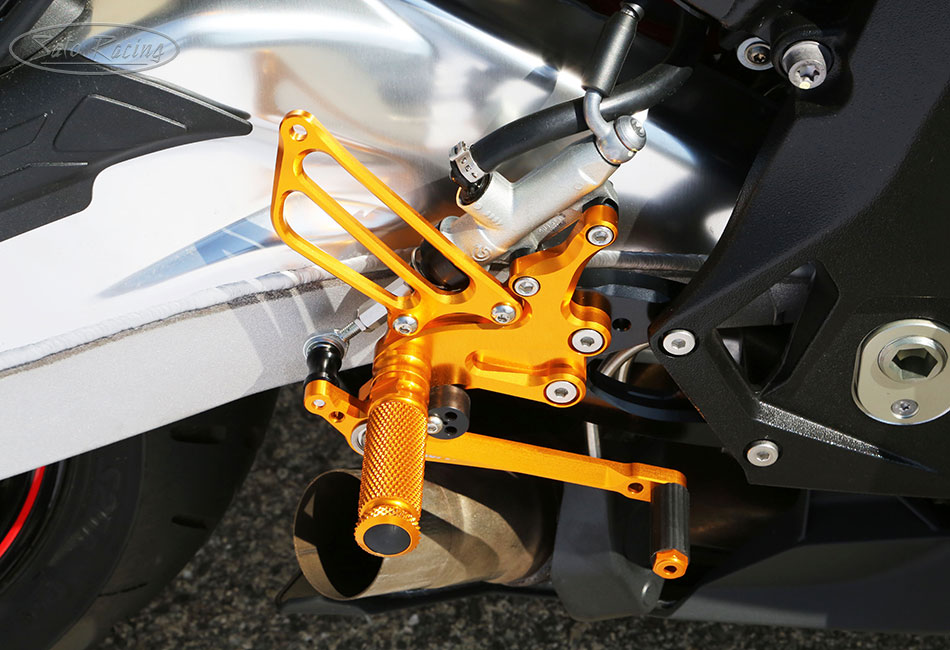

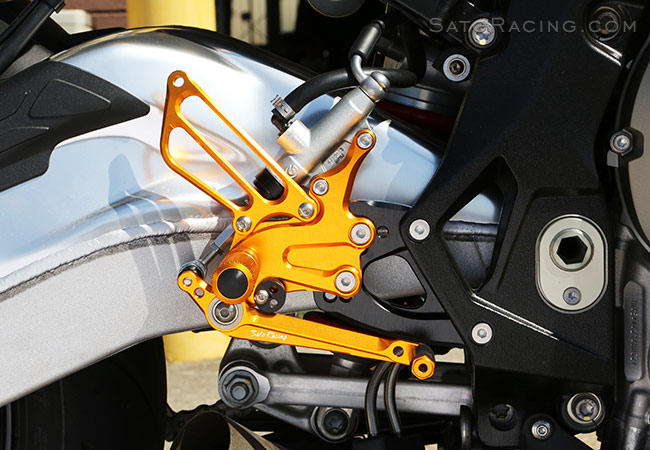

|SATO RACING 'Race Concept' Rear Sets for 2015-16 BMW S1000RR are pure, no-compromise race-spec Rear Sets, designed for track-only bikes. CNC-machined out of high grade billet aluminum, these Rear Sets feature a modular base plate / step plate design that provides a useful range of positions for the track, placing your feet higher up and further back compared to stock. Choose from anodized Black finish with Gold accents, or Gold finish with Black base plates and shift assembly.|
|NOTE: Not for street use - Not designed for compatibility with ABS or brake light switch.
Not compatible with the stock exhaust on US-spec model. |
(For more street-friendly Rear Sets, see our standard S10000RR '15- Rear Sets ).
|1||20mm Back||22.5mm Up|
|2||20mm Back||32.5mm Up|
|3||20mm Back||42.5mm Up|
|4||30mm Back||22.5mm Up|
|5||30mm Back||32.5mm Up|
|6||30mm Back||42.5mm Up|
note: all measurements are in relation to stock position (0 mm).

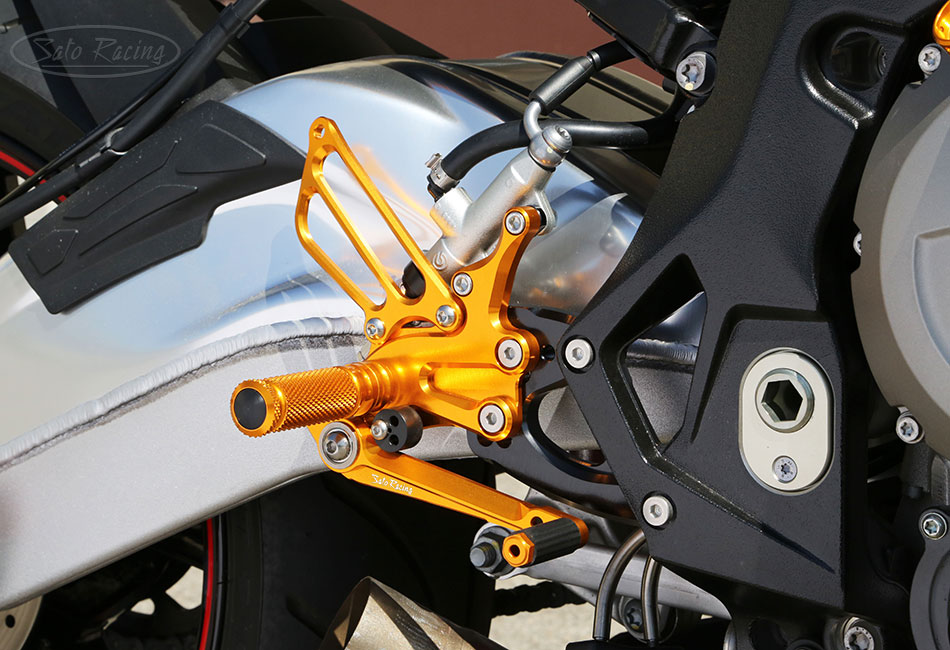

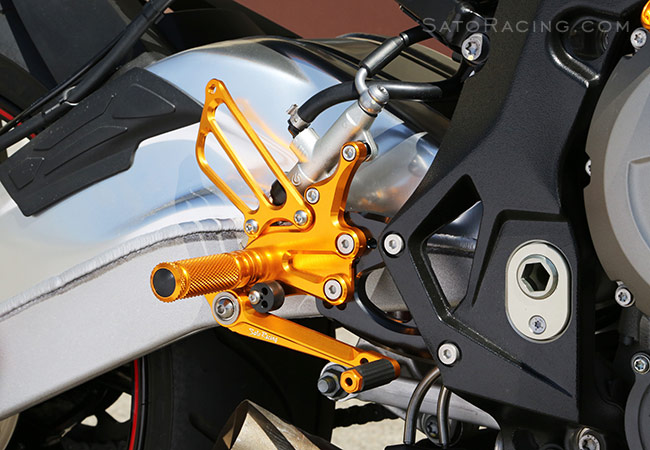

The shift and brake pedals utilize double stainless bearings for smooth, precise lever actuaton

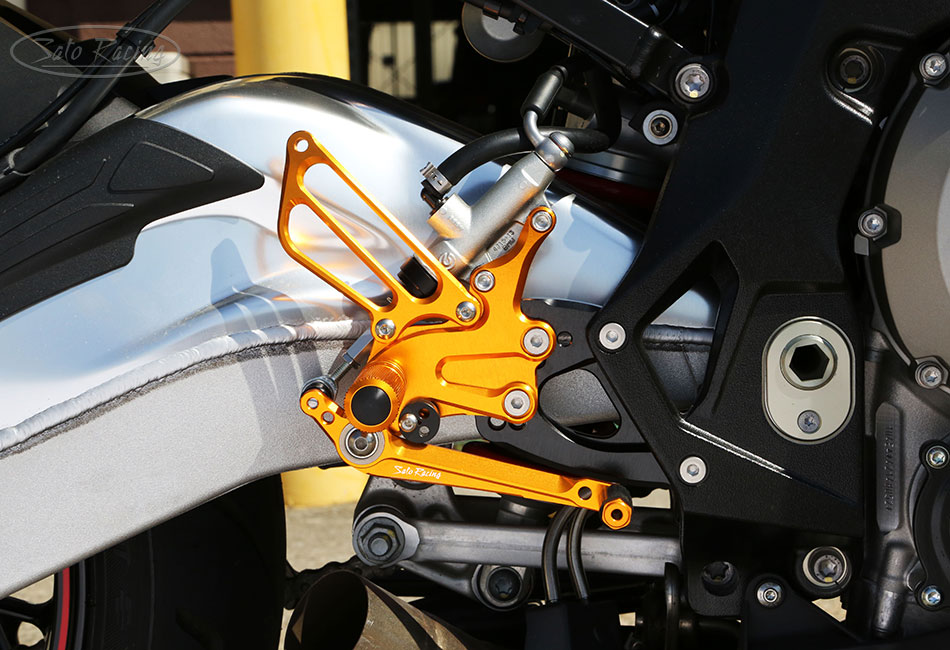

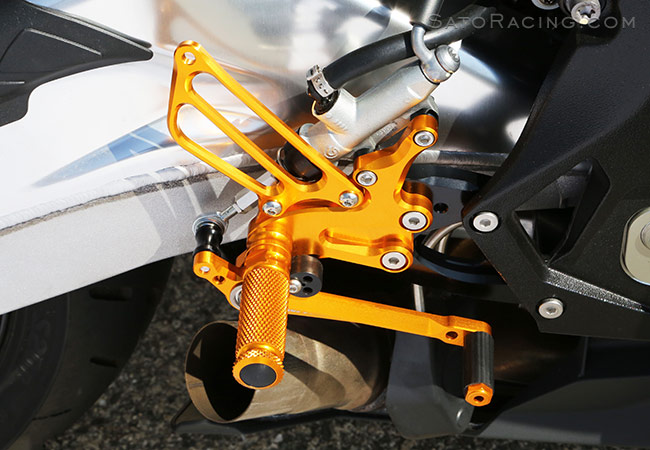

|Modular design with a separate base plate lets you quickly change the mounting position of the Rear Set assembly by removing the 2 bolts. Rotate the pedal stopper to adjust the rest height of the brake pedal.|
|For use with compatible aftermarket exhausts (such as full systems that hang from the passenger peg bracket location). Not recommended for use with the stock exhaust canister (or similar design) on the US-spec S1000RR, since there is no easy way to attach the exhaust hanger bracket to the Rear Sets.|

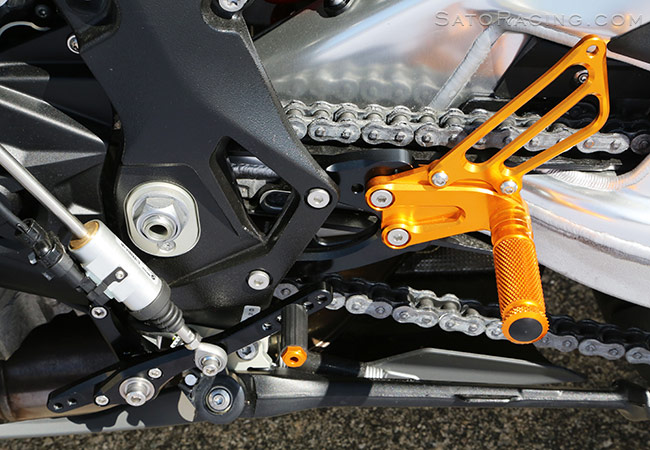

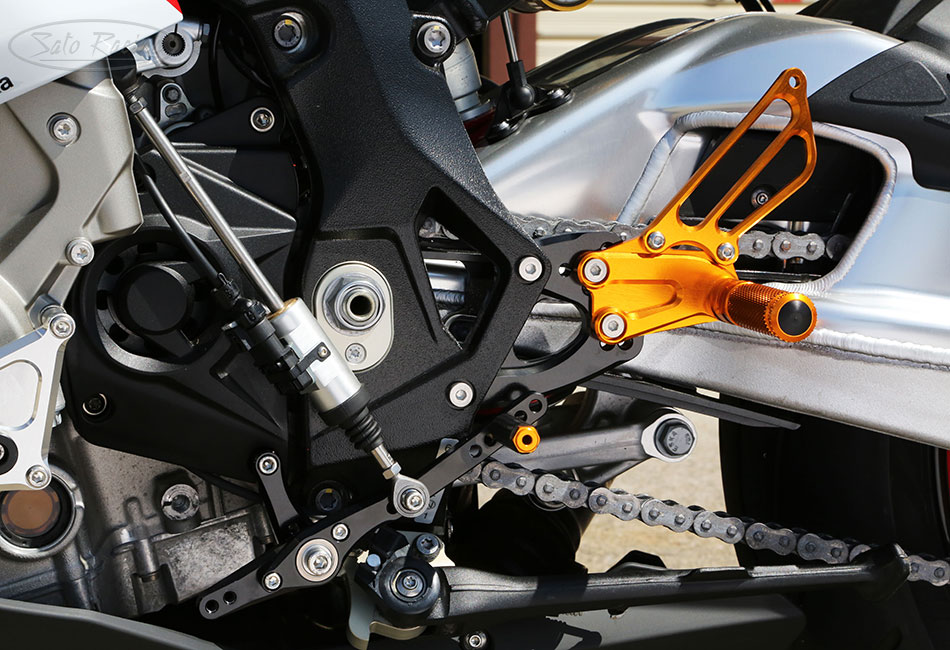

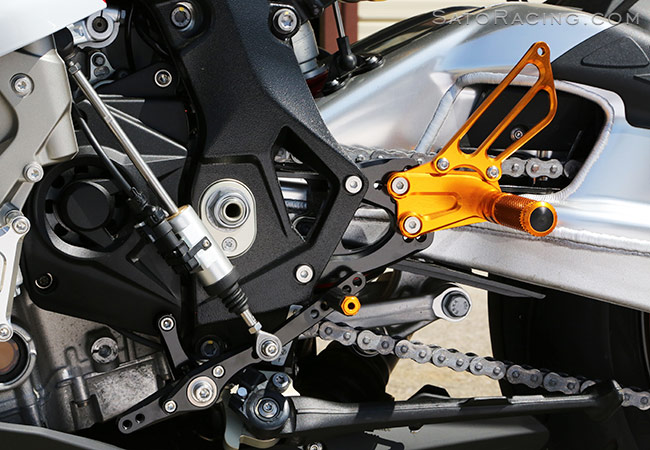

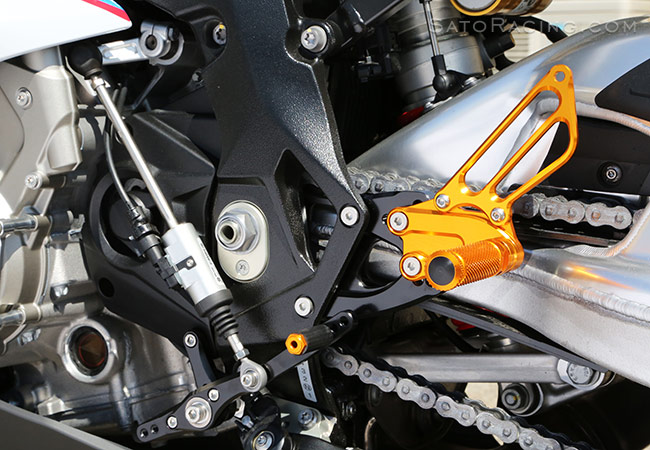

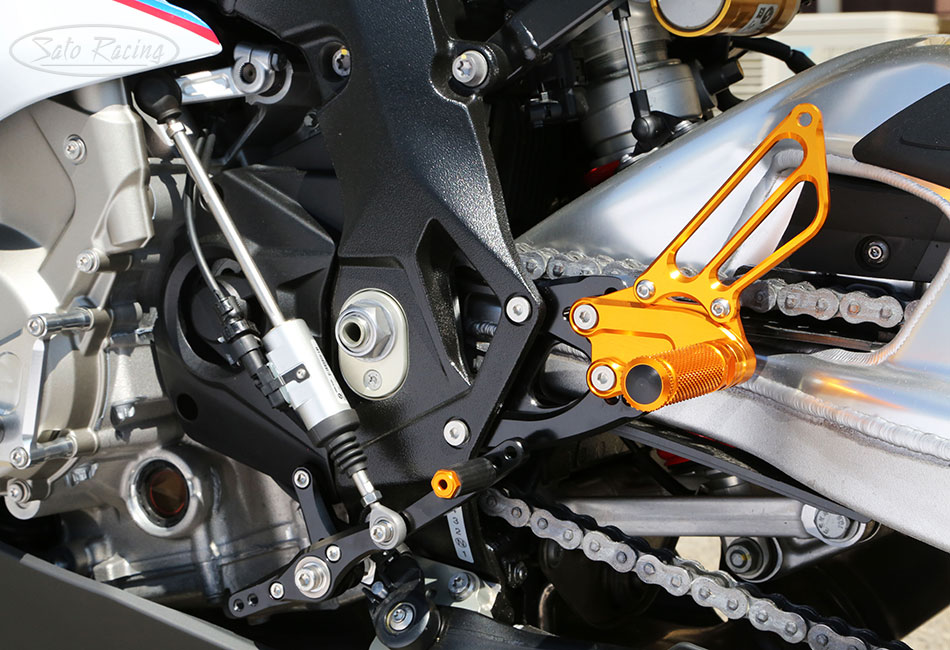

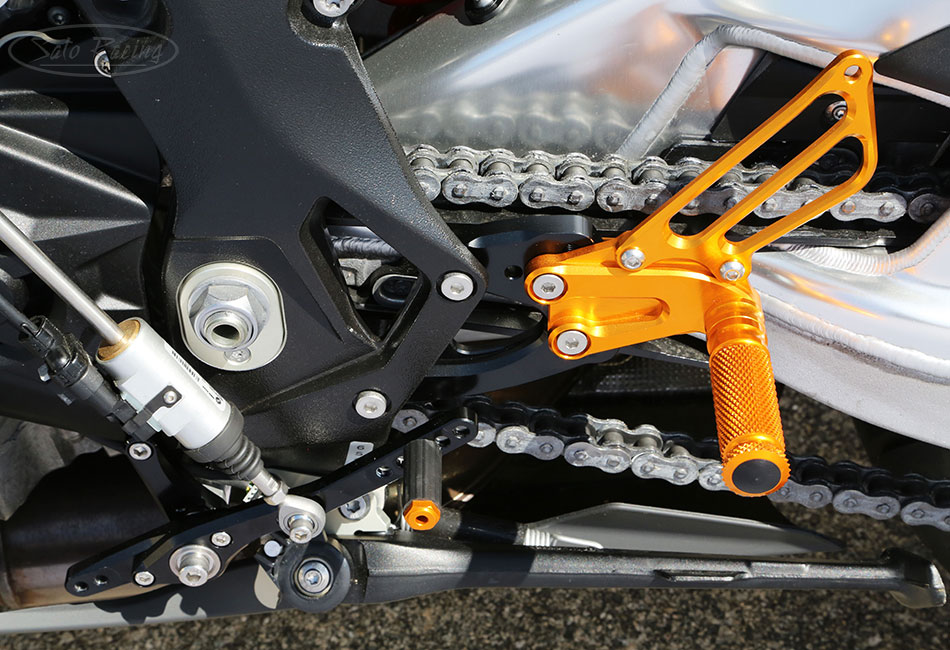

Heavy-duty shift pedal can provide either stock or reverse (GP) shift pattern.
Numerous adjustment holes let you fine-tune the shift stroke and feel.
SATO 'Race Concept' edition Rear Sets come standard with gold-anodized aluminum pedal
tips with rubber grips. Finely knurled footpegs provide excellent grip and a nice feel.

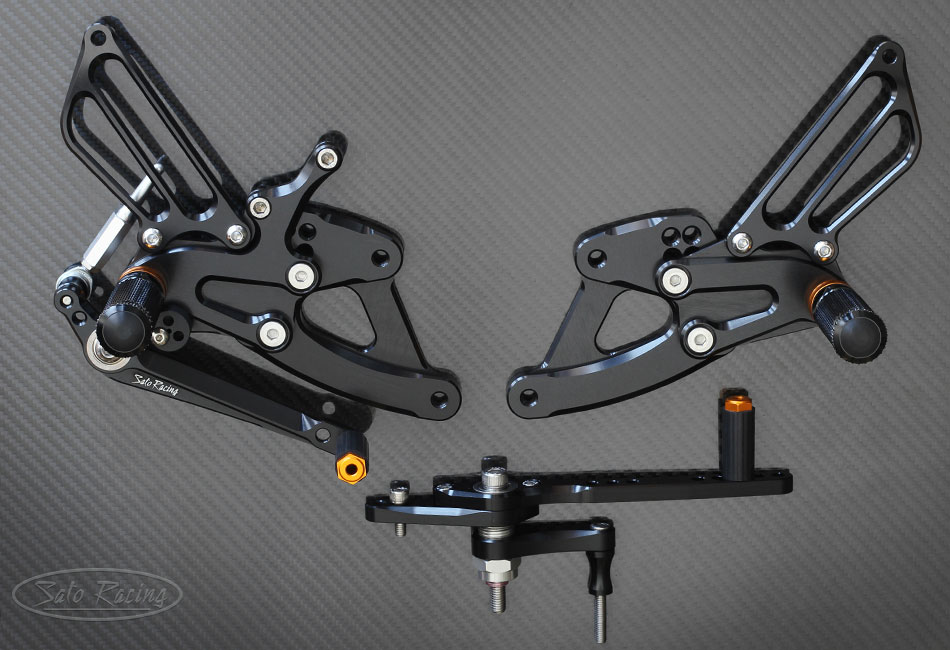

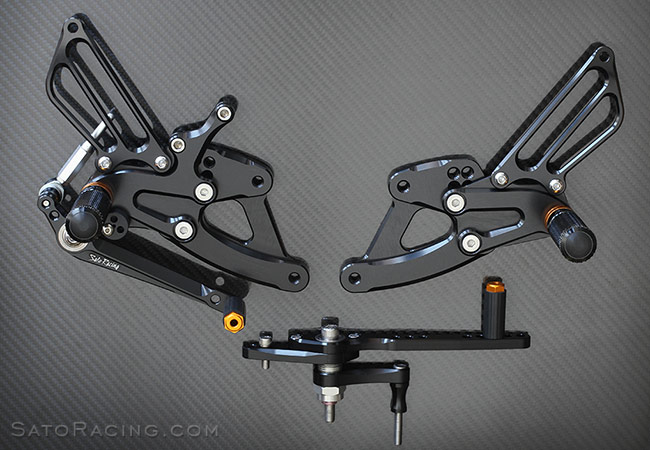

The Black 'Race Concept' Rear Sets come with Gold peg collars and pedal tips.
|NOTE: For dedicated race bikes only. Not for street use. Not designed with ABS or brake light switch compatibility in mind. Not for use with the stock exhaust on 2015-16 model years, since there is no exhaust hanger.|
w/ GOLD accents
w/ BLACK base plates/ Shift Pedal
Cutout-style FOOT PEG
|This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. |
* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.
Race Concept Cutout-style FOOT PEG (Sold individually)
* Click Here for important info about Sato GOLD-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
