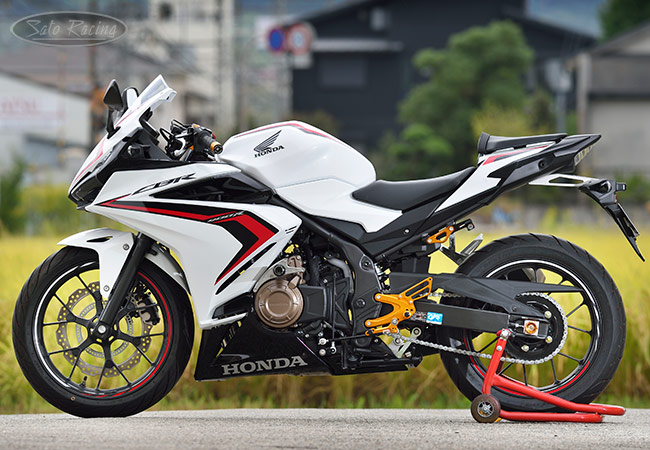

HONDA CBR500R / CBR400R ('19- )
REAR SETS

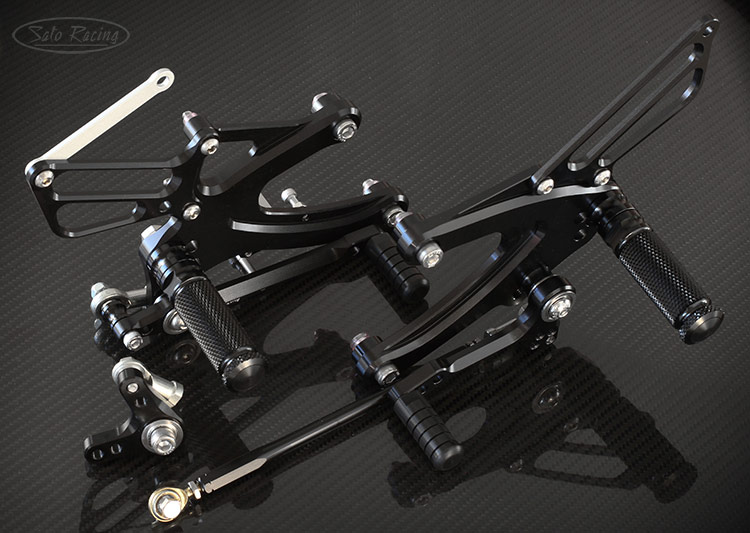

| SATO RACING Rear Sets for 2019+ Honda CBR500R (along with the non-US CBR400R) features a track-engineered design, with parts precision CNC-machined out of high strength billet aluminum, with stainless steel hardware. These sturdy yet lightweight foot controls provide 4 adjustable foot peg positions that bring your feet higher up and further back compared to stock, for a more aggressive riding position ideally suited for the fast straights and steep lean angles encountered on the track. Choice of Black, Silver, or Gold anodized finish. |
POSITIONS
| 1 | 40mm Back | 50mm Up |
| 2 | 40mm Back | 65mm Up |
| 3 | 47.5mm Back | 57.5mm Up |
| 4 | 55mm Back | 65mm Up |
Note: all measurements are in relation to stock position (0 mm).
|
The shift and brake pedals utilize double stainless bearings for smooth, precise lever action with a solid feel. The Foot Pegs feature a knurled pattern for optimal grip, along with a comfortable, intuitive feel. The Pedal Tips (toe pegs) are made of tough, abrasion-resistant Delrin. The positions of both the foot pegs and the pedal tips can be adjusted to your preference. These Rear Sets are fully compatible with the stock rear brake light switch and ABS. |
The shift and brake pedals are mounted on a separate axis from the foot pegs for optimal leverage.
Note: These Rear Sets provide a stock (standard) shifting pattern.
Reverse (GP) shift pattern is not an option on this model.
| BLACK | H-CBR519RS-BK $520 |
 |
| SILVER | H-CBR519RS-SV $520 |
|

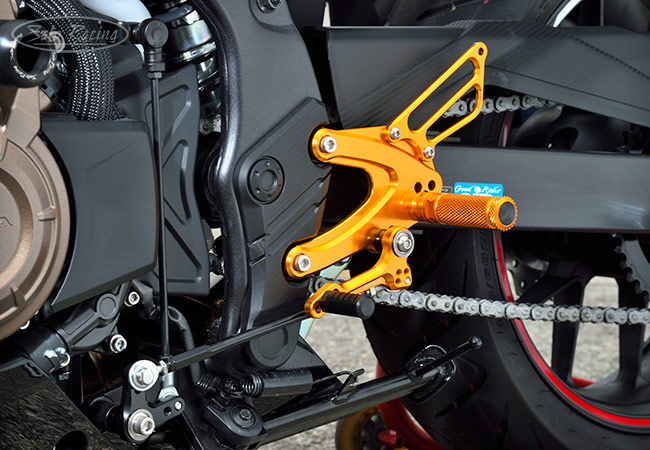

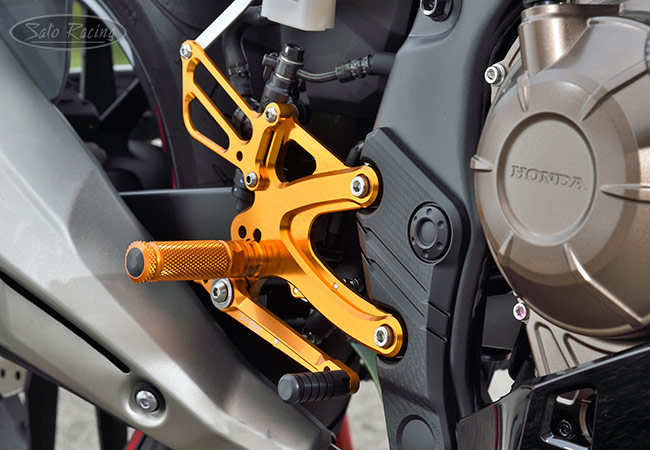

| GOLD | H-CBR519RS-GD $520 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF parts list:
Parts List - L-side | Parts List - R-side
Most replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK / SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK / SV/ GD) (#17) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (#22, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
LOW SOCKET HEAD M6-20mm (#28, for Pedal Tip) |
LSBT-M620 $4.00 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-2L $50 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (#2) |
HG-1R $50 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (#5) |
SPD-10 $62.50 |
|
 |
SHIFT ROD 170 (BK/ SV/ GD) (#6) |
SRD-170 $39 |
|
 |
BEARING COLLAR 10s (#12) |
PEGBGCLR-10SB $10.00 |
|
 |
BEARING COLLAR 13s [BLACK] (#13) |
PEGBGCLR-13SB $13.00 |
|
 |
ROD END COLLAR 3 (#14) |
RDED-CLR3 $6.00 |
|
 |
ROD END COLLAR 15 (#15) |
RDED-CLR15 $8.00 |
|
 |
BASE PLATE COLLAR 8 (#16) |
BPCLR-8 $8.00 |
|
 |
HEX HEAD M5-8mm (#19) |
HBT-M58 $2.00 |
|
 |
HEX HEAD M6-18mm (#20) |
HBT-M618 $2.00 |
|
|
HEX HEAD M6-20mm (#21) |
HBT-M620 $2.00 |
|
 |
SOCKET HEAD M5-15mm (#23) |
SBT-M515 $2.00 |
|
 |
SOCKET HEAD M5-30mm (#24) |
SBT-M530 $2.00 |
|
 |
SOCKET HEAD M6-40mm (#25) |
SBT-M640 $2.00 |
|
 |
SOCKET HEAD M8-25mm (#26) |
SBT-M825 $1.50 |
|
 |
SOCKET HEAD M8-45mm (#27) |
SBT-M845 $2.00 |
|
 |
BUTTON HEAD M6-10mm (#29) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-25mm (#30) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M8-25mm (#31) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-35mm (#32) |
BBT-M835 $2.00 |
|
 |
STUD M6 (#33) |
STUD-M6 $2.50 |
|
 |
PEG WASHER - M8 (#34) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (#35) |
SWS-8 $1.20 |
|
 |
NUT M5 (#36) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#37) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#39) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#40) |
LNT-6 $1.50 |
|
 |
REVERSE MALE ROD END M6 (#41) |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END M6 (#42) |
RDED-F6 $15.00 |
|
 |
FEMALE ROD END 6-M8 (#43) |
RDED-F6-8 $25 |
|
 |
BRACKET M6 x 75mm [SILVER] (#45) |
UB-M675-S $12.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
