DUCATI PANIGALE V4/S / V4 R ('18- )
REAR SETS
| SATO RACING Rear Sets for 2018+ Ducati Panigale V4 and 2019+ V4 R features components precision CNC-machined out of high strength billet aluminum, with stainless steel bolts and hardware. Modular adjustable design can be set up for either stock shift or reverse (GP style) shift pattern. Provides 4 unique foot peg positions, so you can find the ideal position for your riding style. Fully compatible with the stock quickshifter and ABS. Choice of Black, Silver or Gold anodized finish. |
| 1 | 15mm Forward | 10mm Up |
| 2 | 15mm Forward | 22mm Up |
| 3 | 3mm Forward | 10mm Up |
| 4 | 3mm Forward | 22mm Up |
note: all measurements are in relation to stock position (0 mm).
The following photos show part# D-V418RS-GD installed on a 2018 Panigale V4:
![SATO RACING Ducati Panigale V4 ('18- ) Rear Sets [R]-side](pics/D-V418RS-GD_fitR1_650x450.jpg "SATO RACING Ducati Panigale V4 ('18- ) Rear Sets [R]-side")

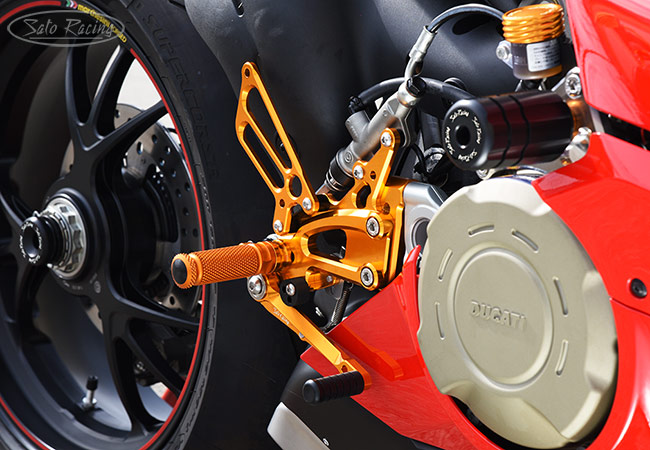

The shift and brake pedals use miniature double stainless bearings for smooth, precise lever action.
![SATO RACING Ducati Panigale V4 ('18- ) Rear Sets [R]-side](pics/D-V418RS-GD_fitR3_650x450.jpg "SATO RACING Ducati Panigale V4 ('18- ) Rear Sets [R]-side")

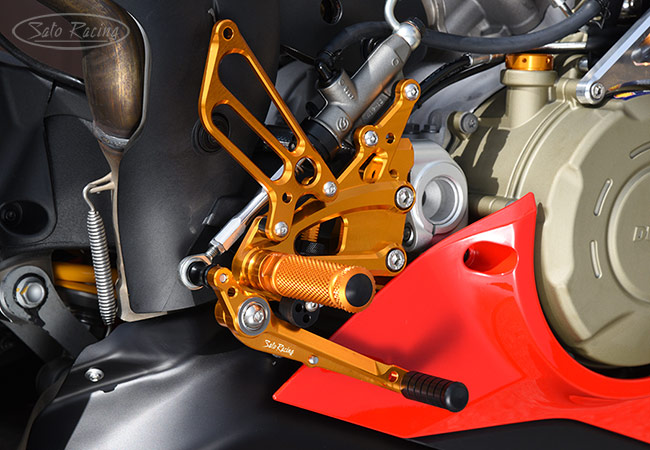

The Base Plate provides 4 adjustable positions for mounting the rear set assembly.
![SATO RACING Ducati Panigale V4 ('18- ) Rear Sets [R]-side](pics/D-V418RS-GD_fitR2_650x450.jpg "SATO RACING Ducati Panigale V4 ('18- ) Rear Sets [R]-side")

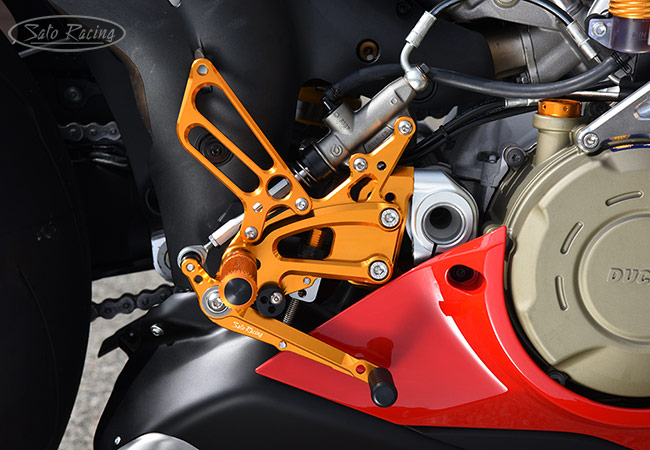

You can relocate the positions of the Foot Peg and the Pedal Tip to suit your preference.
Our Foot Pegs have a knurled pattern for great grip, along with a comfortable, intuitive feel.
![SATO RACING Ducati Panigale V4 ('18-) Rear Sets [L]-side](pics/D-V418RS-GD_fitL1_650x450.jpg "SATO RACING Ducati Panigale V4 ('18-) Rear Sets [L]-side")

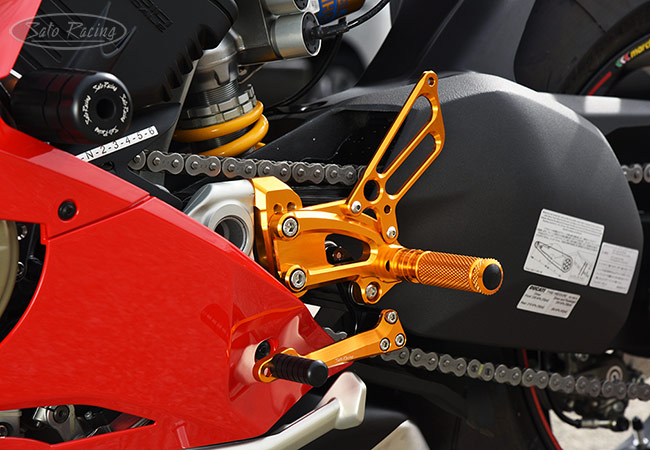

Our Rear Sets are fully compatible with the OEM quickshifter parts - no mods required.
![SATO RACING Ducati Panigale V4 ('18-) Rear Sets [L]-side](pics/D-V418RS-GD_fitL2_650x450.jpg "SATO RACING Ducati Panigale V4 ('18-) Rear Sets [L]-side")

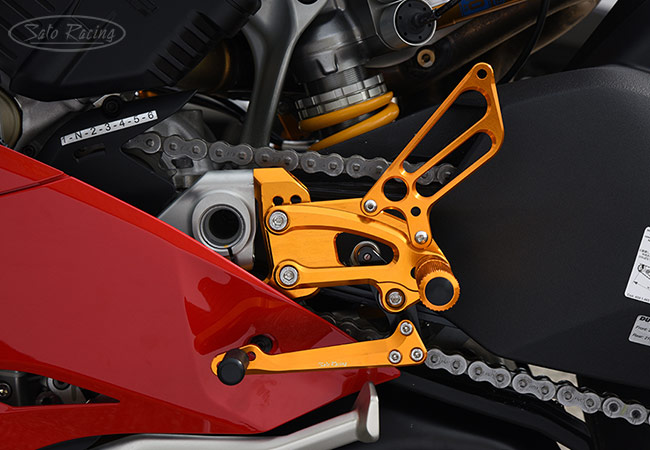

The shift and brake pedals are mounted on a separate axis from the Foot Peg. This
helps to maximize leverage, while also increasing the rigidity of the Foot Peg.
![SATO RACING Ducati Panigale V4 ('18-) Rear Sets [L]-side](pics/D-V418RS-GD_fitL3_650x450.jpg "SATO RACING Ducati Panigale V4 ('18-) Rear Sets [L]-side")

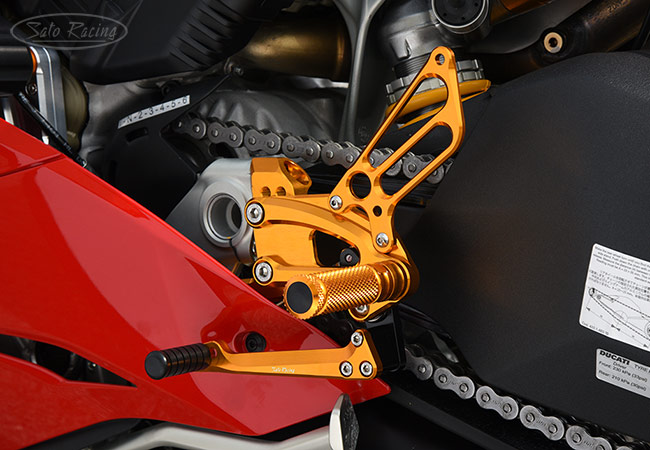

The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as
aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details
PANIGALE V4/ S
| BLACK | D-V418RS-BK $860 |
 |
| SILVER | D-V418RS-SV $860 |
|
| GOLD | D-V418RS-GD $860 |
|
PANIGALE V4R
(This model will also fit the standard Panigale V4)
| BLACK | D-V4R19RS-BK $875 |
|
| SILVER | D-V4R19RS-BK $875 |
|
| GOLD | D-V4R19RS-BK $875 |
|
Click Here for important info about Sato color-anodized parts.

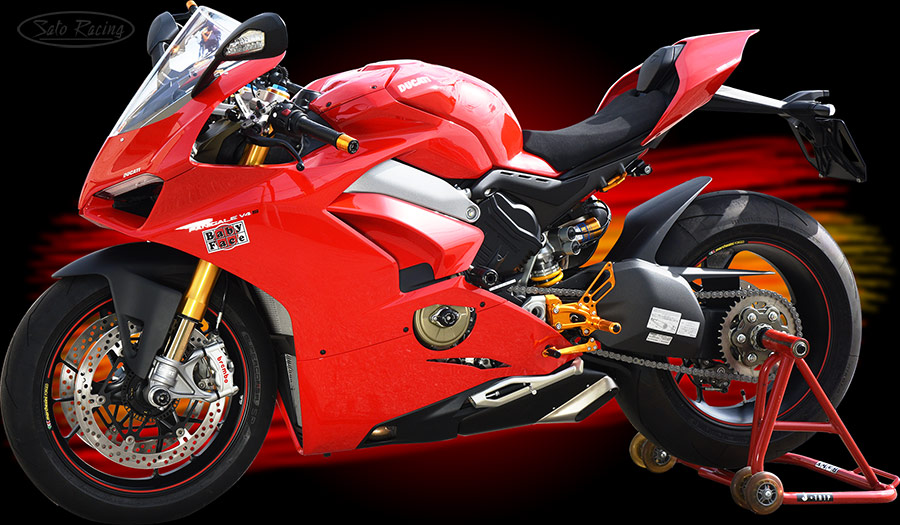

'18 Ducati Panigale V4 S with SATO RACING Rear Sets, Sliders, Engine Sliders, Racing Hooks and other parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF file:
Part# D-V418RS: Rear Sets [L]-side | Rear Sets [R]-side
Part# D-V4R19RS: Rear Sets [L]-side | Rear Sets [R]-side
Many replacement parts for these Rear Sets
can be purchased in our Online Store.
(Part numbers correspond to D-V418RS unless otherwise noted)
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#26) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (#30, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) (#18) |
ST-001D18 $15 |
|
 |
LOW SOCKET HEAD M6-20mm (#35, for Pedal Tip) |
LSBT-M620 $4.00 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-6L $60 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (#2) |
HG-6R $60 |
|
 |
RETURN SPRING 20 (#22) |
RS-RSP2 $8.00 |
|
 |
RETURN SPRING COLLAR (#23) |
RS-RSCLR $12.00 |
|
 |
PEDAL STOPPER (DELRIN) (#24) |
BPD-STOPPER $15.00 |
|
 |
ROD END COLLAR 19 (#25) |
RDED-CLR19 $8.00 |
|
 |
HEX HEAD M6-18mm (#28) |
HBT-M618 $2.00 |
|
 |
HEX HEAD M6-35mm (#29) |
HBT-M635 $2.50 |
|
 |
SOCKET HEAD M5-10mm (#131) |
SBT-M510 $2.00 |
|
 |
SOCKET HEAD M8-15mm (#32) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M8-20mm (#33) |
SBT-M820 $1.50 |
|
 |
SOCKET HEAD M8-25mm (#34) |
SBT-M825 $1.50 |
|
 |
BUTTON HEAD M5-10mm (#36) |
BBT-M510 $2.00 |
|
 |
BUTTON HEAD M5-20mm (#37) |
BBT-M520 $2.00 |
|
 |
BUTTON HEAD M5-30mm (#38) |
BBT-M530 $2.00 |
|
|
BUTTON HEAD M6-25mm (#39) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M8-25mm #40) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-30mm (#41) |
BBT-M830 $2.00 |
|
 |
NUT M5 (#42) | NUT-5 $1.50 |
|
|
NUT M6 (#43) |
NUT-6 $1.00 |
|
 |
JAM NUT M6 (#44) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#45) |
JNT-6L $2.50 |
|
 |
JAM NUT M8 (#46) |
JNT-8 $2.50 |
|
 |
FLANGE LOCK NUT M8S (#47) |
FLNT-8S $2.50 |
|
 |
PEG WASHER - M8 (#48) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (#49) |
SWS-8 $1.20 |
|
 |
MALE ROD END M6 (#50) |
RDED-M6 $12.50 |
|
 |
REVERSE MALE ROD END M6 (#51) |
RDED-M6L $12.50 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
