KAWASAKI Z900 ('17-'19, '20-'23)
REAR SETS
| SATO RACING Rear Sets

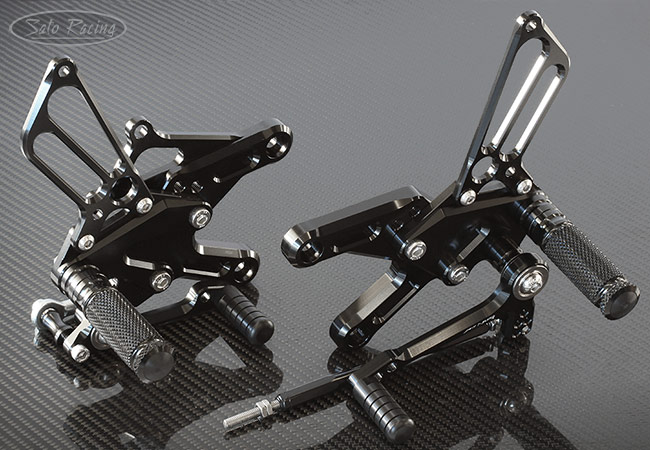

for Kawasaki Z900 features a thoroughly track-engineered and tested design. Multiple adjustable foot peg positions bring your feet higher up and further back compared to stock, for a more aggressive riding position well-suited to the fast straights and steep lean angles encountered on the track. These premium-quality Rear Sets are precision CNC-machined from high strength billet aluminum with your choice deep Black or vivid Gold anodized finish. There are 2 versions of these Rear Sets: Part# K-Z917RS fits the 2017-19 Z900, while part# K-Z920RS fits the 2020-23 Z900. |
| 1 | 32.5mm Back | 20mm Up |
| 2 | 32.5mm Back | 35mm Up |
| 3 | 45mm Back | 20mm Up |
| 4 | 45mm Back | 35mm Up |
note: all measurements are in relation to stock position (0 mm).

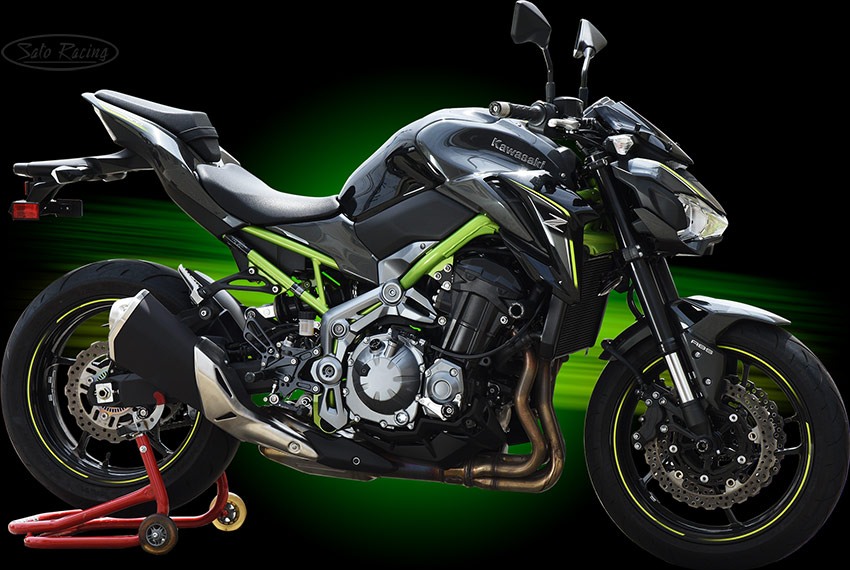

The following photos show these Rear Sets installed on a 2018 Japan-spec Z900.

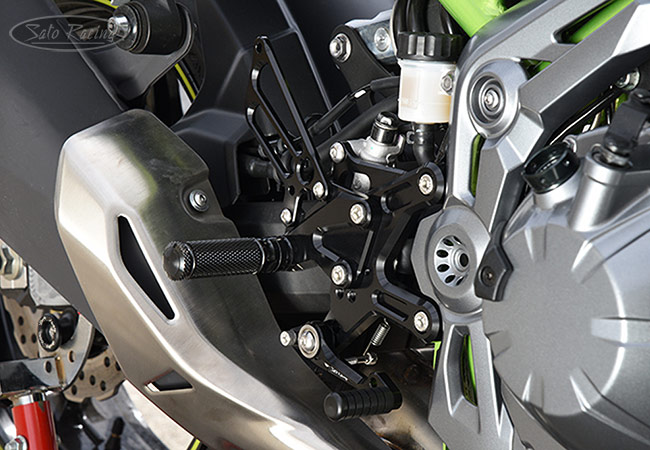

![SATO RACING Z900 '17-'19 Rear Sets [R]-side in Black](pics/Z900_rearsetsBK_fitR1.jpg "SATO RACING Z900 '17-'19 Rear Sets [R]-side in Black")

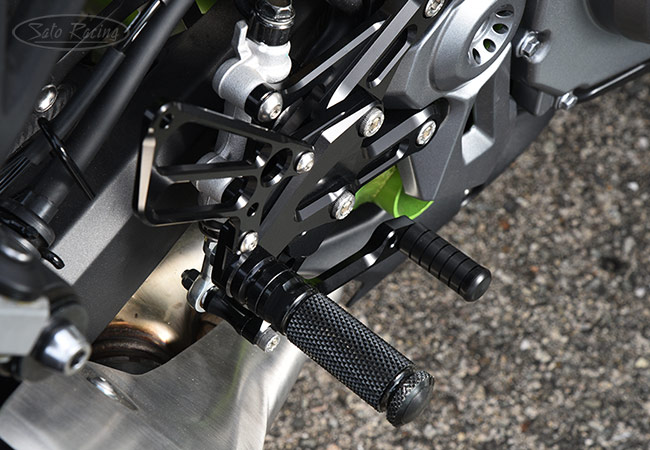

The brake pedal has miniature double stainless bearings for smooth, precise braking feel.
Our Z900 Rear Sets are fully compatible with the stock brake light pull switch and ABS.
![SATO RACING Z900 '17- Rear Sets [R]-side in Black](pics/Z900_rearsetsBK_fitR2.jpg "SATO RACING Z900 '17- Rear Sets [R]-side in Black")

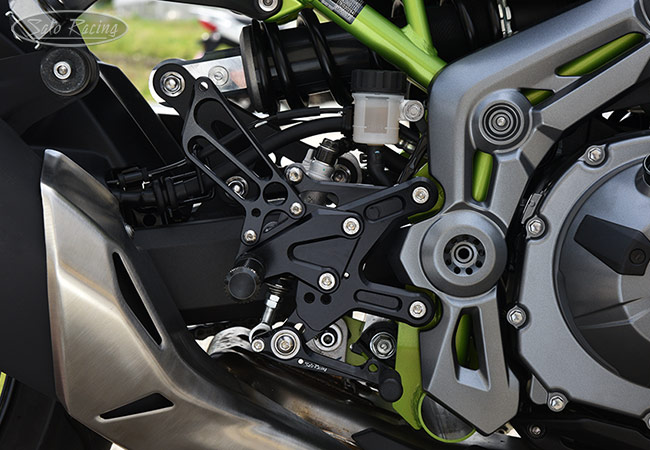

![SATO RACING Z900 '17- Rear Sets [R]-side in Black](pics/Z900_rearsetsBK_fitR3.jpg "SATO RACING Z900 '17- Rear Sets [R]-side in Black")
| The Step Plate can be adjusted 4 ways so you can find the ideal Foot Peg position for your riding style. The range of positions is set far back compared to stock to make it easier to maintain a 'full tuck' body position. The high foot position is great for corner carving, since you can get lower to the ground without scraping the pegs. |

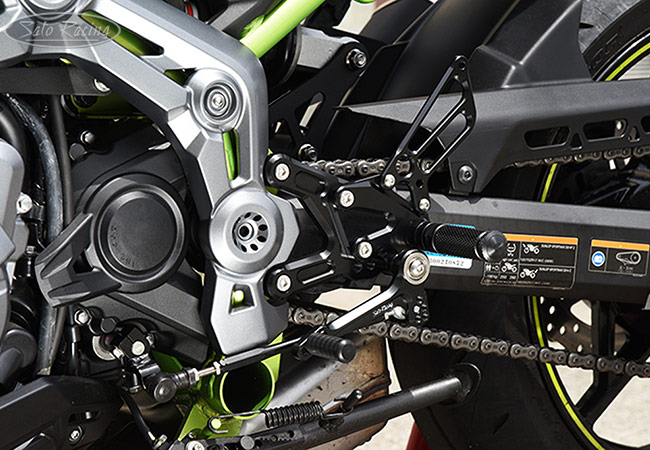

![SATO RACING Z900 '17- Rear Sets [L]-side in Black](pics/Z900_rearsetsBK_fitL1.jpg "SATO RACING Z900 '17- Rear Sets [L]-side in Black")
The shift pedal utilizes miniature double stainless bearings for the smoothest shift
action. Multiple adjustment points are useful for fine-tuning the shift stroke.

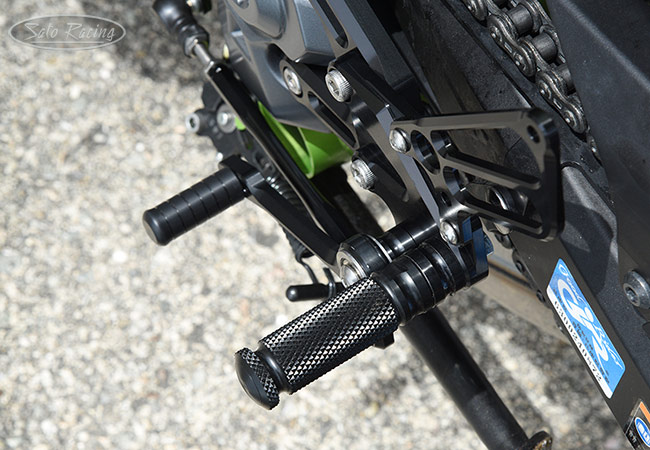

![SATO RACING Z900 '17- Rear Sets [L]-side in Black](pics/Z900_rearsetsBK_fitL2.jpg "SATO RACING Z900 '17- Rear Sets [L]-side in Black")
Knurled Foot Pegs provide a comfortable, intuitive feel, and nice grip even in wet conditions.
The standard Pedal Tips are made of high-density Delrin plastic. Additional Pedal Tip styles,
such as aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details.

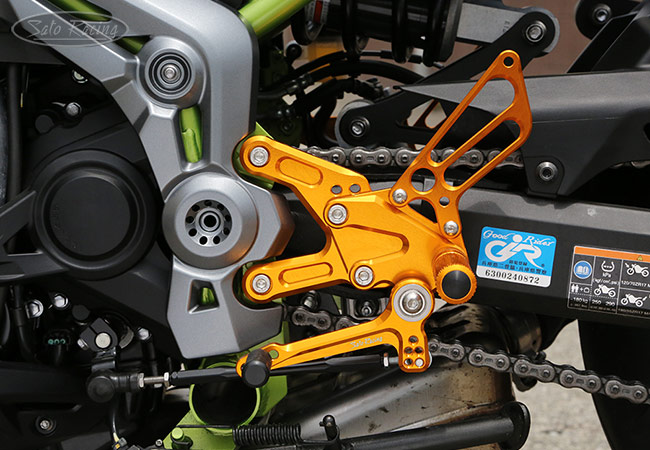

![SATO RACING Z900 '17- Rear Sets [L]-side in Gold](pics/Z900_rearsetsGD_fitL1.jpg "SATO RACING Z900 '17- Rear Sets [L]-side in Gold")
These Rear Sets provide a dedicated stock shift pattern.
(Reverse/GP shift pattern is not an option for this model)
2017-19 Z900
| BLACK | K-Z917RS-BK $590 |
 |
| GOLD | K-Z917RS-GD $590 |
|
2020-23 Z900
| BLACK | K-Z920RS-BK $590 |
|
| GOLD | K-Z920RS-GD $590 |
|
* Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF file: Parts List (K-Z917RS)
Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the version for 2017-19 Z900 unless otherwise noted.)
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#36) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (#15, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (#21, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-6L $60 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (#2) |
HG-6R $60 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (#6) |
SPD-0912 $62.50 |
|
 |
SHIFT ROD 145 (BK) (#8) |
SRD-145-B $39 |
|
 |
HEX HEAD M5-6mm (#13) |
HBT-M56 $2.00 |
|
 |
HEX HEAD M6-20mm (#14) |
HBT-M620 $2.00 |
|
 |
SOCKET HEAD M5-35mm (#16) |
SBT-M535 $2.00 |
|
 |
SOCKET HEAD M6-50mm (#17) |
SBT-M650 $2.00 |
|
 |
SOCKET HEAD M8-15mm (#18) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M8-30mm (#19) |
SBT-M830 $2.00 |
|
 |
BUTTON HEAD M6-10mm (#20) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-20mm (#22) |
BBT-M820 $1.50 |
|
 |
BUTTON HEAD M8-25mm (#23) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-35mm (#24) |
BBT-M835 $2.00 |
|
 |
REVERSE STUD M6 (#25) |
STUD-M6L $4.20 |
|
 |
NUT M5 (#26) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#27) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#28) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#29) |
LNT-6 $1.50 |
|
 |
SPLIT WASHER M8 (#30) |
SWS-8 $1.20 |
|
 |
BEARING COLLAR 13 [BLACK] (#31) |
PEGBGCLR-13SB $13.00 |
|
 |
ROD END COLLAR 3 (#32) |
RDED-CLR3 $6.00 |
|
 |
BASE PLATE COLLAR 10 (#34) |
PEGCLR-10 $15.00 |
|
 |
BASE PLATE COLLAR 12 (#35) |
PEGCLR-12 $15.00 |
|
 |
MALE ROD END M6 (#37) |
RDED-M6 $12.50 |
|
 |
FEMALE ROD END 6-M8 (#38) |
RDED-F6-8 $25 |
|
 |
PULL SWITCH STAY 16 (#39) |
PSTAY-16 $9.50 |
|
 |
RETURN SPRING 40 (#40) |
RS-RSP $8.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
