H-D SPORTSTER XL883/1200 ('14-, non-ABS)
REAR SETS + TANDEM BRACKETS
|

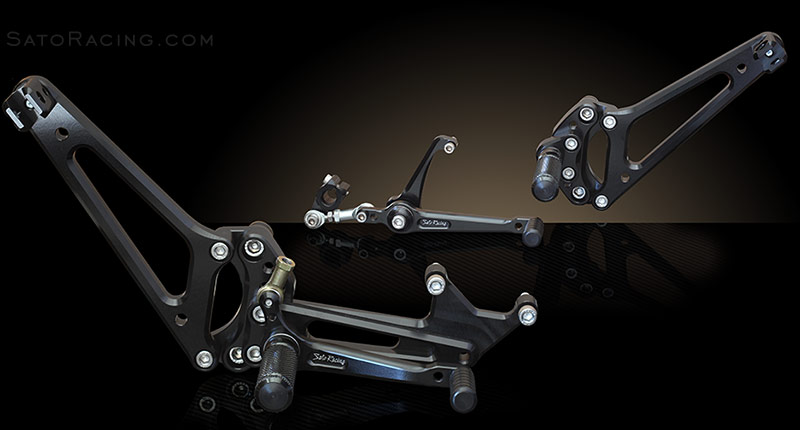

SATO RACING Rear Sets for Sportster are designed by request from
a very passionate Harley shop owner in Japan who manufactures aftermarket
exhaust systems, so they are designed to fit with that particular style of
exhaust*. If your Sportster has a similar aftermarket pipe (see photos below), and you desire a more aggressive, sportbike-like riding position, then these Rear Sets may be the perfect solution. Our Rear Sets for 2014 and up Sportster XL883/ XL1200 (non-ABS) are CNC-machined out of high strength billet aluminum anodized in your choice of all Black, or Silver with contrasting Black base plates. True mid-position design - provides adjustable foot positions that bring your feet higher and much further back compared to the stock pegs. Matching Tandem Brackets are an option for XL1200. *NOTE: For use with an aftermarket exhaust. Not compatible with the stock exhaust. Not recommended for installation on ABS-equipped Sportster. ( For ABS-compatible Rear Sets - Click Here ) |
| 1 | 220mm back | 35mm up |
| 2 | 230mm back | 35mm up |
| 3 | 230mm back | 50mm up |
| 4 | 230mm back | 20mm up |
note: all measurements are in relation to stock position (0 mm).
The Foot Pegs are relocated rearward by 220-230mm (8 5/8"-9") compared to the stock pegs.
Our Foot Pegs have a finely knurled pattern for non-slip grip and a comfortable, intuitive feel.
The position of the Peg is adjustable 4 ways. The Pedal Tip position can also be adjusted.
Removable
Tandem Brackets are an option for XL1200 series. They are for use with the stock passenger pegs.

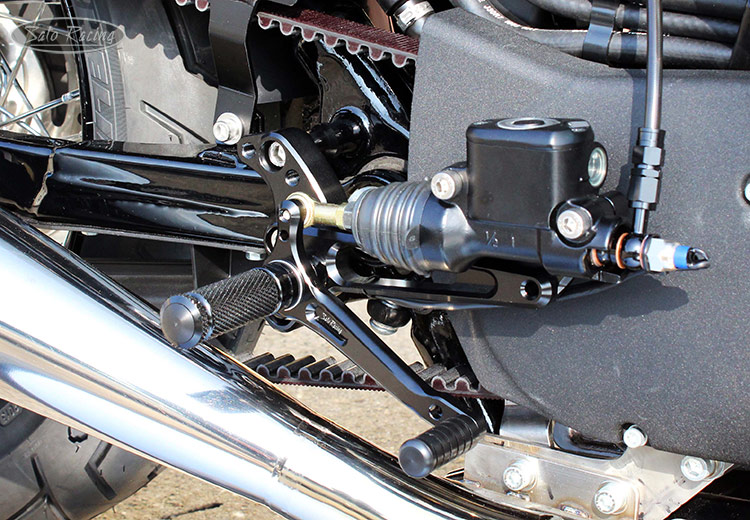

The stock master cylinder is flipped around and relocated higher up, eliminating the brake rod.
NOTE: The brake hose will need to be replaced with a longer one.
The brake pedal has double stainless bearings for smooth, precise pedal movement with a solid feel.

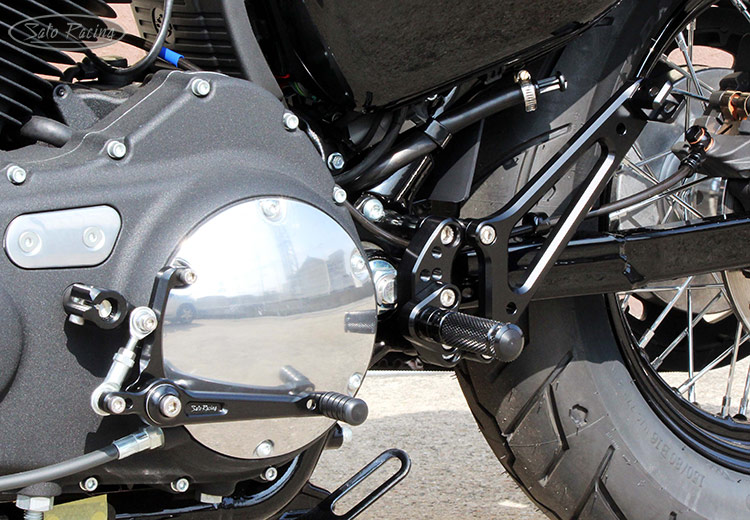

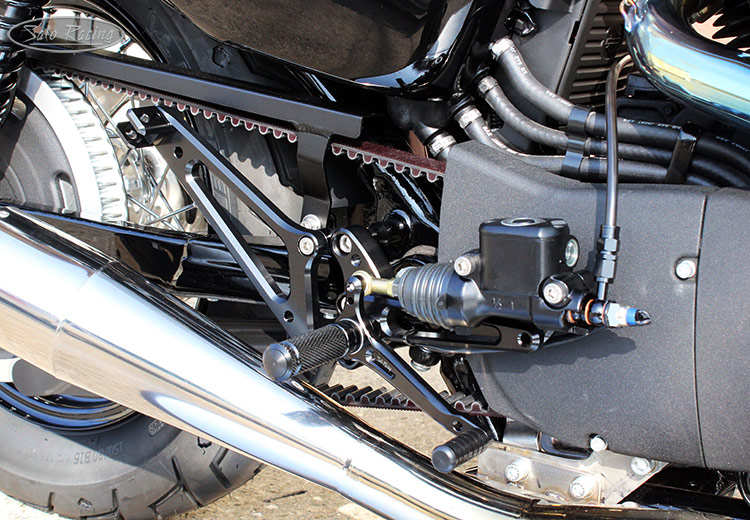

Rear Sets shown w/ optional Tandem Brackets (for XL1200)

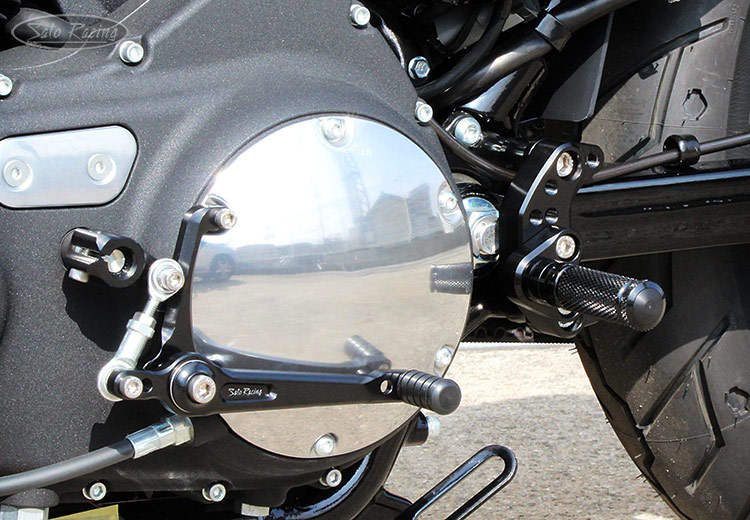

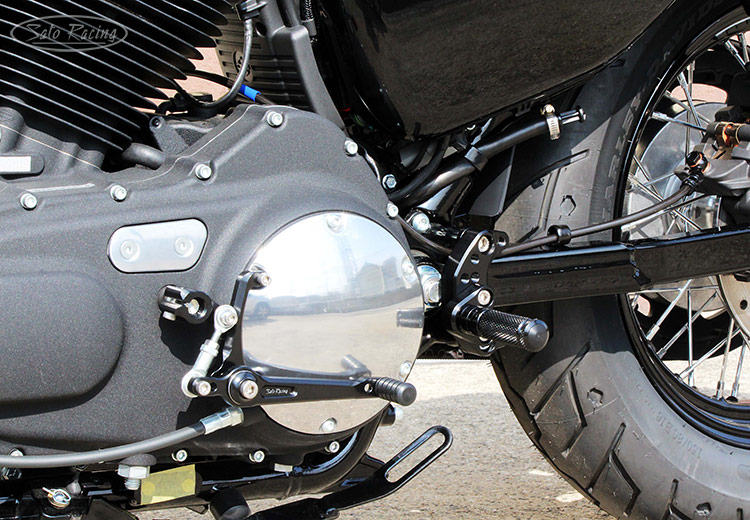

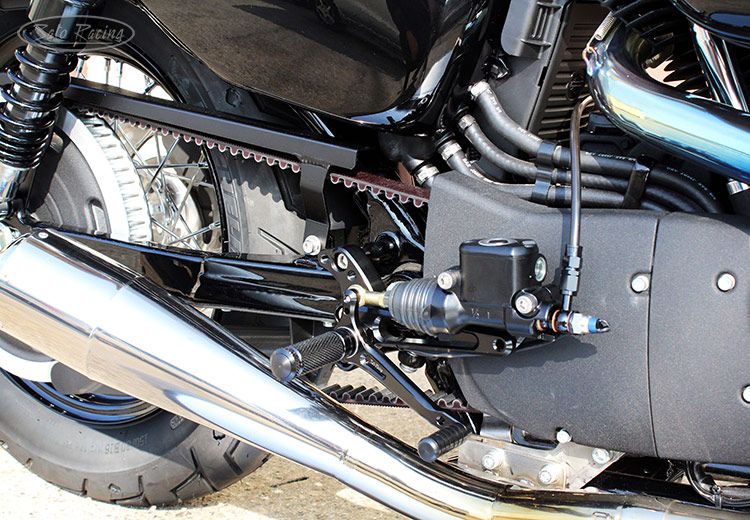

Our Rear Sets were designed for use with this particular style of exhaust system seen in the photos,
but it could also be compatible with other styles of exhausts as long as there is no interference with
the mounting location of our parts, and there is sufficient clearance for brake pedal movement.
REAR SETS
(SPORTSTER XL883/ XL1200 '14- )
| BLACK | HD-SSTR14RS-BK $820 |
 |
| SILVER* | HD-SSTR14RS-SV $820 |
|
* Silver pedal assembly with Black Base Plates
TANDEM BRACKETS (XL1200 only)
Use with stock passenger pegs
| BLACK | HD-SSTR14TB-BK $198 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated parts list
included with your SATO RACING Rear Sets, or view the PDF: Parts List
Some common replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
L PEG COLLAR 15 [BLACK] (#17) |
PEGCLR-15B $15 |
|
 |
L PEG COLLAR 15 [SILVER] (#17) |
PEGCLR-15S $15 |
|
 |
SOCKET HEAD M8 x 40mm (#26, L Foot Peg bolt) |
SBT-M840 $2.00 |
|
 |
SOCKET HEAD M8 x 45mm (#27, R Foot Peg bolt) |
SBT-M845 $2.00 |
|
 |
[R] PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
[L] PEDAL TIP SHORT style (DELRIN) |
ST-001DS $15 |
|
 |
BUTTON HEAD M6-15mm (#28, for L Pedal Tip) |
BBT-M615 $1.50 |
|
 |
BUTTON HEAD M6-20mm (#29, for R Pedal Tip) |
BBT-M620 $1.50 |
|
 |
BEARING COLLAR M8-5 [BLACK] (#13) |
PEGBGCLR-5SB $10.00 |
|
 |
ROD END COLLAR 3 (#15) |
RDED-CLR3 $6.00 |
|
 |
COLLAR 3-2 (#16) |
CLR-3-2SSTR04 $6.00 |
|
 |
BOLT 1/4"-20 (#19) |
INBT-1/4-20 $2.50 |
|
 |
PLAIN NUT M6 (#31) |
NUT-6 $1.00 |
|
 |
MALE ROD END M6 (#32) |
RDED-M6 $12.50 |
|
 |
FEMALE ROD END M6 (#33) |
RDED-F6 $12.50 |
|
 |
FEMALE ROD END 6-M8 (#34) |
RDED-F6-8 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
