H-D SPORTSTER XL883/1200 ABS
(Iron 883 / SuperLow / Roadster / 1200 Custom)  ('14- )
REAR SETS + TANDEM BRACKETS


SATO RACING Rear Sets for Sportster XL 883 /1200-series (Iron 883 / SuperLow / Roadster / 1200 Custom, etc) with ABS are designed for use with a low-slung style of 2-into-1 type exhaust system, such as the one seen in the photos below. If your Sportster has a similar style of aftermarket pipe, and you desire a more aggressive, sportbike-like riding position, then these Rear Sets may work for you.

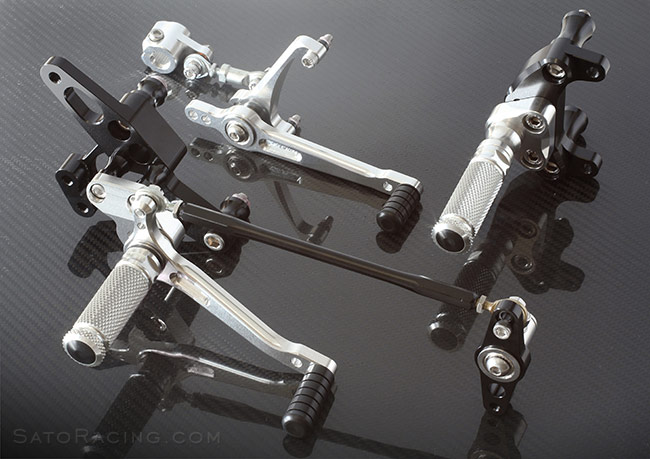

These fine-quality billet aluminum Rear Sets are anodized in your choice of all Black, or Silver with Black base plates and brake linkage. Choose from 2 adjustable peg positions that bring your feet higher up and significantly rearward compared to the stock foot rests. Tandem Brackets are an available option for the XL1200, letting you attach the stock passenger pegs.

NOTE: Not for use with the stock exhaust.

POSITIONS

1 220mm back 30mm up
2 235mm back 30mm up

note: all measurements are in relation to stock position (0 mm).

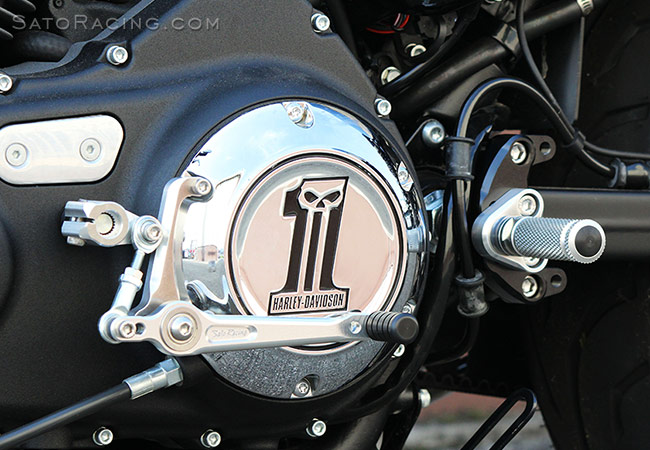

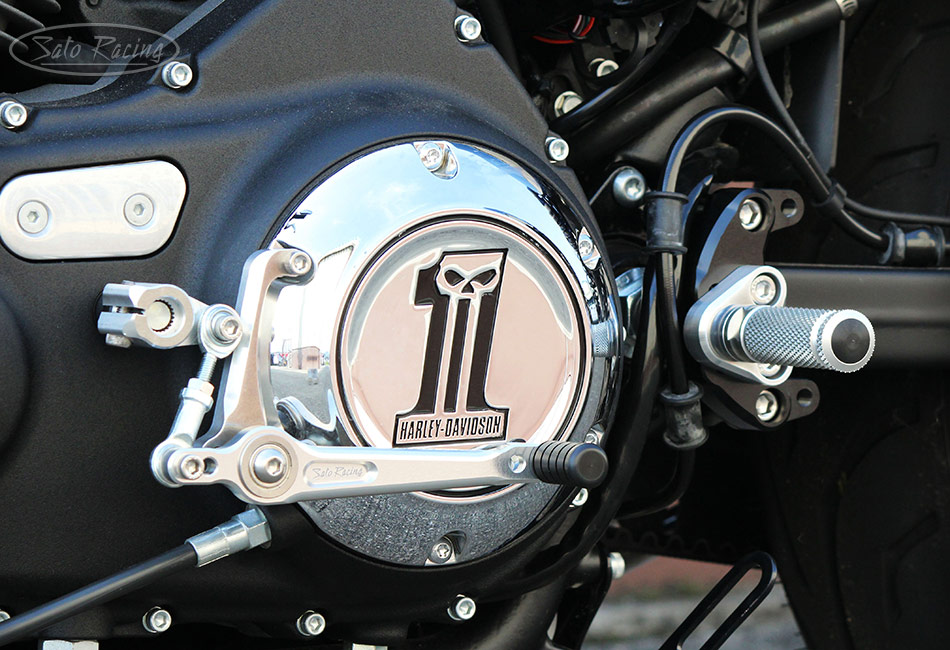

Our Foot Pegs have a finely knurled pattern for non-slip grip and a comfortable, intuitive feel.
The Foot Peg position is adjustable horizontally. The Pedal Tip position can also be adjusted.


Tandem Brackets are an optional part. They are for use with the stock XL1200 passenger pegs.
(Tandem Brackets come in Black only)

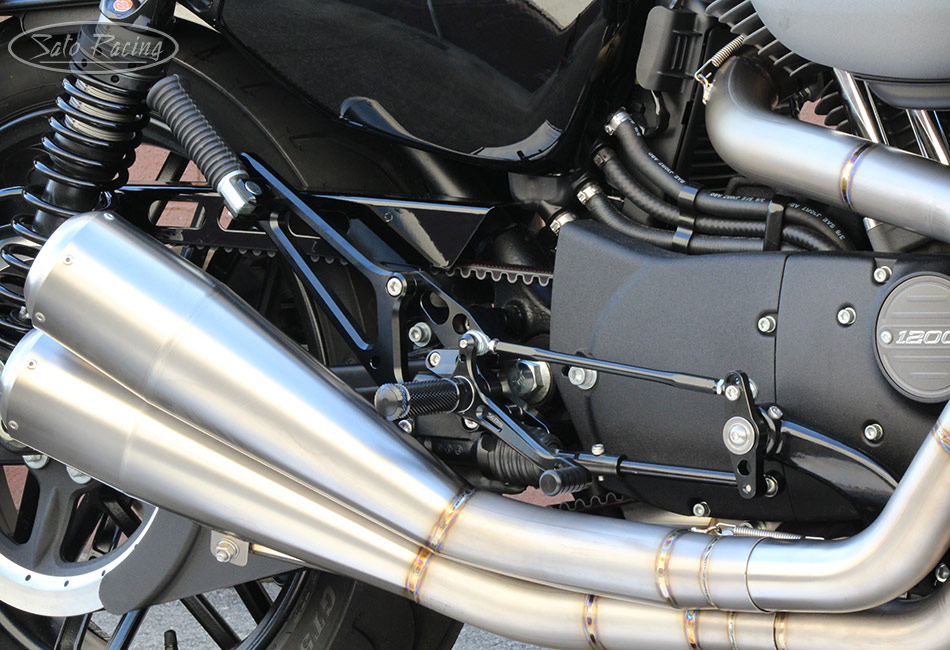

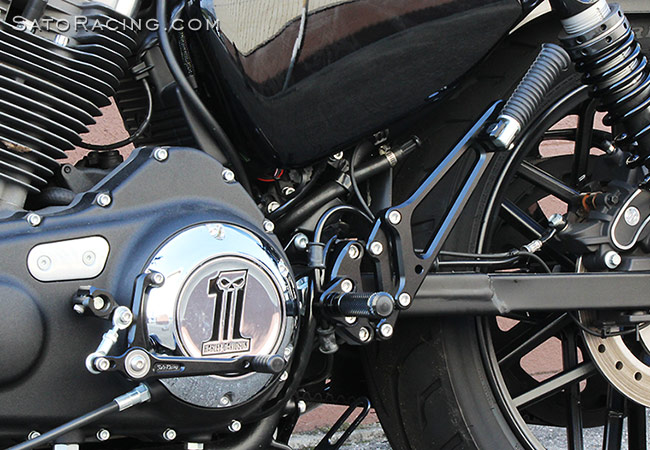

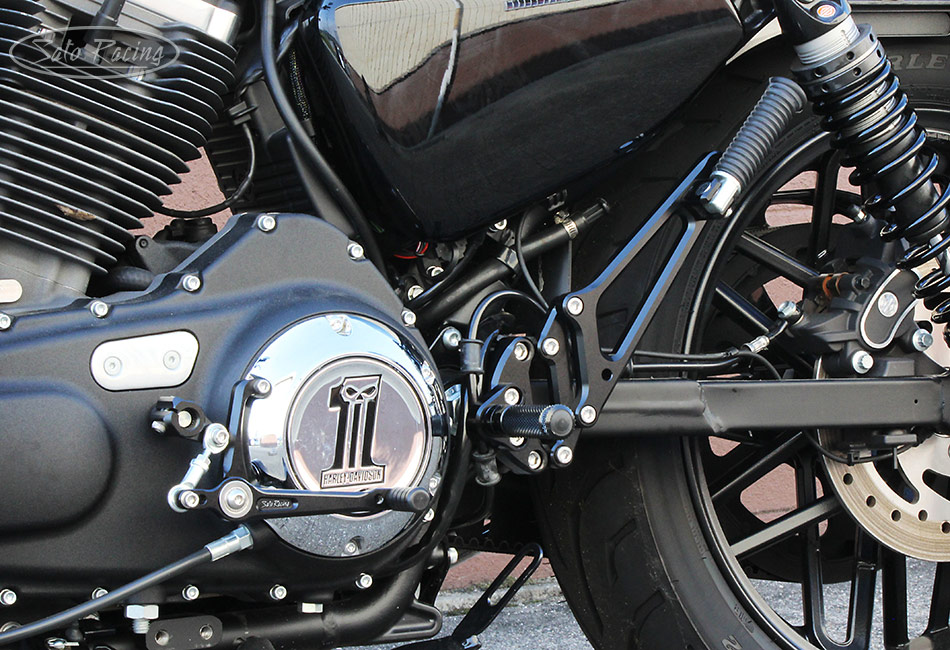

Black Rear Sets shown with optional Tandem Brackets



The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.

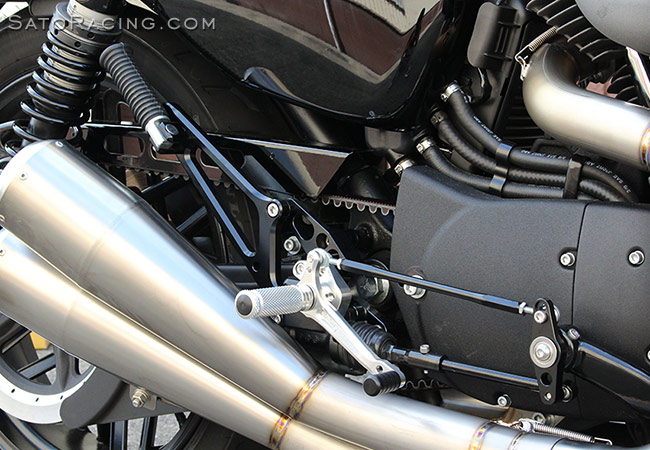

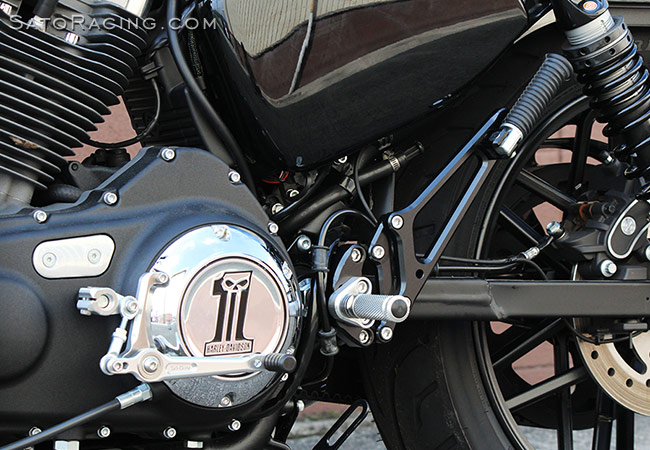

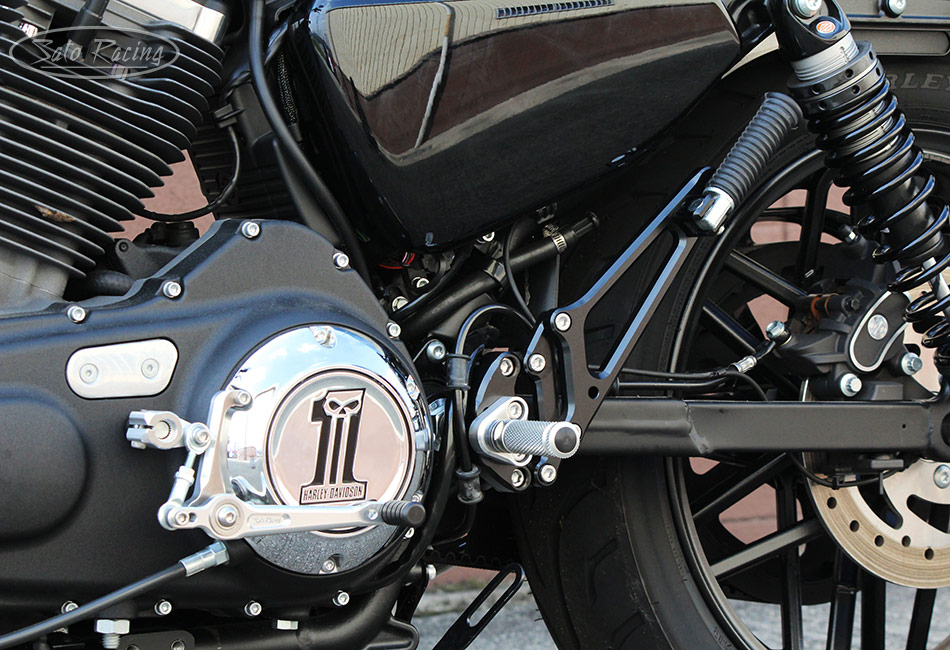

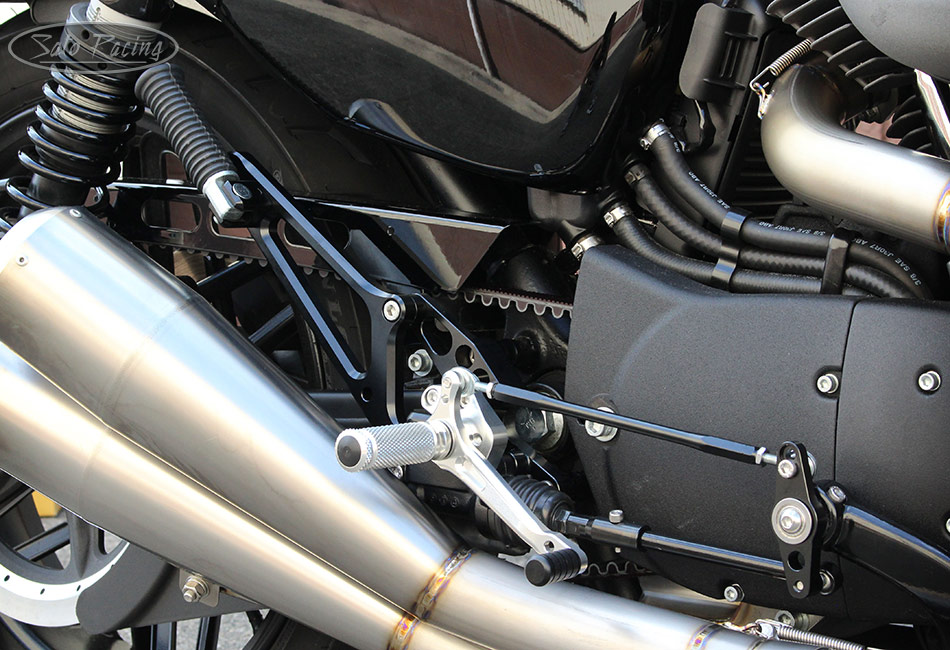

Rear Sets shown w/ optional Tandem Brackets. The mid-mounted position places your
feet directly below you, which can transform the handling in many riding situations.

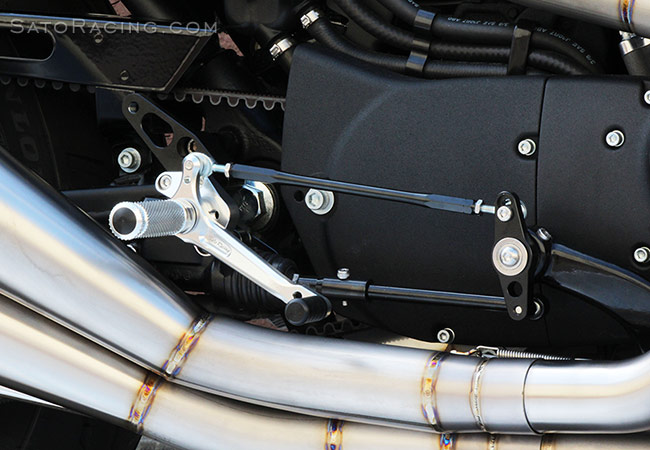

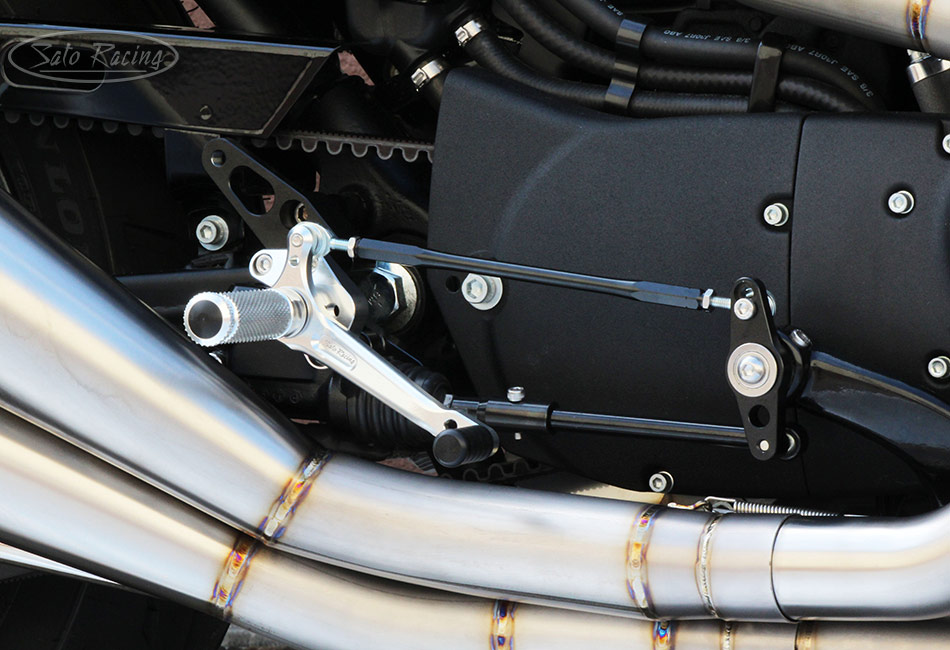

Our Rear Sets were designed for use with this particular style of exhaust system seen in the photos. which is made by a Japan-based maker of custom Harley parts called Tramp Cycle, but it could also be compatible with other styles of exhausts as long as there is no interference with the mounting location of our parts, and there is sufficient clearance for brake pedal movement.


REAR SETS
(SPORTSTER XL883/ XL1200 ABS '14- )

BLACK HD-SSTR14RSA-BK
$920
SILVER* HD-SSTR14RSA-SV
$920

* Silver pedal assembly with Black Base Plates


TANDEM BRACKETS  (XL1200 series only)
Use with stock passenger pegs

BLACK HD-SSTR14TB-BK
$198


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)




SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
