HONDA VFR800F ('14- )
REAR SETS

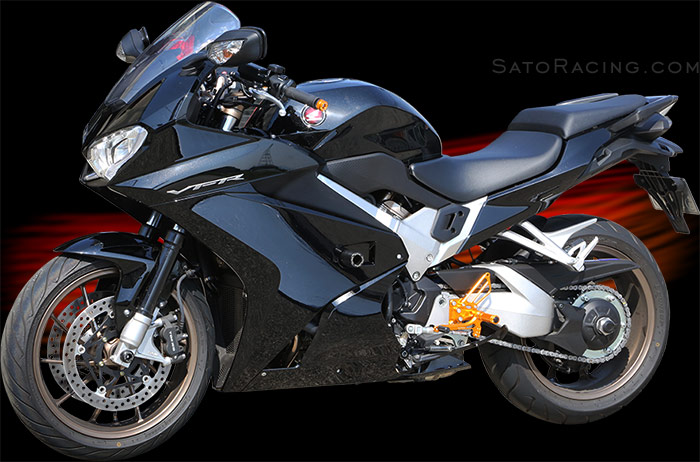

2014 Honda VFR800F with SATO RACING Rear Sets and other parts

SATO RACING Rear Sets for 2014+ Honda VFR800F / Interceptor features a competition-proven design, with components precision CNC-machined out of high strength anodized billet aluminum, with stainless steel bolts. The modular design of these Rear Sets lets you choose from 6 adjustable positions, so you can find the ideal position for your riding style. Choice of Black, Silver, or Gold anodized finish

2 versions of these Rear Sets are available: for quick-shifter equipped models and for standard (non-quickshifter) models.

SATO RACING Rear Sets in Black for Honda VFR800F Interceptor
Standard Rear Sets

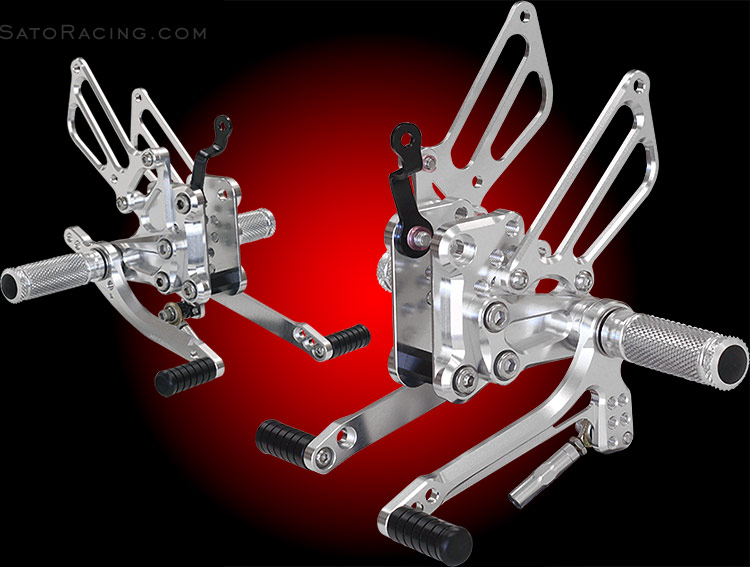

SATO RACING Rear Sets in Silver for '14- Honda VFR800F with Honda quickshifter
Quickshifter version Rear Sets

POSITIONS

1*	10mm Forward	12.5mm Down
2	10mm Forward	0mm
3	0mm	0mm
4	0mm	12.5mm Up
5	10mm Back	12.5mm Up
6	10mm Back	25mm Up

Note: all measurements are in relation to stock position (0 mm).
* Position 1 is not for use with the Quickshifter version Rear Sets.

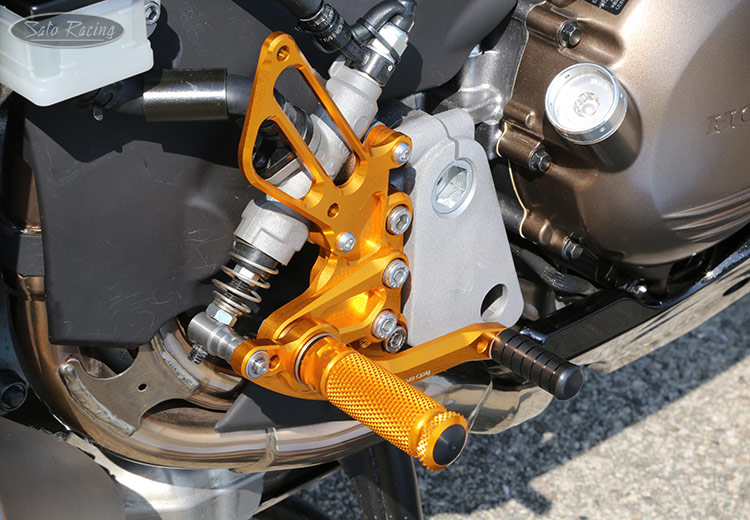

SATO RACING Rear Sets for '14- Honda VFR800F - R-side in Gold
The shift and brake pedals utilize double stainless bearings for smooth, precise lever action.

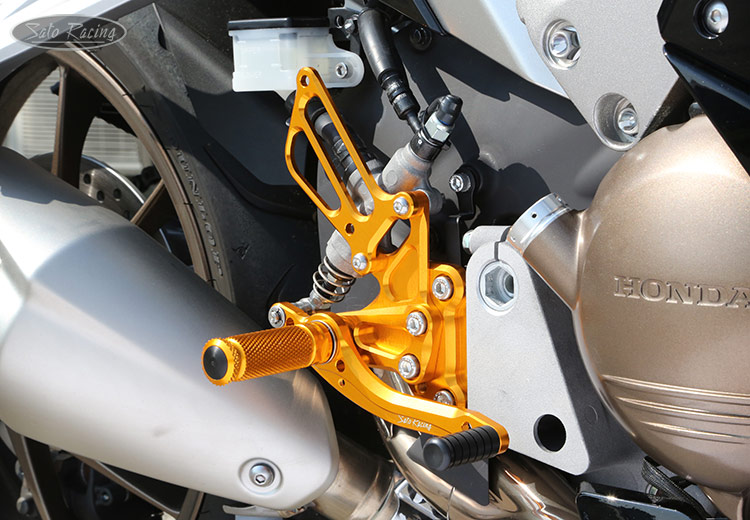

SATO RACING Rear Sets for '14- Honda VFR800F - R-side in Gold
The position of the step plate can be adjusted 6 ways. Pedal Tip position can also be adjusted.

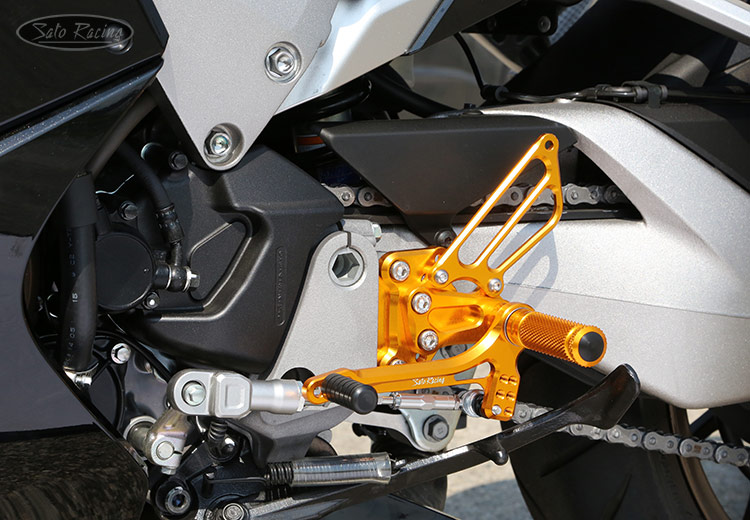

SATO RACING Rear Sets for '14- Honda VFR800F - L-side in Gold
Rear Sets (Quick Shifter-compatible version)

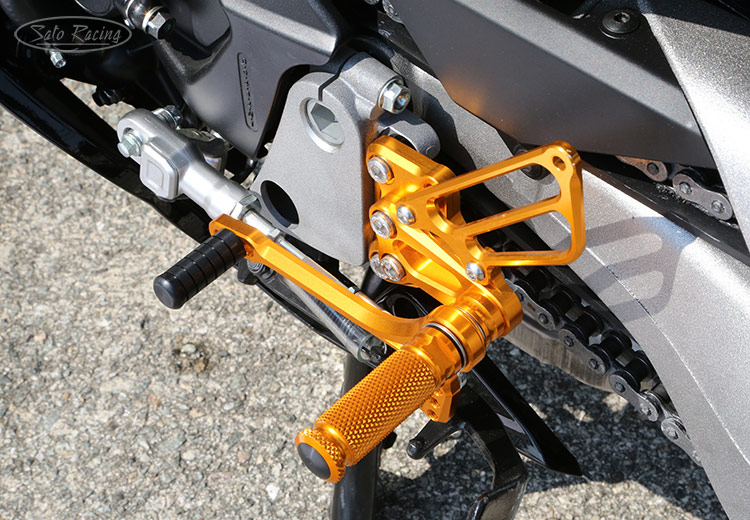

SATO RACING Rear Sets for '14- Honda VFR800F - L-side in Gold
Finely knurled footpegs have a comfortable feel with excellent non-slip characteristics.

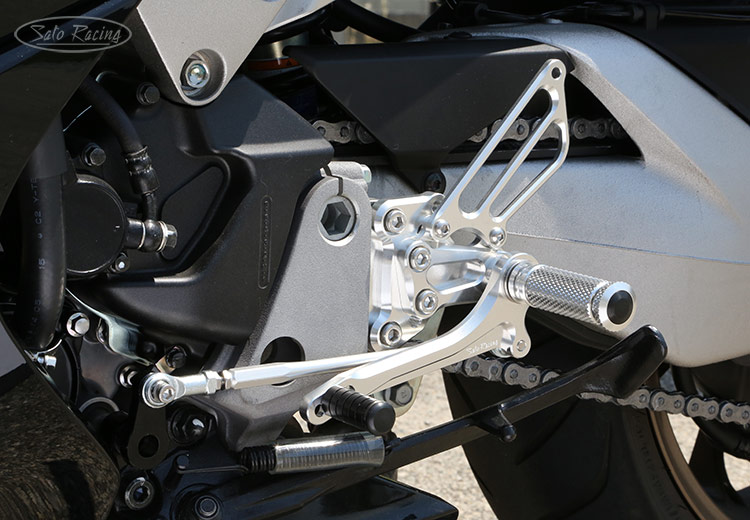

SATO RACING Rear Sets for '14- Honda VFR800F - L-side in Silver
Standard version Rear Sets (non-quick shifter) includes a full length shift rod and a shift arm.

(Note: These Rear Sets provide a stock shifting pattern only)

Rear Sets (standard version)

BLACK	H-VFR814RS-BK $590
SILVER	H-VFR814RS-SV $590
GOLD*	H-VFR814RS-GD $590

Rear Sets (Quick-Shifter version)

BLACK	H-VFR814RSQ-BK $560
SILVER	H-VFR814RSQ-SV $560
GOLD*	H-VFR814RSQ-GD $560

Have questions or prefer to order by phone? You can call us to place an order -

* Click Here for important info about Sato GOLD-anodized parts.

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list included with
your SATO RACING Rear Sets, or view the PDF: Parts List - H-VFR814RSQ

More Sato Racing items for VFR800F
