KAWASAKI  ZX-10R  ('11-'15)
REAR SETS

2011 Kawasaki ZX-10R

SATO RACING Rear Sets for 2011-15 Kawasaki ZX-10R feature components made of high strength billet aluminum with a choice of Black, Silver, or Gold anodized finish. 18 different positions are possible - The Base Plates, Step Plates and Foot Pegs each have adjustable positions. The positions provided range from near-stock peg height to more aggressive positions that bring your feet much higher up and further back compared to stock.

An optional
Reverse Shift Kit lets you switch the Rear Sets from the stock shift pattern to reverse (race) shift pattern.

SATO RACING ZX-10R '11-'15 Rear Sets [L]-side in Silver

SATO RACING ZX-10R '11-'15 Rear Sets [R]-side in Silver

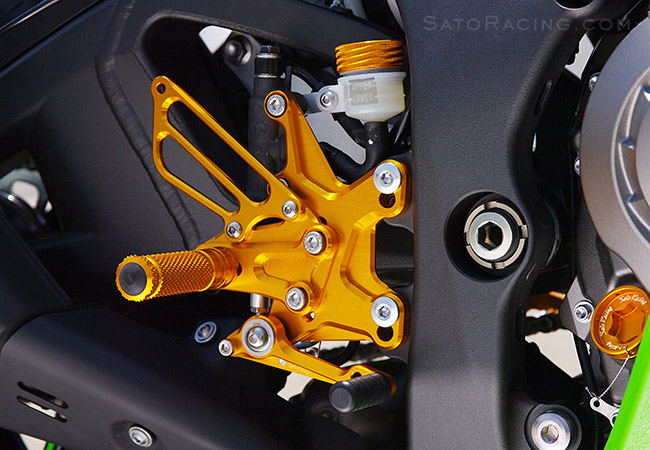

SATO RACING Rear Sets (R-side) for 2011-15 Kawasaki ZX-10R
The shift and brake pedals use double stainless bearings for smooth, precise pedal movement with a solid feel. Deeply knurled footpegs are both comfortable and provide excellent grip. These Rear Sets are designed for use with the stock rear brake light pull switch, and are compatible with both ABS-equipped and non-ABS ZX-10R models.

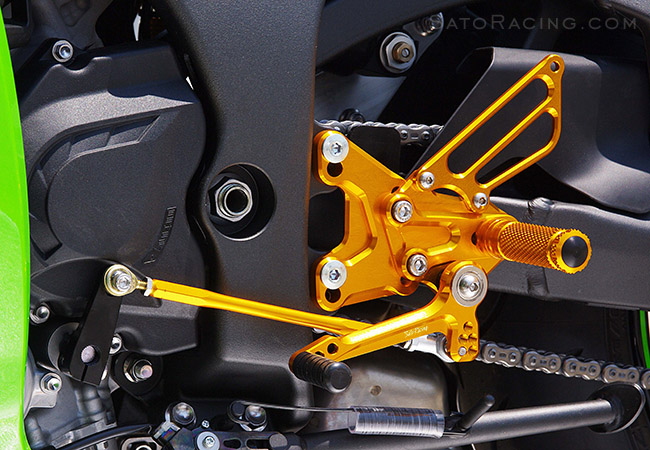

SATO RACING ZX-10R '11-'15 Rear Sets [L] with optional Reverse Shift Kit
Rear Sets shown with optional Reverse Shift Kit. (For stock shift pattern, you can use the stock shift arm and rod end.) The modular design of our Rear Sets gives you a wide range of adjustability so you can find the ideal position for your riding style.


POSITIONS

1 5mm Back 5.5mm Up
2 15mm Back 5.5mm Up
3 25mm Back 5.5mm Up
4 7.5mm Back 15.5mm Up
5 17.5mm Back 15.5mm Up
6 27.5mm Back 15.5mm Up
7 10mm Back 25.5mm Up
8 20mm Back 25.5mm Up
9 30mm Back 25.5mm Up
10 5mm Back 17.5mm Up
11 15mm Back 17.5mm Up
12 25mm Back 17.5mm Up
13 7.5mm Back 27.5mm Up
14 17.5mm Back 27.5mm Up
15 27.5mm Back 27.5mm Up
16 10mm Back 37.5mm Up
17 20mm Back 37.5mm Up
18 30mm Back 37.5mm Up

note: all measurements are in relation to stock position (0 mm).




REAR SETS

BLACK K-ZX1011RS-BK
$575
SILVER K-ZX1011RS-SV
$575
GOLD K-ZX1011RS-GD
$575




REVERSE SHIFT KIT
This specially designed change arm
kit gives Sato ZX-10R Rear Sets
a reverse shift pattern.

BLACK K-ZX1011RS-CHAM
$75


____________________________________________________________

OPTIONS

____________________________________________________________




Cutout-style FOOT PEG

Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK BLACK RCPEG-BK
$48
SILVER SILVER RCPEG-SV
$48
GOLD GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




___________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45



Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



____________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List


Some common replacement parts for these Rear Sets
can be purchased in our online store:

PEG FOOT PEG
(BK / SV / GD)
PEG
$42
STUD BOLT M8-45mm)
(Foot Peg bolt)
STBT-45
$4.50
FLANGE NUT M8
(for Peg Bolt)
FNT-8
$1.50
PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
SOCKET HEAD M6-20mm
(L-side #13)
SBT-M620
$1.50
ROD END COLLAR 3
(L-side #10)
RDED-CLR3
$6.00

Some additional parts such as Shift Rod, Rod Ends and related hardware can be found HERE.
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)


More Sato Racing items for 2011-15 ZX-10R

Pedal Tips Frame Sliders Racing Hooks
