KTM 690 DUKE ( -'11)
REAR SETS
| SATO RACING Rear Sets for 2008-11 KTM 690 Duke features components precision machined out of light-weight, high strength billet aluminum anodized in all-Black, or Gold finish with a contrasting Black shift pedal assembly. The shift and brake pedals have double stainless bearings for smooth, precise lever actuation. Finely knurled footpegs provide optimal grip, along with a comfortable, intuitive feel. You can choose from 4 adjustable peg positions in a range that puts your feet higher and further back compared to the stock foot position. These Rear Sets can be set up for GP-style reverse shifting pattern by flipping and rotating the shift pedal. |
POSITIONS
| 1 | 25mm Back | 10mm Up |
| 2 | 35mm Back | 10mm Up |
| 3 | 25mm Back | 20mm Up |
| 4 | 35mm Back | 20mm Up |
note: all measurements are in relation to stock position (0 mm).

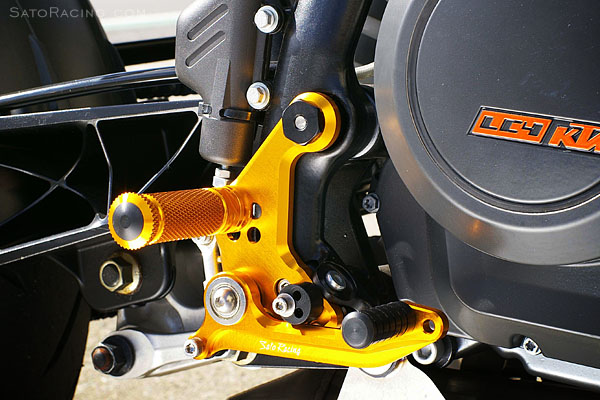

![Sato Racing KTM 690 Duke ( -'11) Rear Sets [R]-side](pics/DUKE690RS_R1.jpg "Sato Racing KTM 690 Duke ( -'11) Rear Sets [R]-side")
The Foot Pegs and Pedal Tip positions are adjustable.

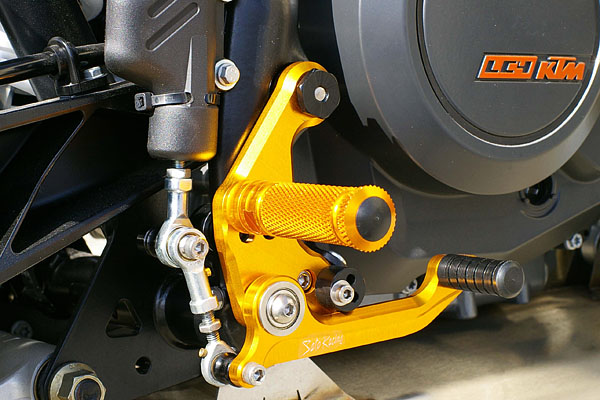

![Sato Racing KTM 690 Duke ( -'11) Rear Sets [R]](pics/DUKE690RS_R2.jpg "Sato Racing KTM 690 Duke ( -'11) Rear Sets [R]")

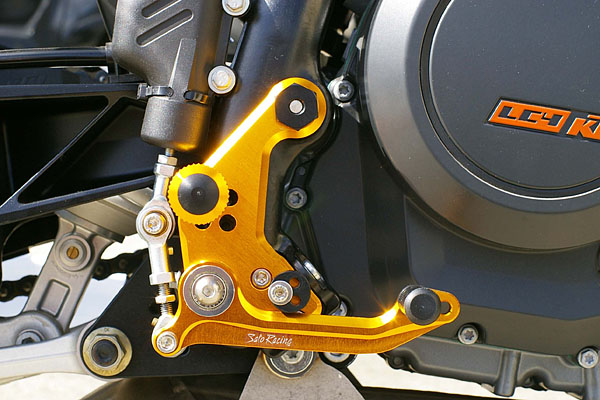

![Sato Racing KTM 690 Duke ( -'11) Rear Sets [R]](pics/DUKE690RS_R3.jpg "Sato Racing KTM 690 Duke ( -'11) Rear Sets [R]")

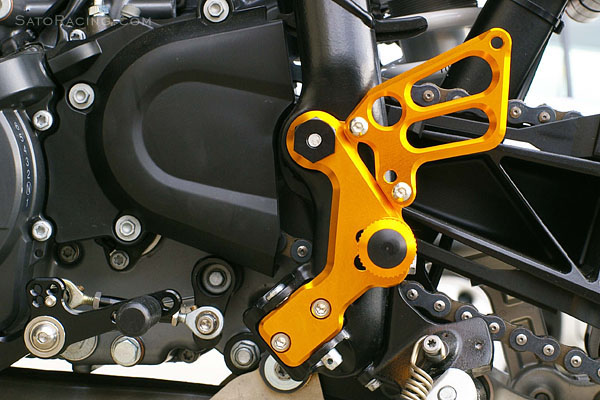

![Sato Racing KTM 690 Duke ( -'11) Rear Sets [L]](pics/DUKE690RS_L3.jpg "Sato Racing KTM 690 Duke ( -'11) Rear Sets [L]")

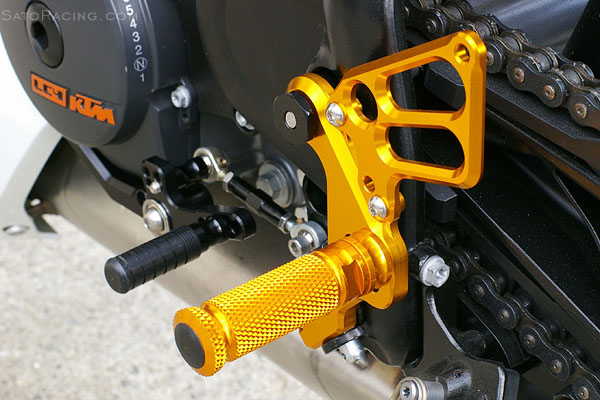

![Sato Racing KTM 690 Duke ( -'11) Rear Sets [L]](pics/DUKE690RS_L2.jpg "Sato Racing KTM 690 Duke ( -'11) Rear Sets [L]")
Foot Pegs feature a finely knurled pattern for superior grip.

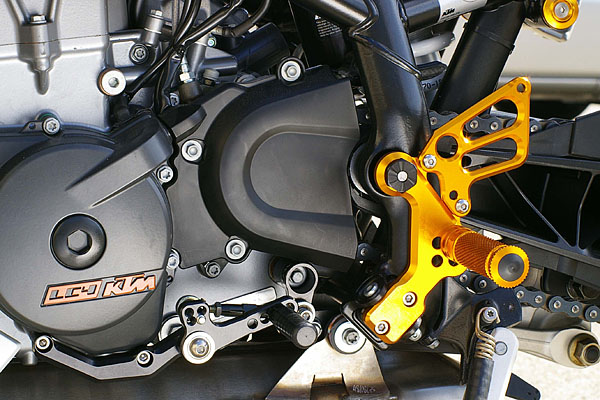

![Sato Racing KTM 690 Duke ( -'11) Rear Sets [L]](pics/DUKE690RS_L1.jpg "Sato Racing KTM 690 Duke ( -'11) Rear Sets [L]")
You can change from stock shift to reverse shift pattern
by flipping the shift pedal and rotating it 180 degrees.
| BLACK | KTM-690RS-BK $585 |
 |
| GOLD* | KTM-690RS-GD $585 |
|
* Click Here for important info about Sato GOLD-anodized parts.
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
More Sato Racing items for KTM 690 Duke
