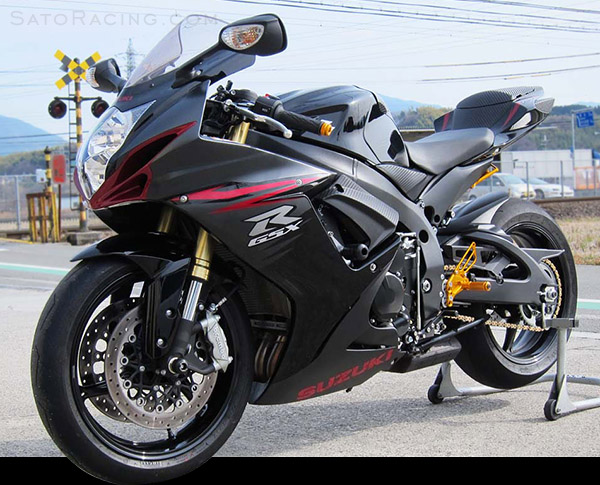

SUZUKI GSX-R600/ 750 ('11- )
REAR SETS

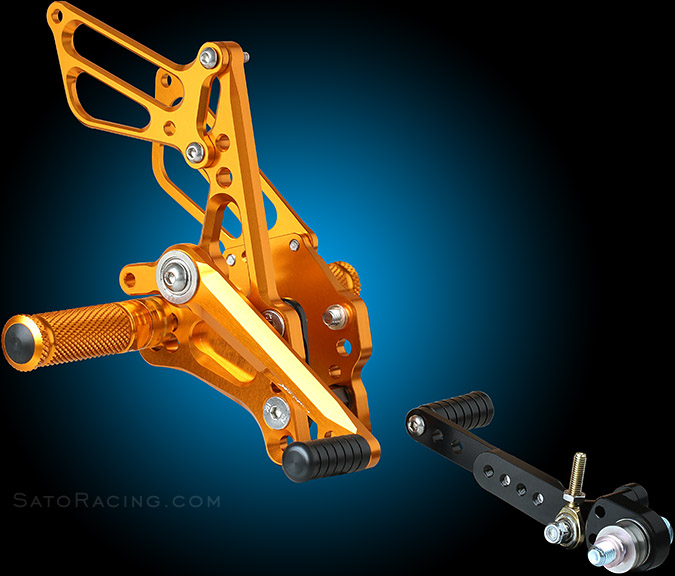

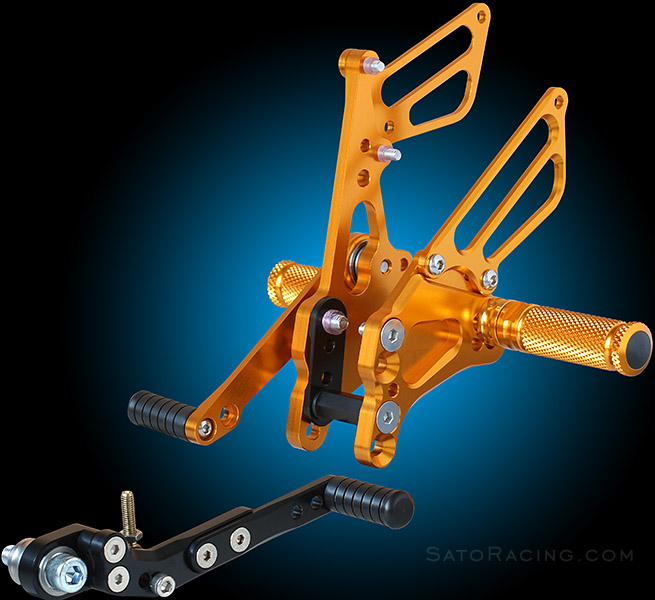

| SATO RACING Rear Sets for 2011 and up Suzuki GSX-R600 and GSX-R750 features components precision CNC-machined out of lightweight, high-strength anodized billet aluminum, with stainless steel bolts and hardware. The shift and brake pedals use double miniature stainless bearings for smooth, sure-footed lever actuation. Knurled footpegs provide optimal grip, along with a comfortable, intuitive feel. Modular adjustable design lets you choose from 8 positions, which when combined with the 3 positions provided by the stock mount, effectively triples the number of possible positions to 24. You can set it up for stock shift pattern or reverse / race pattern by rotating the change arm. Choice of deep Black or vivid Gold anodized finish, with a contrasting Black anodized shifter. |
(Shift pedal assembly comes in black only.)
| 1 | 0mm | 14mm Up |
| 2 | 0mm | 24mm Up |
| 3 | 10mm Back | 14mm Up |
| 4 | 10mm Back | 24mm Up |
| 5 | 2.5mm Back | 29mm Up |
| 6 | 2.5mm Back | 39mm Up |
| 7 | 12.5mm Back | 29mm Up |
| 8 | 12.5mm Back | 39mm Up |
Note: Sato Racing Rear Sets triples the number of possible mounting positions
to 24, compared to 3 positions provided by the stock mount.
![Sato Racing Rear Sets [R]-side in Gold for '11+ Suzuki GSX-R600/750](pics/11gsxr750rearsetsR2.jpg "Sato Racing Rear Sets [R]-side in Gold for '11+ Suzuki GSX-R600/750")

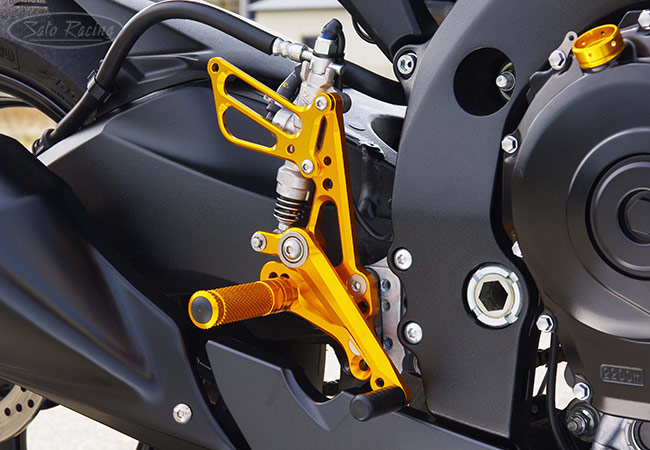

You can adjust the mounting positions of the Foot Peg and the Step Plate. The Foot Peg is
mounted on a separate axis from the Brake Pedal for the best leverage and foot position.
![Sato Racing Rear Sets [R]-side in Gold for '11+ Suzuki GSX-R600/750](pics/11gsxr750rearsetsR1.jpg "Sato Racing Rear Sets [R]-side in Gold for '11+ Suzuki GSX-R600/750")

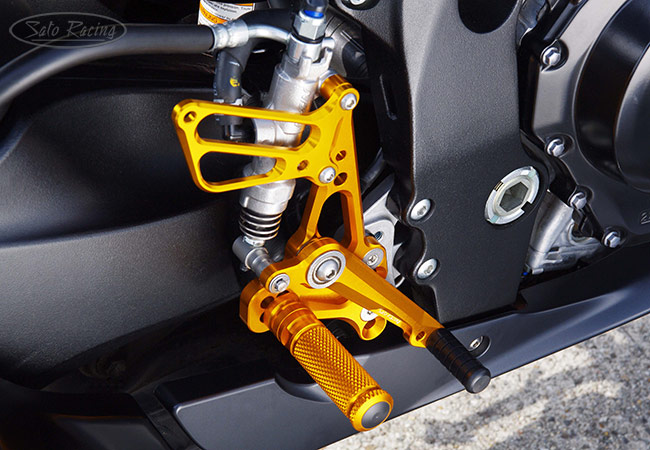

Our Foot Pegs have a finely knurled pattern for optimal grip, along with a comfortable, intuitve feel.
![Sato Racing Rear Sets [L]-side in Gold for '11+ Suzuki GSX-R600/750](pics/11gsxr750rearsetsL1.jpg "Sato Racing Rear Sets [L]-side in Gold for '11+ Suzuki GSX-R600/750")

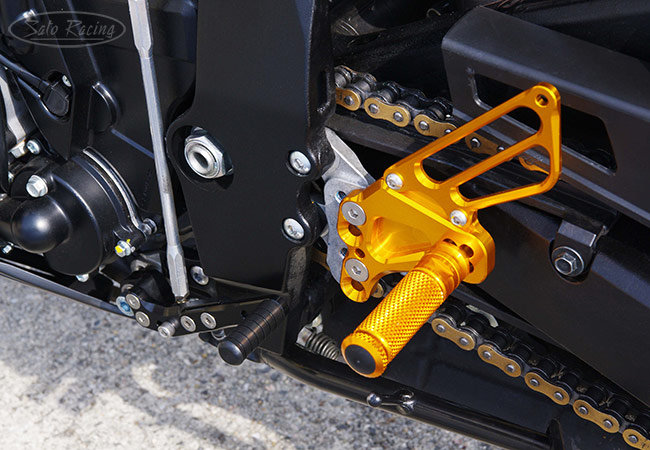

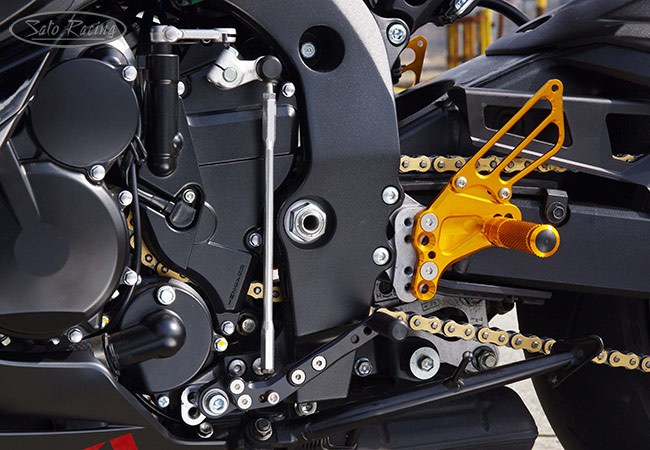

Set it up for stock shift or reverse shift pattern by flipping the stock
change arm the opposite direction. (Shift pedal assembly comes in black only.)
![Sato Racing Rear Sets [L]-side in Gold for '11+ Suzuki GSX-R600/750](pics/11gsxr750rearsetsL2.jpg "Sato Racing Rear Sets [L]-side in Gold for '11+ Suzuki GSX-R600/750")
| BLACK | S-GSX611RS-BK $615 |
 |
| GOLD | S-GSX611RS-GD $615 |
|
(Brake light switch is included in kit.)
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $52 |
|
 |
SILVER | RCPEG-SV $52 |
|
 |
GOLD | RCPEG-GD $52 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 5 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Most replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $48 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (L-side #17) |
PEGCLR-12 $15 |
|
 |
PEG COLLAR 15 (BK/ GD) (R-side #18) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (#19, Foot peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $16.50 |
|
 |
BUTTON HEAD M6-20mm (#23, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #1) |
HG-2L $60 |
|
 |
[L] STEP PLATE (BK/ SV/ GD) (L-side #3) |
S-GSX611SP-L $95 |
|
 |
SHIFT PEDAL SPD8 [BLACK] (L-side #7) |
SPD-8B $35 |
|
 |
ROD END COLLAR 3 (L-side #16) |
RDED-CLR3 $6.00 |
|
 |
FLAT HEAD M6-10mm (L-side #26) |
FBT-M610 $1.50 |
|
 |
FLAT HEAD M6-15mm (L-side #27) |
FBT-M615 $1.50 |
|
 |
FLAT HEAD M8-20mm (L-side #28) |
FBT-M820 $1.75 |
|
 |
SPLIT WASHER M8 (#33) |
SWS-8 $1.20 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (R-side #2) |
HG-1R $60 |
|
 |
BEARING COLLAR SUS (R-side #14) |
BGCLR-SUS $6.50 |
|
 |
BUTTON HEAD M6-25mm (R-side #24) |
BBT-M625 $1.50 |
|
 |
FLAT HEAD M8-25mm (R-side #29) |
FBT-M825 $1.75 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
