SUZUKI GSX-R1000   ('07-'08)
REAR SETS

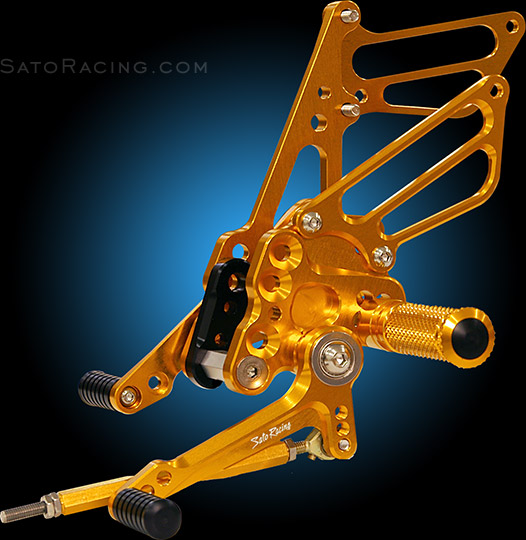

SATO RACING Rear Sets for 2007-08 Suzuki GSX-R1000 are CNC-machined from high grade billet aluminum and anodized in your choice of Black, Silver (clear metal), or Gold finish. Deeply knurled footpegs provide optimal grip even in wet conditions, along with a comfortable, intuitive feel. Modular design lets you choose from 8 adjustable positions, which when combined with the 3 positions of the stock mount, effectively tripling the number of possible positions to 24. You can also easily switch these Rear Sets to a GP-style reverse shift pattern by flipping the stock shift arm the opposite direction.

Options include an adjustable Black-anodized billet aluminum Shift Arm that matches our GSX-R1000 Rear Sets and can provide a shorter shift stroke compared to stock.


POSITIONS

1 0mm 14mm Up
2 0mm 24mm Up
3 10mm Back 14mm Up
4 10mm Back 24mm Up
5 2.5mm Back 29mm Up
6 2.5mm Back 39mm Up
7 12.5mm Back 29mm Up
8 12.5mm Back 39mm Up

Note: Sato Racing Rear Sets triples the number of possible mounting positions
to 24, compared to 3 positions provided by the stock mount.

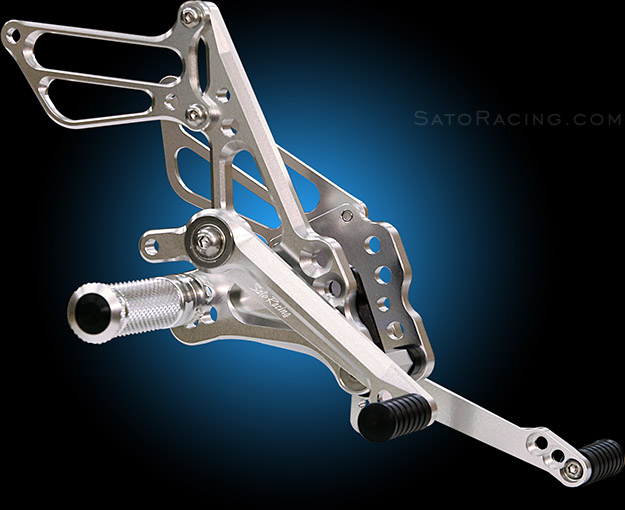

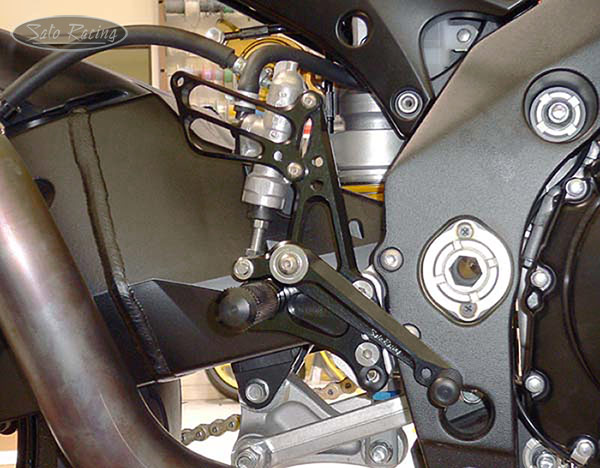

SATO RACING Suzuki GSX-R1000 '07-'08 Rear Sets [R]-side
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever action
with a solid feel.   A brake light switch (not pictured) is included with the Rear Sets kit.

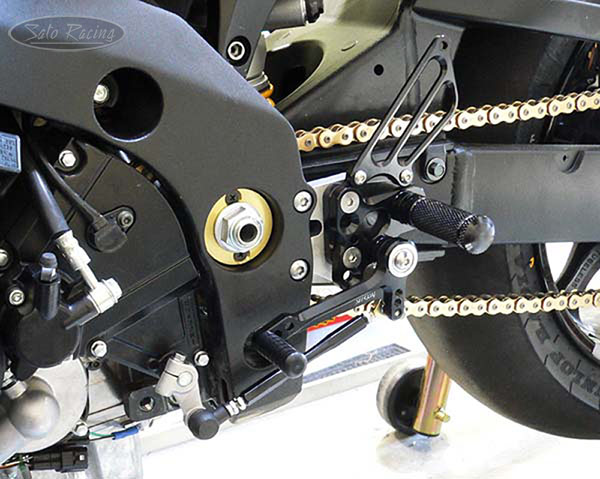

SATO RACING Suzuki GSX-R1000 '07-'08 Rear Sets [L]-side

Our GSX-R Rear Sets utilize the stock 3-position mounting plate, with the Step Plate adding 2 vertical positions, and there are 4 additional positions for the Foot Peg where it mounts to the Step Plate. All positions place your feet higher up compared to the stock pegs.

SATO RACING Suzuki GSX-R1000 '07-'08 Rear Sets [L]-side
Stock shift pattern shown above. These Rear Sets allow you to switch to GP-style
reverse shift pattern by flipping the direction of the shift arm so it is pointing up.



Online Special -

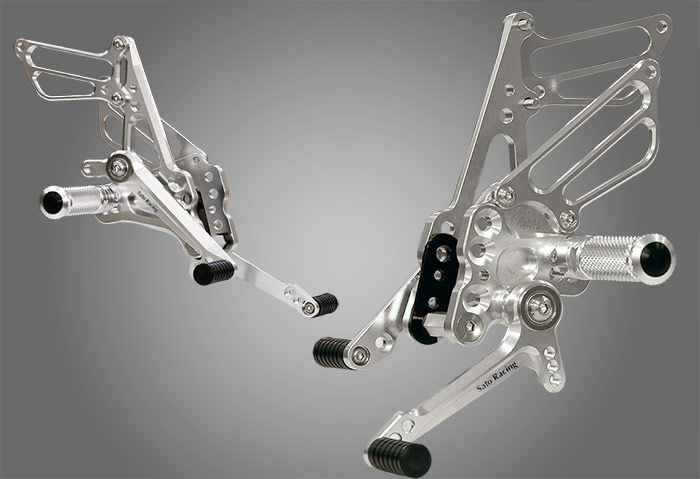

We've still got some 'new old stock' (NOS) rear sets kits for this model, in Silver. These have our earlier-style 3-hole shift and brake pedals with the 'Sato Racing' block letter decals on them. We have temporarily lowered our prices to help get them in the hands of K7 Gixxer fans. If you have always wanted to try out these excellent Rear Sets on your GSX-R1000, now is a good time! *

BLACK S-GSX107RS-BK
$500		 SOLD OUT
SILVER S-GSX107RS-SV
$500   $375
GOLD S-GSX107RS-GD
$500		 SOLD OUT

(Brake light switch is included in kit)

* (Clearance item pricing - no exchanges / returns)

Click Here for important info about Sato color-anodized parts.





OPTIONS




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]		 TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List


Most replacement parts for these Rear Sets
can be purchased in our online store:

PEG FOOT PEG
(BK / SV/ GD)		 PEG
$42
HEX HEAD M8-45mm
(Foot Peg bolt)		 HBT-M845
$2.00
PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(for Pedal Tip)		 BBT-M620
$1.50
FBT-M835 FLAT HEAD M8-35mm
(L-side #2)		 FBT-M835
$2.50
BBT-M825 BUTTON HEAD M8-35mm
(L-side #3)		 BBT-M835
$1.50
BBT-M610 BUTTON HEAD M6-10mm
(L-side #4)		 BBT-M610
$1.50
SOCKET HEAD M6-20mm
(L-side #6)		 SBT-M620
$1.50
SPD-0912 SHIFT PEDAL
(BK/ SV/ GD) (L-side, #7)		 SPD-0912
$62.50
HG-2L [L] HEEL GUARD
(BK/ SV/ GD) (L-side #9)		 HG-2L
$50
PEGCLR-12 PEG COLLAR 12
(BK/ SV/ GD) (L-side #10)		 PEGCLR-12
$15
PEGBGCLR-125 PEG BEARING COLLAR 12.5
(BK/ SV / GD)   (L-side #14)		 PEGBGCLR-125
$15
ROD END COLLAR 3
(L-side #17)		 RDED-CLR3
$6.00
RDED-M6L M6 MALE
REVERSE ROD END
(L-side #15)		 RDED-M6L
$12.50
REVERSE JAM NUT M6
(L-side #16)		 JNT-6L
$2.50
SHIFT ROD 110
(BK / SV/ GD) (L-side #18)		 SRD-110
$39
STUD M6-45mm
(L-side #19)		 STUD-M6
$4.50
JAM NUT M6
(L-side #20)		 JNT-6
$1.75
SPLIT WASHER M8
(L-side #21 / R-side #16) 		SWS-8
$1.20
FBT-M825 FLAT HEAD M8-25mm
(R-side #2)		 FBT-M825
$1.75
BBT-M825 BUTTON HEAD M8-25mm
(R-side #3)		 BBT-M825
$1.50
BBT-M625 BUTTON HEAD M6-25mm
(R-side #4)		 BBT-M625
$1.50
HG-1R [R] HEEL GUARD
(BK/ SV/ GD) (R-side #7)		 HG-1R
$50
BRD-M40 BRAKE ROD M40
(R-side #9)		 BRD-M40
$13.50
WASHER M6
(R-side #10)		 WS-6
$1.00
E-CLIP M6
(R-side #11)		 ECP-6
$1.50
PEGCLR-15 PEG COLLAR 15
(BK/ SV/ GD) (R-side #12)		 PEGCLR-15
$15
BEARING COLLAR SUS
(R-side #13)		 BGCLR-SUS
$6.50
BRAKE LIGHT SWITCH
(P-1.25)
 BSW-125
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
