YAMAHA YZF-R6  ('06-'16)
REAR SETS

2006 Yamaha YZF-R6 with SATO RACING Rear Sets

SATO RACING Rear Sets for 2006-16 Yamaha YZF-R6 features an extensively track-tested design, with components precision CNC-machined out of lightweight, high strength anodized billet aluminum You can choose from 8 adjustable Foot Peg positions, ranging from a near-stock position to more aggressive positions that bring your feet higher up and further back compared to stock. These Rear Sets can be set up for stock shift pattern or reverse (race) shift pattern by changing the angle of the stock shift arm. (Some fairing mods may be needed to use the reverse shift pattern). Choice of all-Black anodized finish, or Silver or Gold finish with a Black anodized shift pedal linkage.

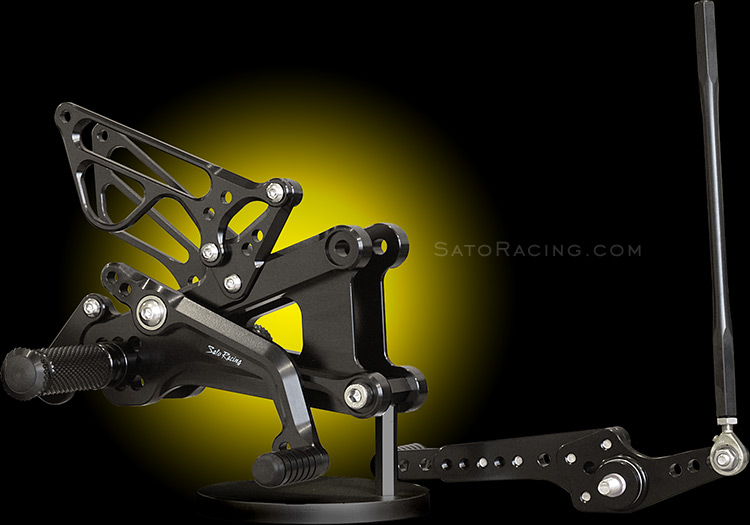

SATO RACING Yamaha YZF-R6 '06-'16 Rear Sets [R]-side

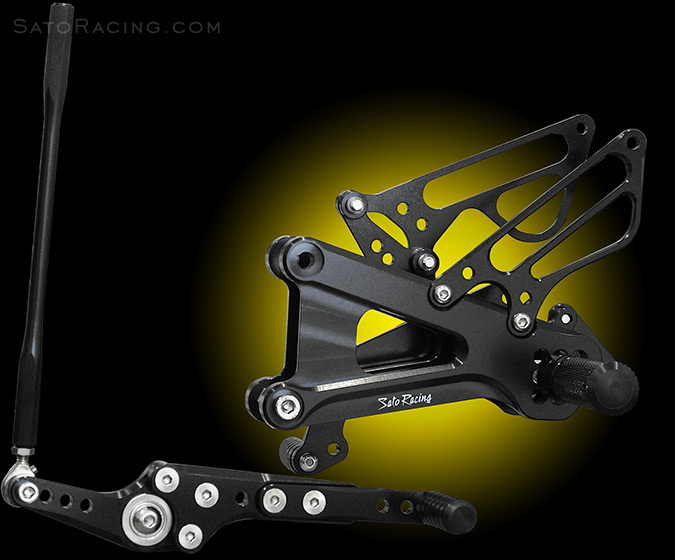

SATO RACING Yamaha YZF-R6 '06-'16 Rear Sets [L]-side
(Shift pedal assembly comes in black only.)



POSITIONS

1 0 mm Back 10mm Up
2 0 mm Back 20mm Up
3 0 mm Back 30mm Up
4 10mm Back 10mm Up
5 10mm Back 20mm Up
6 10mm Back 30mm Up
7 20mm Back 20mm Up
8 20mm Back 30mm Up

note: all measurements are in relation to stock position (0 mm).



The Step Plate provides 8 possible mounting positions for the Foot Peg. The position of the Pedal Tip is also adjustable.

The standard Pedal Tips are made of tough, abrasion-resistant black Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with rubber sleeves, are an available option:  More Details

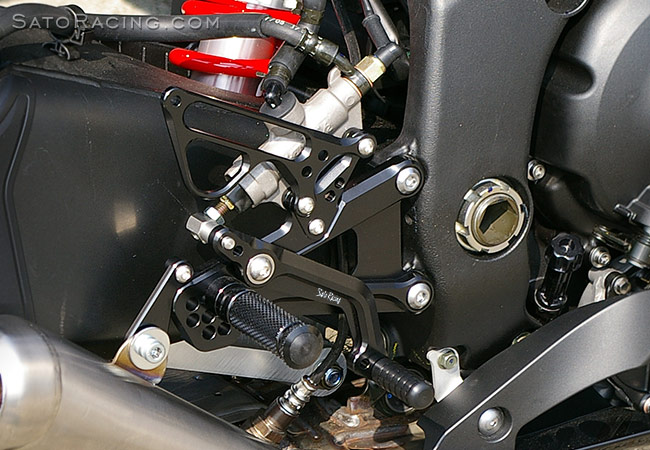

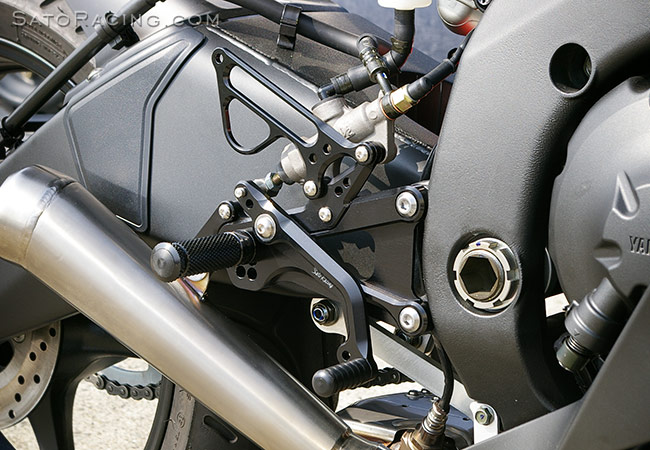

SATO RACING Yamaha YZF-R6 '06-'16 Rear Sets [R]-side

Our Foot Pegs have a finely knurled pattern for excellent grip, along with a comfortable, intuitive feel. The Rear Sets kit includes a pressure-type brake light switch which attaches at the top of the master cylinder.

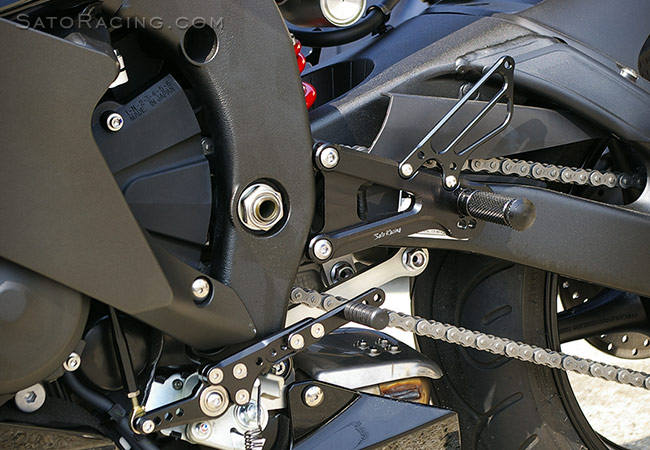

SATO RACING Yamaha YZF-R6 '06-'16 Rear Sets [L]-side

The shift and brake pedals utilize miniature double stainless bearings for the smoothest, most precise lever movement. The length of the Shift Pedal is adjustable. Additionally, the shift stroke can be fine-tuned by changing the mounting position of the shift rod on the shift pedal. (Stock shift pattern shown in these photos)
NOTE: Shift pedal assembly comes in black only.

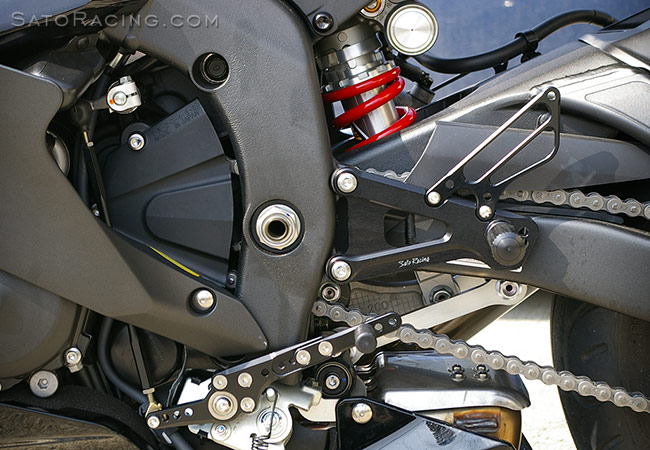

SATO RACING Yamaha YZF-R6 '06-'16 Rear Sets [L]-side

Stock shift pattern is shown above. For reverse (GP-style) shift pattern, flip the stock shift arm the opposite direction. NOTE: For reverse shift pattern, to eliminate interference issues with the shift rod and the inner edge of the fairing, you will need to trim the edge of the fairing.



BLACK Y-R606RS-BK
$550
SILVER
w/ BLACK Shift Assembly
Y-R606RS-SV
$550
GOLD
w/ BLACK Shift Assembly
Y-R606RS-GD
$550

(Brake light switch included.)

* Click Here for important info about Sato color-anodized parts.





________________________________________________________________________________

OPTIONS

________________________________________________________________________________




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




___________________________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



_____________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your SATO RACING Rear Sets, or view the PDF:

Parts List (design v.1)   |   Parts List (v.2 design update 2022)


Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the 'design v.1' parts list diagram unless otherwise noted.)

PEG FOOT PEG
(BK / SV / GD)
PEG
$42
PEDAL TIP (DELRIN) ST-001D18
$15
HEX HEAD M8-45mm
(#1)
HBT-M845
$2.00
BUTTON HEAD M6-10mm
(L-side #2 / R-side #3)
BBT-M610
$1.50
SOCKET HEAD M6-25mm
(L-side #3)
SBT-M625
$1.50
BUTTON HEAD M8-35mm
(L-side #4)
BBT-M835
$2.00
FLAT HEAD M6-15mm
(L-side #5)
FBT-M615
$1.50
FLAT HEAD M6-10mm
(L-side #6)
FBT-M610
$1.50
BUTTON HEAD M6-25mm
(L-side #7 / R-side #5)
BBT-M625
$1.50
SHIFT PEDAL SPD8 [BLACK]
(L-side #12)
SPD-8B
$30.00
PEGCLR-12 PEG COLLAR 12 (BK / SV / GD)
(L-side #15, R-side #12)
PEGCLR-12B
$15
M6 MALE
REVERSE ROD END

(L-side #16)
RDED-M6L
$12.50
JNT-6L REVERSE JAM NUT M6
(L-side #17)
JNT-6L
$2.50
LNT-6 LOCK NUT M6
(L-side #18 / R-side #22)
LNT-6
$1.50
PEGBGCLR-5B PEG BEARING COLLAR 5
[BLACK]
   (L-side #19)
PEGBGCLR-5B
$15.00
SRD-210-B SHIFT ROD 210 [BLACK]
(L-side #20)
SRD-210-B
$45
SWS-8 SPLIT WASHER M8
(L-side #21 / R-side #18)
SWS-8
$1.20
BBT-M830 BUTTON HEAD M8-30mm
(R-side #4)
BBT-M830
$2.00
SBT-M820 SOCKET HEAD M8-20mm
(R-side #6)
SBT-M820
$1.50
NUT-8 PLAIN NUT M8
(R-side #7)
NUT-8
$1.00
HGCLR-5 MASTER STAY COLLAR 5
(R-side #13)
HGCLR-5
$8.00
SBT-M650 SOCKET HEAD M6-50mm
(R-side #19)
SBT-M650
$2.00
WS-6 WASHER M6
(R-side #20)
WS-6
$1.00
ECP-6 E-CLIP M6
(R-side #23)
ECP-6
$1.50
BSW-125 BRAKE LIGHT SWITCH
(P-1.25)

BSW-125
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
