YAMAHA FZ1 ('06-'15) / FZ8 ('10-'13) (non-ABS)
REAR SETS (Standard and Reverse Shift)
| SATO RACING Rear Sets for 2006 and later Yamaha FZ1 and FZ8 are track engineered and CNC-machined out of high strength billet aluminum with your choice of Black, Silver or Gold anodized finish. Modular step plate design lets you select from 7 adjustable positions in a range that puts your feet progressively higher and further back compared to the stock foot pegs, for a sportier, less upright riding position well-suited for spirited riding. 2 versions of these Rear Sets are available: The Standard version Rear Sets provide a stock shifting pattern, while the Reverse Shift Rear Sets has a different shift pedal linkage setup designed for reverse shift pattern. |

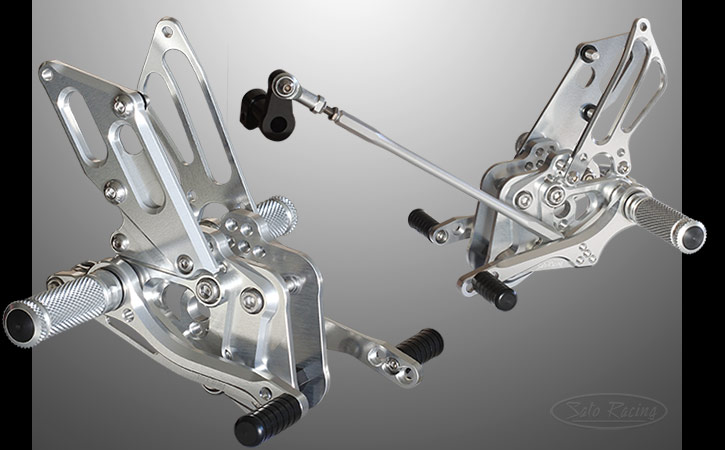

SATO RACING FZ1/ FZ8 Rear Sets (Standard version) in Silver
| 1 | 10mm Back | 10mm Up |
| 2 | 10mm Back | 20mm Up |
| 3 | 20mm Back | 10mm Up |
| 4 | 20mm Back | 20mm Up |
| 5 | 20mm Back | 30mm Up |
| 6 | 30mm Back | 20mm Up |
| 7 | 30mm Back | 30mm Up |
note: all measurements are in relation to stock position (0 mm).
![SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Rear Sets [R]-side](pics/yamahafz8_rs_R1.jpg "SATO RACING Yamaha FZ1 ('06-)/ FZ8 Rear Sets [R]-side")

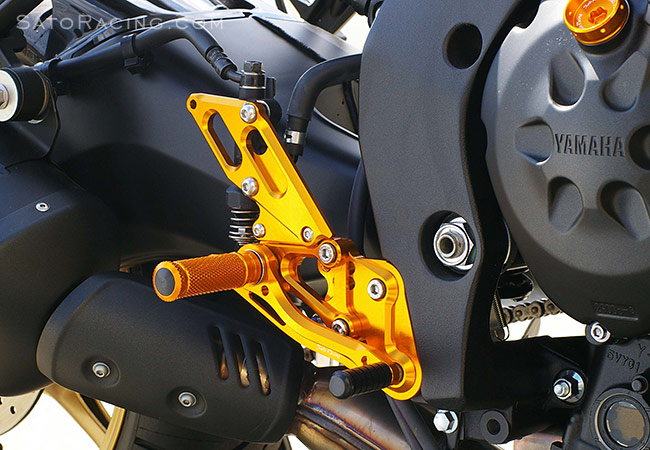

The Step Plate can be adjusted 7 ways. The positions of the pedal tip is adjustable too. The shift and
brake pedals utilize double stainless bearings for smooth, precise pedal movement with a solid feel.
( Rear Sets shown with optional Return Spring )
![SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Rear Sets [R]-side](pics/yamahafz8_rs_R2.jpg "SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Rear Sets [R]-side")

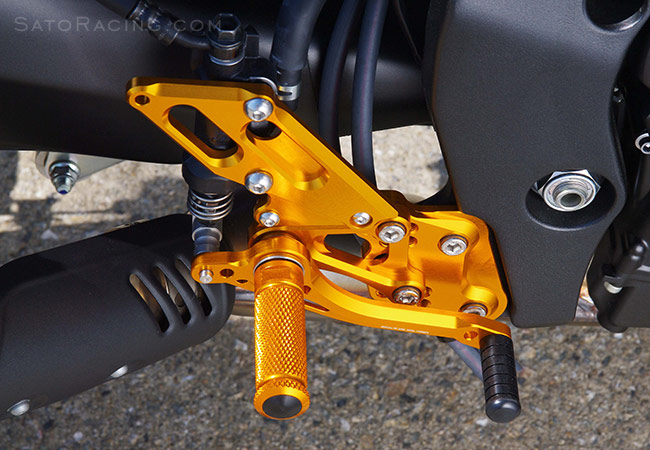

Deeply knurled footpegs provide excellent grip even in wet conditions.
Although not shown above, a brake light switch is also included in the Rear Sets kit.
( Rear Sets shown with optional Return Spring )
![SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Rear Sets [R]-side](06fz1rsr.jpg "SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Rear Sets [R]-side")

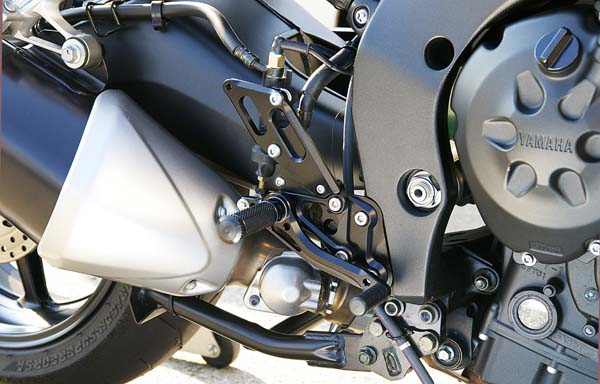

Rear Sets shown with the brake light switch installed.
![SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Rear Sets [L]-side](pics/yamahafz8_rs_L1.jpg "SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Rear Sets [L]-side")

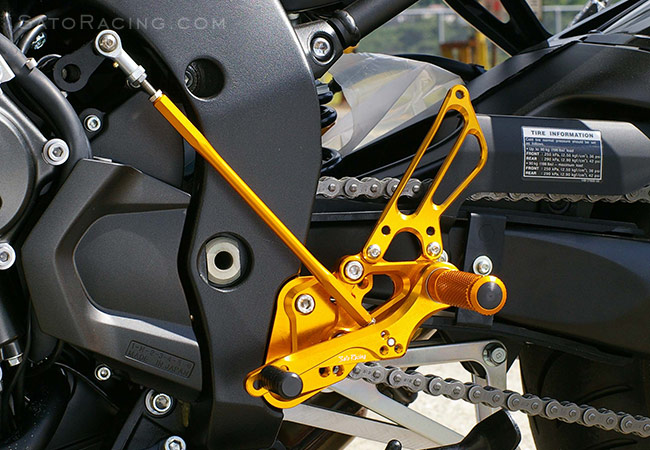

The standard FZ1/ FZ8 Rear Sets ( part# Y-FZ106RS2 ) provide a dedicated stock shift pattern.
![SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Reverse Shift Rear Sets [L]-side](pics/yamahafz8_rsrev_L1.jpg "SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Reverse Shift Rear Sets [L]-side")

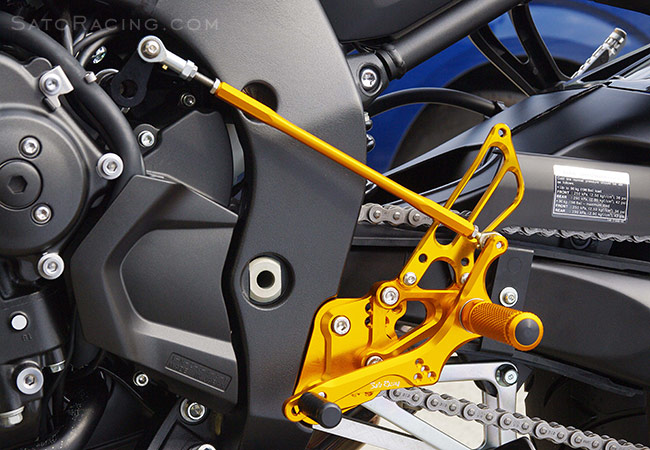

FZ1/ FZ8 Reverse Shift Rear Sets ( part# Y-FZ106RSR ) has a different
shift pedal linkage design which provides a GP-style reverse shifting pattern.
![SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Reverse Shift Rear Sets [L]-side](pics/yamahafz8_rsrev_L2.jpg "SATO RACING Yamaha FZ1 ('06-'15)/ FZ8 Reverse Shift Rear Sets [L]-side")

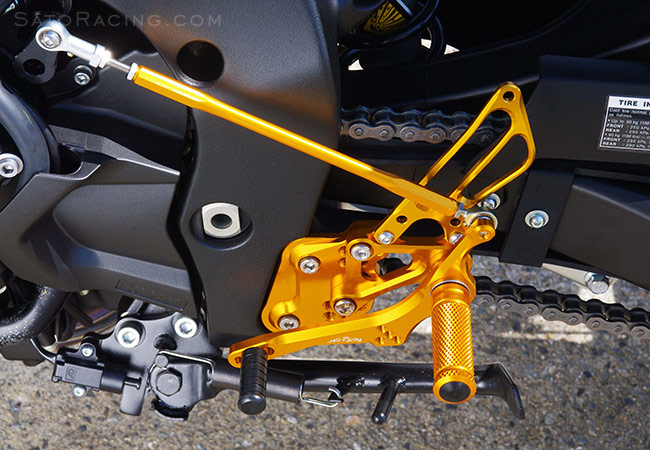

Reverse Shift Rear Sets shown. Although the pedal is more ideal for a reverse shift pattern setup,
with some minor hardware changes you could modify it for stock shift pattern if you needed to.
Rear Sets (Standard version)
| BLACK | Y-FZ106RS2-BK $580 |
 |
| SILVER | Y-FZ106RS2-SV $580 |
|
| GOLD* | Y-FZ106RS2-GD $580 |
|
Reverse Shift Rear Sets
| BLACK | Y-FZ106RSR-BK $580 |
|
| SILVER | Y-FZ106RSR-SV $580 |
|
| GOLD | Y-FZ106RSR-GD $580 |
|
(Brake light switch is included in kit)
Click Here for important info about Sato color-anodized parts.

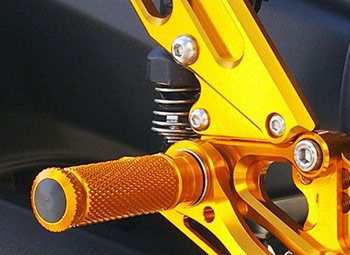

BRAKE RETURN SPRING
| SATO RACING Brake Return Spring quickens the pedal return and may make the pedal feel more responsive compared to no spring. (For use with specified SATO RACING Rear Sets). |
| RETURN SPRING | RS-RSP $8.00 |
|
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list included with
your Sato Rear Sets, or download the PDF: Standard Rear Sets | Reverse Shift Rear Sets
(NOTE: This is the parts list for the ver.2 redesign of our FZ1/FZ8 Rear Sets.
Click Here for the parts list for our original design FZ1 Rear Sets.)
Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the std shift
rear sets parts list unless otherwise noted)
 |
FOOT PEG (BK/ SV/ GD) |
PEG $48 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $16.50 |
|
 |
SHIFT ROD 210 (BK/ SV/ GD) (L-side #9) |
SRD-210 $45 |
|
 |
PEG BEARING COLLAR 12.5 (BK/ SV/ GD) (L-side #10) |
PEGBGCLR-125 $15 |
|
 |
ROD END COLLAR 3 (L-side #11) |
RDED-CLR3 $6.00 |
|
 |
STUD BOLT M8 x 60 (L-side #12) |
STBT-60 $4.50 |
|
 |
SOCKET HEAD M8 x 15mm (L-side #13 / R-side #10) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M8-20mm (L-side #14 / R-side #11) |
SBT-M820 $1.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #15/ R-side #12) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-15mm (L-side #16) |
BBT-M615 $1.50 |
|
 |
BUTTON HEAD M6-20mm (L-side #17 / R-side #13) |
BBT-M620 $1.50 |
|
 |
FLANGE HEAD M6-20mm (L-side #18) |
FGBT-M620 $2.00 |
|
 |
STUD M6-45mm (L-side #19) |
STUD-M6 $2.50 |
|
 |
PEG WASHER - M8 (L-side #20 / R-side #17) |
PWS-8 $1.00 |
|
 |
FLANGE NUT M8 (L-side #21/ R-side #16) |
FNT-8 $1.50 |
|
 |
JAM NUT M6 (L-side #22) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (L-side #23) |
JNT-6L $2.50 |
|
 |
M6 MALE REVERSE ROD END (L-side #24) |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END M6 (L-side #25) |
RDED-F6 $15 |
|
 |
BEARING COLLAR SUS (R-side #8) |
BGCLR-SUS $6.50 |
|
 |
BUTTON HEAD M8-20mm (R-side #14) |
BBT-M820 $1.50 |
|
 |
STUD BOLT M8-50mm (R-side #15) |
STBT-50 $4.50 |
|
 |
WASHER M6 (R-side #18) |
WS-6 $1.00 |
|
 |
E-CLIP M6 (R-side #19) |
ECP-6 $1.50 |
|
 |
BRAKE ROD M40 (R-side #20) |
BRD-M40 $13.50 |
|
 |
RETURN SPRING 40 (Option) |
RS-RSP $8.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
