SUZUKI GSX-R1000   ('05-'06)
REAR SETS

SATO RACING GSX-R1000 '05-'06 Rear Sets are CNC-machined from high grade billet aluminum and anodized in your choice of Black, Silver, or Gold finish. Modular design provides 9 adjustable positions in a range that brings your feet progressively higher up compared to stock, so you can find the ideal position for the fast straights and steep lean angles encountered on the track. These Rear Sets can be used with either stock shift pattern or GP-style reverse shift pattern.

Options include an adjustable Black-anodized billet aluminum Shift Arm kit that matches our GSX-R1000 Rear Sets and can provide a shorter shift stroke compared to stock.

POSITIONS

1 10mm Forward 10mm Up
2 10mm Forward 20mm Up
3 10mm Forward 30mm Up
4 0 mm 10mm Up
5 0 mm 20mm Up
6 0 mm 30mm Up
7 10mm Back 10mm Up
8 10mm Back 20mm Up
9 10mm Back 30mm Up

note: all measurements are in relation to stock position (0 mm).

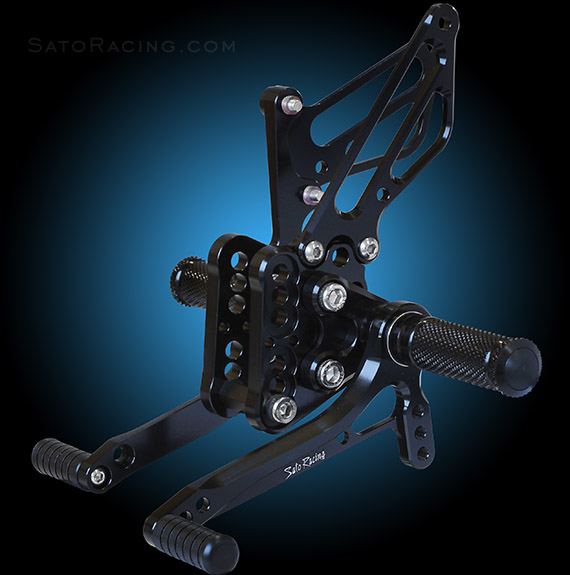

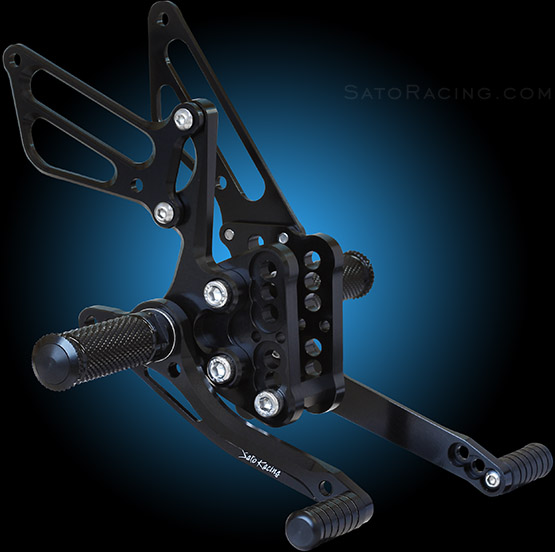

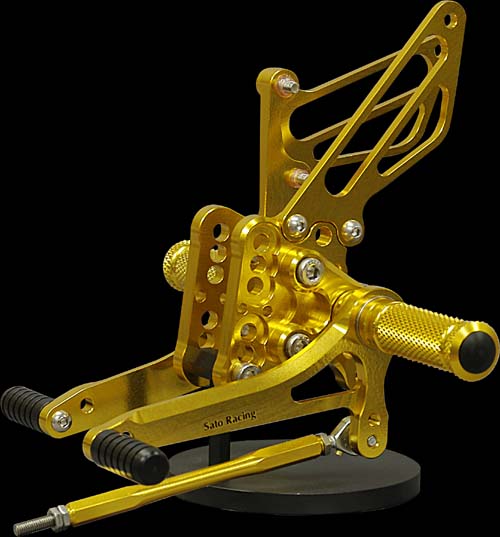

SATO RACING Rear Sets for '05-'06 GSX-R1000
The shift and brake pedals use dual miniature stainless bearings for smooth, precise movement.
A brake hose and a brake pressure-actuated brake light switch are included with the Rear Sets.

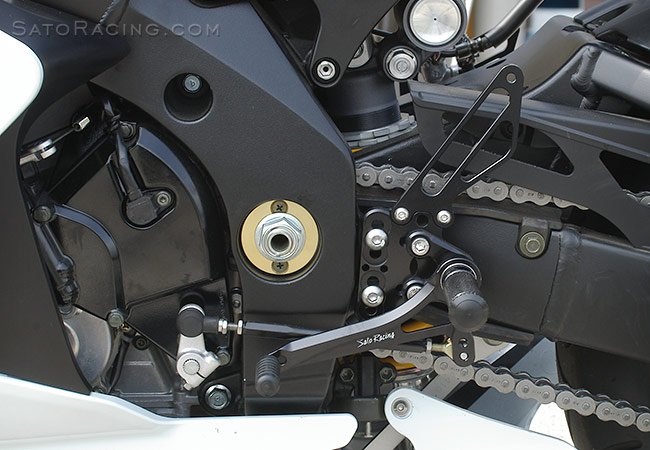

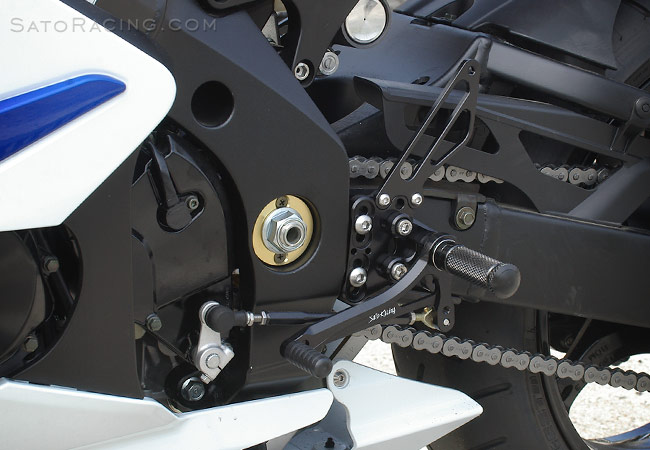

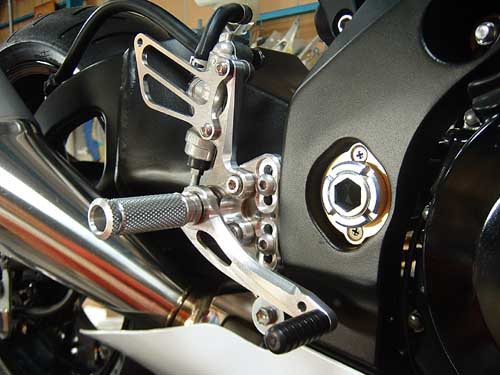

SATO RACING Rear Sets for '05-'06 GSX-R1000
Finely knurled footpegs provide excellent grip along with a comfortable, intuitive feel.

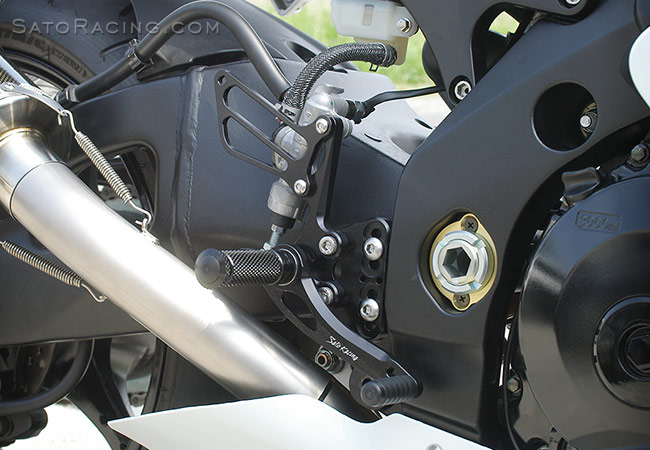

SATO RACING Rear Sets for '05-'06 GSX-R1000
You can set it up for stock shift to reverse / race shift pattern
by flipping the stock change arm the opposite direction. We
also make a matching billet aluminum Shift Arm for Suzuki.



BLACK S-GSX105RS-BK
$570
SILVER S-GSX105RS-SV
$570
GOLD S-GSX105RS-GD
$570

(Brake Hose and P-1.25 Brake light switch included)


Click Here for important info about Sato color-anodized parts.





______________________________________________________________________

OPTIONS

______________________________________________________________________

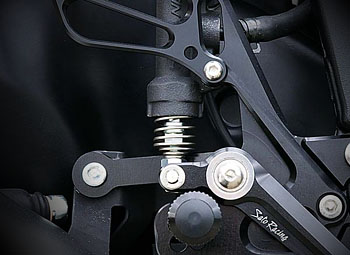

BRAKE RETURN SPRING

SATO RACING Brake Return Spring quickens the pedal return and may make the pedal feel stiffer and more responsive compared to no spring. (For use with specified SATO RACING Rear Sets).


RS-RSP
$8.00



________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 5 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



____________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List


Some replacement parts for these Rear Sets
can be purchased in our online store:

PEG FOOT PEG
(BK/ SV/ GD)
PEG
$42
STUD BOLT LONG (M8-65mm)
(L-side peg bolt)
STBT-L
$4.50
STBT-S STUD BOLT SHORT (M8-55mm)
(R-side peg bolt)
STBT-S
$4.50
SRD-130 SHIFT ROD 130
(BK/ SV/ GD) (L-side #10)
SRD-130
$39
S-GSX105SP-L [L] STEP PLATE
(BK/ SV/ GD)
S-GSX105SP-L
$92
FNT-8 FLANGE NUT M8 FNT-8
$1.50
PEG WASHER - M8
(L-side #13 / R-side #14)
PWS-8
$1.00
PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
SOCKET HEAD M6-20mm
(L-side #3)
SBT-M620
$1.50
RDED-M6L M6 MALE
REVERSE ROD END

(L-side #15)
RDED-M6L
$12.50
ROD END COLLAR 3
(L-side #16)
RDED-CLR3
$6.00
JNT-6 JAM NUT M6
(L-side #17)
JNT-6
$1.75
STUD M6 STUD M6
(L-side #18)
STUD-M6
$2.50
JNT-6L REVERSE JAM NUT M6
(L-side #19)
JNT-6L
$2.50
BRD-M40 BRAKE ROD M40
(R-side #4)
BRD-M40
$13.50
BEARING COLLAR SUS
(R-side #8)
BGCLR-SUS
$6.50
WASHER M6
(R-side #12)
WS-6
$1.00
E-CLIP M6
(R-side #13)
ECP-6
$1.50
BRAKE LIGHT SWITCH
(P-1.25)
BSW-125
$25
BRAKE RETURN SPRING
(Option)
RS-RSP
$8.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)


More Sato Racing items for 2005-06 GSX-R1000

Suzuki Shift Arm Oil Cap Tank Quick-Release Pin
