BMW S1000RR / HP4 ( -'14)

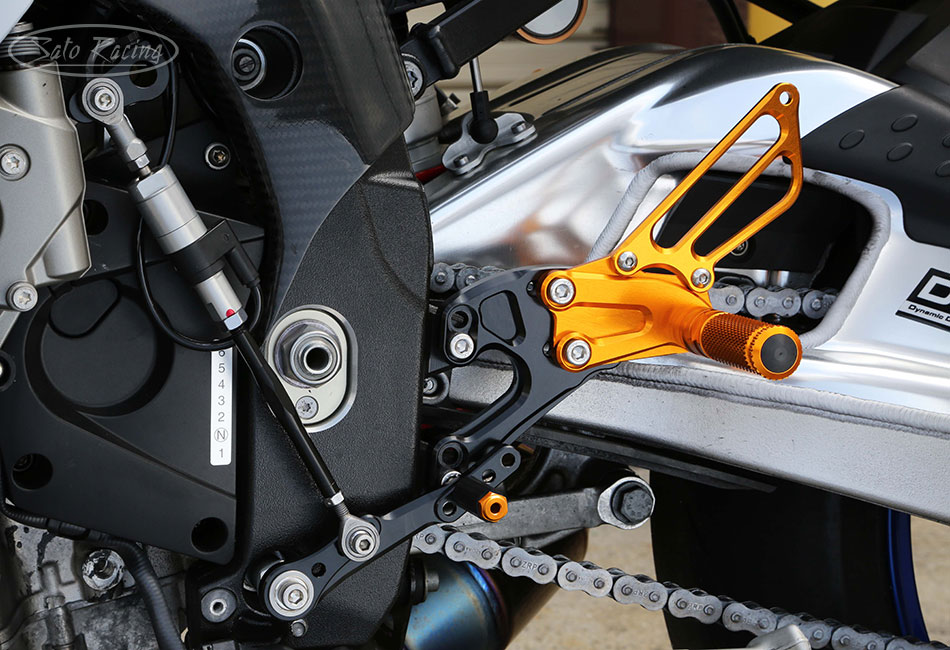

BMW HP4 with SATO RACING Race Concept Rear Sets

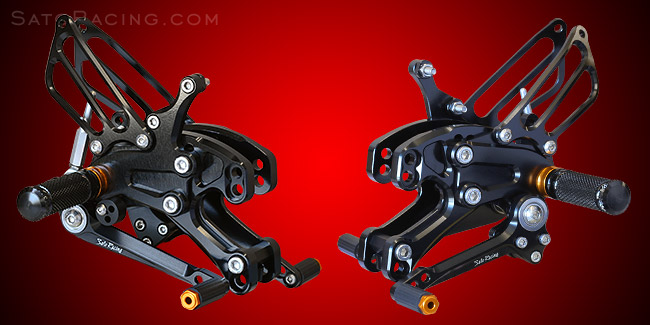

SATO RACING 'Race Concept' Rear Sets for 2009-2014 S1000RR and HP4 are pure, no-compromise race-spec Rear Sets, designed for track-only bikes. CNC-machined out of billet aluminum, these lightweight Rear Sets provide a range of positions that can put your feet significantly higher up compared to stock, better to help maximize lean angle during cornering. Choose from anodized Black finish with Gold accents, or Gold finish with Black base plates and shift assembly.

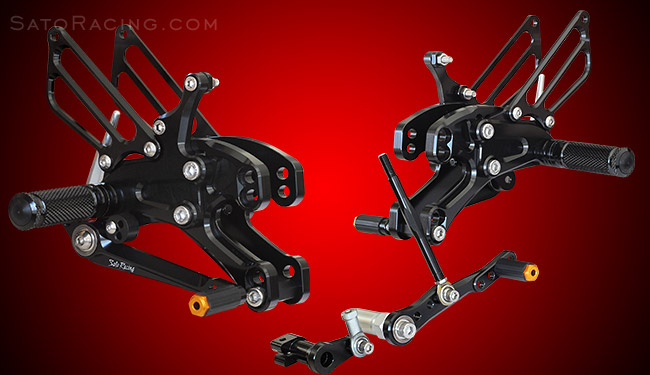

Two versions of 'Race Concept' Rear Sets are available:

'Race Concept' S10000RR Rear Sets - Standard version

Standard Version features an integrated shift pedal designed for stock shifting pattern.

Race Concept'-edition S10000RR Rear Sets - Reverse Shift version

Reverse Shift version has a separate shift pedal providing a dedicated reverse (GP) shift pattern, with the shift rod relocated outside the frame for the most direct shift action.

NOTE: Not recommended for street use. Since this is intended for use with racing brake setups, compatibility with the stock ABS brakes or brake light switch is not confirmed. Not compatible with the stock exhaust canister on the US model, since there is no easy way to hang the canister from the tail end of the rear sets.
(For more street-friendly Rear Sets, see our original S1000RR Rear Sets or our 'version 2' design Forward/Up style Rear Sets ).

POSITIONS

1	0mm Back	35mm Up
2	0 mm Back	45mm Up
3	0mm Back	42.5mm Up
4	0mm Back	57.5mm Up
5	10mm Back	35mm Up
6	10mm Back	45mm Up
7	10mm Back	42.5mm Up
8	10mm Back	57.5mm Up
9	20mm Back	45mm Up
10	20mm Back	57.5mm Up
11	30mm Back	45mm Up
12	30mm Back	57.5mm Up

note: all measurements are in relation to stock position (0 mm).

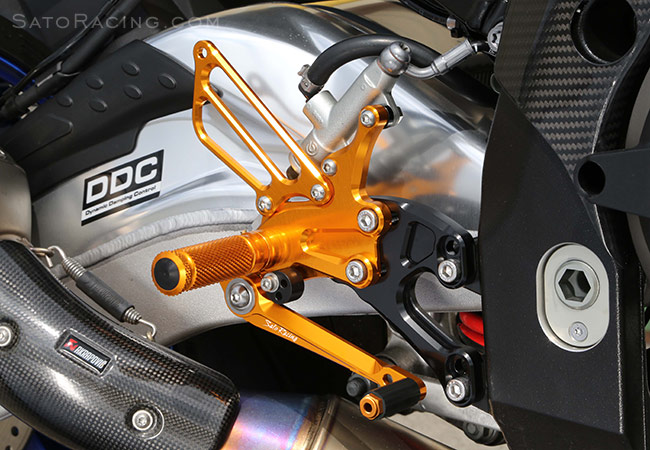

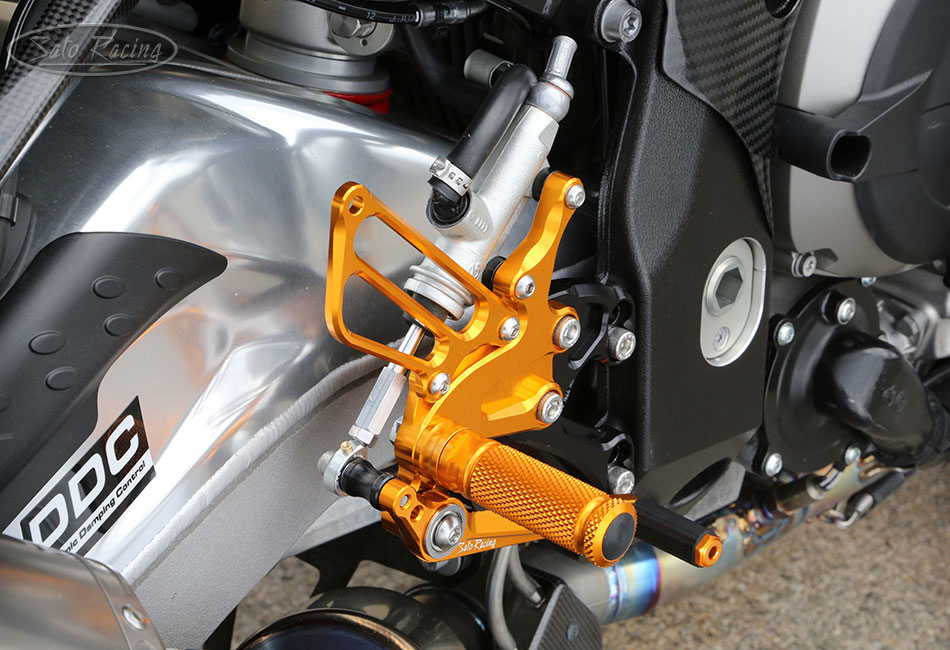

The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever movement. The rest height of the brake pedal can be adjusted by rotating the pedal stopper.

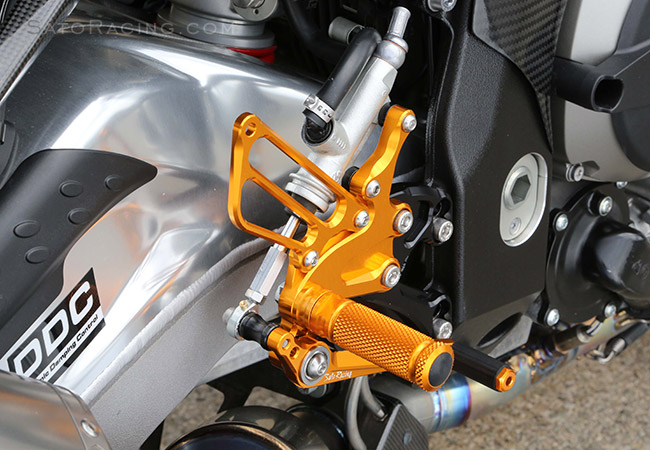

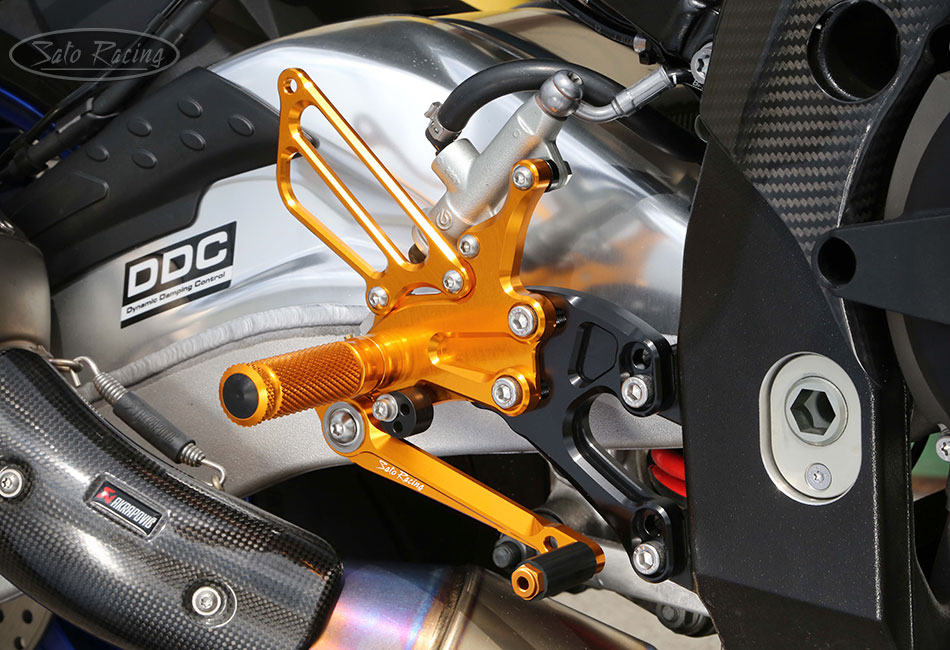

(Rear Sets shown installed with a compatible high mount exhaust system that hangs from the passenger peg bracket mount location. Also should be compatible with some shorty-style racing exhausts that do not require the exhaust hanger to be attached to the rear sets).

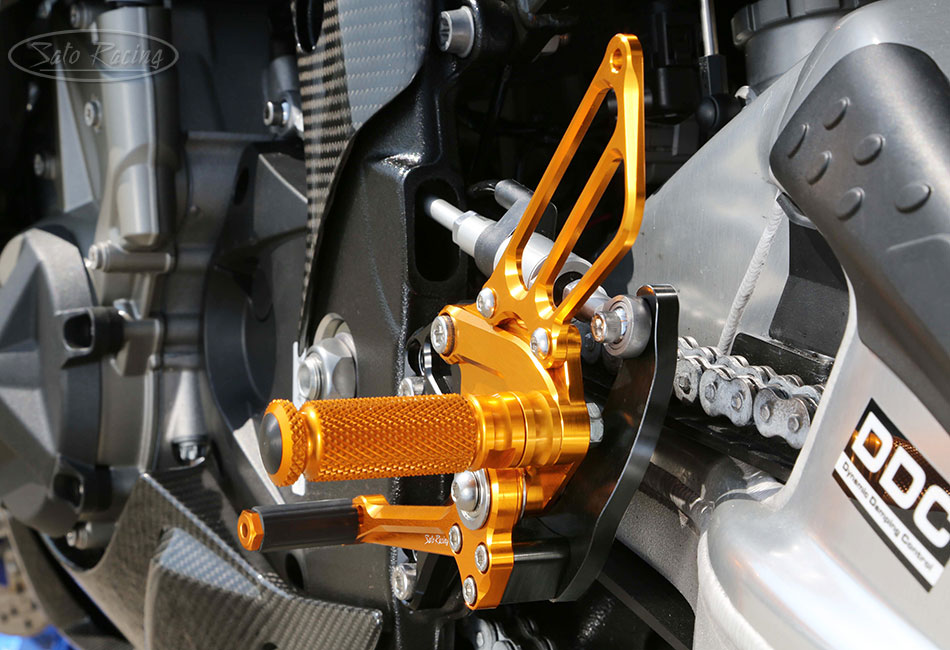

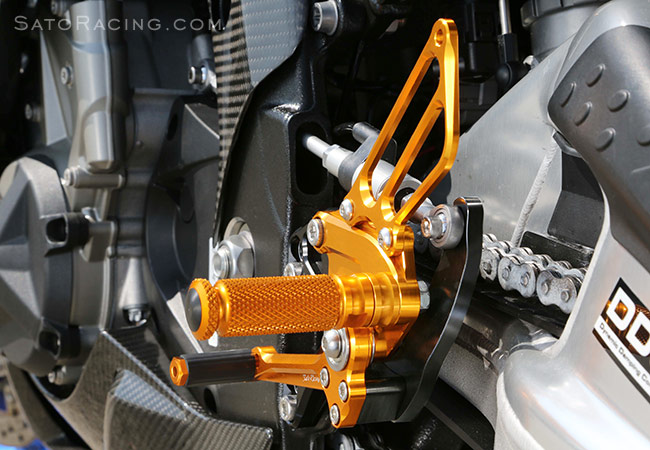

Our 'Race Concept' edition Rear Sets come standard with gold-anodized aluminum pedal tips with rubber grips. Knurled footpegs provide excellent grip even in wet conditions.

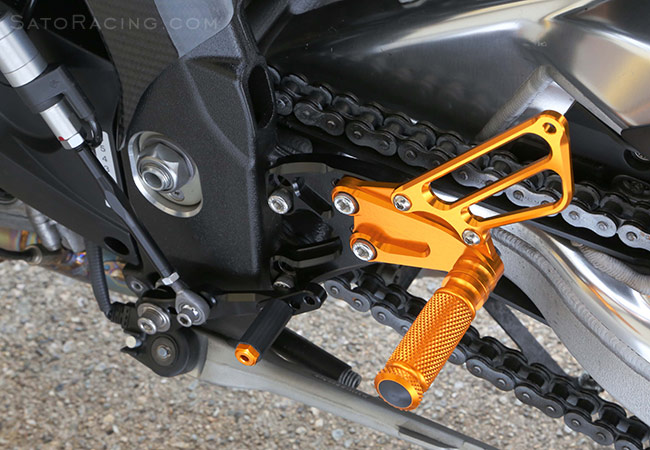

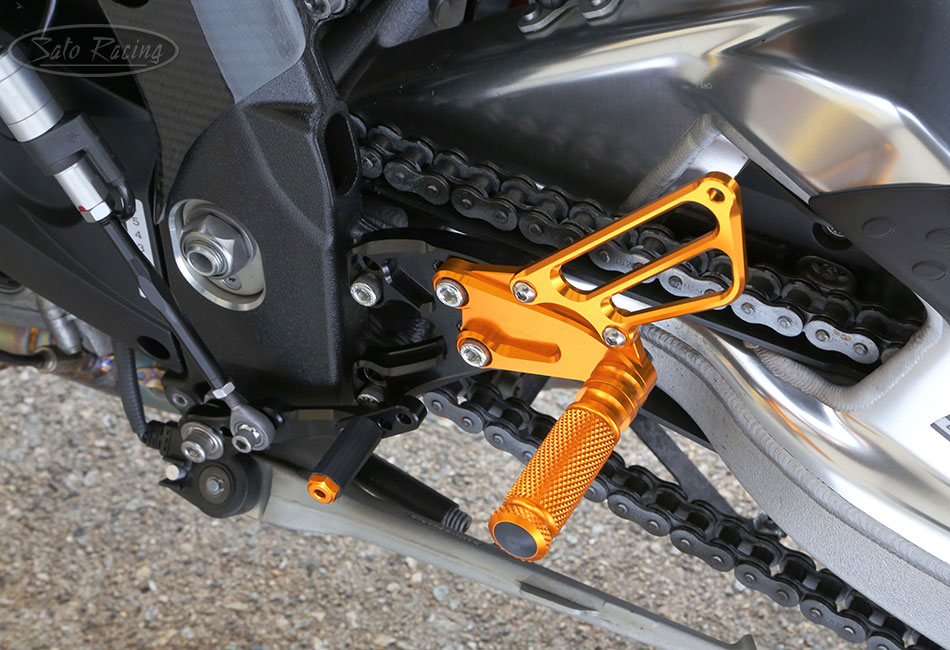

The range of Foot Peg positions provided by these Rear Sets bring your feet significantly higher up compared stock. The separate base plate and step plate each can be adjusted multiple ways, so you can find the ideal position for your riding style.

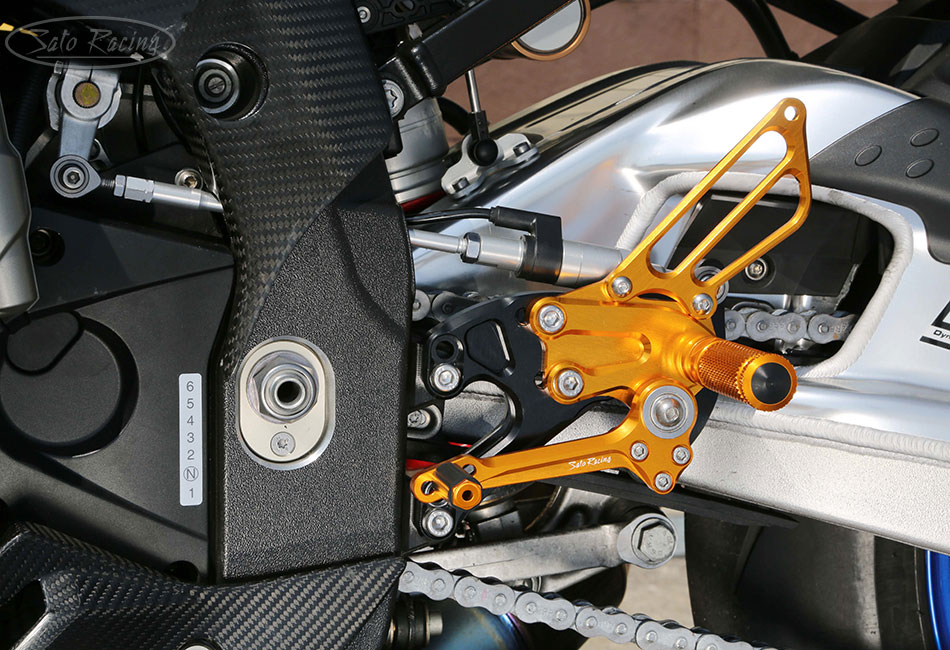

Standard Version

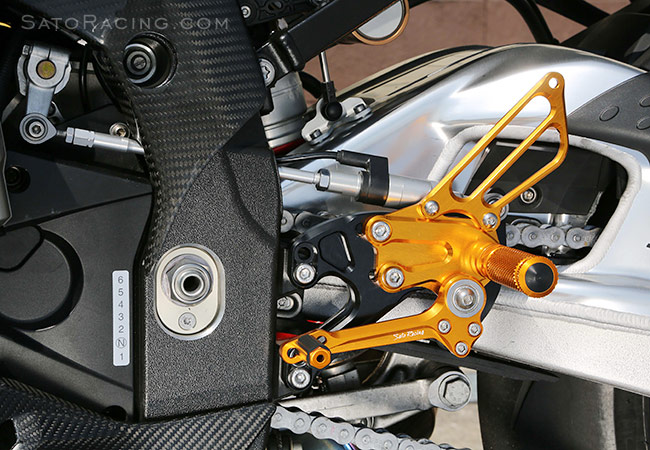

SATO RACING S1000RR Race Concept-edition Standard Shift Rear Sets

Standard Version features a stock shift pattern.

The integrated shift pedal of the Standard Version is designed
to utilize the stock frame pass-through shift rod location.

Reverse Shift version

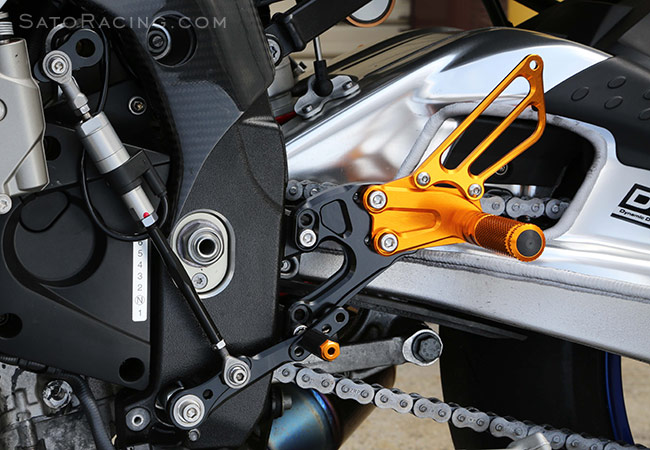

SATO RACING S1000RR Race Concept Reverse Shift Rear Sets

The GP-pattern shift pedal of the Reverse Shift version
has multiple adjustment points for fine-tuning the shifter feel.

On the Reverse Shift version, stock lower fairing will need
to be modded or removed to use this external shifter setup.

NOTE: Not for street use. Not designed for compatibility with the stock brake light switch / ABS. Not for use with the stock exhaust canister on US model (There is no canister hanger bracket).

On Reverse Shift version, Fairing modifications are required to use the shift pedal with the stock lower fairing.

Standard Version

BLACK w/ GOLD accents	BMW-S1RCRS-BK $630
GOLD w/ BLACK base plates	BMW-S1RCRS-GD $630

Reverse Shift Version

BLACK w/ GOLD accents	BMW-S1RCRSR-BK $630
GOLD w/ BLACK base plates + Shift Pedal Assembly	BMW-S1RCRSR-GD $630

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

Have questions or prefer to order by phone? You can call us to place an order -

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
