KAWASAKI NINJA 400 / 250 ('18- )
| SATO RACING 'Race Concept' Rear Sets for 2018+ Kawasaki Ninja 400 (along with the non-U.S. Ninja 250) are pure, no-compromise race-spec Rear Sets, designed for track-only Ninja's. CNC-machined out of high strength anodized billet aluminum, these premium racing Rear Sets feature a modular design that provides 7 adjustable foot peg mounting positions that bring your feet significantly higher up and further back compared to the stock foot pegs, for a much more aggressive riding position that is ideal for tackling the fast straights and steep lean angles at the track. Provides a dedicated reverse shift pattern. Choice of vivid 'Osaka Gold' anodized finish with contrasting Black base plates, or Black anodized finish with Gold accents. |
| NOTE: Not recommended for street use - No brake light switch hardware is included. For use with non-ABS brakes; Compatibility with ABS is unknown. (For more street-friendly Rear Sets, see our standard Ninja400 Rear Sets ). |
| 1 | 68mm Back | 60mm Up |
| 2 | 68mm Back | 70mm Up |
| 3 | 70.5mm Back | 60mm Up |
| 4 | 70.5mm Back | 70mm Up |
| 5 | 70.5mm Back | 80mm Up |
| 6 | 83mm Back | 70mm Up |
| 7 | 83mm Back | 80mm Up |
note: all measurements are in relation to stock position (0 mm).
NOTE: The following photos show these Rear Sets installed on a Japan-market 2018 Ninja 250. The
U.S.-spec Ninja 400 shares the same platform and is nearly identical except for engine displacement.
![SATO RACING Ninja 400 / 250 ('18- ) Race Concept Rear Sets [R]-side](pics/RaceConcept_RearSets_Ninja400_2018_fitR1.jpg "SATO RACING Ninja 400 / 250 ('18) Race Concept Rear Sets [R]-side")
Modular base plate design provides 7 possible mounting positions for the rear set assembly.

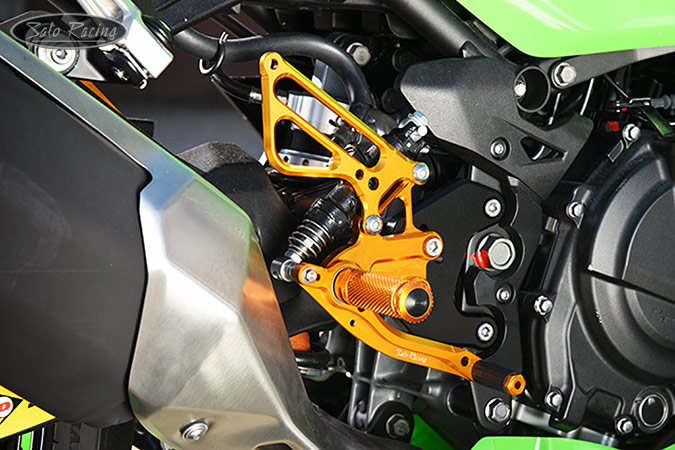

![SATO RACING Ninja 400 / 250 ('18- ) Race Concept Rear Sets [R]-side](pics/RaceConcept_RearSets_Ninja400_2018_fitR2.jpg "SATO RACING Ninja 400 / 250 ('18) Race Concept Rear Sets [R]-side")
The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever movement
with a solid feel. To maximize clearance for the exhaust, the brake pedal pivots from the foot peg axis.
This can be especially useful if installing together with a custom or aftermarket high mount exhaust.

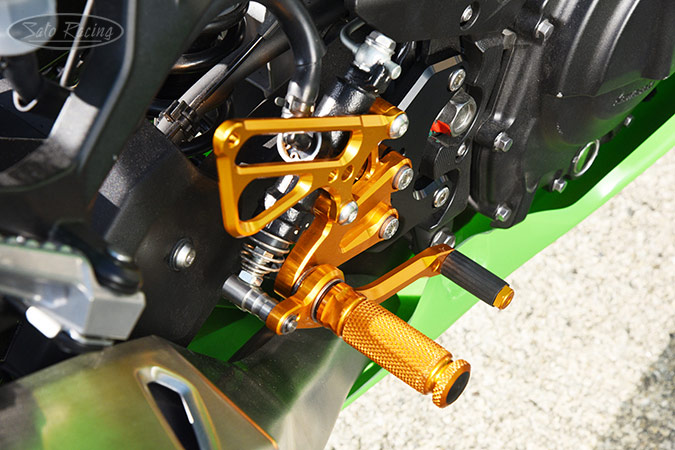

![SATO RACING Ninja 400 / 250 ('18- ) Race Concept Rear Sets [R]-side](pics/RaceConcept_RearSets_Ninja400_2018_fitR3.jpg "SATO RACING Ninja 400 / 250 ('18) Race Concept Rear Sets [R]-side")

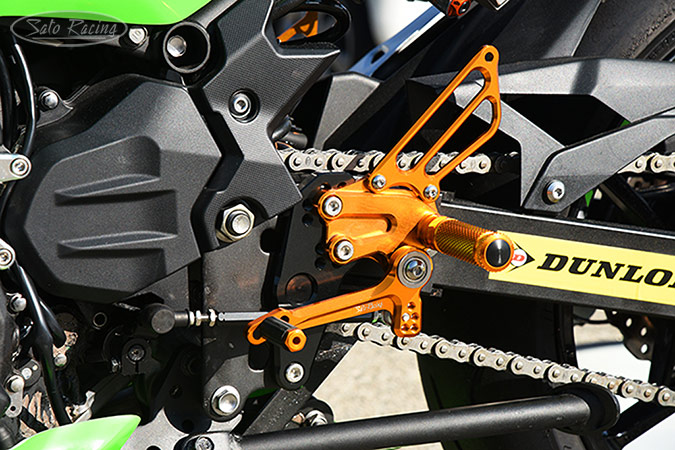

![SATO RACING Ninja 400 / 250 ('18- ) Race Concept Rear Sets [L]-side](pics/RaceConcept_RearSets_Ninja400_2018_fitL1.jpg "SATO RACING Ninja 400 / 250 ('18) Race Concept Rear Sets [L]-side")
These racing Rear Sets provide a dedicated reverse (GP style) shift pattern.

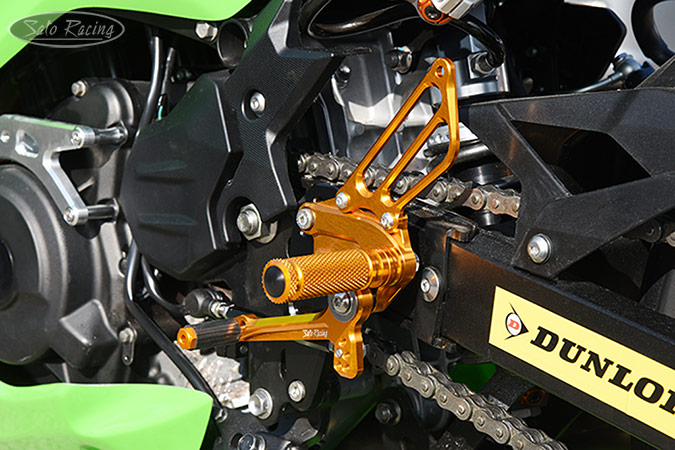

![SATO RACING Ninja 400 / 250 ('18- ) Race Concept Rear Sets [L]-side](pics/RaceConcept_RearSets_Ninja400_2018_fitL2.jpg "SATO RACING Ninja 400 / 250 ('18) Race Concept Rear Sets [L]-side")
![SATO RACING Ninja 400 / 250 ('18- ) Race Concept Rear Sets [L]-side](pics/RaceConcept_RearSets_Ninja400_2018_fitL3.jpg "SATO RACING Ninja 400 / 250 ('18- ) Race Concept Rear Sets [L]-side")
| The foot pegs feature a finely knurled pattern for excellent grip characteristics, along with a comfortable, intuitive feel. Our foot pegs have end caps made of abrasion-resistant Delrin, so if the end of the foot peg touches the ground, the end cap will help it slide smoothly instead of scraping. |
| BLACK w/ Gold accents |
K-25018RCRS-BK $510 |
 |
| GOLD * w/ Black base plates |
K-25018RCRS-GD $510 |
|
* Click Here for important info about Sato GOLD-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF file: Parts List
