SATO RACING | Race Concept Rear Sets

HONDA GROM ('16-'20)

2017 Honda GROM 'white body' with SATO RACING Frame Sliders, Race Concept Rear Sets and other parts

SATO RACING 'Race Concept' Rear Sets for 2016-20 Honda Grom are pure, no-compromise race-spec Rear Sets, designed for track-only bikes. CNC-machined out of high strength billet aluminum, these racing Rear Sets provide a dedicated GP-style reverse shift pattern, and feature special short-style foot pegs and pedal tips, to help maximize lean angle during cornering. Provides 2 adjustable positions for mounting the step plate, and the foot peg is also adjustable 2 ways, for a total of 4 possible positions. The range of positions is much more agressive compared to stock, bringing your feet significantly higher up and further back. Available in a vivid Gold anodized finish, with contrasting Black base plates.

NOTE: Not for street use - Not brake light switch-compatible. ABS compatibility is unknown. Not compatible with the stock exhaust (there is no bracket to attach the stock canister hanger).
(For more street-friendly Rear Sets that are compatible with the stock rear brake light switch and exhaust, see our standard version Rear Sets for 2016+ Grom).

We also have an optional Shift Spindle Holder that works great with these Rear Sets, reducing play in the shift spindle for more precise shift action.

POSITIONS

1	145mm Back	80mm Up
2	145mm Back	92mm Up
3	155mm Back	80mm Up
4	155mm Back	92mm Up

note: all measurements are in relation to stock position (0 mm).

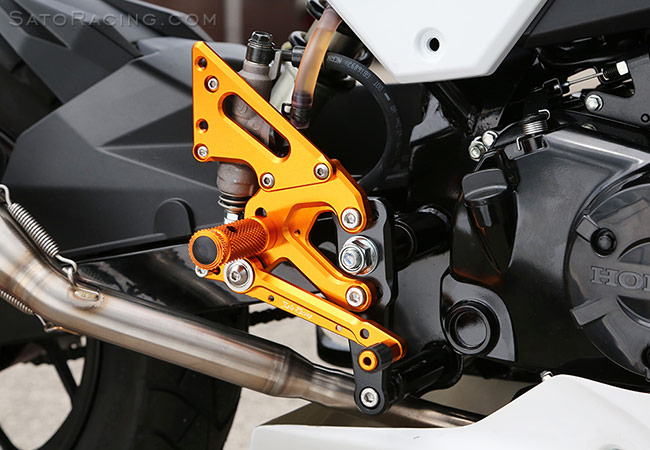

SATO RACING Honda Grom '16- Race Concept Rear Sets [R]-side
You can adjust the mounting positions of the Step Plate, Foot Peg and Pedal Tip.

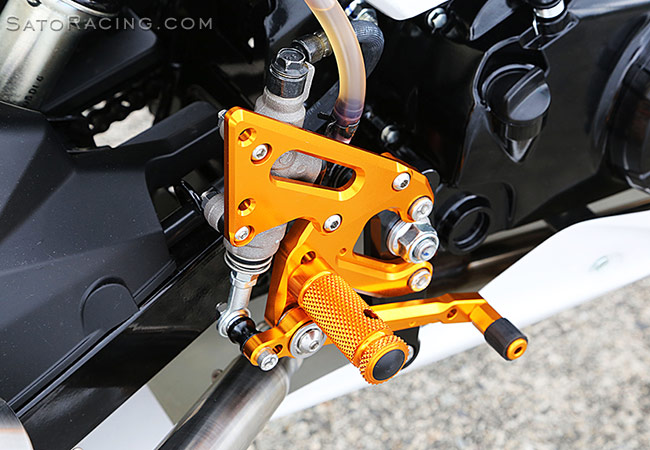

SATO RACING Honda Grom '16- Race Concept Rear Sets [R]-side

Short-style Foot Pegs have a finely knurled grip pattern for excellent feel. Compact aluminum Pedal Tips with fluted rubber grips are slso standard. This combo gives these Rear Sets a very low profile, so you can go for steeper lean angles in corners without worrying about grinding down the pegs.

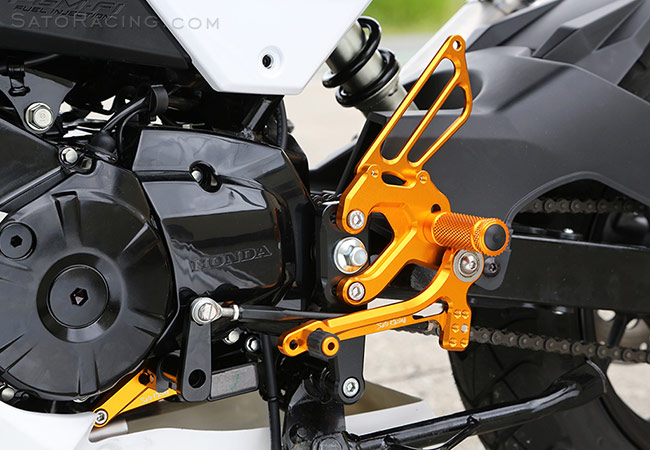

SATO RACING Honda Grom '16- Race Concept Rear Sets [L]-side
These Rear Sets provide a dedicated GP-style reverse shift pattern.
(Rear Sets shown installed with optional Shift Spindle Holder)

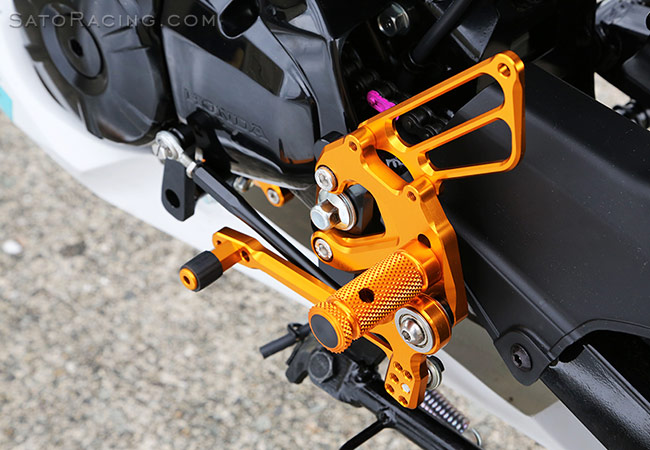

SATO RACING Honda Grom '16- Race Concept Rear Sets [L]-side
The shift and brake pedals utilize double stainless bearings for smooth lever action and a solid feel.

GOLD *

H-GROM16RCRS-GD
$495

* Click Here for important info about Sato GOLD-anodized parts.

Have questions or prefer to order by phone? You can call us to place an order -

OPTIONAL PARTS

HONDA GROM / MONKEY 125 ('13-'20)
SHIFT SPINDLE HOLDER

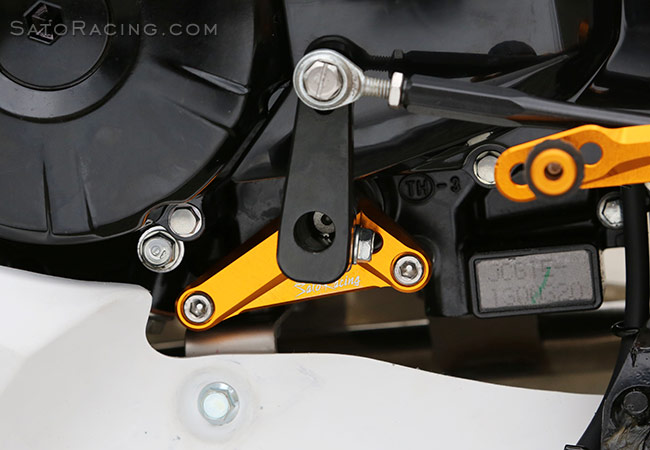

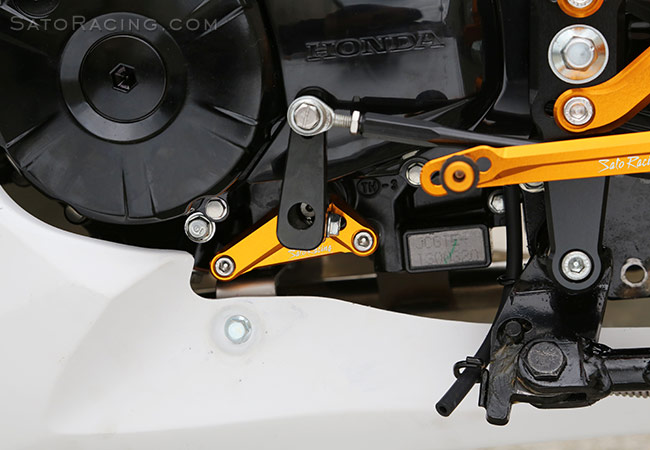

SATO RACING Shift Spindle Holder for 2013-20 Honda GROM and 2018-21 Monkey 125 (4sp) reinforces the shift spindle shaft, reducing lateral play in the spindle during shifts, for more consistent and precise shifting and extra durability in heavy-duty use. Gold anodized billet aluminum with a Teflon inner bushing.

SATO RACING Shift Spindle Holder for Honda GROM

GOLD

H-GROMRS-SHDR
$85

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD *	RCPEG-GD $48

* Click Here for important info about Sato GOLD-anodized parts.

Have questions or prefer to order by phone? You can call us to place an order -

SATO RACING offers a full selection of replacement parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
