KAWASAKI ZX-14 ('06-'11)
REAR SETS
| SATO RACING
Rear Sets for 2006-2011 ZX-14 are precision CNC-machined from high strength billet
aluminum anodized in your choice of Black, Silver, or Gold finish. The shift
and brake pedals utilize double stainless bearings for smooth, precise
pedal action. Deeply knurled footpegs provide optimal grip even
in wet conditions. Modular design lets you choose from 8 adjustable positions, including
lower-than-stock positions for use on drag bikes. A Reverse Shift version of these Rear Sets is also available, for riders who prefer a GP-style reverse shifting pattern. |

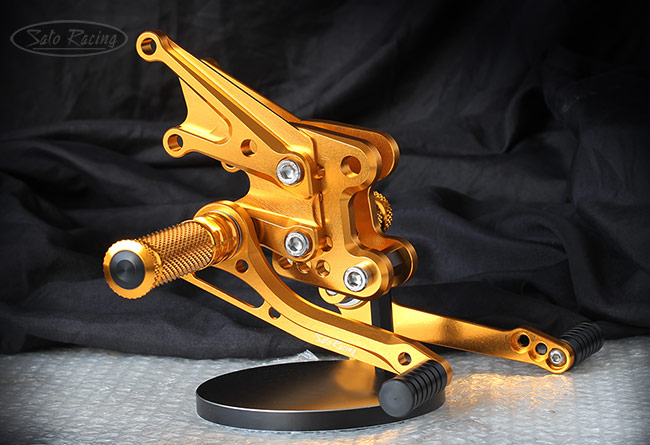

![Sato Racing Kawasaki ZX-14 Rear Sets [R]-side](pics/K-ZX14RS-GD_R1.jpg "Sato Racing Kawasaki ZX-14 Rear Sets [R]")

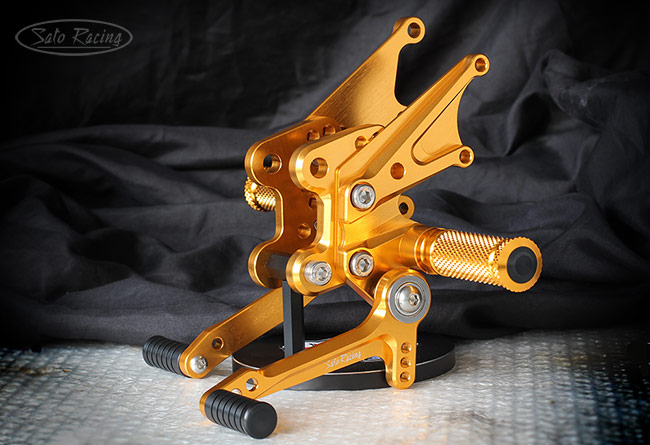

![Sato Racing Kawasaki ZX-14 Rear Sets [L]-side](pics/K-ZX14RS-GD_L1.jpg "Sato Racing Kawasaki ZX-14 Rear Sets [L]")
Standard Shift Rear Sets shown above.

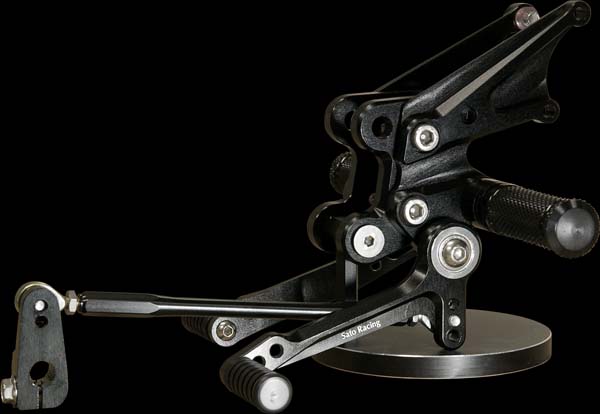

Rear Sets also include Shift Rod and Shift Arm (not pictured)
| 1 | 10mm Forward | 12.5mm Down* |
| 2 | 10mm Forward | 0 mm |
| 3 | 0 mm | 12.5mm Down* |
| 4 | 0 mm | 0 mm |
| 5 | 0 mm | 12.5mm Up |
| 6 | 10mm Back | 12.5mm Down* |
| 7 | 10mm Back | 0 mm |
| 8 | 10mm Back | 12.5mm Up |
Note: all measurements are in relation to stock position (0 mm).
*
These positions are for drag bikes only since the positions would
interfere with the sidestand on a stock ZX-14 bike.

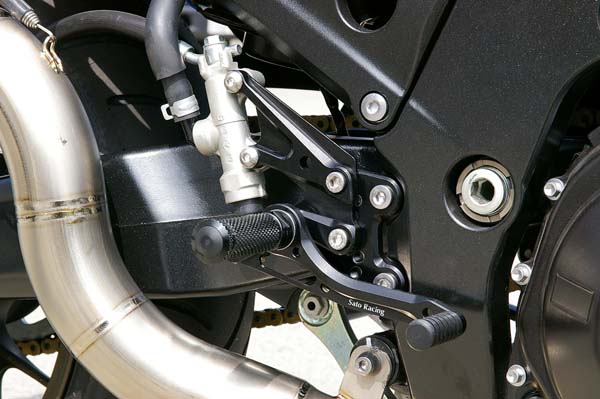

![Sato Racing Kawasaki ZX-14 Rear Sets [R]-side](zx14rsrbkfit.jpg "Sato Racing Kawasaki ZX-14 Rear Sets [R]")

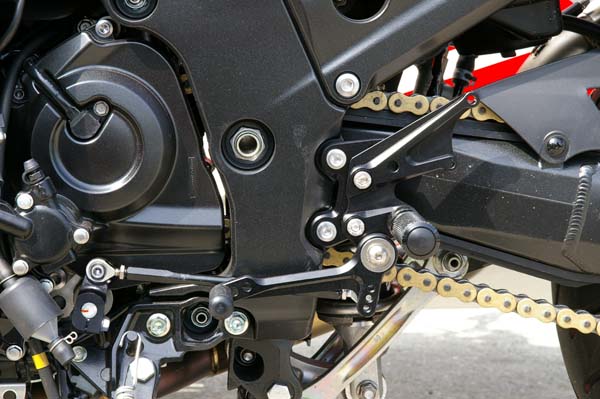

![Sato Racing Kawasaki ZX-14 Rear Sets [R]-side](zx14rslbkfit.jpg "Sato Racing Kawasaki ZX-14 Rear Sets [R]")
REAR SETS - Stock Shift Pattern
| Online Special - We've got a few too many sets of the stock shift Rear Sets in SILVER and GOLD in our inventory, so we have temporarily lowered our prices on those colors. If you have always wanted to try out these excellent Rear Sets on your ZX-14, now is a good time! * |
| BLACK | K-ZX14RS-BK $525 |
 |
| SILVER | K-ZX14RS-SV |
|
| GOLD | K-ZX14RS-GD |
|
* (Clearance item pricing - no exchanges / returns)
REAR SETS - Reverse Shift Pattern
(NOTE: Reverse Shift Rear Sets are a special order
item - If not in stock, Contact us to place an order)
| BLACK | K-ZX14RSR-BK $525 |
|
| SILVER | K-ZX14RSR-SV $525 |
|
| GOLD | K-ZX14RSR-GD $525 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list included with your
Sato Racing Rear Sets, or view the PDF: Rear Sets (Standard version) | Reverse Shift Rear Sets
Some common replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
FOOT PEG [GOLD] | PEG-GD $42 |
|
 |
HEX HEAD M8-45mm (L-side peg bolt for STD shift rear sets) |
HBT-M845 $2.00 |
|
 |
SPLIT WASHER M8 (L-side #24 for STD shift rear sets) |
SWS-8 $1.20 |
|
 |
STUD BOLT LONG (M8-65mm) | STBT-L $4.50 |
|
 |
FLANGE NUT M8 | FNT-8 $1.50 |
|
 |
PLAIN NUT M8 (Rev. Shift L-side #21) |
NUT-8 $1.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (L-side #4) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M6-25mm (R-side #4) |
BBT-M625 $1.50 |
|
 |
BRAKE ROD M40 (R-side #10) |
BRD-M40 $13.50 |
|
 |
WASHER M6 (R-side #11) |
WS-6 $1.00 |
|
 |
E-CLIP M6 (R-side #12) |
ECP-6 $1.50 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
Some additional parts such as Shift Rod, Rod Ends and related hardware can be found HERE.
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
