HONDA CBR1000RR ('04-'07)
REAR SETS

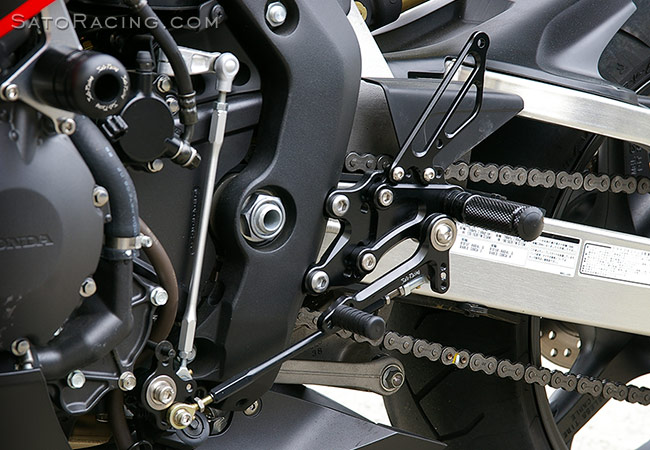

2006 Honda CBR1000RR with SATO RACING Rear Sets and other parts

SATO RACING Rear Sets for 2004-2007 CBR1000RR feature components precision CNC-machined from lightweight, high strength billet aluminum and anodized in your choice of Black, Silver (natural metal), or vivid Gold finish, with stainless steel bolts. Modular design provides 7 adjustable positions that can bring your feet up to 30mm higher and 20mm back compared to stock. Can be set up for stock shift pattern or reverse shift pattern.

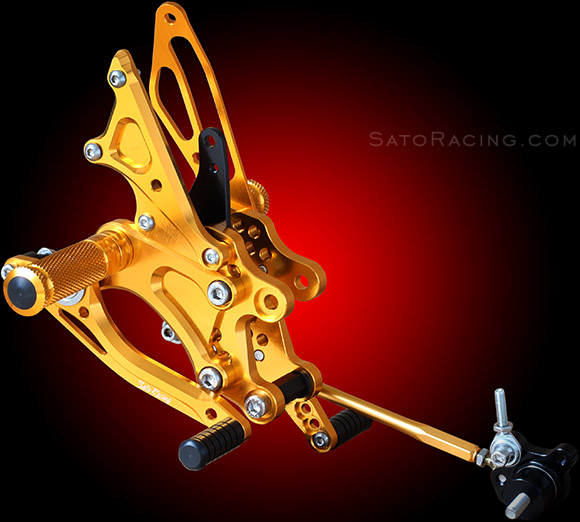

SATO RACING Rear Sets for '04-'07 Honda CBR1000RR

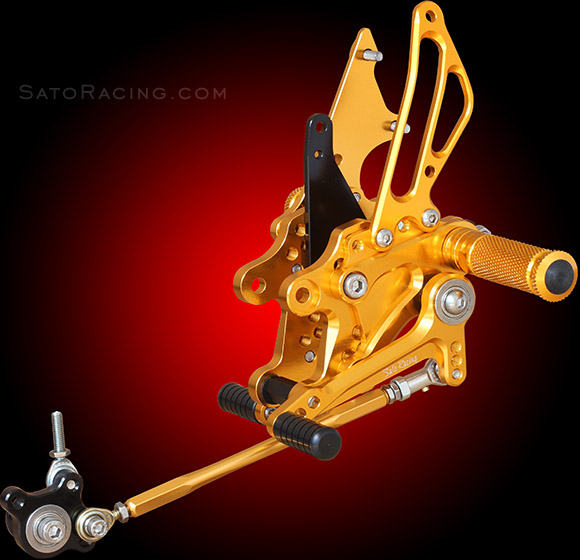

SATO RACING Rear Sets for '04-'07 Honda CBR1000RR

POSITIONS

1 0 mm Back
(stock position)
10mm Up
(0.4" Up)
2 10mm Back
(0.4" Back)
10mm Up
(0.4" Up)
3 0 mm Back
(stock position)
20mm Up
(0.8" Up)
4 10mm Back
(0.4" Back)
20mm Up
(0.8" Up)
5 20mm Back
(0.8" Back)
20mm Up
(0.8" Up)
6 10mm Back
(0.4" Back)
30mm Up
(1.2" Up)
7 20mm Back
(0.8" Back)
30mm Up
(1.2" Up)

note: all measurements are in relation to stock position (0 mm).

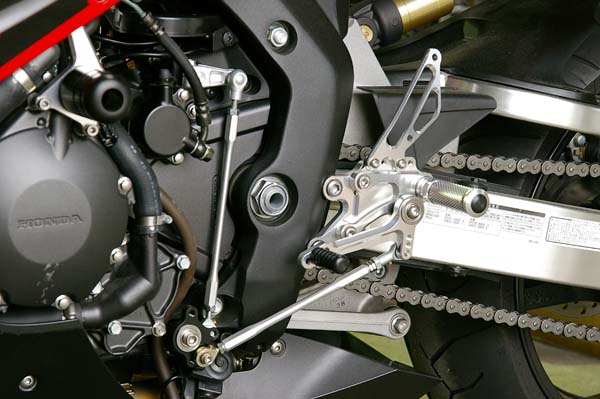

NOTE: The following install photos show an earlier design version of these Rear Sets.
The latest version of our CBR1000RR Rear Sets have some minor design differences.

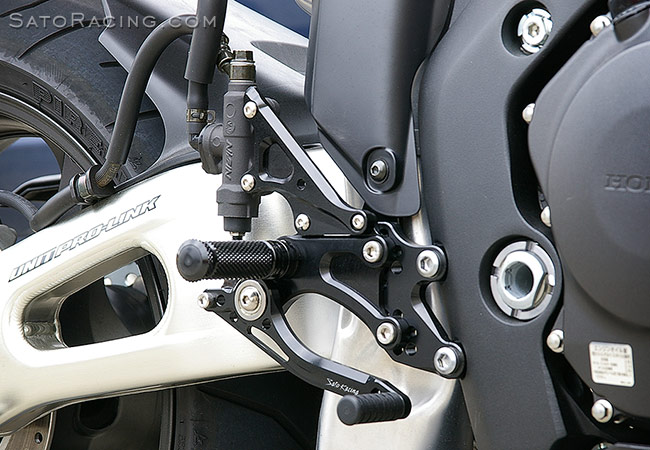

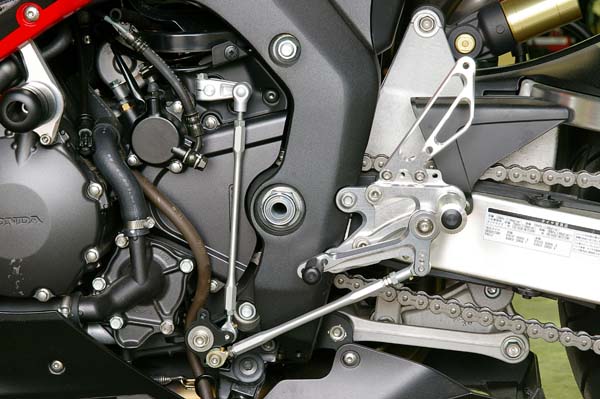

SATO RACING Rear Sets for '04-'07 Honda CBR1000RR
Finely knurled Foot Pegs combine excellent grip with a comfortable feel.
The standard Pedal Tips are made of tough Delrin plastic. We also have
other optional types of Pedal Tips that work well with these Rear Sets.

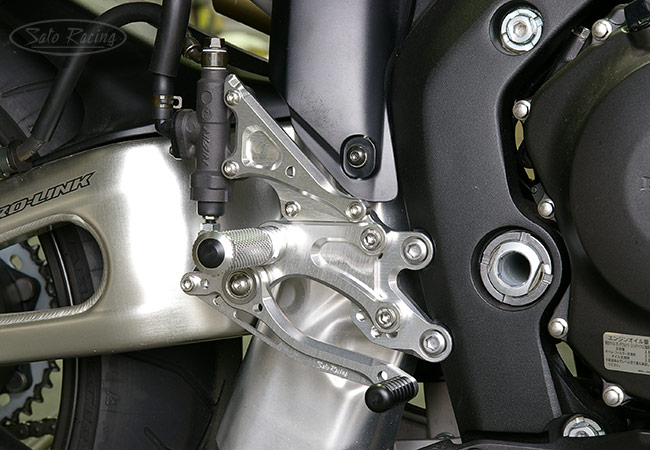

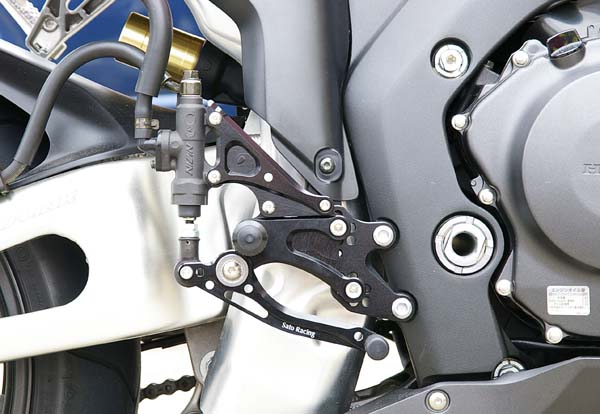

SATO RACING Rear Sets for '04-'07 Honda CBR1000RR
The shift and brake pedals use double stainless bearings for smooth, precise lever action.
Though not shown in this photo, a brake light switch is included with these Rear Sets.

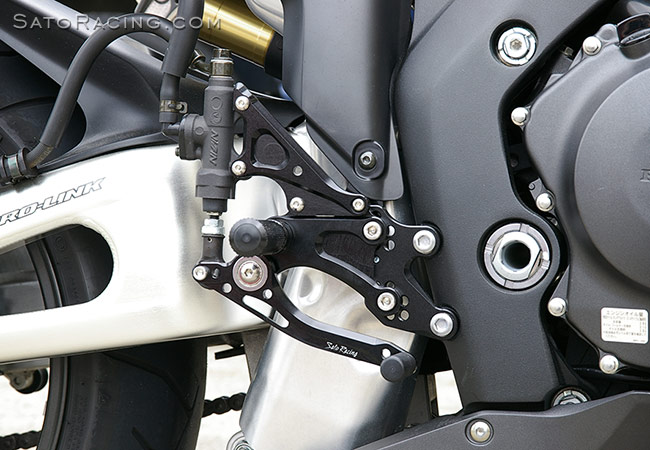

SATO RACING Rear Sets for '04-'07 Honda CBR1000RR
The base plate has multiple adjustment holes so you can find the ideal position for your riding style.

SATO RACING Rear Sets for '04-'07 Honda CBR1000RR

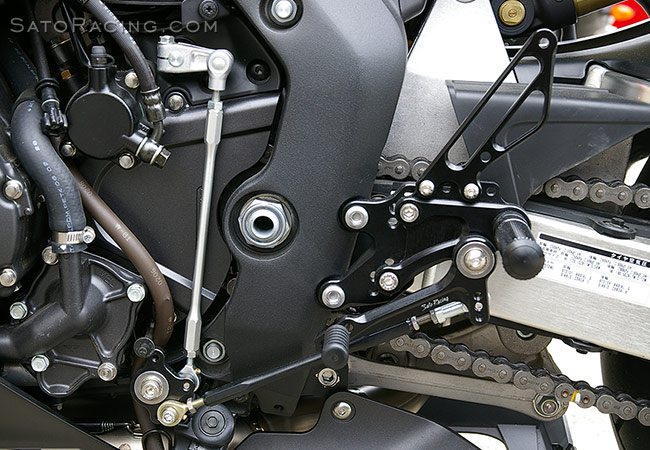

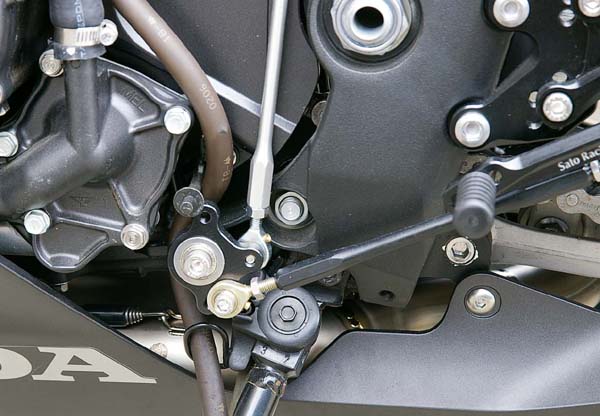

The shift linkage design lets you use the Rear Sets with either stock shift pattern
or reverse (GP style) shift pattern. (Reverse shift pattern shown in photo above).

SATO RACING Rear Sets for '04-'07 Honda CBR1000RR
The Rear Sets mounting plates provide 7 positions in a wide adjustment range,
so you can choose the position most ideal for your height and your riding style.




stock shift / reverse shift animation
You can change the shifting pattern by relocating
the SATO SHIFT ROD to the upper or lower hole.



BLACK H-CBR1RS2-BK
$595
SILVER H-CBR1RS2-SV
$595
GOLD* H-CBR1RS2-GD
$595

(Brake light switch included.)


* Click Here for important info about Sato GOLD-anodized parts.




OPTIONS



Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

black BLACK RCPEG-BK
$48
silver SILVER RCPEG-SV
$48
gold GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




___________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



_____________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List


Some replacement parts for these Rear Sets
can be purchased in our online store:

PEG FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEG COLLAR 12 [BLACK]
(BK/ SV/ GD)
PEGCLR-12
$15
HEX HEAD M8-45mm
(Foot Peg bolt)
HBT-M845
$2.00
SPLIT WASHER M8
(for peg bolt)
SWS-8
$1.20
SOCKET HEAD M6-15mm
(R-side #8)
SBT-M615
$1.50
SOCKET HEAD M6-40mm
(R-side #9)
SBT-M640
$2.00
BEARING COLLAR SUS
(R-side #17)
BGCLR-SUS
$6.50
WASHER M6
(R-side #19)
WS-6
$1.00
PLAIN NUT M6
(R-side #20)
NUT-6
$1.00
SOCKET HEAD M8 x 15mm
(#2)
SBT-M815
$1.50
PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
BUTTON HEAD M6-10mm
(#3)
BBT-M610
$1.50
BUTTON HEAD M8-30mm
(L-side #4 / R-side #6)
BBT-M830
$2.00
SOCKET HEAD M8-45mm
(L-side #5)
SBT-M845
$2.00
SOCKET HEAD M6-20mm
(L-side #6)
SBT-M620
$1.50
PEG WASHER - M8
(L-side #14)
PWS-8
$1.00
FEMALE ROD END M6
(L-side #17)
RDED-F6
$15
JAM NUT M6
(L-side #18)
JNT-6
$1.75
STUD M6
(L-side #19)
STUD-M6
$2.50
SRD-160 SHIFT ROD 160
(BK/ SV/ GD) (L-side #20)
SRD-160
$39
M6 MALE
REVERSE ROD END

(L-side #21)
RDED-M6L
$12.50
REVERSE JAM NUT M6
(L-side #22)
JNT-6L
$2.50
ROD END COLLAR 3
(L-side #23)
RDED-CLR3
$6.00
M6 MALE ROD END
(L-side #25)
RDED-M6
$12.50
COLLAR 4 [BLACK]
(L-side #27)
BPCLR-4
$8.00
BRAKE LIGHT SWITCH
(P-1.25)

BSW-125
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
