SUZUKI GIXXER 250 / SF ('19-'21)
REAR SETS

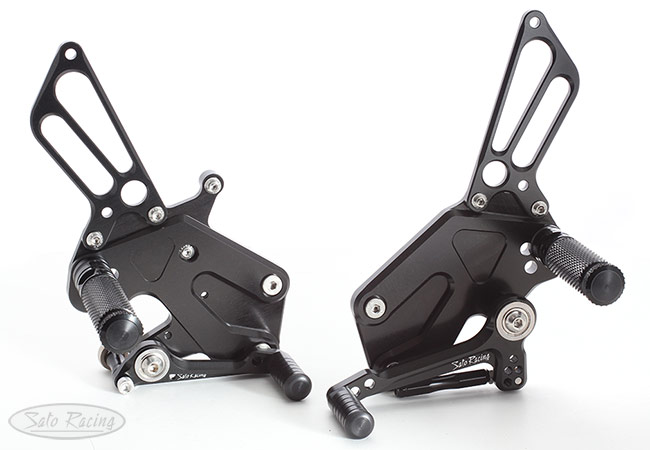

| SATO RACING Rear Sets for 2019-21 Suzuki Gixxer 250 and Gixxer SF 250 features a lightweight yet sturdy design engineered for maximum durability on the track, with parts precision CNC-machined out of high strength anodized billet aluminum and fastened together with stainless steel bolts. This premium quality foot control kit provides 4 adjustable peg positions that bring your feet significantly higher up and further back compared to stock, for a more aggressive riding position ideal for the fast straights and steep lean angles encountered on the track. Choice of deep Black or vivid Gold anodized finish. |
| 1 | 50mm Back | 50mm Up |
| 2 | 50mm Back | 62.5mm Up |
| 3 | 62.5mm Back | 50mm Up |
| 4 | 62.5mm Back | 62.5mm Up |
note: all measurements are in relation to stock position (0 mm).

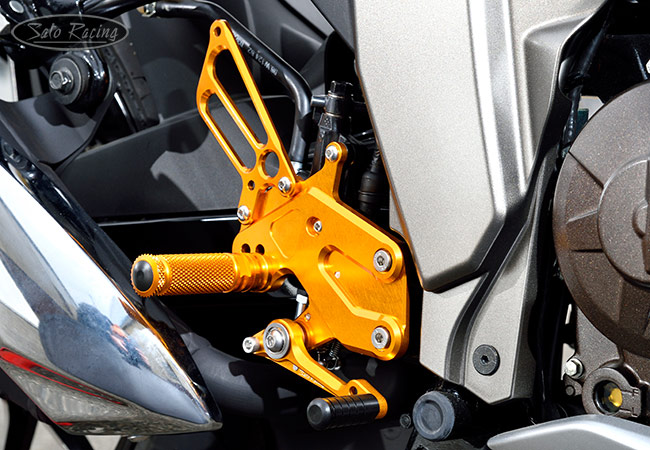

![SATO RACING Suzuki Gixxer 250 Rear Sets in GOLD [R]-side](pics/Gixxer250rearsets_fitR1_650x450.jpg "SATO RACING Suzuki Gixxer 250 Rear Sets in Gold [R]-side")
| The shifter and brake pedal utilize miniature double stainless bearings for smooth, precise lever action with a solid feel. The pedal is mounted on a separate axis from the foot peg for optimal leverage. This also enables a wider range of adjustment, so you can find the ideal position for your riding style. |

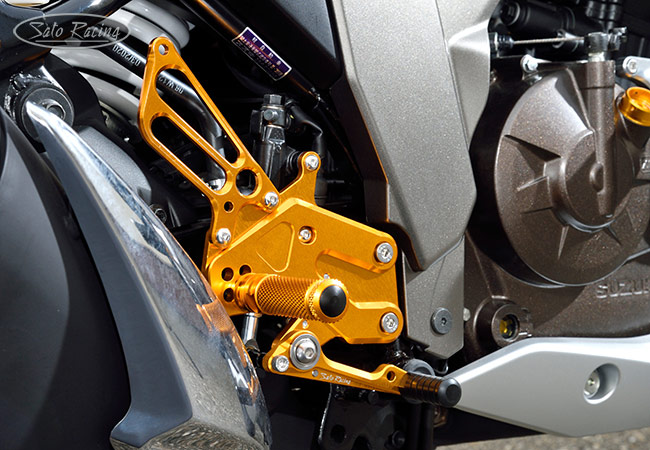

![SATO RACING Suzuki Gixxer 250 Rear Sets in GOLD [R]-side](pics/Gixxer250rearsets_fitR2_650x450.jpg "SATO RACING Suzuki Gixxer 250 Rear Sets in Gold [R]-side")
These Rear Sets are fully compatible with the stock brake light pull switch
hardware, so you won't need to splice in an aftermarket brake light switch.

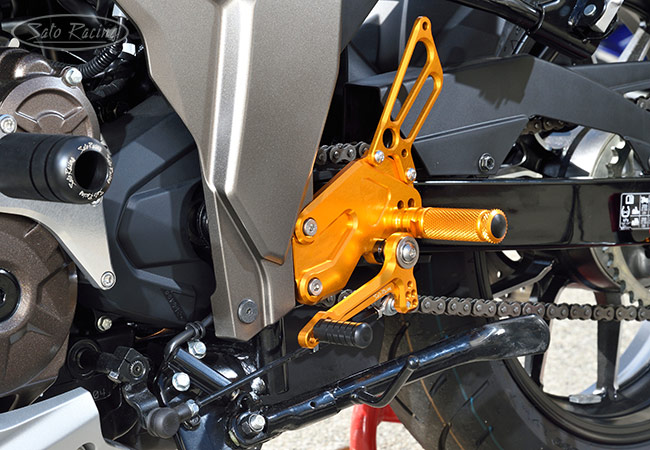

![SATO RACING Suzuki Gixxer 250 Rear Sets in GOLD [L]-side](pics/Gixxer250rearsets_fitL1_650x450.jpg "SATO RACING Suzuki Gixxer 250 Rear Sets in Gold [L]-side")
|
The Foot Peg is the fixed type (non-folding) and can be mounted at any of the 4 different position holes on the Step Plate.
The Pedal Tip position can also be adjusted. The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as aluminum Pedal Tips with rubber sleeves, are an available option: Details |

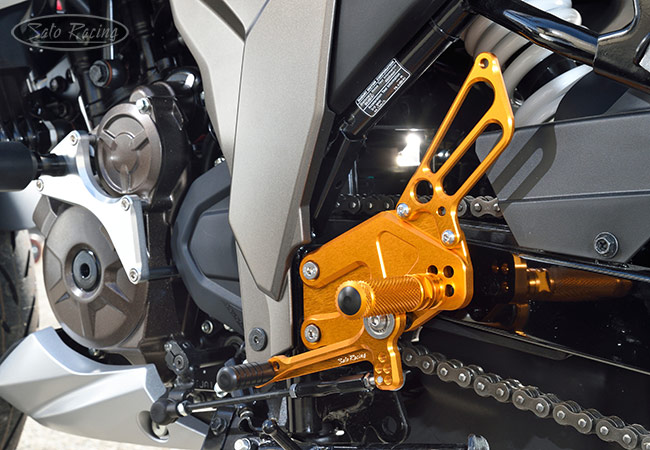

![SATO RACING Suzuki Gixxer 250 Rear Sets in GOLD [L]-side](pics/Gixxer250rearsets_fitL2_650x450.jpg "SATO RACING Suzuki Gixxer 250 Rear Sets in Gold [L]-side")
|
These Rear Sets utilize the stock shift arm hardware, providing a stock shifting pattern. The standard Foot Pegs feature a finely knurled pattern for nice grip, along with a comfortable, intuitive feel. Also check out our new Race Concept Cutout-style Racing Foot Pegs, available as an option for this model. (See details below). |
Choice of Black or Gold anodized finish.
| BLACK | S-GIXRS-BK $490 |
 |
| GOLD | S-GIXRS-GD $490 |
|
Click Here for important info about Sato color-anodized parts.
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD * | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the
illustrated parts list included with your Sato Racing Rear Sets.
