SUZUKI GSX250R ('17-'23)
REAR SETS

SATO RACING Rear Sets for 2017 and up Suzuki GSX250R features a lightweight yet sturdy design engineered for maximum durability on the track, with parts precision CNC-machined out of high strength anodized billet aluminum and fastened together with stainless steel bolts. This premium quality foot control kit provides 4 adjustable peg positions that bring your feet significantly higher up and further back compared to stock, for a more aggressive riding position ideal for the fast straights and steep lean angles encountered on the track. Choice of deep Black or vivid Gold anodized finish.

POSITIONS

1 52.5mm Back 37.5mm Up
2 52.5mm Back 50mm Up
3 65mm Back 37.5mm Up
4 65mm Back 50mm Up

note: all measurements are in relation to stock position (0 mm).

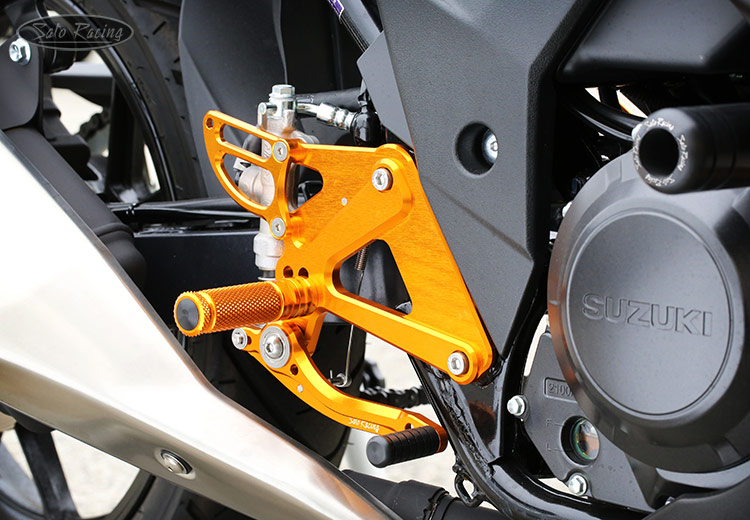

SATO RACING Suzuki GSX250R Rear Sets [R]-side

The shifter and brake pedal use dual miniature stainless bearings for smooth, precise lever action with a solid feel. The pedal is mounted on a separate axis from the foot peg for optimal leverage. This also enables a wider range of adjustment, so you can find the ideal position for your riding style.

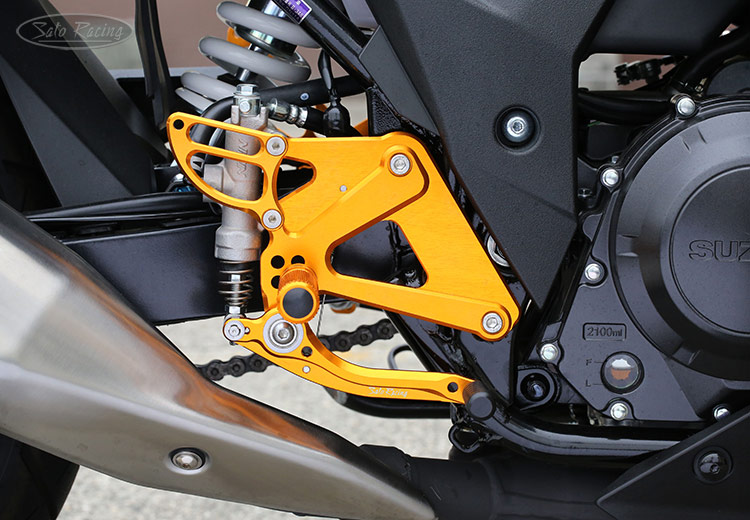

SATO RACING Suzuki GSX250R Rear Sets [R]-side
These Rear Sets are fully compatible with the stock brake light pull switch
hardware, so you won't need to splice in an aftermarket brake light switch.

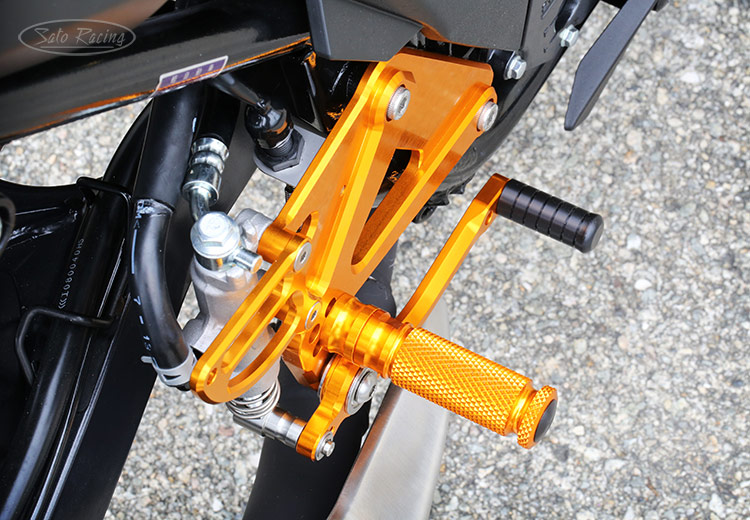

SATO RACING Suzuki GSX250R Rear Sets [R]-side

The Foot Peg is the fixed type (non-folding) and can be mounted at any of the 4 different position holes on the Step Plate. The Pedal Tip position can also be adjusted.

The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as aluminum Pedal Tips with rubber sleeves, are an available option:  Details

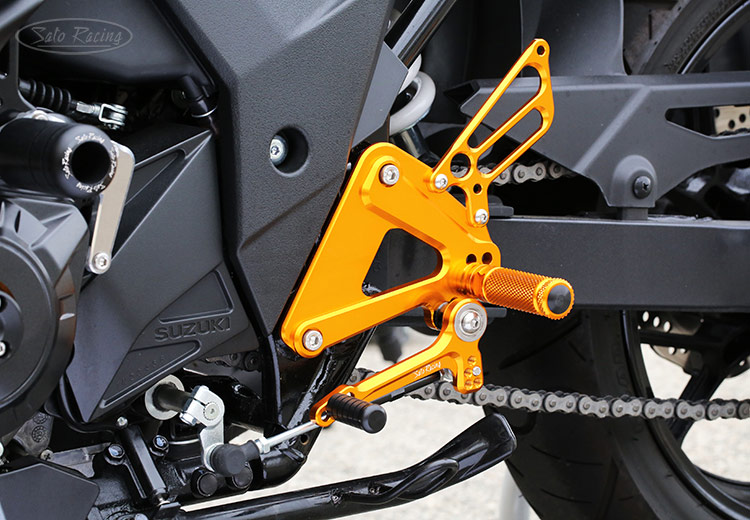

SATO RACING Suzuki GSX250R Rear Sets [L]-side
These Rear Sets utilize the stock shift arm hardware, providing a stock shifting pattern.

Multiple adjustment holes at the base of the shift pedal let you fine-tune the shift stroke
to your preference; The holes farthest to the center pivot would give it the shortest stroke.

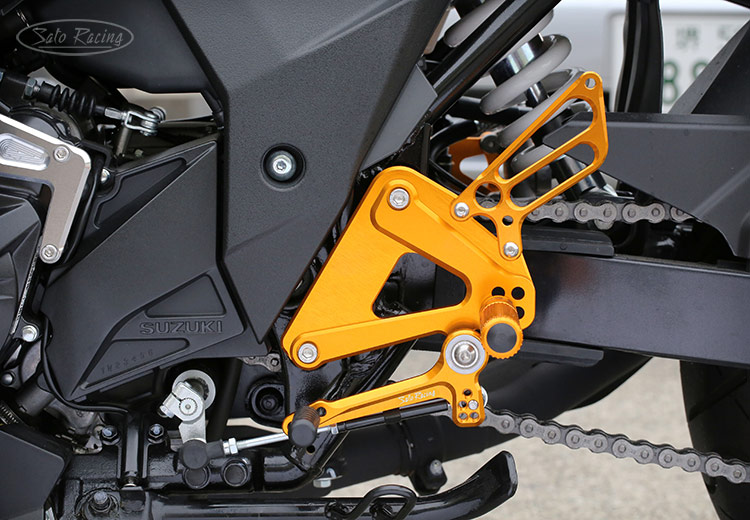

SATO RACING Suzuki GSX250R Rear Sets [L]-side
The clean, angular styling of these Rear Sets fits well with the style of the GSX250R.

SATO RACING Suzuki GSX250R Rear Sets [L]-side

The standard Foot Pegs feature a finely knurled pattern for nice grip, along with a comfortable, intuitive feel. Also check out our new Race Concept Cutout-style Racing Foot Pegs, now available as an option for this model. (See details below).




BLACK S-GSX250RS-BK
$465
GOLD S-GSX250RS-GD
$465

* Click Here for important info about Sato color-anodized parts.





_________________________________________________________________

OPTIONS

_________________________________________________________________




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



------------------------------------------------------------------------------------------

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the
illustrated parts list included with your Sato Racing Rear Sets.

------------------------------------------------------------------------------------------
