MV AGUSTA F3 ('12-'14)
REAR SETS

SATO RACING Rear Sets for 2012-14 MV Agusta F3 675/800 (for quick-shifter) features components precision machined out of light-weight, high strength billet aluminum with your choice of all-Black anodized finish, or Silver or Gold anodized finish with Black anodized shift lever. Modular adjustable design lets you choose from 9 positions that bring your feet higher up compared to stock. Can be set up for stock shift or reverse shift pattern.

POSITIONS

1	10mm Forward	25mm Up
2	0mm	25mm Up
3	10mm Back	25mm Up
4	5mm Forward	35mm Up
5	5mm Back	35mm Up
6	15mm Back	35mm Up
7	0mm	45mm Up
8	10mm Back	45mm Up
9	200mm Back	45mm Up

Note: all measurements are in relation to stock position (0 mm).

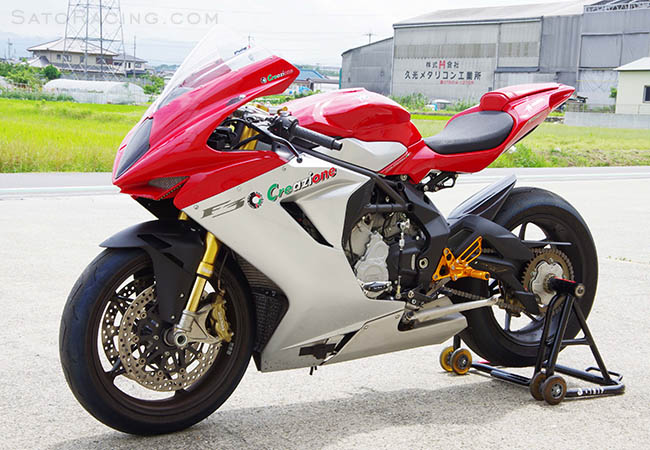

MV Agusta F3

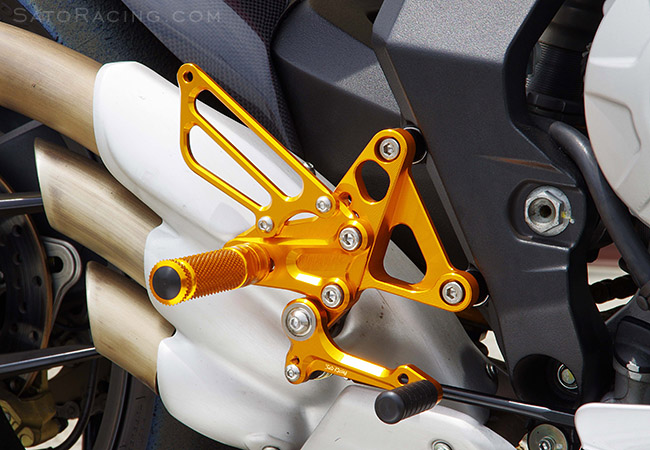

Sato Racing MV Agusta F3 Rear Sets [R]-side
The shift and brake pedals have dual stainless bearings for smooth, precise lever action.
The positions of the Step Plate, Foot Peg and Pedal Tip can be adjusted to your preference.

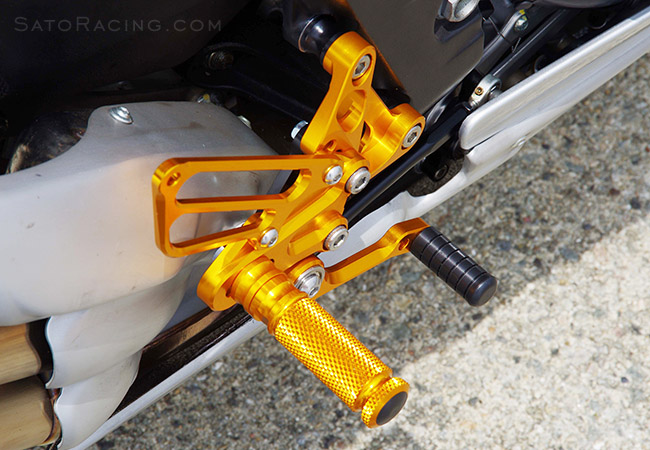

Sato Racing MV Agusta F3 Rear Sets [R]-side
Finely knurled Foot Pegs provide excellent grip and a comfortable, intuitive feel.

The standard Pedal Tips are made of tough black Delrin. Additional Pedal Tip styles, such
as aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details

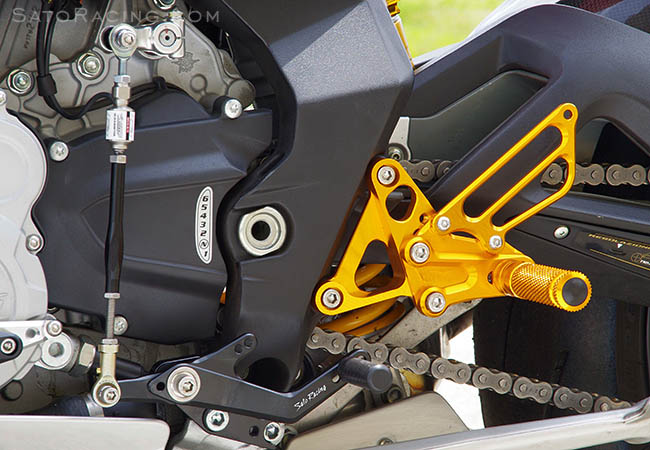

Sato Racing MV Agusta F3 Rear Sets [L]-side

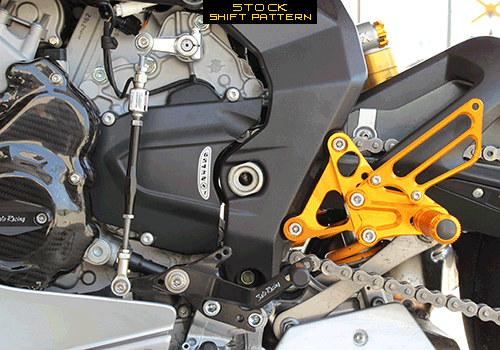

You can set it up for reverse shift pattern by relocating the Shift Rod to the opposite end of the
Shift Lever (See animation below). (NOTE: Shift pedal assembly comes in Black only)

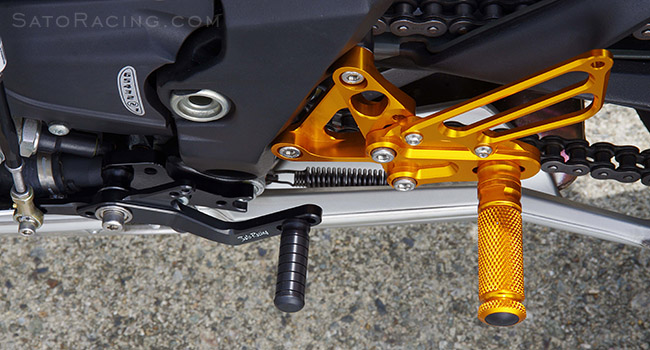

Sato Racing MV Agusta F3 Rear Sets [L]-side

Sato Racing MV Agusta F3 Rear Sets [L]-side
Relocate the Shift Rod to change the shift pattern.

Sato Racing MV Agusta F3 Rear Sets

BLACK	MV-F312RSQ-BK $780
SILVER w/ BLACK Shift Assembly	MV-F312RSQ-SV $780
GOLD w/ BLACK Shift Assembly	MV-F312RSQ-GD $780

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List

Most replacement parts for these Rear Sets
can be purchased in our Online Store:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	PEG COLLAR 12 (BK/ SV/ GD) (#19)	PEGCLR-12 $15
	HEX HEAD M8-40mm (#36, Foot Peg bolt)	HBT-M840 $2.00
	PEDAL TIP (DELRIN)	ST-001D18 $15
	BUTTON HEAD M6-20mm (#31, for Pedal Tip)	BBT-M620 $1.50
	[L] HEEL GUARD (BK/ SV/ GD) (#1)	HG-2L $50
	[R] HEEL GUARD (BK/ SV/ GD) (#2)	HG-2R $50
	BRAKE PEDAL (BK/ SV/ GD) (#9)	BPD-10 $62.50
	SHIFT ROD 80 (BLACK) (#11)	SRD-80-B $39
	BRAKE ROD 150 (BLACK) (#12)	SRD-150-B $39
	ROD END COLLAR 15 (#17)	RDED-CLR15 $8.00
	BEARING COLLAR 15-8 [BLACK] (#20)	PEGBGCLR-15SB $10.00
	SOCKET HEAD M6-16mm (#21)	SBT-M616 $2.00
	SOCKET HEAD M6-20mm (#22)	SBT-M620 $1.50
	SOCKET HEAD M6-35mm (#23)	SBT-M635 $1.75
	SOCKET HEAD M8-15mm (#24)	SBT-M815 $1.50
	SOCKET HEAD M8-20mm (#25)	SBT-M820 $1.50
	SOCKET HEAD M8-30mm (#26)	SBT-M830 $1.50
	SOCKET HEAD M8-35mm (#27)	SBT-M835 $2.00
	SOCKET HEAD M8-40mm (#28)	SBT-M840 $2.00
	SOCKET HEAD M10-35mm (P-1.25) (#29)	SBT-M1035 $4.50
	BUTTON HEAD M6-10mm (#30)	BBT-M610 $1.50
	BUTTON HEAD M6-30mm (#32)	BBT-M630 $1.50
	BUTTON HEAD M6-40mm (#33)	BBT-M640 $1.75
	BUTTON HEAD M8-25mm (#34)	BBT-M825 $1.50
	REVERSE STUD M6 (#37)	STUD-M6L $4.20
	SMALL WASHER - M8 (#38)	PWS-8 $1.00
	WASHER - M10 (#39)	WS-10 $1.00
	SPLIT WASHER M8 (40)	SWS-8 $1.20
	JAM NUT M6 (#41)	JNT-6 $1.75
	REVERSE JAM NUT M6 (#42)	JNT-6L $2.50
	LOCK NUT M6 (#43)	LNT-6 $1.50
	MALE ROD END M6 (#44)	RDED-M6 $12.50
	REVERSE MALE ROD END M6 (#45)	RDED-M6L $12.50
	REVERSE FEMALE ROD END M6 (#46)	RDED-F6L $15.00

For replacement parts not listed on our website, contact Sato Racing for an estimate.)
