MOTO GUZZI
V7 III '17-'20 / V7 850 '21-
REAR SETS
| SATO RACING
Rear Sets for 2017+ Moto Guzzi V7 III and V7 850 are precision machined from light-weight, high strength anodized billet aluminum in
a striking design that blends well with the classic style of the V7. The Rear Sets components are anodized in your choice of a deep Black or brilliant Silver (natural metal) finish. Choose from 3 adjustable foot peg positions
that bring your feet higher up and significantly rearward compared to stock, for a more aggressive riding position that is ideal for tackling the fast straights and steep lean angles encountered on the track. Provides a stock shift pattern. There are 2 different Rear Sets models: Part# MG-V717RS - fits 2017-20 V7 III Part# MG-V721RS - fits 2021+ V7 (850) |
| 1 | 137.5mm Back (5.4" Back) |
20mm Up (0.8" Up) |
| 2 | 137.5mm Back (5.4" Back) |
35mm Up (1.4" Up) |
| 3 | 150mm Back (5.9" Back) |
35mm Up (1.4" Up) |
All measurements are in relation to stock position (0 mm).
Note: The following photos show the V7 III Rear Sets. The model for V7 850 looks similar.

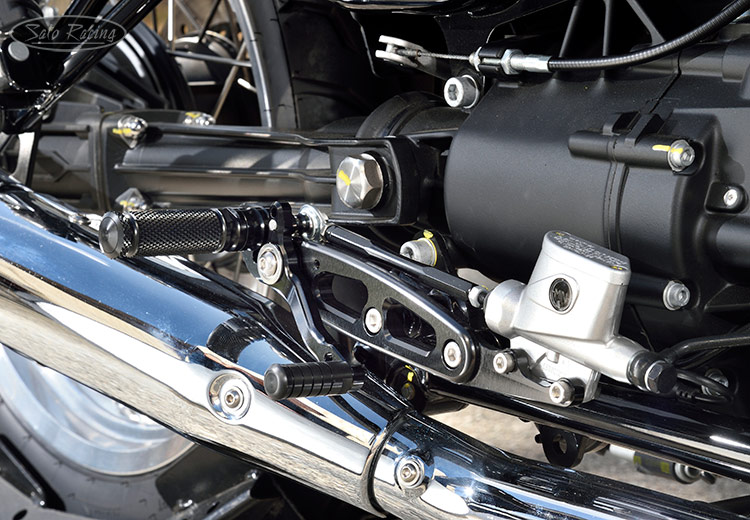

![SATO RACING Moto Guzzi V7 III Rear Sets [R]-side](pics/MG-V717RS-BK_fitR1.jpg "SATO RACING Moto Guzzi V7 III Rear Sets [R]-side")
|
The shift and brake pedals use miniature double stainless bearings for a solid feel and smooth, precise lever actuation. Although not pictured, a pressure-type brake light switch that attaches to the brake master cylinder is included with the kit. |

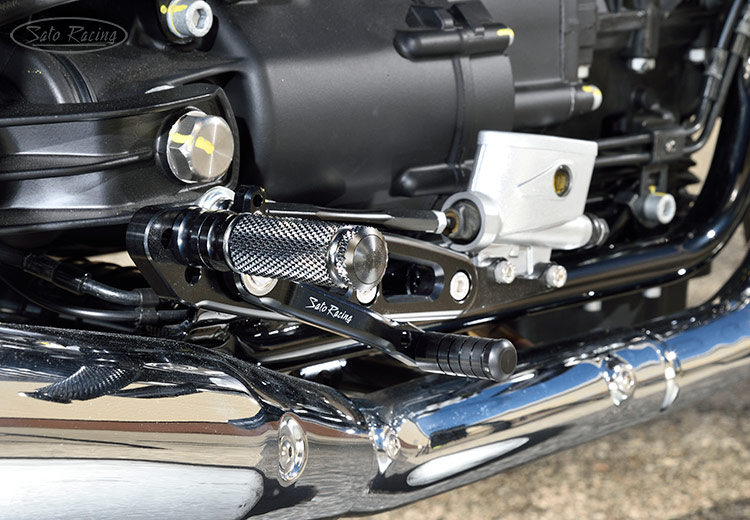

![SATO RACING Moto Guzzi V7 III Rear Sets [R]-side](pics/MG-V717RS-BK_fitR2.jpg "SATO RACING Moto Guzzi V7 III Rear Sets [R]-side")
| The Foot Pegs are our classic fixed-type pegs (non-folding) and feature a finely knurled pattern for excellent grip characteristics, along with a comfortable, intuitive feel. Foot Peg mounting position is adjustable 3 ways. Pedal tip (toe peg) position is also adjustable. The Foot Peg End Caps and the Pedal Tips are made of tough, abrasion-resistant black Delrin. |

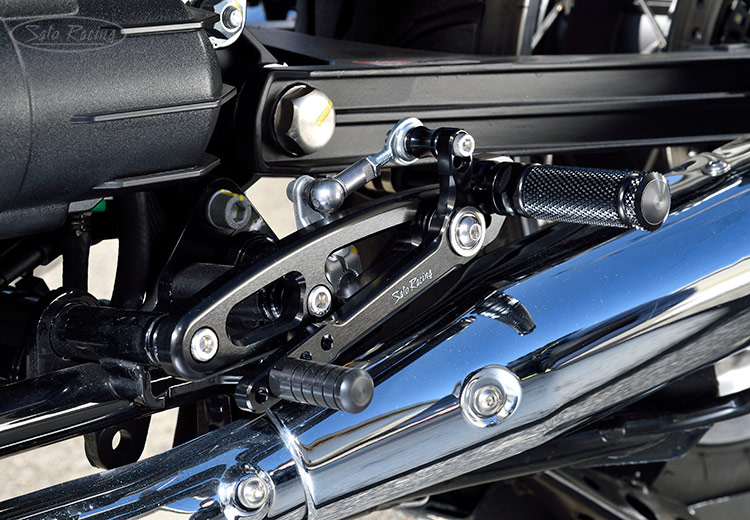

![SATO RACING Moto Guzzi V7 III Rear Sets [L]-side](pics/MG-V717RS-BK_fitL1.jpg "SATO RACING Moto Guzzi V7 III Rear Sets [L]-side")
| Our V7 III Rear Sets are positioned rearward compared to the stock foot rests, bringing your feet further back to make it easier to maintain a more 'tucked in' riding position. |

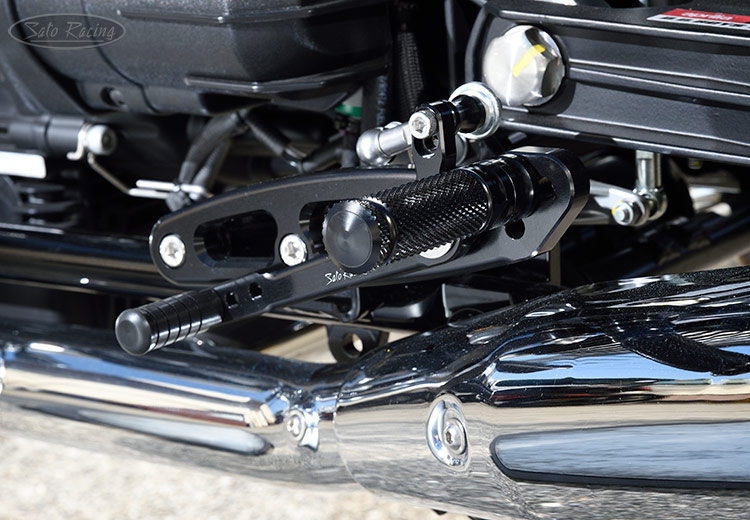

![SATO RACING Moto Guzzi V7 III Rear Sets [L]-side](pics/MG-V717RS-BK_fitL2.jpg "SATO RACING Moto Guzzi V7 III Rear Sets [L]-side")

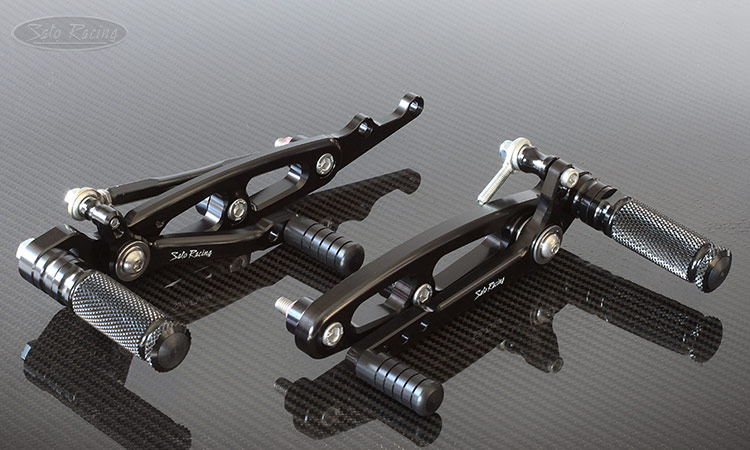

Rear Sets part# MG-V717RS-BK for the V7 III
V7 III '17-'20
| BLACK | MG-V717RS-BK $570 |
 |
| SILVER | MG-V717RS-SV $570 |
|
V7 850 '21- *
| BLACK | MG-V721RS-BK $570 |
|
| SILVER | MG-V721RS-SV $570 |
|
(P-1.0 Brake Light Switch is included in kit)
* NOTE: If you have a 2023+ V7 'Special Edition' with the Arrow exhaust,
check out our Rear Sets designed for that version.
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List (MG-V717RS)
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
HEX HEAD M8-45mm (Foot Peg bolt) |
HBT-M845 $2.00 |
|
 |
SPLIT WASHER M8 (#23) |
SWS-8 $1.20 |
|
 |
PEDAL TIP (DELRIN) |
ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-20mm (#13) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M8-30mm (#15) |
SBT-M830 $2.00 |
|
 |
BUTTON HEAD M8-25mm (#17) |
BBT-M825 $1.50 |
|
 |
REVERSE JAM NUT M6 (#20) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#21) |
LNT-6 $1.50 |
|
 |
PEG WASHER - M8 (#22) |
PWS-8 $1.00 |
|
 |
MALE ROD END M6 (#24) |
RDED-M6 $12.50 |
|
 |
M6 MALE REVERSE ROD END (#25) |
RDED-M6L $12.50 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
