SATO RACING | REAR SETS - Indian FTR 1200 '19-

INDIAN FTR 1200 ('19- )
REAR SETS

SATO RACING Rear Sets for Indian FTR 1200 features a track-engineered design, with components precision crafted out of light-weight, high strength anodized billet aluminum, with stainless steel hardware. Adjustable foot peg mount provides 2 unique positions in a useful range for performance riding. Choice of Black or Silver anodized finish.

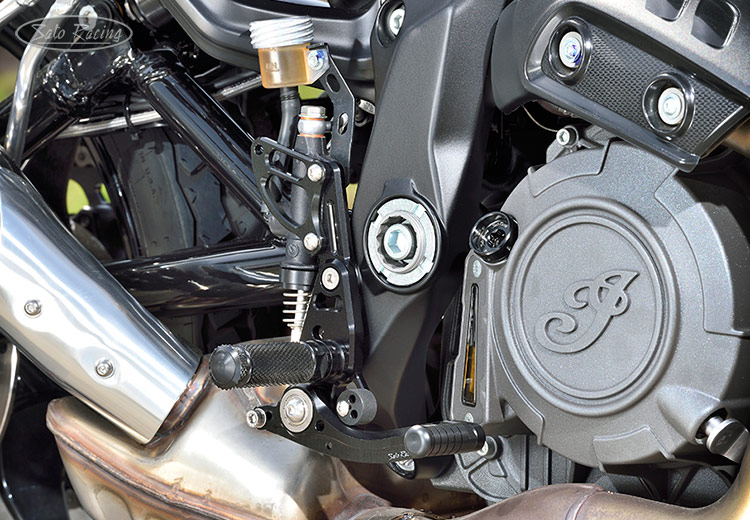

SATO RACING Indian FTR 1200 Rear Sets [R]-side
The shift and brake pedals utilize double miniature stainless bearings for smooth, precise lever actuation.

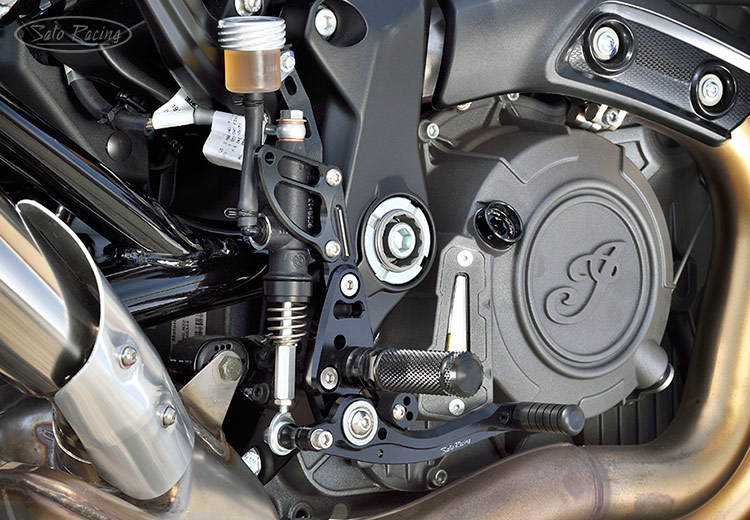

SATO RACING Indian FTR 1200 Rear Sets [R]-side
The positions of the Foot Peg and Pedal Tip are adjustable, so you can find the ideal position for
your riding style. These Rear Sets are compatible with the stock brake light switch and ABS.

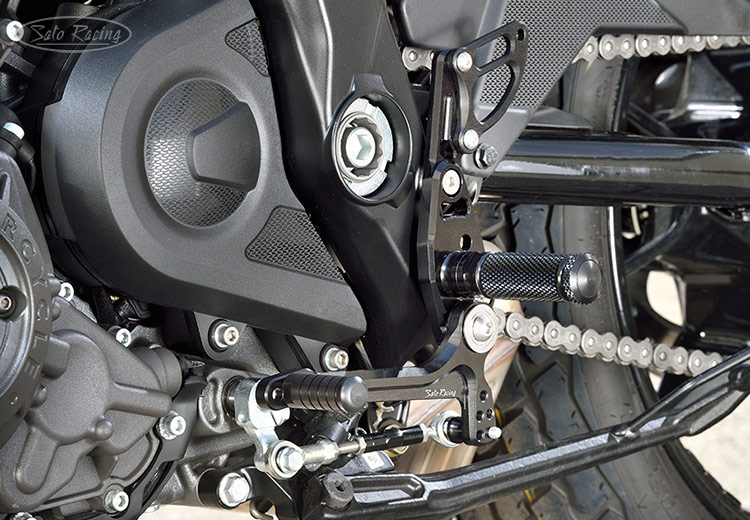

SATO RACING Indian FTR 1200 Rear Sets [L]-side
The shift linkage can be setup for stock shift pattern or reverse shift pattern.

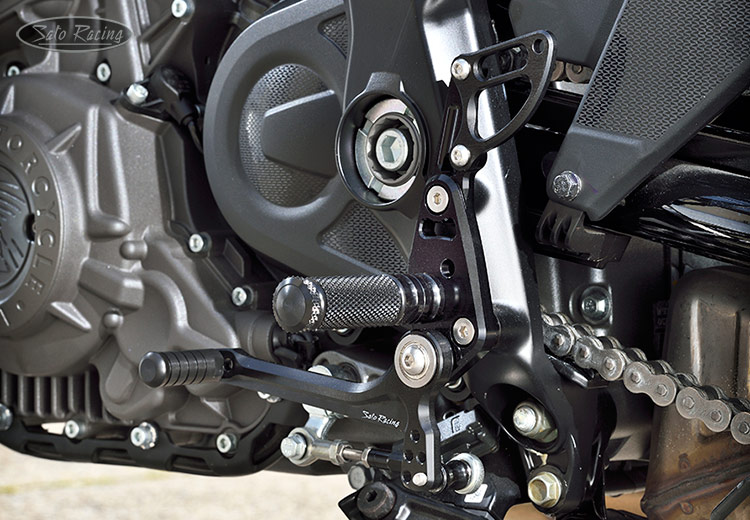

SATO RACING Indian FTR 1200 [L]-side
Foot Pegs are finely knurled for excellent grip characteristics and a comfortable, intuitive feel.

The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such
as aluminum Pedal Tips with fluted rubber sleeves, are an available option (See below).

BLACK	IN-FTRRS-BK $580
SILVER	IN-FTRRS-SV $580

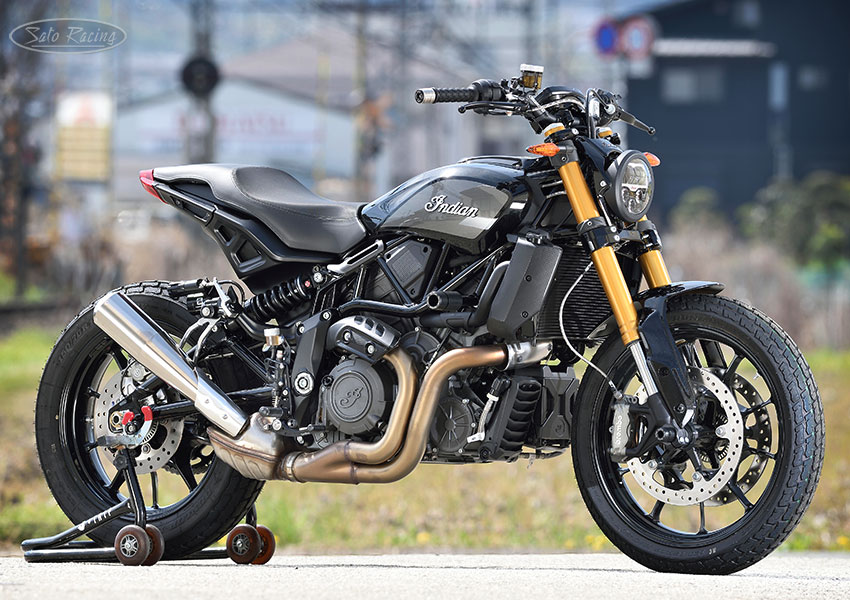

Indian FTR 1200 with SATO RACING Rear Sets, Sliders and other parts

OPTIONAL PARTS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list PDF: Parts List

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK/ SV)	PEG $42
	PEG COLLAR 15 (BK/ SV) (#17)	PEGCLR-15 $15
	FLAT HEAD M8 x 40mm (#24, Foot Peg bolt)	FBT-M840 $2.50
	PEDAL TIP (DELRIN)	ST-001D18 $15
	LOW SOCKET HEAD M6-20mm (for Pedal Tip)	LSBT-M620 $4.00
	SHIFT ROD 40 [BLACK] (#10)	SRD-40-B $35
	PEDAL STOPPER (DELRIN) (#12)	BPD-STOPPER $15.00
	BEARING COLLAR 5 [BLACK] (#13)	PEGBGCLR-5SB $10.00
	ROD END COLLAR 19 (#14)	RDED-CLR19 $8.00
	BUTTON HEAD M5-20mm (#18)	BBT-M520 $2.00
	BUTTON HEAD M6-10mm (#19)	BBT-M610 $1.50
	BUTTON HEAD M6-25mm (#20)	BBT-M625 $1.50
	BUTTON HEAD M8-25mm (#21)	BBT-M825 $1.50
	BUTTON HEAD M8-30mm (#22)	BBT-M830 $1.50
	SOCKET HEAD M6-45mm (#23)	SBT-M645 $2.00
	LOW SOCKET HEAD M8-20mm (#26)	LSBT-M820 $4.00
	HEX HEAD M6-40mm (#27)	HBT-M640 $2.50
	REBERSE STUD M6 x 45mm (#28)	STUD-M6L $4.20
	JAM NUT M6 (#29)	JNT-6 $1.75
	REVERSE JAM NUT M6 (#30)	JNT-6L $2.50
	LOCK NUT M6 (#31)	LNT-6 $1.50
	MALE ROD END M6 (#32)	RDED-M6 $12.50
	RETURN SPRING 40 (#33)	RS-RSP $8.00
	RETURN SPRING COLLAR (#34)	RS-RSCLR $12.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)

More Sato Racing items for FTR 1200
