DUCATI  SuperSport  ('17- )
REAR SETS

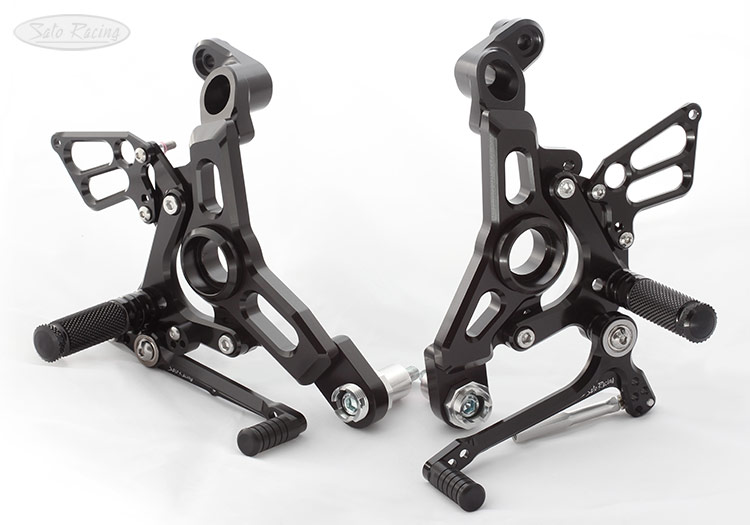

SATO RACING Rear Sets for 2017 and up Ducati SuperSport is a thoroughly track-engineered design, with all parts precision CNC-machined out of high strength anodized billet aluminum, and securely fastened together with stainless steel bolts. Modular adjustable design provides 4 unique Foot Peg positions, so you can find the ideal position for your riding style. This premium Rear Sets kit includes a set of heavy-duty black anodized billet aluminum mounting plates to replace the stock pivot cover hardware. Choice of all Black anodized finish, or Silver or Gold anodized finish with contrasting Black mounting plates.




POSITIONS

1 2.5mm Forward 27mm Up
2 12.5mm Back 27mm Up
3 5mm Back 39mm Up
4 20mm Back 39mm Up

note: all measurements are in relation to stock position (0 mm).


SATO RACING Ducati SuperSport '17- Rear Sets [R]-side

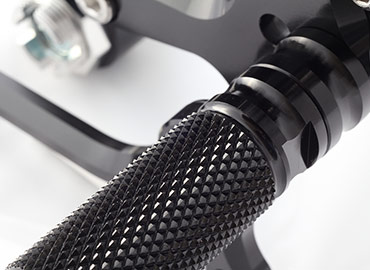

The Foot Pegs have a finely knurled pattern with excellent grip characteristics, along with a comfortable, intuitive feel. The Foot Peg position can be adjusted horizontally 2 ways on the Step Plate. Additionally, the Step Plate position can also be adjusted diagonally where it attaches to the Base Plate, for a total of 4 positions.

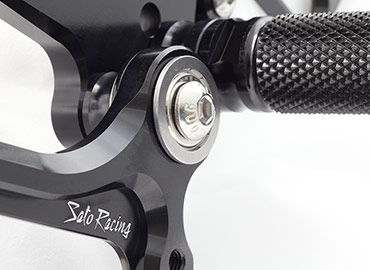

The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever action. For optimal control, the mounting points for the pedals are on a separate axis from the foot pegs.

The standard Pedal Tips are also adjustable, and are made of tough, abrasion-resistant Delrin. Additional Pedal Tip styles, such as our aluminum Pedal Tips with rubber grips, are available separately.

Rear Sets kit includes a hydraulic brake light switch.

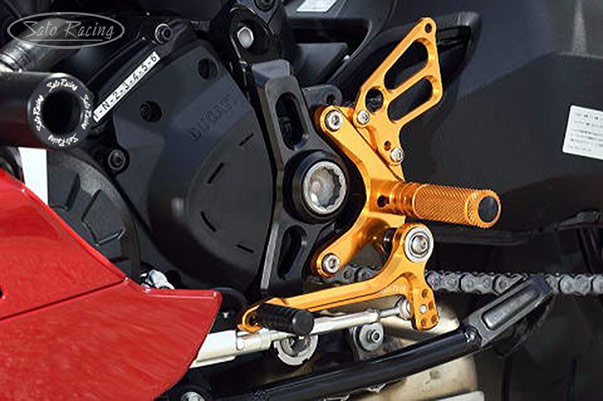

SATO RACING Ducati SuperSport '17- Rear Sets [L]-side

Shifter is optimized for use with the OEM shifter switch, providing a stock shift pattern. (Reverse / GP shift pattern is not an option for this model).



BLACK D-SS17RS-BK
$1150

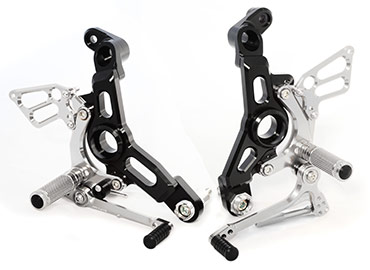

SILVER
w/ Black Base Plates
D-SS17RS-SV
$1150

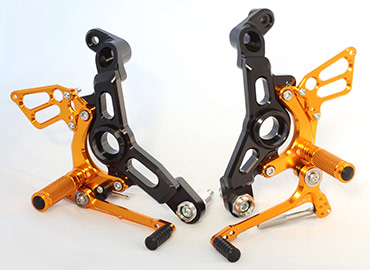

GOLD
w/ Black Base Plates
D-SS17RS-GD
$1150


Click Here for important info about Sato color-anodized parts.






OPTIONS



Race Concept
Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

* Click Here for important info about Sato color-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)









PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)
