DUCATI STREETFIGHTER V4
REAR SETS

SATO RACING Rear Sets for 2020+ Ducati Streetfighter V4 features a track engineered, competition-ready design, with components precision machined out of light-weight, high strength anodized billet aluminum, with stainless steel bolts and hardware. Modular adjustable design provides 3 unique foot peg positions forward and up compared to stock, so you can find the ideal position for your riding style. It can be set up for either stock shift or reverse (GP style) shift pattern, and is fully compatible with the stock quick-shifter and ABS. Choice of Black, Silver or Gold anodized finish.

POSITIONS

1	20mm Forward	15mm Up
2	8mm Forward	15mm Up
3	8mm Forward	27mm Up

note: all measurements are in relation to stock position (0 mm).

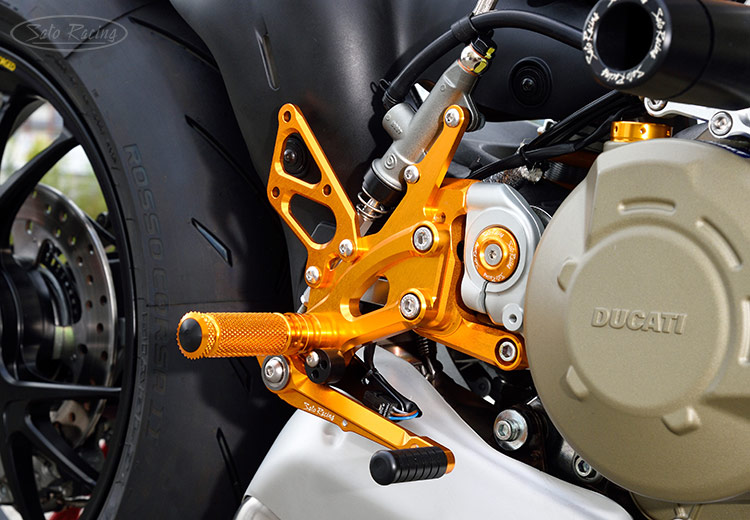

SATO RACING Ducati Streetfighter V4 Rear Sets [R]-side
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever action.

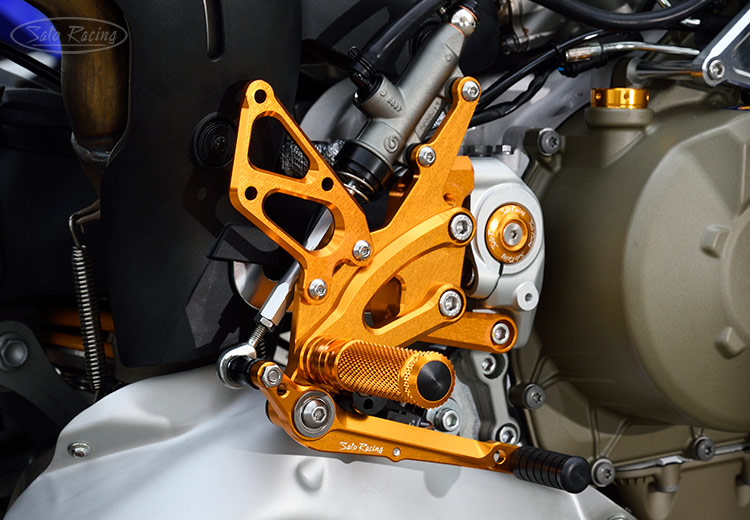

SATO RACING Ducati Streetfighter V4 Rear Sets [R]-side
The Base Plate provides 3 adjustable positions for mounting the rear set assembly. The Foot Pegs are our classic
fixed type (non-folding) pegs, and have a knurled pattern for great grip, along with a comfortable, intuitive feel.

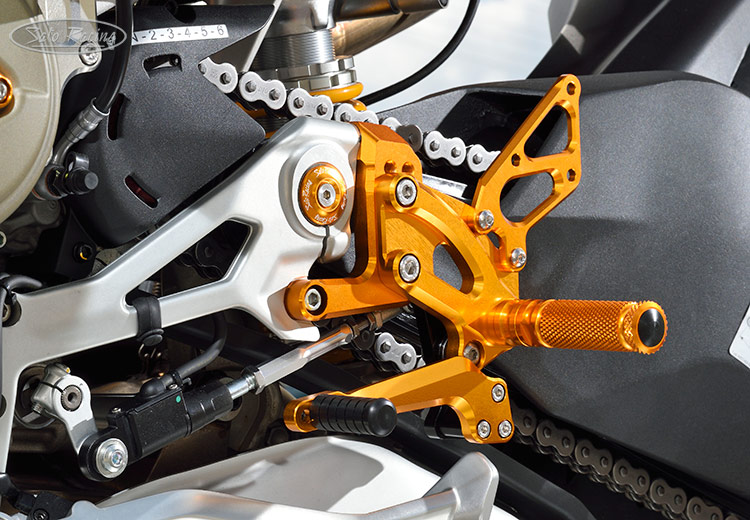

SATO RACING Ducati Streetfighter V4 Rear Sets [L]-side
Our Rear Sets are fully compatible with the OEM quickshifter components - no mods required.

The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as
aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details

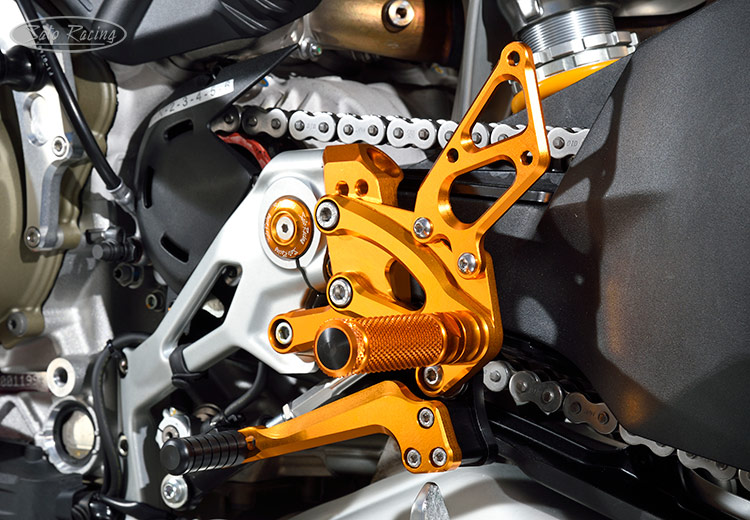

SATO RACING Ducati Streetfighter V4 Rear Sets [L]-side
The shift and brake pedals are mounted on a separate axis from the Foot Peg. This
helps to maximize leverage, while also increasing the rigidity of the Foot Peg.

BLACK	D-SFV4RS-BK $875
SILVER	D-SFV4RS-SV $875
GOLD	D-SFV4RS-GD $875

Click Here for important info about Sato color-anodized parts.

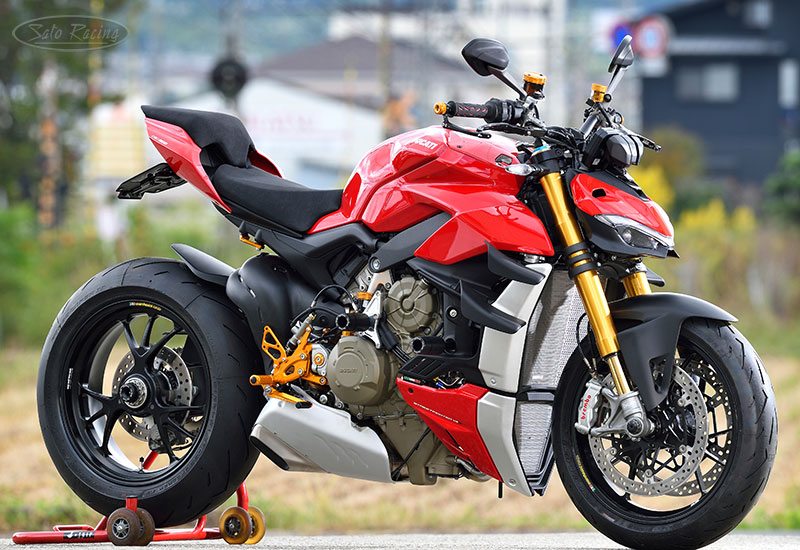

2020 Ducati Streetfighter V4 with SATO RACING Rear Sets, Sliders and other parts

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45
