DUCATI DIAVEL 1260
REAR SETS

SATO RACING Rear Sets for 2019-22 Ducati Diavel 1260 features a track-engineered design, with components precision CNC-machined out of light-weight, high strength anodized billet aluminum, with stainless steel bolts and hardware. Modular adjustable design provides 4 unique foot peg positions higher up and significantly further back compared to stock, to help put your body in a more intuitive position for performance riding. Choice of Black, Silver or Gold anodized finish.

2 versions of these Rear Sets are available: For the standard shift linkage and for Diavels equipped with the OEM quick-shifter.

POSITIONS

1 110mm Back 5mm Up
2 110mm Back 20mm Up
3 122.5mm Back 12.5mm Up
4 122.5mm Back 27.5mm Up

note: all measurements are in relation to stock position (0 mm).

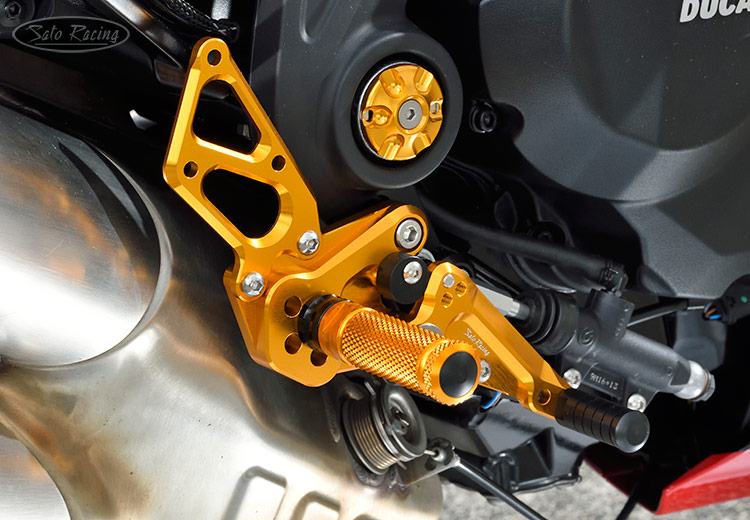

SATO RACING Ducati Diavel 1260 Rear Sets [R]-side
The shift and brake pedals use double miniature stainless bearings for smooth, precise lever actuation.
NOTE: The matching Frame Caps shown in these photos are available separately.

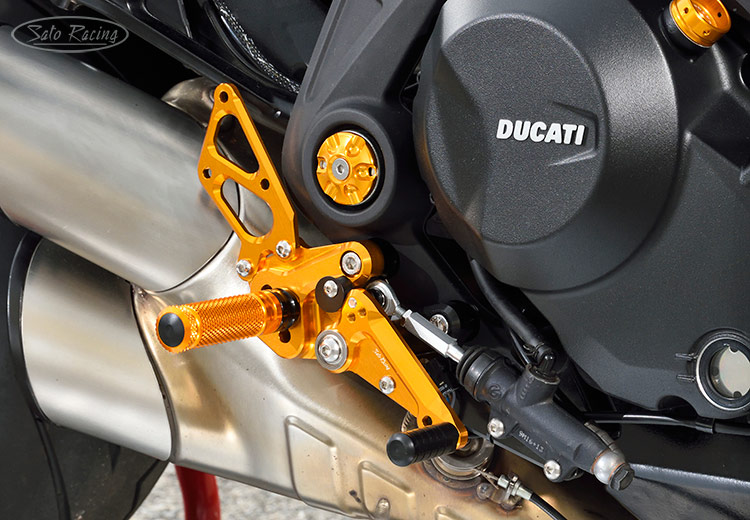

SATO RACING Ducati Diavel 1260 Rear Sets [R]-side
Provides 4 adjustable peg positions. The Foot Pegs are our classic fixed type (non-folding)
pegs, and have a knurled pattern for great grip, along with a comfortable, intuitive feel.

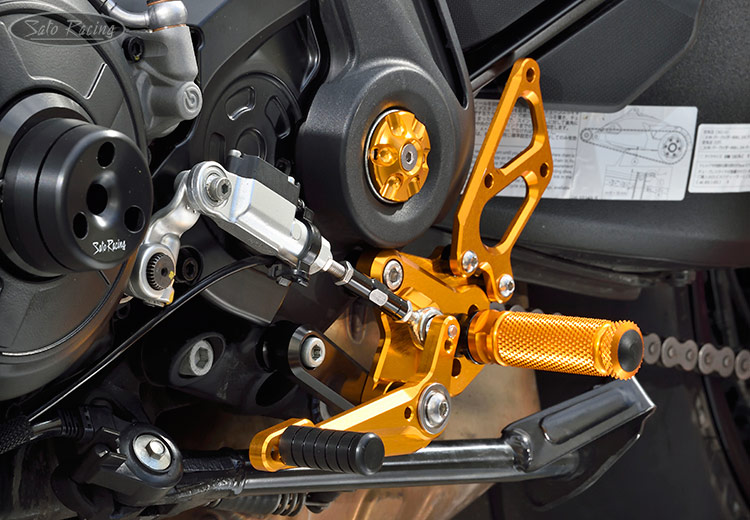

SATO RACING Ducati Diavel 1260 Rear Sets [L]-side
DQS / Ducati quickshifter-compatible version (part# D-DL1260RSQ) is shown above.

The standard Pedal Tips are made of tough black Delrin. Additional Pedal Tip styles, such
as aluminum Pedal Tips with fluted rubber sleeves, are an available option:  More Details

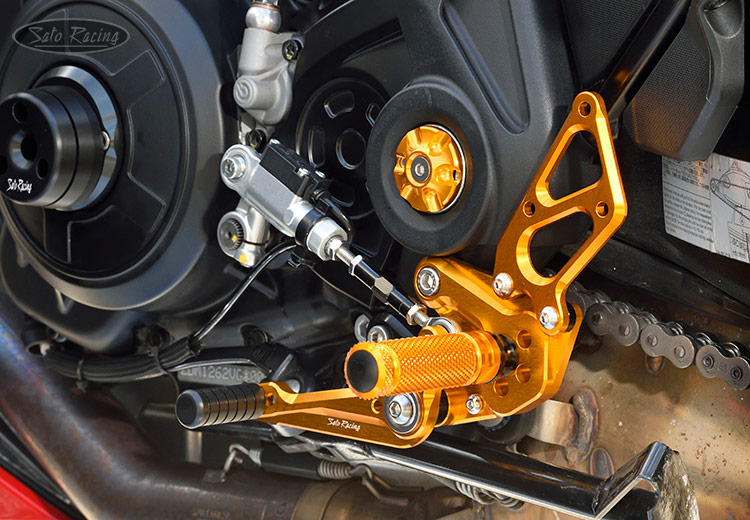

SATO RACING Ducati Diavel 1260 Rear Sets [L]-side

SATO RACING Ducati Diavel 1260 Rear Sets in Black
Rear Sets kit in Black anodized finish





For standard shifter

BLACK D-DL1260RS-BK
$715
SILVER D-DL1260RS-SV
$715
GOLD D-DL1260RS-GD
$715


For Ducati Quickshifter

BLACK D-DL1260RSQ-BK
$715
SILVER D-DL1260RSQ-SV
$715
GOLD D-DL1260RSQ-GD
$715



* Click Here for important info about Sato color-anodized parts.

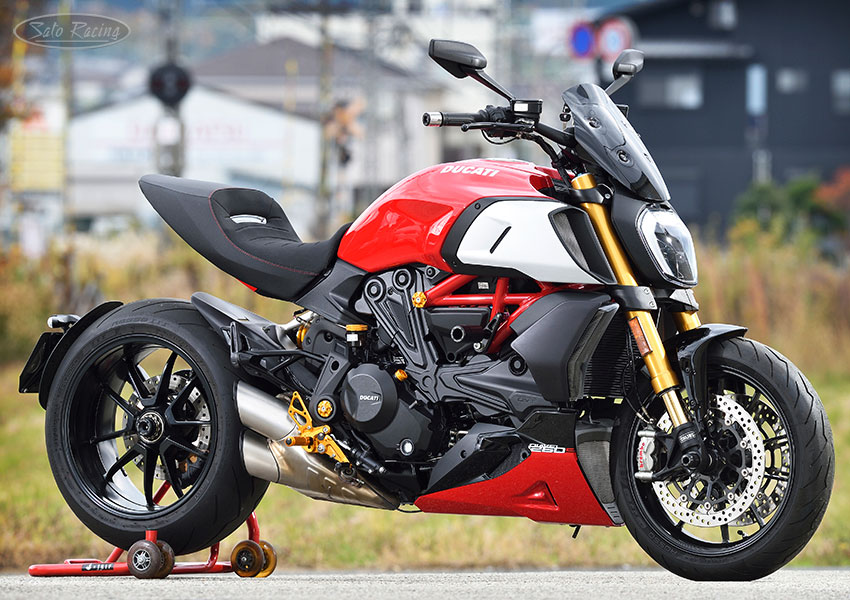

Ducati Diavel 1260 with SATO RACING Rear Sets, Sliders and other parts



_________________________________________________________

OPTIONS

_________________________________________________________




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)




------------------------------------------------------------------------------------------



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



_________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list diagram included with your SATO RACING Rear Sets.

Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG
(BK/ SV/ GD)
PEG
$42
STUD BOLT M8-50mm
(Peg bolt)
STBT-50
$4.50
PEDAL TIP (DELRIN) ST-001D18
$15
LSBT-M620 LOW SOCKET HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)


------------------------------------------------------------------------------------------
