SATO RACING | Rear Sets - BMW R1200 R1250 R/RS ('15-'23)

BMW R1200 R/ RS '15-'18 / R1250 R/ RS '19-'23
REAR SETS

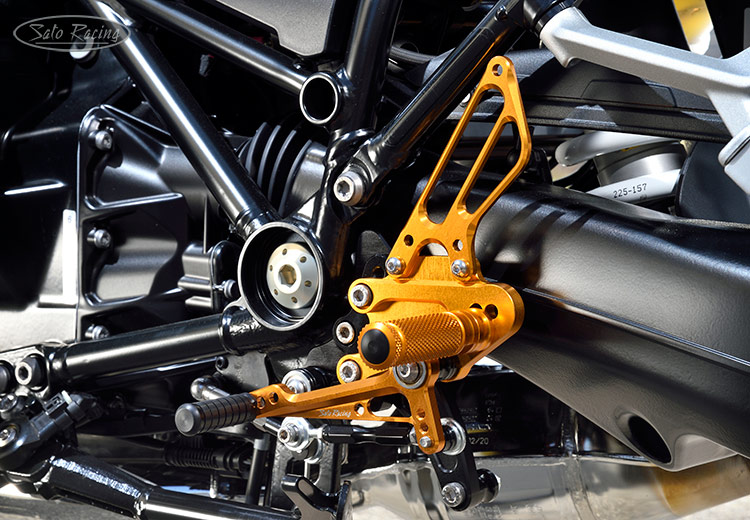

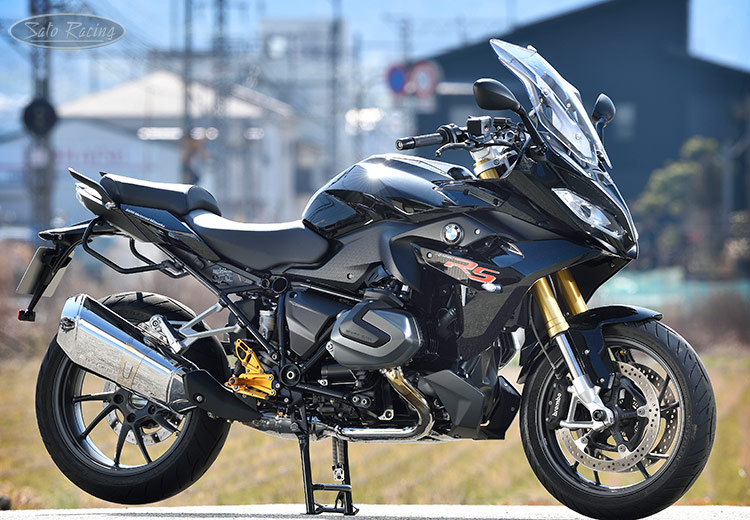

BMW R1250RS with SATO RACING Rear Sets - [R]-side

SATO RACING Rear Sets for BMW R1200 / R1250 R/ RS features an extensively track-tested design, with components precision crafted out of light-weight, high strength anodized billet aluminum, with stainless steel hardware. Adjustable Step Plates and Foot Pegs give you 6 positions in a useful range for performance riding. Choice of all-Black anodized finish, or Silver or Gold anodized finish with black base plates.

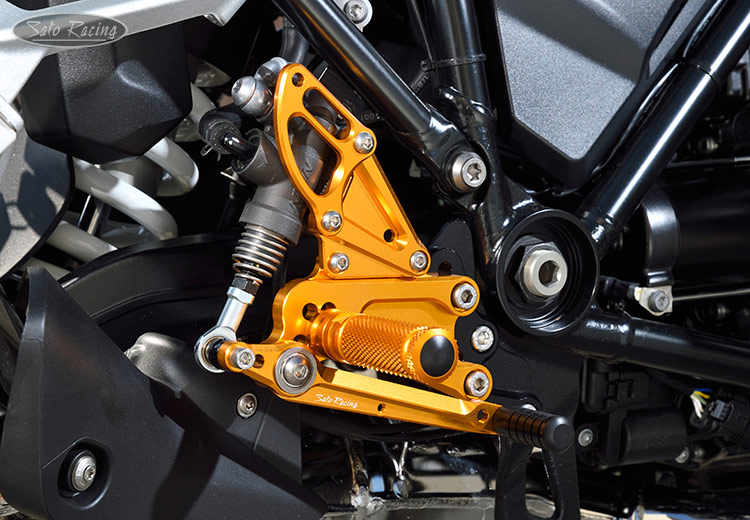

BMW R1250RS with SATO RACING Rear Sets - [R]-side

The shift linkage and brake pedal have dual miniature stainless bearings for smooth, precise lever actuation with a solid feel. Peg position is adjustable 3 ways on the Step Plate, while the Step Plate can be adjusted vertically where it attaches to the Base Plate.

POSITIONS

1	40mm Back	18mm Up
2	40mm Back	28mm Up
3	50mm Back	28mm Up
4	42.5mm Back	30mm Up
5	42.5mm Back	40mm Up
6	52.5mm Back	40mm Up

note: all measurements are in relation to the stock
footpeg position on an R1250RS (0 mm).

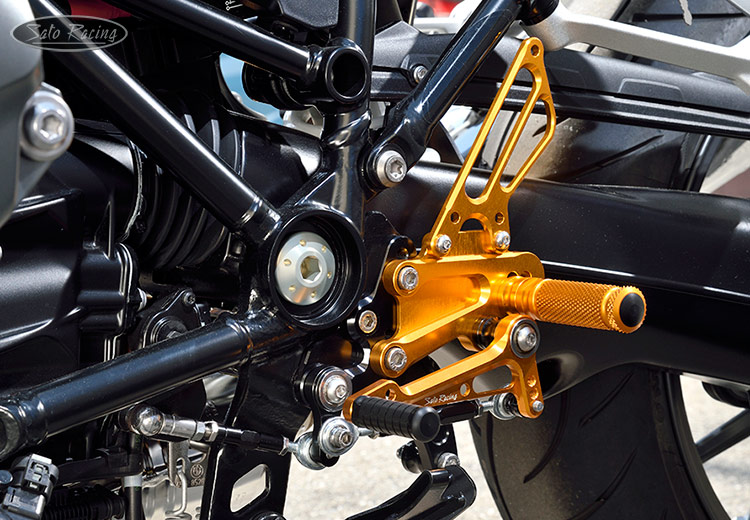

BMW R1250RS with SATO RACING Rear Sets - [L]-side

Shift linkage design provides a stock shift pattern. (Reverse shift is not an option with this model.)

BMW R1250RS with SATO RACING Rear Sets - [L]-side

Compatible with the stock side stand in all positions. Includes an integrated stopper for the center stand.

BMW R1250RS with SATO RACING Rear Sets - [L]-side

BMW R1250RS with SATO RACING Rear Sets - [R]-side

BLACK	BMW-R1250RS-BK $635
SILVER	BMW-R1250RS-SV $635
GOLD	BMW-R1250RS-GD $635

Click Here for important info about Sato color-anodized parts.

If you have a 2015-18 R1200 R / RS, also check out our original design Rear Sets for those models (part# BMW-R12RS), which features an alternate Base Plate design that provides a different range of positions.

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $52
	SILVER	RCPEG-SV $52
	GOLD	RCPEG-GD $52

* Click Here for important info about Sato color-anodized parts.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 5 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
