BMW R1200R/RS ('15-'18)
REAR SETS

SATO RACING Rear Sets for 2015-18 BMW R1200R/RS are made of high strength billet aluminum with your choice of Black anodized finish, or Silver or Gold anodized finish with contrasting Black base plates. Double stainless bearings in the shift and brake pedals help ensure the smooth, precise pedal operation with a solid feel. Adjustable step plates and foot pegs give you a choice of 6* unique positions that place your feet higher up and further back compared to stock, for a sportier, more aggressive riding position.

POSITIONS

1 * 47.5mm Back 22mm Up
2 * 47.5mm Back 32mm Up
3 * 57.5mm Back 32mm Up
4 52.5mm Back 44mm Up
5 52.5mm Back 54mm Up
6 62.5mm Back 54mm Up

Note: all measurements are in relation to stock position (0 mm).

* On 2015-16 models, Positions 1-3 may require adjusting the shift pedal position so it sits higher at the tip in order to avoid interference with the side stand during shifts. On 2017+ models, only positions 4, 5, and 6 can be used with the side stand in place.

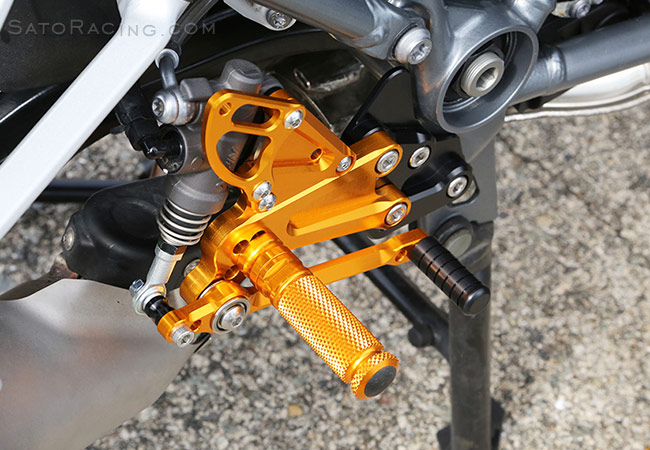

'15 BMW R1200R with SATO RACING Rear Sets [R]-side
The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.

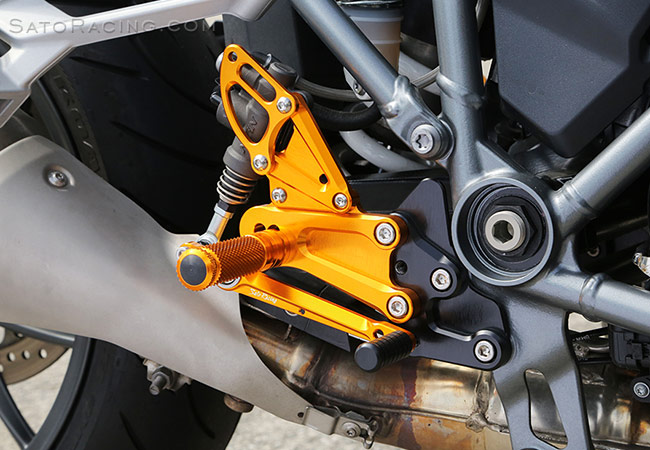

'15 BMW R1200R with SATO RACING Rear Sets [R]-side
These Rear Sets provide a wide range of adjustable positions so you
can find the ideal position for your riding style.

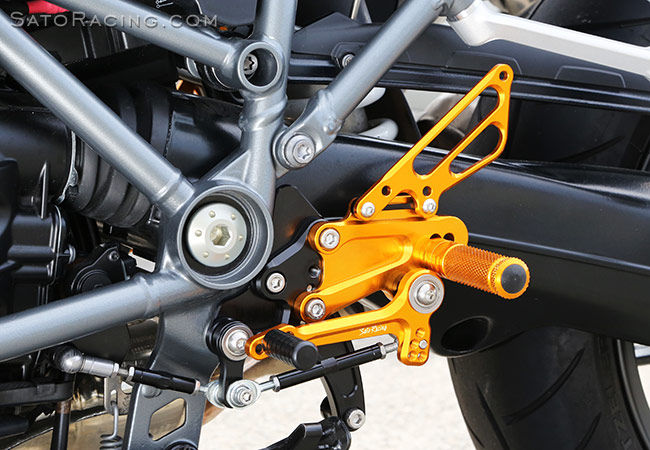

'15 BMW R1200R with SATO RACING Rear Sets [L]-side
Multiple adjustment holes on the shift pedal let you fine tune the shift stroke.
These Rear Sets provide a standard (stock) shifting pattern only.

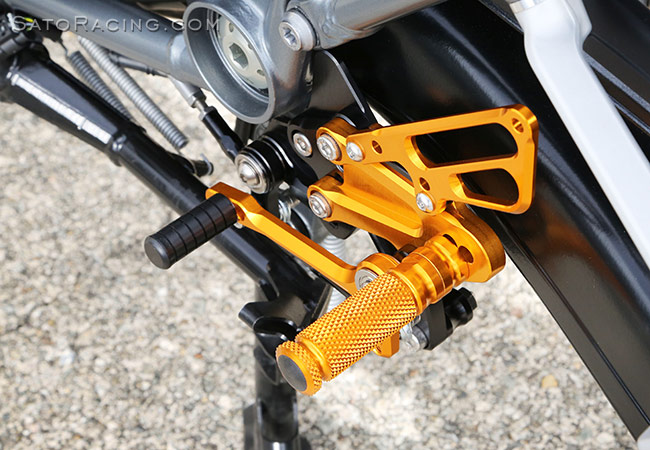

'15 BMW R1200R with SATO RACING Rear Sets [L]-side
The Foot Pegs feature a finely knurled pattern for excellent grip and feel.

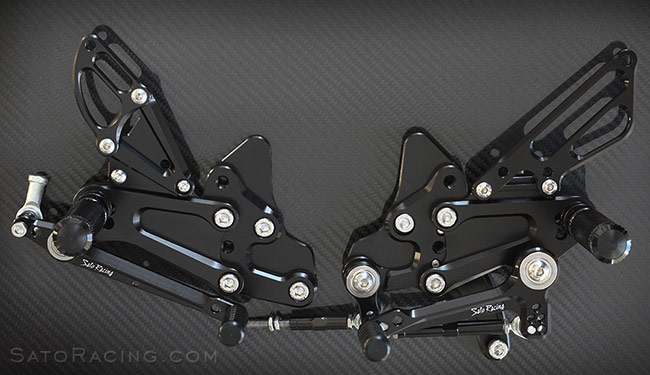

BLACK BMW-R12RS-BK
$635
SILVER
w/ BLACK base plates		 BMW-R12RS-SV
$635
GOLD
w/ BLACK base plates		 BMW-R12RS-GD
$635

* Click Here for important info about Sato color-anodized parts.

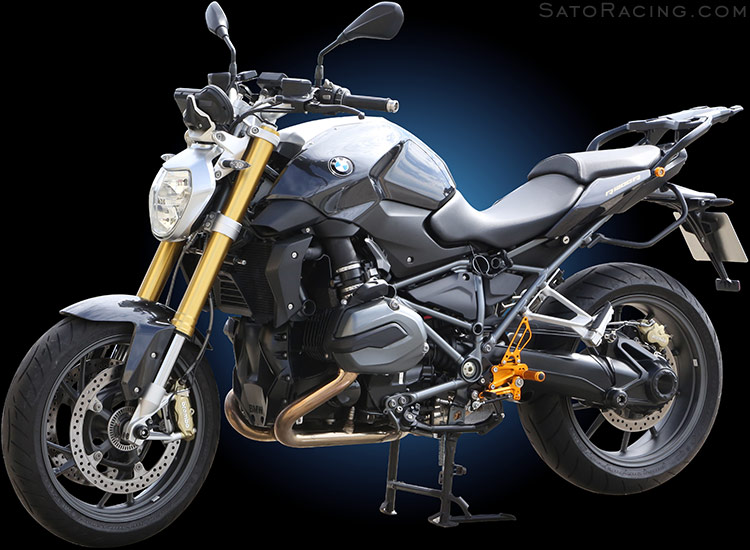

'15 BMW R1200R with SATO RACING Rear Sets




OPTIONS



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

* Click Here for important info about Sato color-anodized parts.




------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]		 TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:  Parts List

More Sato Racing items for BMW R1200R/ RS

Pedal Tips Axle Sliders Cap
