HONDA CBR650F / CB650F ('14-'18) /
CBR650R / CB650R
('19)
REAR SETS

SATO RACING Rear Sets for 2014-18 Honda CBR650F / CB650F and 2019 CBR650R / CB650R features a track-engineered design, with parts precision CNC-machined out of high strength billet aluminum and anodized in your choice of all Black, or Silver or Gold w/ contrasting Black anodized base plates and levers. Modular adjustable design lets you select from 6 foot peg positions that bring your feet up to 50mm higher and 42.5mm further back compared to stock, for a sportier, more aggressive riding position ideal for the fast straights and steep lean angles encountered on the track. ABS-compatible.

3 versions of these Rear Sets are now available:

Part# H-650RS fits all models with the standard shift linkage (no quickshifter).

Part# H-65019SRS fits 2019-21 CBR650R and 2019 CB650R* equipped with the optional Honda quickshifter, providing a stock shifting pattern.

Part# H-65019RSR fits 2019-21 CBR650R and 2019 CB650R* with the optional Honda quickshifter, providing a GP-style reverse shift pattern.

*
We will be getting an updated model for the 2021 CB650R soon.


POSITIONS

1 22.5mm Back
(0.9" Back)
50mm Up
(2" Up)
2 32.5mm Back
(1.3" Back)
50mm Up
(2" Up)
3 42.5mm Back
(1.7" Back)
50mm Up
(2" Up)
4 20mm Back
(0.8" Back)
38mm Up
(1.5" Up)
5 30mm Back
(1.2" Back)
38mm Up
(1.5" Up)
6 40mm Back
(1.6" Back)
38mm Up
(1.5" Up)

note: all measurements are in relation to stock position on a CBR650F (0 mm).

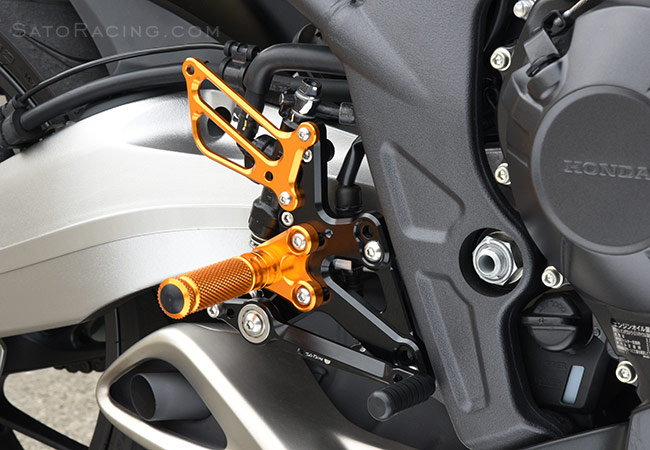

SATO RACING Rear Sets R-side for Honda CBR650F / CB650F / CBR650R
The positions of the base plate, step plate and pedal tip can each be adjusted to your
preference. These Rear Sets are designed for use with the stock brake light pull switch.

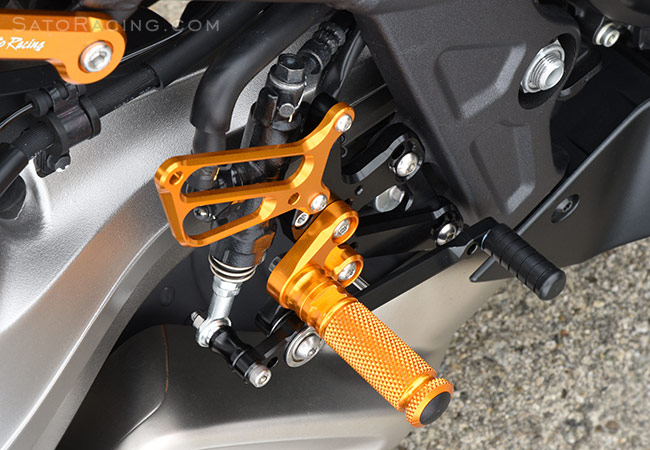

SATO RACING Rear Sets R-side for Honda CBR650F / CB650F / CBR650R
Footpegs feature a finely knurled grip pattern with excellent non-slip characteristics.

The standard Pedal Tips are made of tough, abrasion-resistant Delrin plastic. Additional styles
of Pedal Tips, such as aluminum Pedal Tips with rubber grips, are also available.

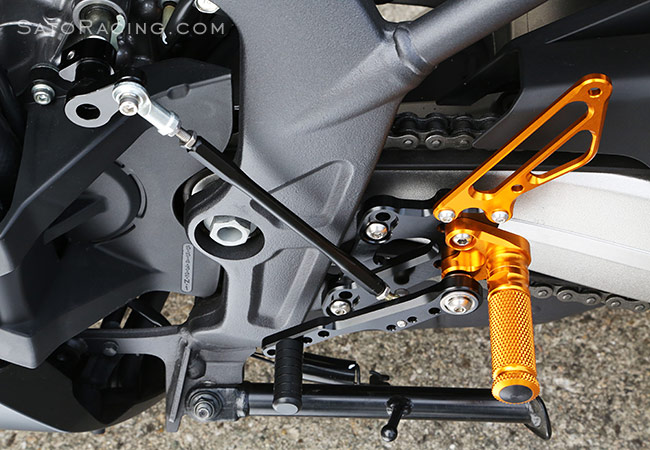

SATO RACING Rear Sets L-side for Honda CBR650F / CB650F / CBR650R
Part# H-650RS-GD shown in the photo above. The shift and brake pedals incorporate
miniature double stainless bearings for smooth, precise lever action with a solid feel.

SATO RACING Rear Sets L-side for Honda CBR650F / CB650F / CBR650R
On Rear Sets part# H-650RS, you can switch from stock shift pattern to
reverse (GP-style) shift pattern by changing the angle of the shift arm.

SATO RACING Rear Sets for Honda 2019 CBR650R
Part# H-65019RS-GD shown installed on a 2019 CBR650R equipped with the
Honda genuine quickshifter. This setup provides a dedicated stock shift pattern.

SATO RACING Reverse Shift Rear Sets for Honda 2019 CBR650R
Part# H-65019RSR-GD shown installed on a 2019 CBR650R equipped with the Honda
quickshifter. This setup gives it a Reverse / GP Shift pattern. This dedicated 'Reverse
Shift' version Rear Sets has a color-matched shifter and brake lever instead of Black.


Part# H-650RS-BK



Part# H-650RS
(for 2014-19 models with the standard shifter)

BLACK H-650RS-BK
$540
SILVER
w/ Black base plates / levers
H-650RS-SV
$540
GOLD *
w/ Black base plates / levers
H-650RS-GD
$540


Part# H-65019RS - Standard Shift Rear Sets for models
equipped with the optional Honda quickshifter.

BLACK H-65019SRS-BK
$545
SILVER
w/ Black base plates / levers
H-65019SRS-SV
$545
GOLD *
w/ Black base plates / levers
H-65019SRS-GD
$545


Part# H-65019RSR - Reverse Shift Rear Sets for models
equipped with the optional Honda quickshifter.

BLACK H-65019RSR-BK
$555
SILVER
w/ Black base plates
H-65019RSR-SV
$555
GOLD *
w/ Black base plates
H-65019RSR-GD
$555


* Click Here for important info about Sato GOLD-anodized parts.



2019 Honda CB650R with Rear Sets part# H-650RS-GD


2015 Honda CBR650F with Rear Sets part# H-650RS-GD



OPTIONS




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD * RCPEG-GD
$48

* Click Here for important info about Sato GOLD-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)





REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
H-650RS Parts List


Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG [BLACK] PEG-BK
$38
FOOT PEG [SILVER] PEG-SV
$38
FOOT PEG [GOLD] PEG-GD
$38
SHIFT ROD 170 [BLACK]
(#8)
SRD-170-B
$35
PEDAL TIP (DELRIN)
(original style)
ST-001D
$15
PEDAL TIP (DELRIN)
(New style w/ notch at base)
ST-001D18
$15
ROD END COLLAR 19
(#13)
RDEDCLR-19
$8.00
PEG COLLAR 12 [BLACK]
(#15)
PEGCLR-12B
$15
PEG COLLAR 12 [SILVER]
(#15)
PEGCLR-12S
$15
PEG COLLAR 12 [GOLD]
(#15)
PEGCLR-12G
$15
PEG WASHER - M8
(#16)
PWS-8
$1.00
SPLIT WASHER M8
(#17, for peg bolt)
SWS-8
$1.20
HEX HEAD M8-40mm
(#20, Foot Peg bolt)
HBT-M840
$2.00
SOCKET HEAD M6-15mm
(#22)
SBT-M615
$1.50
SOCKET HEAD M6-18mm
(#23)
SBT-M618
$1.50
SOCKET HEAD M6-45mm
(#24)
SBT-M645
$2.00
BUTTON HEAD M6-10mm
(#26)
BBT-M610
$1.50
BUTTON HEAD M6-20mm
(#27, for Pedal Tip)
BBT-M620
$1.50
BUTTON HEAD M8-15mm
#28
BBT-M815
$1.50
BUTTON HEAD M8-20mm
#29
BBT-M820
$1.50
BUTTON HEAD M8-25mm
#30
BBT-M825
$1.50
BUTTON HEAD M8-40mm
(#31)
BBT-M840
$2.00
STUD M6
(#32)
STUD-M6
$2.50
JAM NUT M6
(#34)
JNT-6
$1.75
REVERSE JAM NUT M6
(#35)
JNT-6L
$2.50
LOCK NUT M6
(#36)
LNT-6
$1.50
M6 MALE
REVERSE ROD END

(#37)
RDED-M6L
$12.50
FEMALE ROD END M6
(#38)
RDED-F6
$15
FEMALE ROD END 6-M8
(#39)
RDED-F6-8
$25
RETURN SPRING 40
(#40)
RS-RSP
$8.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
